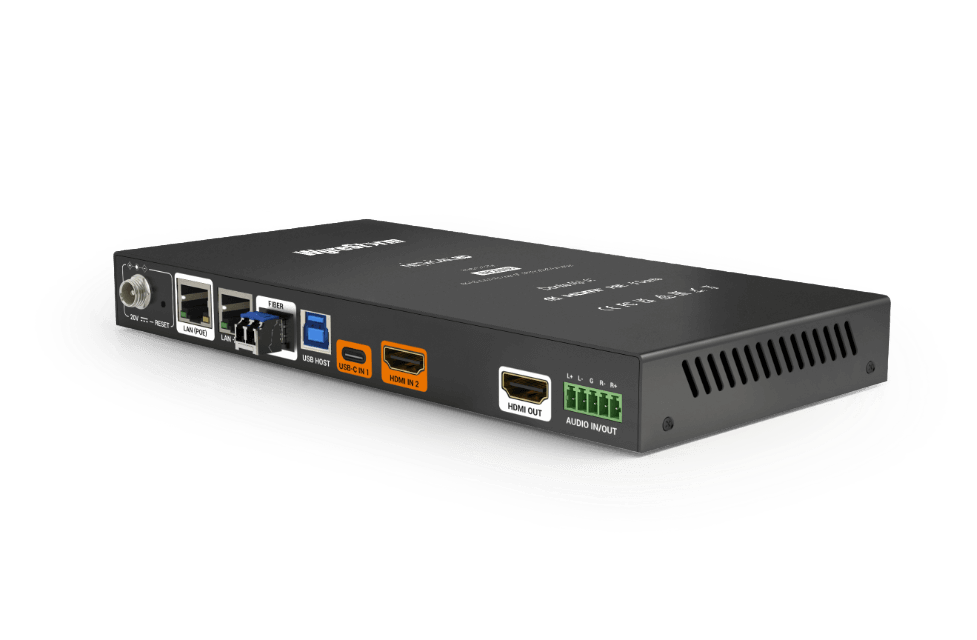

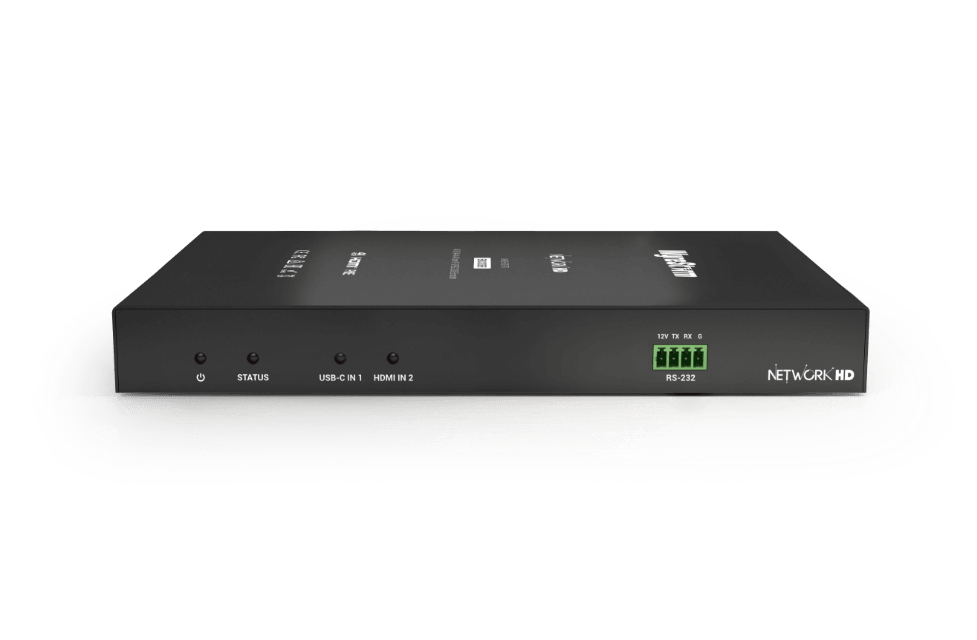

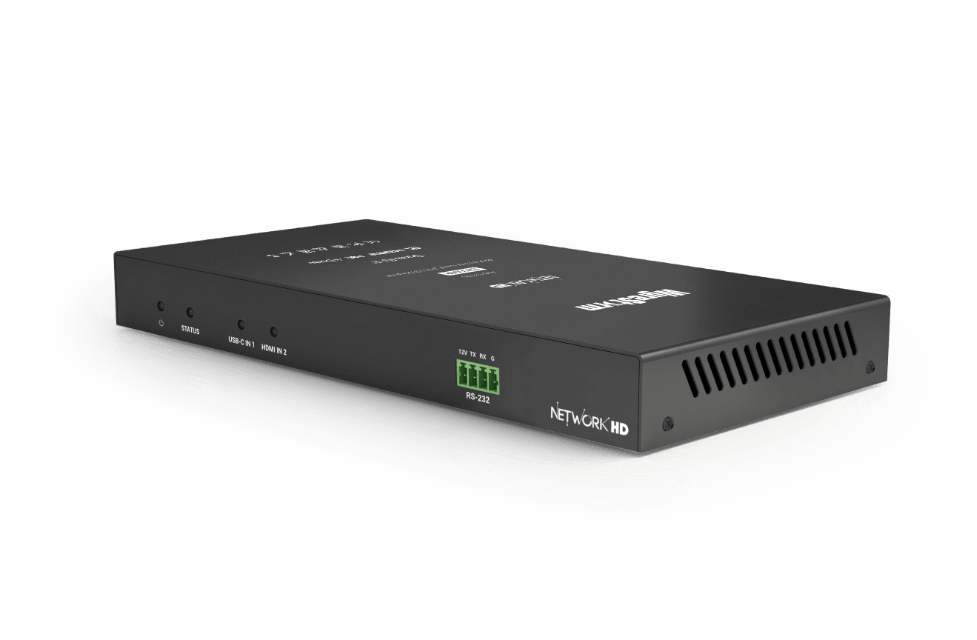

WyreStorm NHD-510-TX 4K60 JPEG2000 AV over IP Encoder with USB-C
WyreStorm NHD-510-TX is a 4K60 AV over IP encoder with HDMI, USB-C, Dante AV-A, ultra-low latency, and fiber support. Ideal for meeting rooms, campuses, and control rooms.
| Marka | WyreStorm |
|---|---|
| Model | NHD-510-TX |

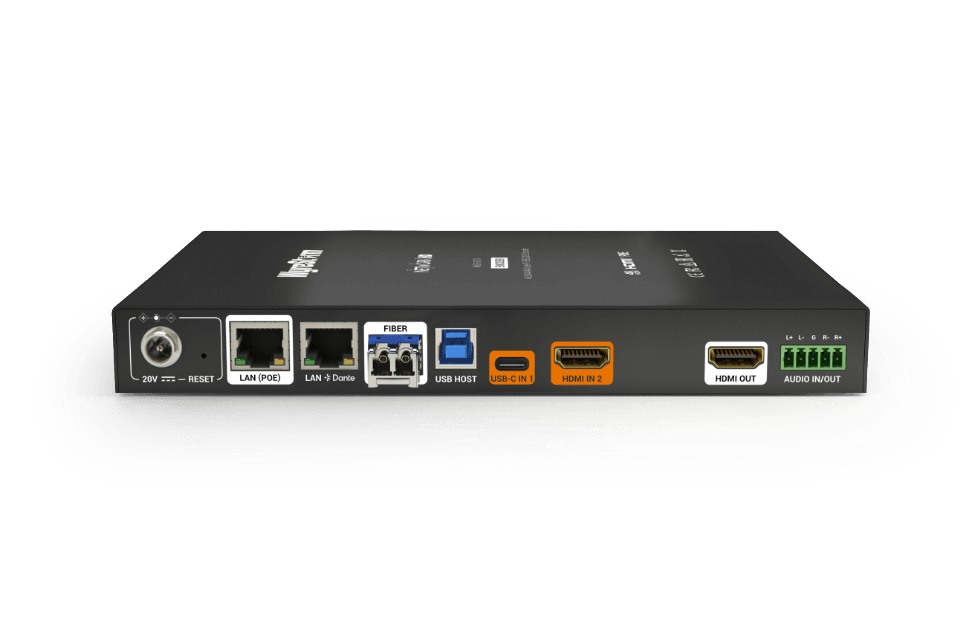

| Inputs/Outputs | 1x HDMI In 1x USB-C in 1x HDMI loop out 1 x 5-pin Balanced Analog /InOut (de-embed from active input) |
| Maximum Pixel Clock | 600Mhz |
| Max Video Resolutions | 5120x2160p@50/60Hz 4:2:0 CVT 5120x1440p@50/60Hz 4:2:0 CVT 4096x2160p @ 60Hz 8bit 4:4:4 or RGB 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision 3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG 1920x1080p @60Hz 12bit |
| Output Video Encoding | JPEG 2000 |
| Encoding Data Rate | Max: 850Mbps (configurable) |
| Stream Preview | Up to 720P preview stream. |
| End to End Latency | 4ms video latency @4K60 (pass-through mode) |
| Supported Standards | RGB, BT.2020, BT.709, DCI, HDR10, HDR10+, HLG, Dolby Vision |
| HDMI | HDMI 2.0b, HDCP 2.3, CEC, EDID |
| Network | 1x 1GbE RJ45 for AV stream 1 x 1Gbps SFP (1000Base-SX: 550m using OM3 MMF) (1000Base-LX: 5km using SMF) (1000Base-LX10: 10km using SMF) 1 x 1GbE RJ45 for Dante AV-A or network connectivity of attached source devices |
| RS-232 | 1x 4-Pin Phoenix Connector, 2-way, API Programmable |
| USB | 1x USB 2.0 Type-B Host |
| Security Protocols | AES 256, SSH, HTTPS |
| Power Supply | 20V 6A, 802.3at PoE+ Compliant |
