The NHD-500-DNT-TX is part of the powerful NetworkHD 500 series family of products. Capable of encoding up to 4K60 including Dolby Vision, HDR10 and HLG content. The 500 series comes loaded with a number of advanced features such as the flexibility of Ethernet or Fiber as a transport method. Ultra-low latency encoding and incredibly fast matrix switching speeds enhance the experience. Unique to this encoder is an integrated 2 channel Dante & AES67 audio output. –
NetworkHD AV over IP, Ultra Low Latency 4K over IP (1G)

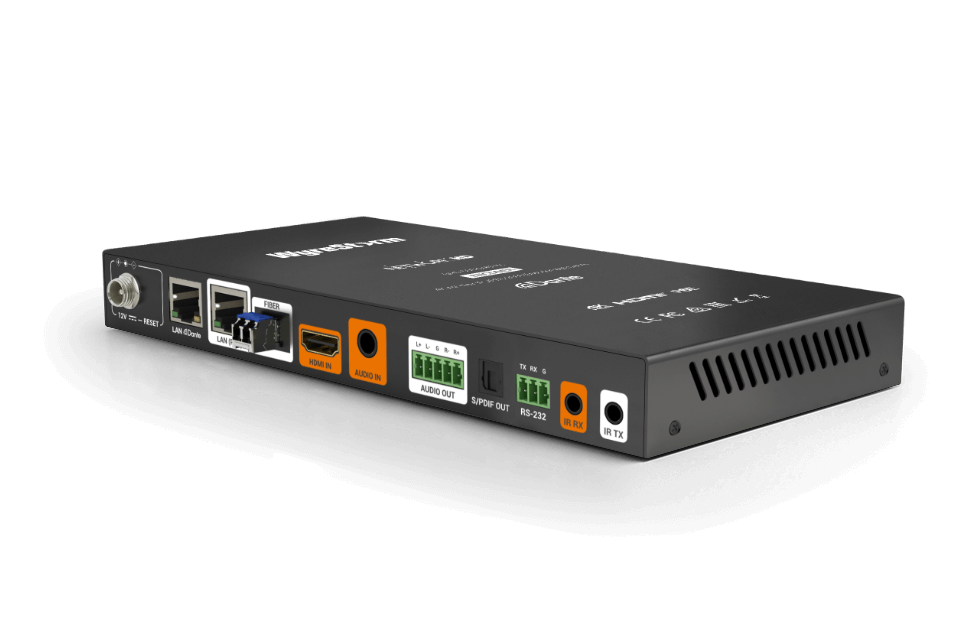

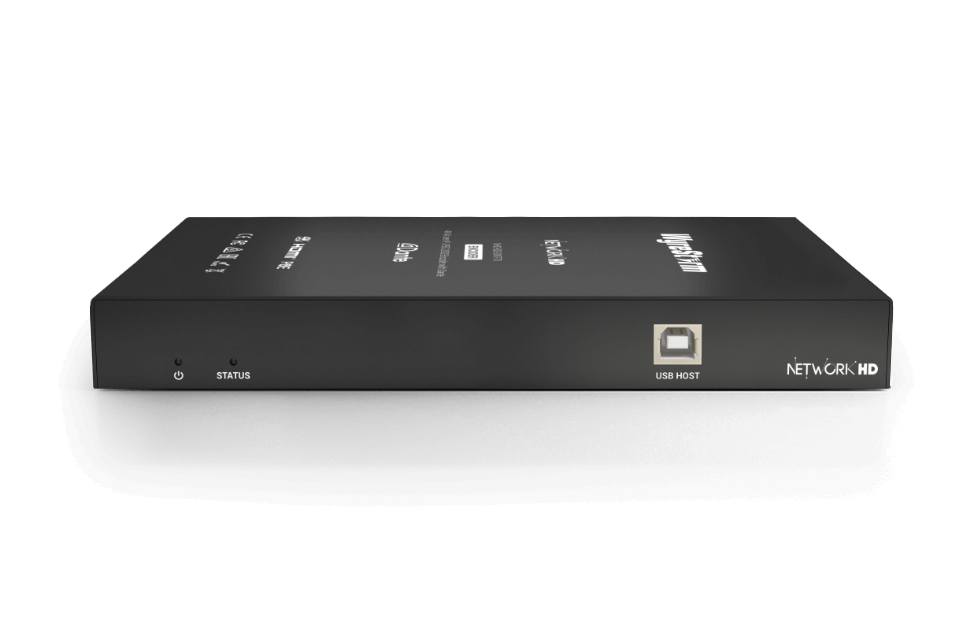

WyreStorm NHD-500-DNT-TX — NetworkHD 500 Series 4K60 4:4:4 JPEG2000 Encoder with Dante Audio
The NHD-500-DNT-TX is part of the powerful NetworkHD 500 series family of products. Capable of encoding up to 4K60 including Dolby Vision, HDR10 and HLG content. The 500 series comes loaded with a number of advanced features such as the flexibility of Ethernet or Fiber as a transport method. Ultra-low latency encoding and incredibly fast matrix switching speeds enhance the experience. Unique to th
| Marka | WyreStorm |
|---|---|
| Model | NHD-500-DNT-TX |

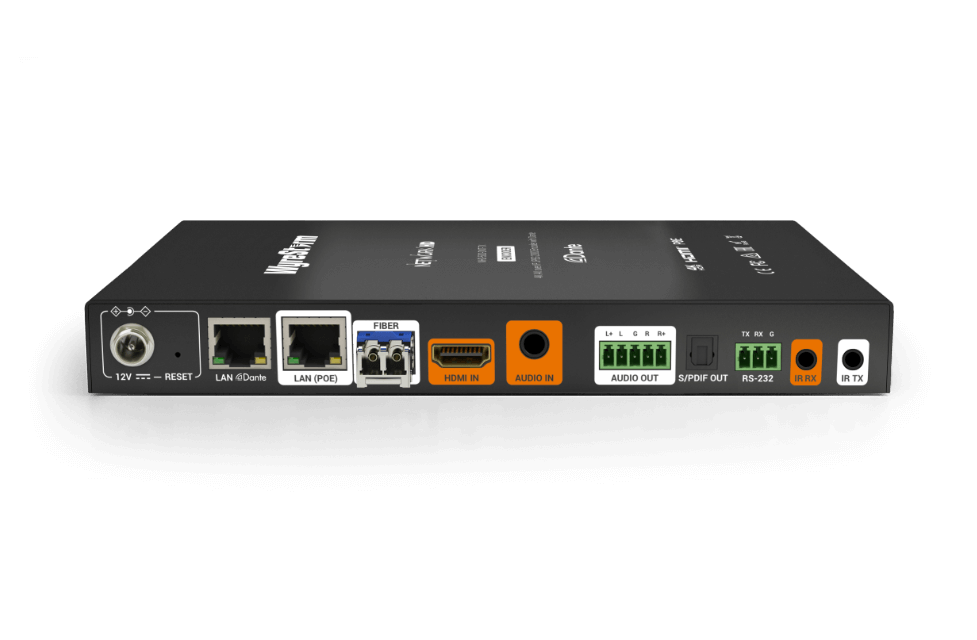

| Inputs/Outputs | 1x HDMI In 1x 3.5mm TRS Analog In 1x 5-pin Balanced Analog Out 1x Toslink Digital Out |
| Maximum Pixel Clock | 600Mhz |
| Max Video Resolutions | 5120x2160p@50/60Hz 4:2:0 CVT 5120x1440p@50/60Hz 4:2:0 CVT 4096x2160p @ 60Hz 8bit 4:4:4 or RGB 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision 3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG 1920x1080p @60Hz 12bit |
| Supported Standards | RGB, BT.2020, BT.709, DCI, HDR10, HDR10+, HLG, Dolby Vision |
| Audio Formats | Passthrough: 2CH PCM up to DTS:X & Dolby Atmos ARC: 2CH PCM up to Dolby Digital Plus & DTS 5.1 Dante/AES67 : 2CH PCM |
| Output Video Encoding | JPEG 2000 |
| Encoding Data Rate | Max: 850Mbps (configurable) |
| End to End Latency | 4ms video latency @4K60 (pass-through mode), 1-2 video frames latency (scaler/VW mode) |
| HDMI | HDMI 2.0b, HDCP 2.3, CEC, ARC, EDID |
| Network | 2x 1GbE RJ45 (Dante & main AV out) 1 x 1Gbps SFP (1000Base-SX: 550m using OM3 MMF) (1000Base-LX: 5km using SMF) (1000Base-LX10: 10km using SMF) |
| RS-232 | 1x 3-Pin Phoenix Connector, 2-way, API Programmable |
| IR | 1x IR TX 3.5mm TS Mono Jack, API Programmable 1x IR RX 3.5mm TRS Stereo Jack, API Programmable |
| USB | 1x USB 2.0 Type Host (Up to 200Mbps upstream) |
| Security Protocols | AES 256, SSH, HTTPS |
| Power Supply | 12V DC 1A, 802.3af PoE Compliant |
| Power Consumption | Max 15.4, Average: 8w |
| Maximum Data Rate | 8.91Gb/s HDMI |
