The NHD-124-TX is a 4 input to 4 network stream device encoder compatible with the NetworkHD 100 an ultra low bandwidth AV over IP solution for distribution of point-to-point, one-to-many and many-to-many over a managed network. With its standards-based approach to video encoding, fast and simple system configuration and robust feature set, it provides the best value in networked video distribution. The NHD-124-TX encoder is intended for use with 120 series decoders (sold separately) to provide a complete end-to-end video distribution system. When used in conjunction with the NHD-CTL-PRO system controller complete control integration is simple.
Low Bandwidth AV over IP (1G), NetworkHD AV over IP

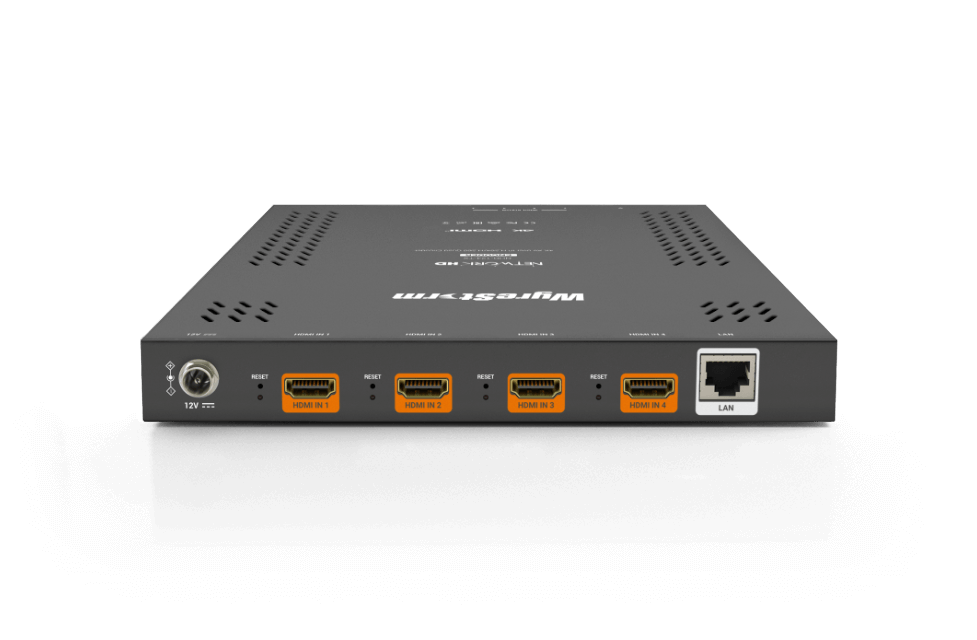

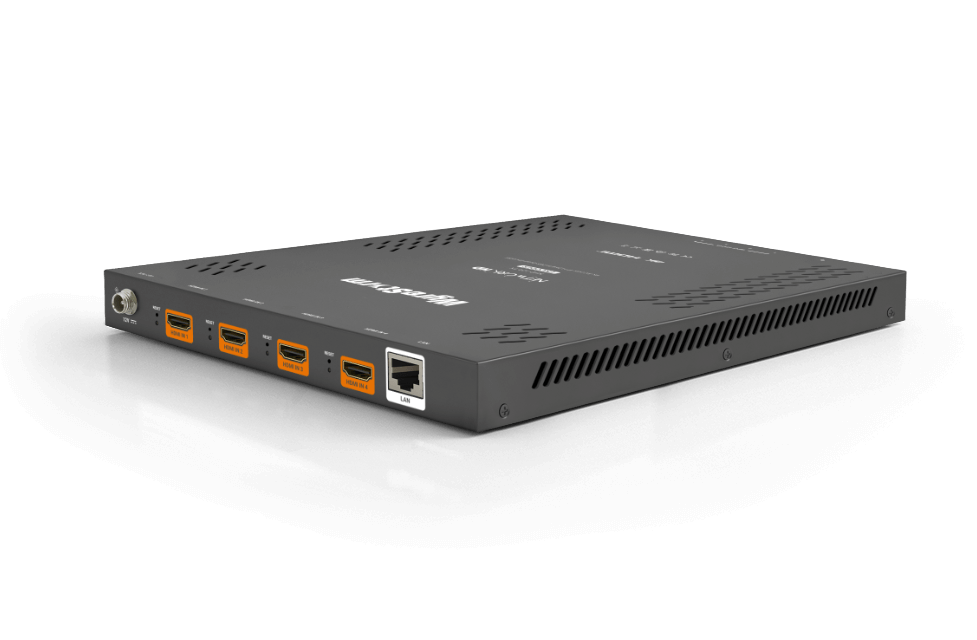

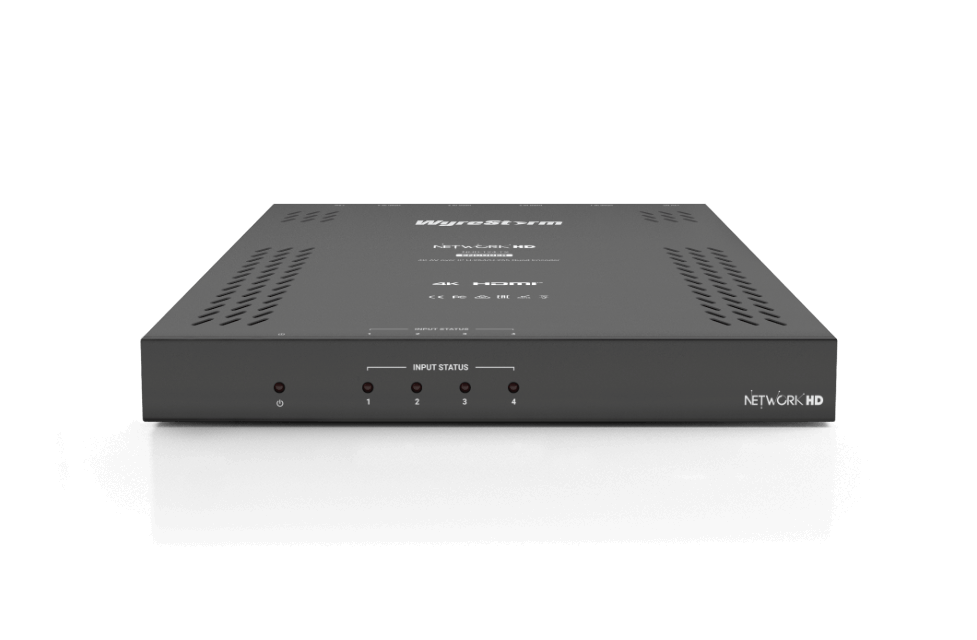

WyreStorm NHD-124-TX — NetworkHD 100 Series 4K AV over IP Quad Encoder
The NHD-124-TX is a 4 input to 4 network stream device encoder compatible with the NetworkHD 100 an ultra low bandwidth AV over IP solution for distribution of point-to-point, one-to-many and many-to-many over a managed network. With its standards-based approach to video encoding, fast and simple system configuration and robust feature set, it provides the best value in networked video distributio
| Marka | WyreStorm |
|---|---|
| Model | NHD-124-TX |
| Inputs | 4x HDMI Type A |
| Outputs | 1x 8-pin RJ-45 female |
| End to End Latency | 1080p: High Quality Mode: ~250ms Low Latency Mode: ~80ms 4K: High Quality Mode: ~300ms Low Latency Mode: ~150ms |
| Audio Formats | LPCM/MPEG4 AAC stereo, 48KHz |
| Video Resolution (Max) | 3840x2160p @ 30Hz 1920x1080p @ 60Hz |
| Maximum Pixel Clock | 297MHz |
| HDMI | HDMI 1.4, HDCP 2.2, EDID |
| LAN | 1x 8-pin RJ-45 female, 10/100/1000Base-T |
| Security Protocols | AES 128, SSH, HTTPS |
| Power Supply | 12V DC 3A |
