The NHD-USB-TRX is a powerful and flexible USB 2.0 over IP transceiver designed to work natively with the WyreStorm NetworkHD 500 series or in combination with other NetworkHD series. It allows the extension of USB devices like keyboards, mice, cameras, and other peripherals over an IP network, making it ideal for point-to-point or one-to-many applications. Equipped with PoE and SFP fiber connectivity, it provides installation flexibility and reliable performance even in large-scale deployments. The built-in two-level USB hub enables seamless integration of multiple USB devices, ensuring easy management across distances. With support for up to 7 USB devices and 21 endpoints, the NHD-USB-TRX is perfect for corporate, educational, healthcare, courtroom, and government applications. It also supports KM over IP for fast, low-latency switching between multiple devices or screens, delivering a highly efficient and seamless experience for users in control rooms and collaborative environments.

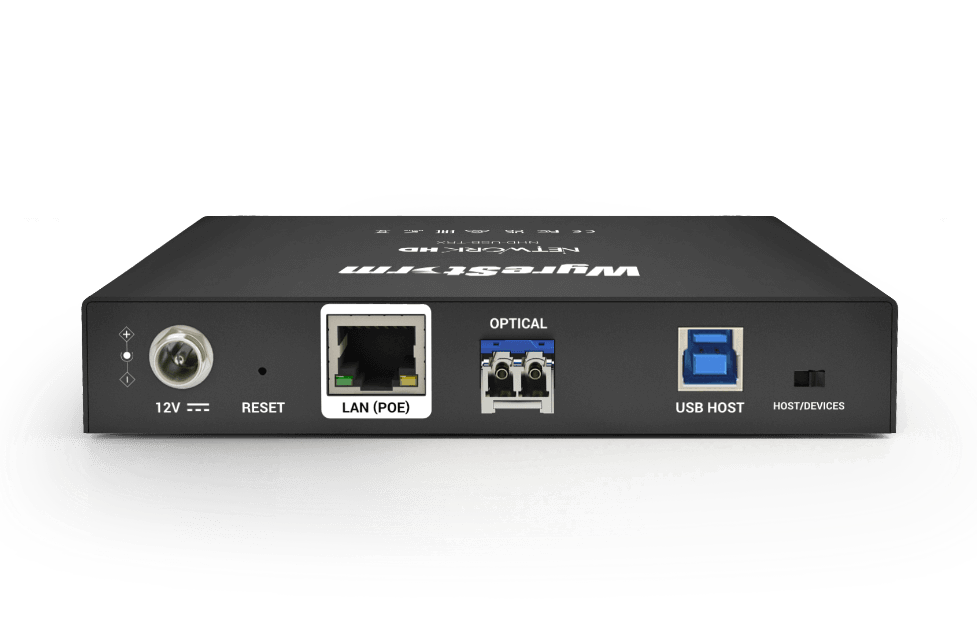

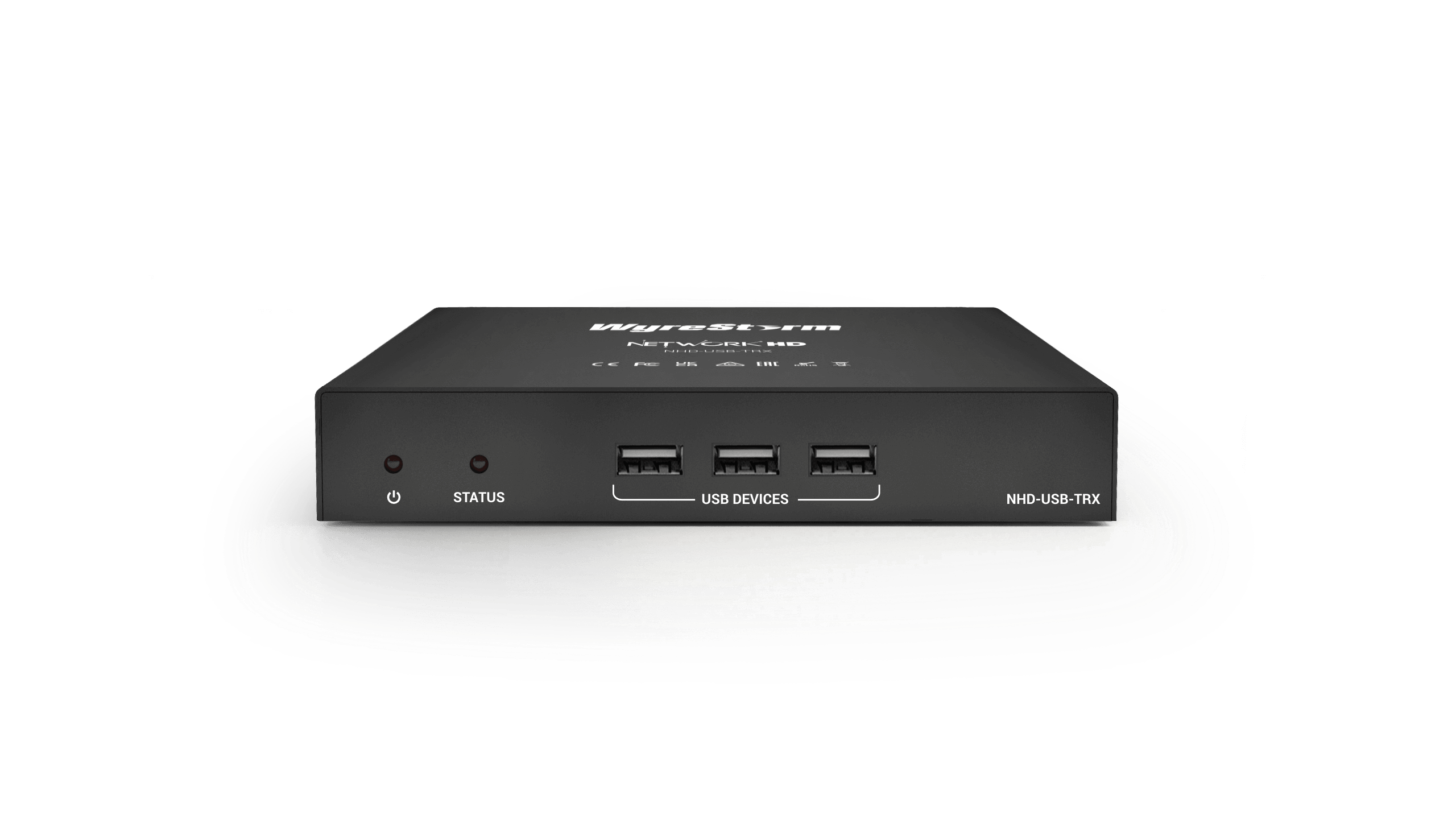

WyreStorm NHD-USB-TRX — USB 2.0 Over IP Transceiver
The NHD-USB-TRX is a powerful and flexible USB 2.0 over IP transceiver designed to work natively with the WyreStorm NetworkHD 500 series or in combination with other NetworkHD series. It allows the extension of USB devices like keyboards, mice, cameras, and other peripherals over an IP network, making it ideal for point-to-point or one-to-many applications. Equipped with PoE and SFP fiber connecti
| Marka | WyreStorm |
|---|---|
| Model | NHD-USB-TRX |
| USB Host | 1x USB 3.2 Gen Type-B, 10Gbps |
| USB Device | Local end: 3x USB 3.2 Gen 2 Type-A, 10Gbps (Applies to TX Mode) |
| LAN | 1x RJ45 (PoE+) |
| Control Method | DIP Swith (for TX/RX configuration); NHD-CTL-PRO v2; Telnet API |
| Power Supply | 12V DC / PoE+ |
| Max Power Consumption | No Load: 2.2W Full Load with 3A current: 18.5W |
| Operating Temperature | 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing |
| Storage Temperature | -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing |
| ESD Protection | Human Body Model: ±8kV (air-gap discharge) / ±4kV (contact discharge) |
| Dimensions (WxHxD) | 5.51” x 0.93” x 3.54” (140mm x 23.5mm 90mm) |
| Safety and Emission | CE, FCC, RoHS, RCM, EAC, UKCA |
| Inputs | 1x 8-pin RJ-45 female, 10/100Base-T |
| Outputs | 1x HDMI 19-pin HDMI type A 1x 3-pin Phoenix Analog Audio Both HDMI and Analog outputs allow discrete audio routing from any available NHD-120-TX on the same network. |
| Video Encoding | H.264/H.265 |
| End to End Latency | 1080p: High Quality Mode: ~250ms Low Latency Mode: ~80ms 4K: High Quality Mode: ~300ms Low Latency Mode: ~150ms |
| Audio Formats | LPCM/MPEG4 AAC stereo, 48KHz |
| Video Resolution (Max) | 1920x1080p @ 60Hz 3840x2160p @ 30Hz 4:2:0 8bit |
| Maximum Pixel Clock | 297Mhz |
