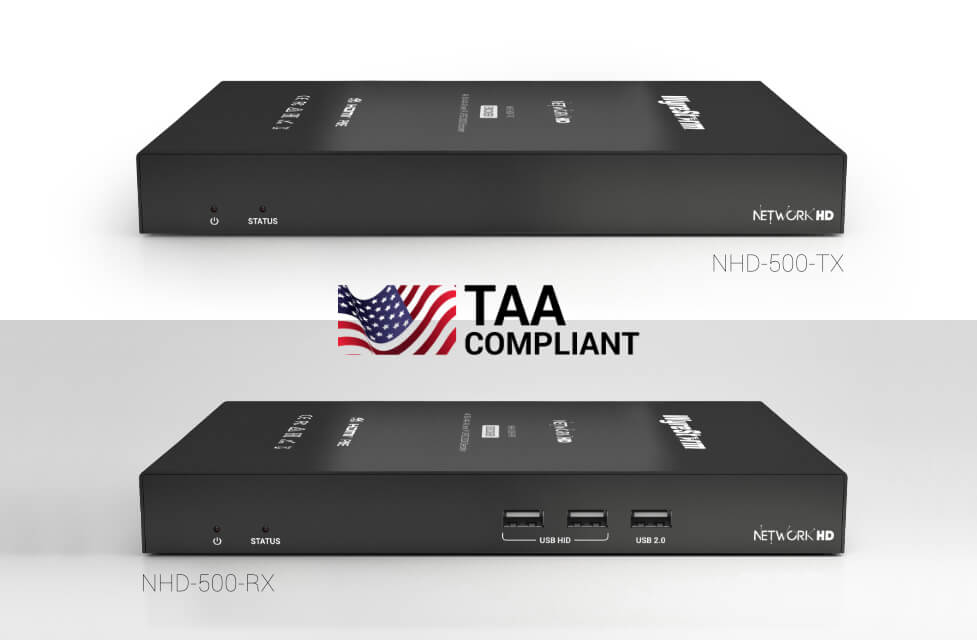

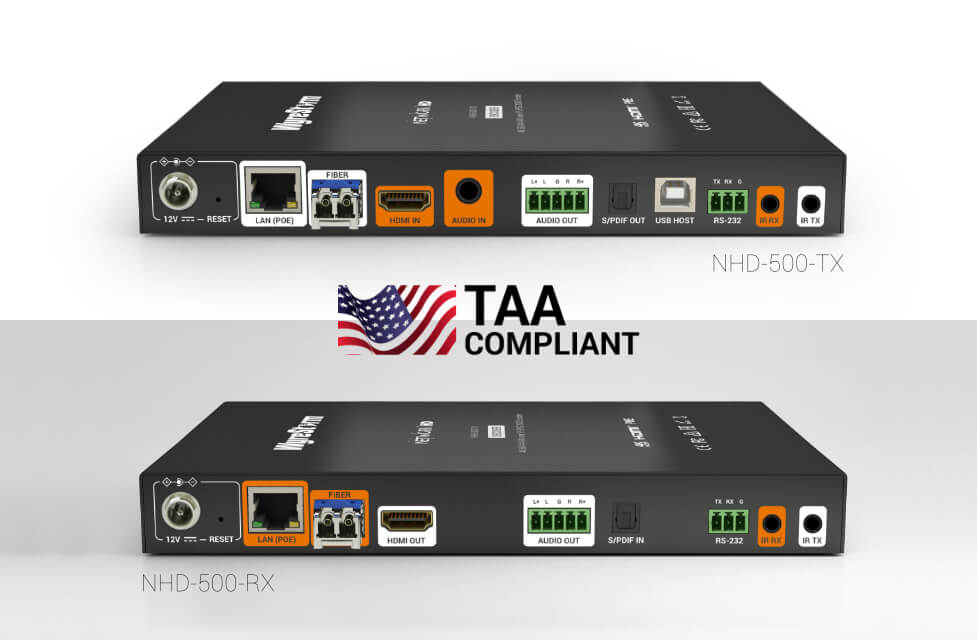

WyreStorm NHD-500-T — NetworkHD 500 Series 4K60 4:4:4 JPEG2000 TAA Compliant Encoder & Decoder
WyreStorm NHD-500-T — NetworkHD 500 Series 4K60 4:4:4 JPEG2000 TAA Compliant Encoder & Decoder - Görsel 2
,

WyreStorm NHD-500-T — NetworkHD 500 Series 4K60 4:4:4 JPEG2000 TAA Compliant Encoder & Decoder

Teklif Al

The TAA compliant NetworkHD 500s series is an HDMI 2.0 AV over IP solution. Capable of encoding up to 4K60 including Dolby Vision, HDR10 and HLG content. The 500 series comes loaded with a number of advanced features such as the flexibility of Ethernet or Fiber as a transport method. Ultra-low latency encoding and incredibly fast matrix switching speeds enhance the experience. A powerful routing e

Stok kodu: NHD-500-T Kategoriler: ,

The TAA compliant NetworkHD 500s series is an HDMI 2.0 AV over IP solution. Capable of encoding up to 4K60 including Dolby Vision, HDR10 and HLG content. The 500 series comes loaded with a number of advanced features such as the flexibility of Ethernet or Fiber as a transport method. Ultra-low latency encoding and incredibly fast matrix switching speeds enhance the experience. A powerful routing engine allows audio, video, USB and control signals to be discretely sent to any endpoint. Create captivating video walls up to 16×16 in size and control them with the tap of a button in the amazing NetworkHD Touch control app. –

Marka

WyreStorm
Model

NHD-500-T
Inputs

TX: 1 x HDMI 2.0b 1 x 3.5mm TRS Audio RX: 1 x S/PDIF (Toslink)
Outputs

TX: 1 x 5-pin Balanced Audio 1 x S/PDIF Digital RX: 1 x HDMI 2.0b 1 x 5-Pin Balanced Audio
Video Resolution (Max)

5120x2160p@50/60Hz 4:2:0 CVT 5120x1440p@50/60Hz 4:2:0 CVT 4096x2160p @ 60Hz 8bit 4:4:4 or RGB 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision/HDR/HLG 1920x1080p @60Hz 12bit
Audio Formats

Passthrough: 2ch PCM and up to DTS:X and Dolby Atmos ARC: 2ch PCM and up to Dolby Digital+ and DTS 5.1
Supported Standards

DCI, RGB, USB
Maximum Pixel Clock

600Mhz
Output Video Encoding

JPEG 2000
Encoding Data Rate

Max 850Mbps
End-to-End Latency

1 video frame latency (pass-through mode) 4ms @ 4K60, 2 video frames latency (scaler/VW mode)
HDMI

HDMI 2.0, HDCP 2.3, CEC, EDID, ARC
LAN

1x 1GbE 8-Pin RJ45 1x 1Gb SFP: (1000Base-SX: 550m using OM3 MMF) (1000Base-LX: 5km using SMF) (1000Base-LX10: 10km using SMF)
IR

1x IR TX 3.5mm TS Mono Jack, API Programmable 1x IR RX 3.5mm TRS Stereo Jack, API Programmable
RS-232

1x 3-Pin Phoenix Connector, 2-way, API Programmable
Communication Protocols

Telnet, TLS, SSH, HTTP, HTTPS
USB

TX: 1 x USB 2.0 Type Host RX*: 2 x USB HID Type A 1 x USB 2.0 Type A (up to 300Mbps upstream) *With firmware package 7.6 2x USB HID are supporting USB2.0 specifications up to 300Mbps upstream and USB port labeled as USB 2.0 is disabled.
Power Supply

12V DC 1A, 802.3af PoE Compliant
