The SR-10G-MM-SFPP is a hot-pluggable SFP+ optical transceiver module designed for high-performance, short-range data communication and interconnect applications. It supports 10.3125 Gbps data rate over multimode fiber at distances up to 300 meters using an 850nm VCSEL laser. Engineered for use in 10GBASE-SR Ethernet, data centers, and Fibre Channel systems, this transceiver ensures reliable performance, low power consumption, and full compatibility with industry standards.
NetworkHD AV over IP, NetworkHD Components

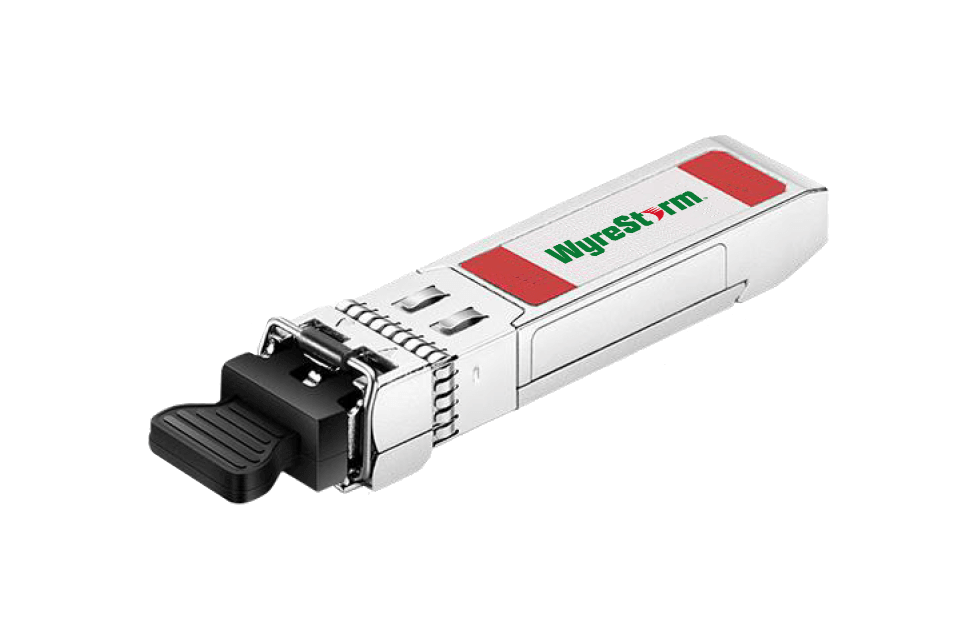

WyreStorm SR-10G-MM-SFPP — 10G SFP+ Multimode Transceiver
The SR-10G-MM-SFPP is a hot-pluggable SFP+ optical transceiver module designed for high-performance, short-range data communication and interconnect applications. It supports 10.3125 Gbps data rate over multimode fiber at distances up to 300 meters using an 850nm VCSEL laser. Engineered for use in 10GBASE-SR Ethernet, data centers, and Fibre Channel systems, this transceiver ensures reliable perfo
| Marka | WyreStorm |
|---|---|
| Model | SR-10G-MM-SFPP |
| Form Factor | SFP+ (Hot-pluggable) |
| Data Rate | 10.3125 Gbps |
| Laser Wavelength | 850 nm |
| Connector | LC duplex |
| Max Distance | 300 meters (OM3 multimode fiber ) |
| Power Supply | +3.3V |
| Power Consumption | < 1W |
| Operating Temperature | 0°C to +70°C |
| Transmitter Output Power | -7.3 to -1 dBm |
| Receiver Sensitivity | < -11.1 dBm |
| DDM / Diagnostics | Supported (Internally Calibrated) |
| Compliance | SFF-8431, SFF-8432, IEEE 802.3ae, RoHS |
| Applications | Data Centers, 10G Ethernet, Fibre Channel |
