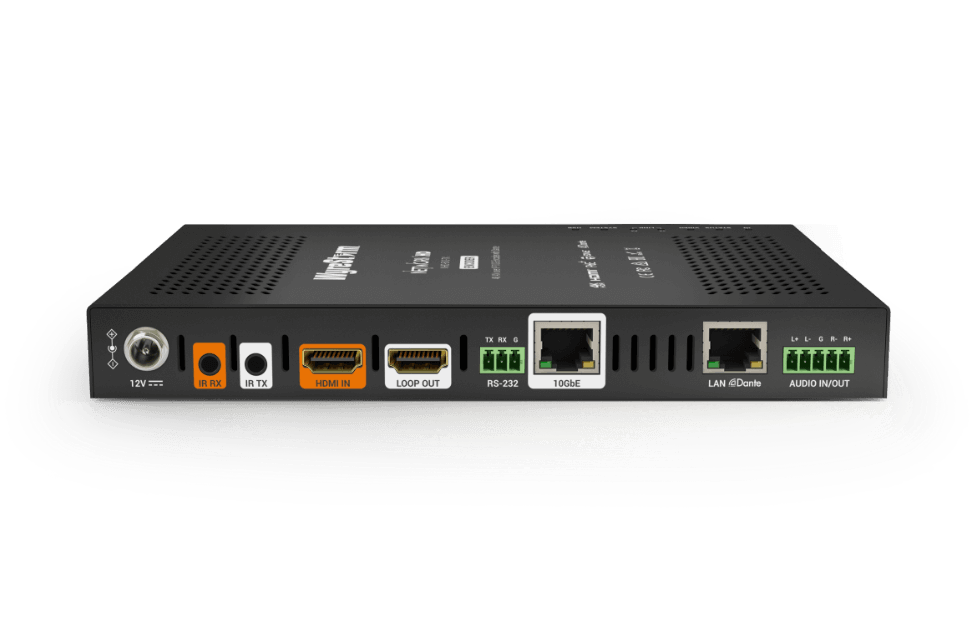

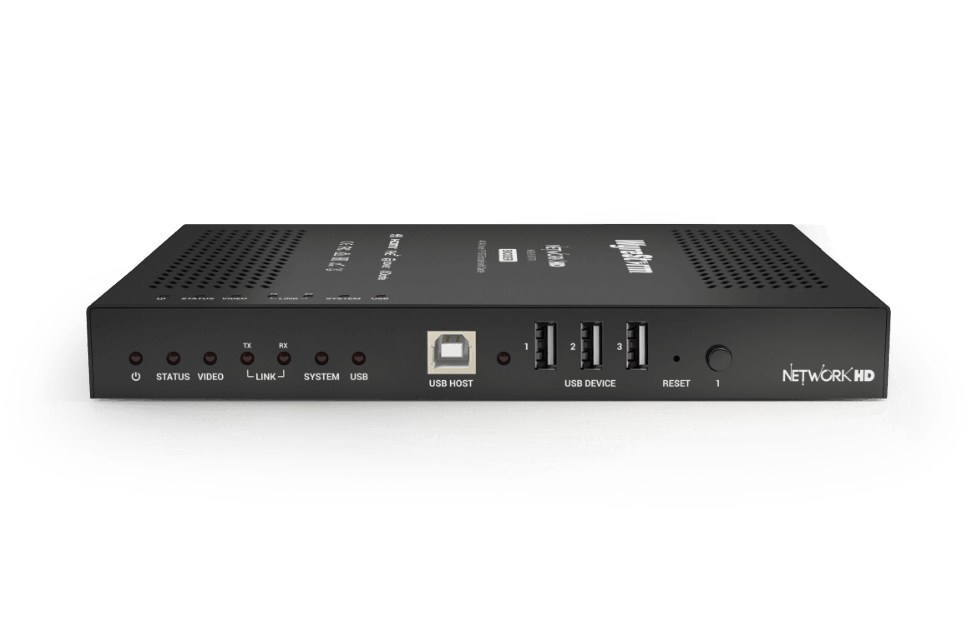

WyreStorm NHD-610-TX V2 4K60 SDVoE AV over IP Encoder with Dante

Name: WyreStorm NHD-610-TX V2 4K60 SDVoE AV over IP Encoder with Dante | WyreStorm Türkiye
SKU: NHD-610-TX v2
Availability: InStock

Teklif Al

WyreStorm NHD-610-TX V2 is a 4K60 SDVoE AV over IP encoder with near-zero latency, Dante/AES67 audio, USB HID, and PoE+. Ideal for control rooms, campuses, and enterprise AV.

Stok kodu: NHD-610-TX v2 Kategoriler: NetworkHD AV over IP

WyreStorm NHD-610-TX V2 is a 4K60 SDVoE AV over IP encoder with near-zero latency, Dante/AES67 audio, USB HID, and PoE+. Ideal for control rooms, campuses, and enterprise AV.

Marka	WyreStorm
Model	NHD-610-TX v2
Inputs	1x HDMI 2.0 1x 5-pin Balanced Analog Audio
Outputs	1x HDMI 2.0 Loop Out 1x 5-pin Balanced Analog Audio Out 1x 10GbE 8-Pin RJ45
Maximum Pixel Clock	600MHz
Output Video Encoding	SDVoE Pixel Pipeline, Dante/ AES67 proprietary protocols
Encoding Data Rate	1080p@60Hz 8bit – 3.4Gbps 4K UHD@30Hz 4:4:4 8bit – 6.4Gbps 4K UHD@60Hz 4:4:4 8bit – 8.7Gbps (with light compression)
Max End to End Latency	Genlock Mode: Uncompressed = 30us, Compressed <120us Fast Switch Mode: 1~2 video frames = min. between 16.7 – 33.4ms @ 60fps
Video Resolution (Max)	5120x2160p @30Hz 4:4:4 5120x1440p @30/45Hz 4:4:4 4096x2160p @ 60Hz 8bit 4:4:4 or RGB 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision 3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG 1920x1080p @ 60Hz 12bit
Supported Standards	RGB, DCI, USB
HDMI	HDMI 2.0b, HDCP 2.2, CEC, EDID
LAN	1x 1GbE 8-pin RJ45 (Auxiliary Lan)
RS-232	1x 3-pin Phoenix Connector, 2 Way, Broadcast, Routed, API Programmable
IR	1x IR TX 3.5mm TS Mono Jack, API Programmable 1x IR RX 3.5mm TRS Stereo Jack, API Programmable
USB	3x USB 1.1 HID Type A 1x USB 1.1 HID Type B Host
Power Supply	12V 2A DC PSU, 802.3at PoE+ Compliant
Power Consumption	Max: 24w, Average: 10w
