The NHD-0401-MV is a powerful multiview switcher that can be used as a standalone solution or with a NetworkHD 400 or 500 series system. The switcher comes pre-loaded with six different multiview layouts offering unique viewing experiences. 4K60 HDMI 2.0 inputs allow the switcher to support all the latest 4K HDR content with zero compression. Direct integration with the NHD-CTL-PRO provides a seamless solution for pairing this switcher with NetworkHD encoders & decoders to add multiview capability to an AV over IP project.
Ultra Low Latency 4K over IP (1G), Video Processor

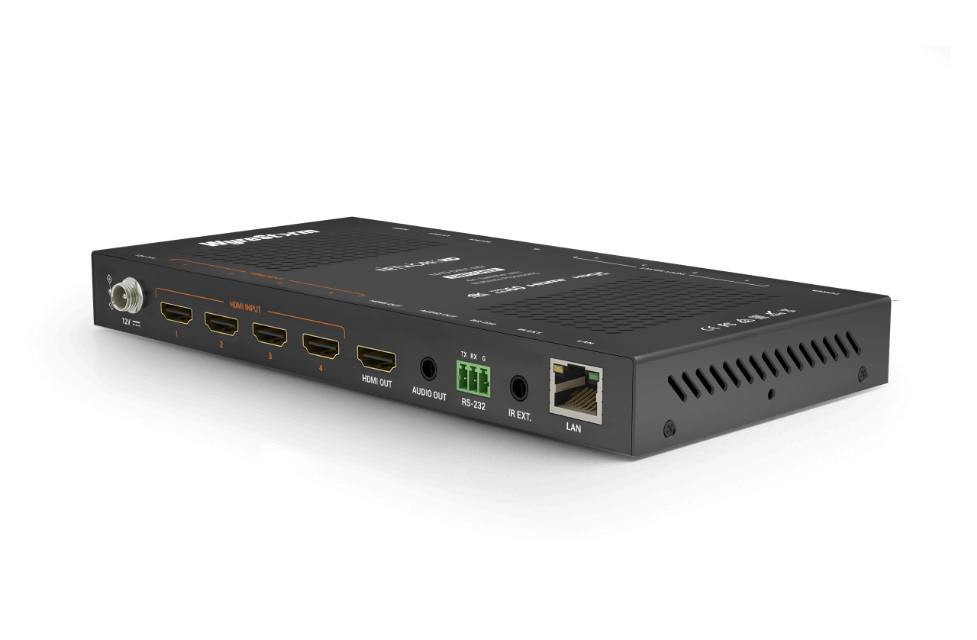

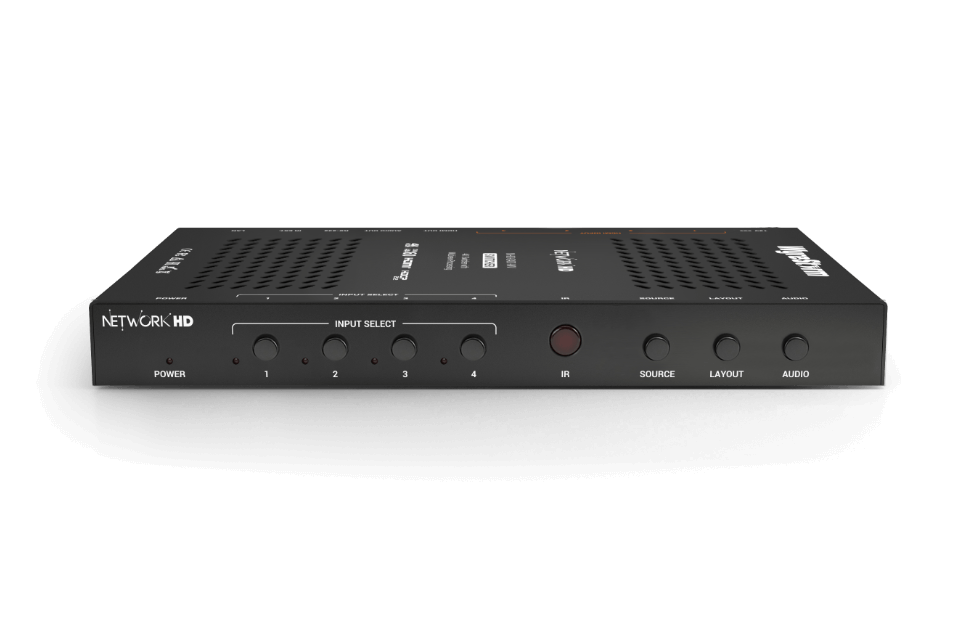

WyreStorm NHD-0401-MV — NetworkHD 4-Input 4K60 Multiview Switcher
The NHD-0401-MV is a powerful multiview switcher that can be used as a standalone solution or with a NetworkHD 400 or 500 series system. The switcher comes pre-loaded with six different multiview layouts offering unique viewing experiences. 4K60 HDMI 2.0 inputs allow the switcher to support all the latest 4K HDR content with zero compression. Direct integration with the NHD-CTL-PRO provides a seam
| Marka | WyreStorm |
|---|---|
| Model | NHD-0401-MV |

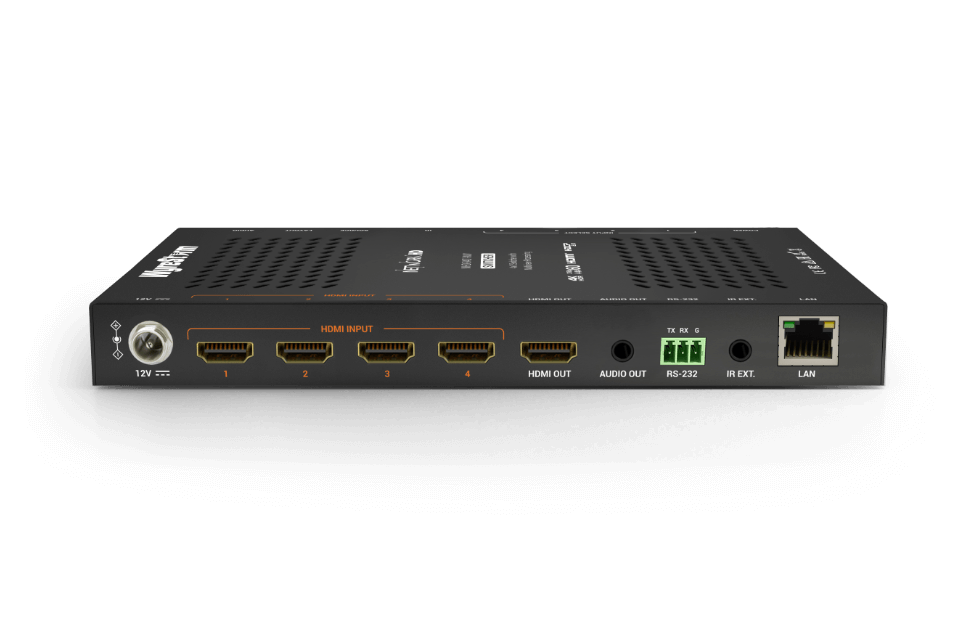

| Inputs/ Outputs | 4x HDMI In 1x HDMI Out 1x 3.5mm TRS Analog Out |
| Maximum Pixel Clock | 600Mhz |
| Max Video Resolutions | 5120×2160@30Hz 4:4:4 (Ultra-Wide 5K) 5120×1440@60Hz 4:4:4 (Super-Wide 5K) 4096×2160@60Hz 4:4:4 (DCI 4K) 3840×2160@60Hz 4:4:4 (UHD) 1920x1080p @60Hz 12bit |
| Supported Standards | RGB, DCI, BT.2020, Rec.709 |
| Output Video Encoding | Uncompressed HDMI |
| HDMI | HDMI 2.0b, HDCP 2.2, CEC, EDID |
| Network | 1x 1GbE RJ45 |
| RS-232 | 1x 3-Pin Phoenix Connector (API Control) |
| IR | 1x IR RX 3.5mm TRS Stereo Jack |
| Power Supply | 12V 2A DC |
| Power Consumption | 18w |
