WyreStorm SW-0206-VW is a 4K60 video wall processor with 2 HDMI inputs, 6 outputs, scaling, ultra-wide support, and Web UI control. Ideal for signage, retail, and control rooms.
New Arrivals, Video Processor

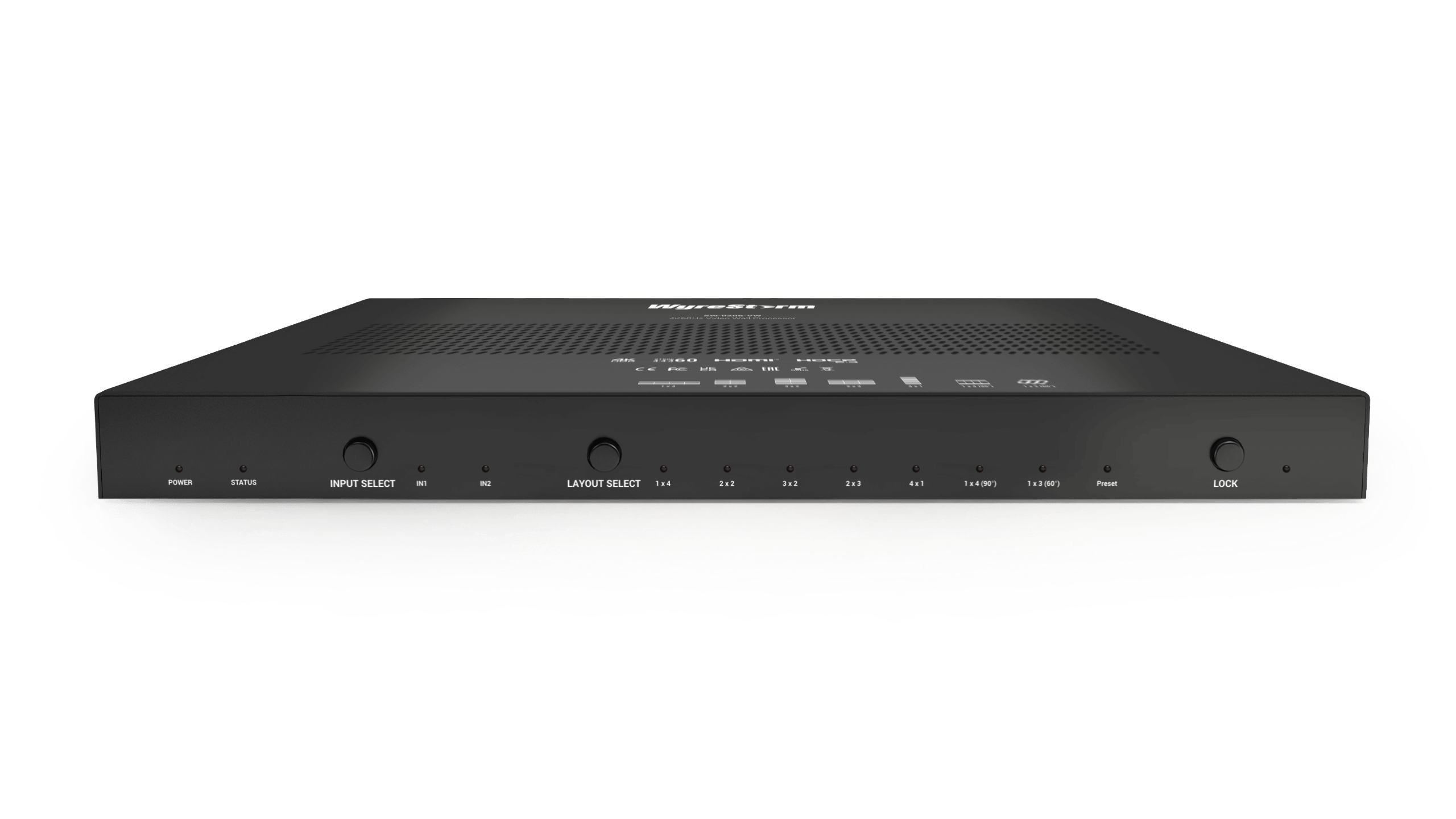

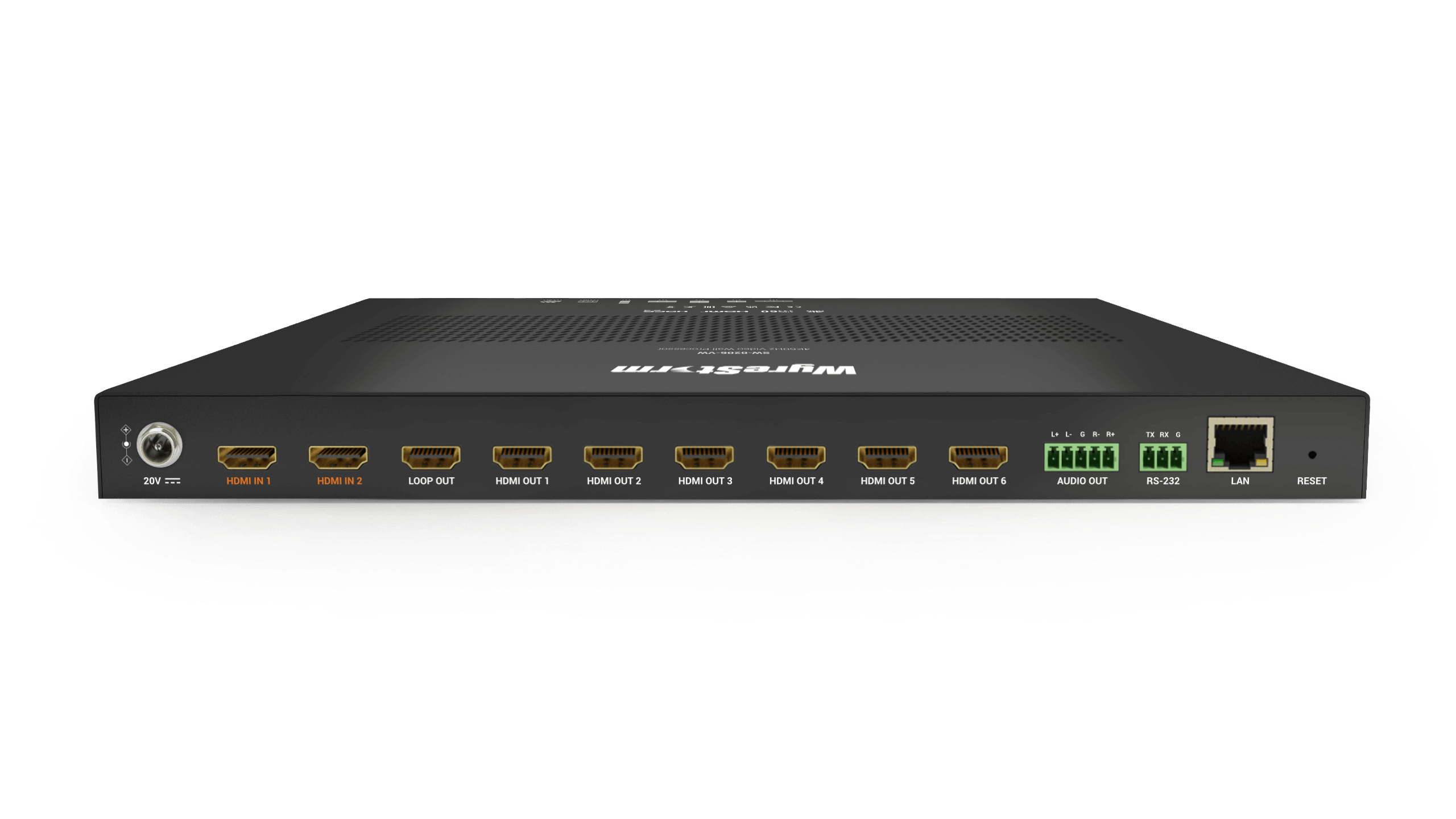

WyreStorm SW-0206-VW 4K60 Video Wall Processor
WyreStorm SW-0206-VW is a 4K60 video wall processor with 2 HDMI inputs, 6 outputs, scaling, ultra-wide support, and Web UI control. Ideal for signage, retail, and control rooms.
| Marka | WyreStorm |
|---|---|
| Model | SW-0206-VW |
| Inputs | 2x HDMI IN: 19-pin type A |
| Outputs | 6x HDMI OUT: 19-pin type A 1x 5-pin Phoenix Analog Audio with balance (de-embed from selected HDMI input) |
| Audio Formats | PCM 2ch Analog |
| Video Resolution (Max) | Auto-Scaler (scale up and down to any resolution — up to 4K@60Hz) 1920x1080p @60Hz 4:4:4 8bit 3840x2160p @60Hz 4:4:4 8bit 4096x2160p @60Hz 4:4:4 8bit 5120×2160 @30Hz |
| Maximum Pixel Clock | 600MHz |
| HDMI | HDMI 2.0, HDCP 2.3, EDID, CEC |
| RS-232 | 1x RS-232: 3-pin Phoenix Female, Video-Wall Processor Control Routable RS-232 Device Control, Telnet commands supported |
| Ethernet | 1x LAN: 8-pin RJ-45 Female, Web UI, Video-Wall Control and Ethernet |
| Input Button | 1x Input button, Input source selection |
| Lock Button | 1x Lock button, Button Lock |
| Layout Mode Button | 1x Layout mode button, Layout mode selection, (1×4, 2×2, 3×2, 2×3, 4×1, 1×4[90°], 1×3[60°], Preset) |
| Power Supply | DC 20V/3A |
| Operating Temperature | 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing |
| Storage Temperature | -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing |
| Dimensions | 27mm/1.06in x 320mm/12.6in x 180mm/7.09in |
| Supported Standards | DCI (4096×2160), RGB, HDR, HDR10, Dolby Vision, HLG, BT.2020 |
