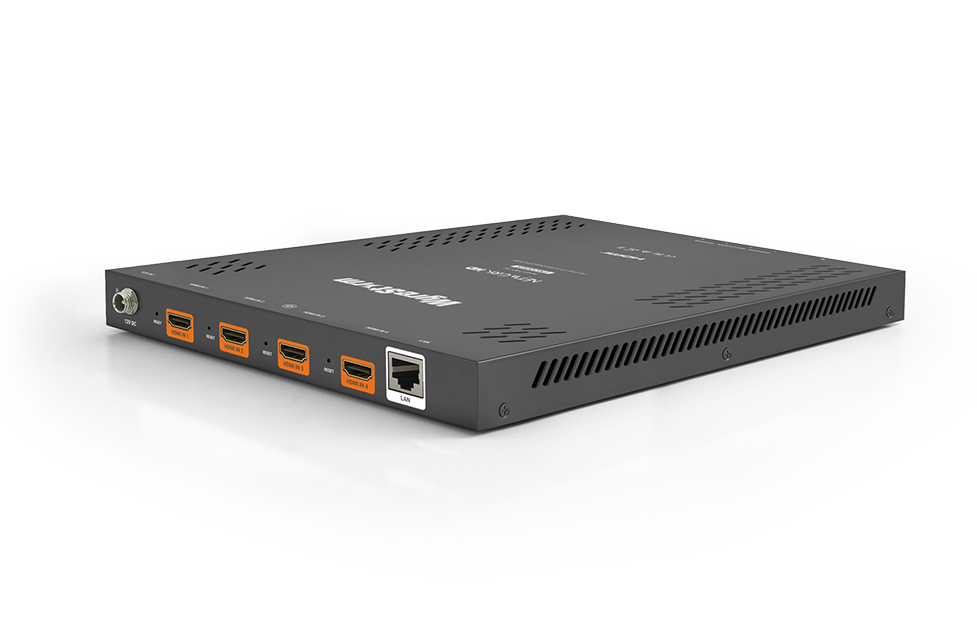

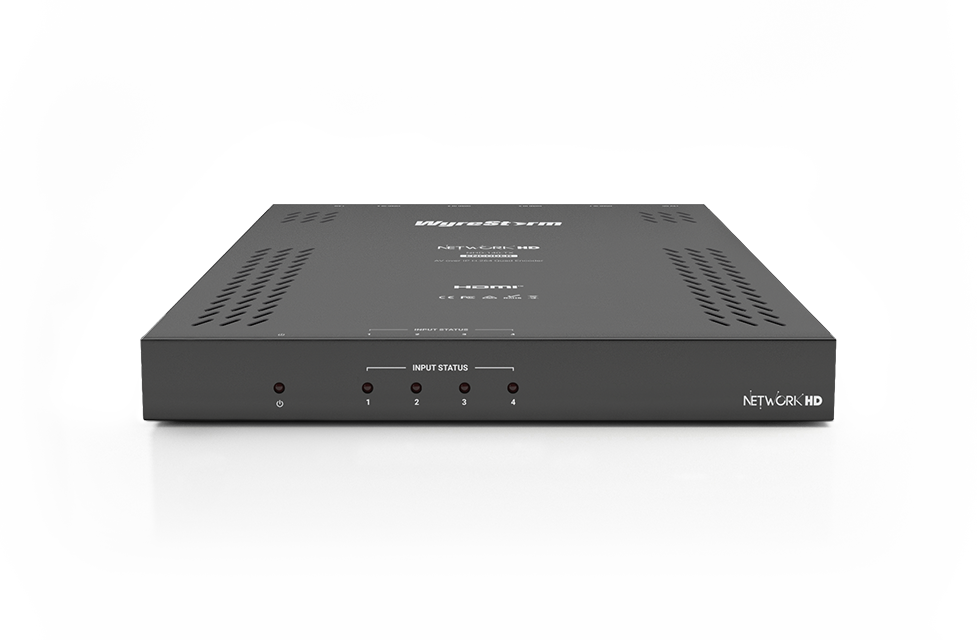

WyreStorm NHD-140-TX — NetworkHD 100 Series AV over IP Quad Encoder
DISCONTINUED The NHD-140-TX is a 4 input to 4 network stream device encoder compatible with the NetworkHD 100 Series, an ultra low bandwidth AV over IP solution for distribution of point-to-point, one-to-many and many-to-many over a managed network. With its standards-based approach to video encoding, fast and simple system configuration and robust feature set, it provides the best value in networ
| Marka | WyreStorm |
|---|---|
| Model | NHD-140-TX |

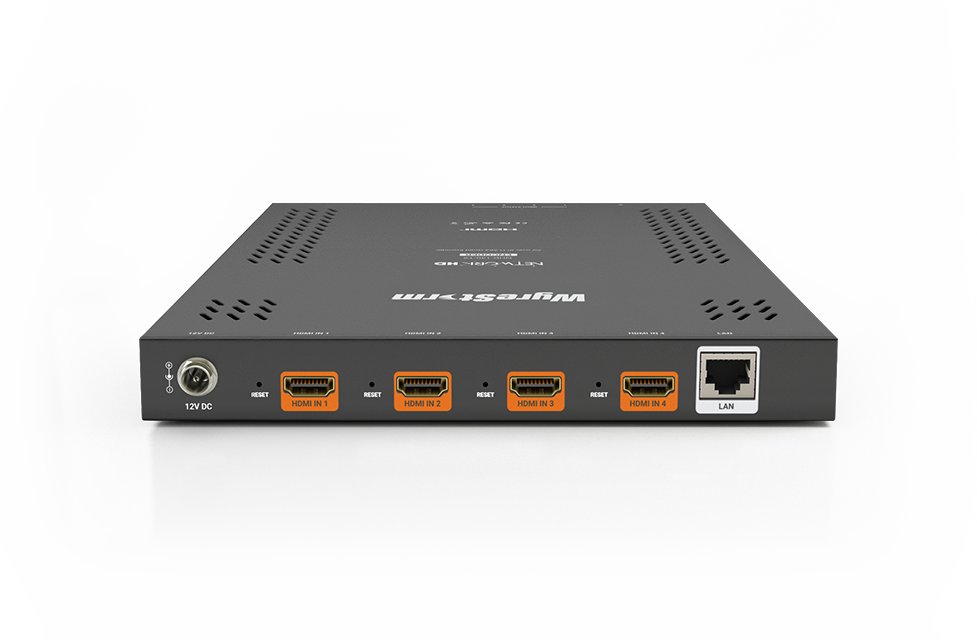

| Inputs | 4x HDMI In: 19-pin HDMI Type A |
| Outputs | 1x LAN: 8-pin RJ-45 (AV Transmission to RX) |
| Encoding Data Rate | Max: 30Mb/s ?C per stream (120 Mb/s total) |
| End to End Latency (Max) | ~79ms (low latency mode), ~250ms (high quality mode) |
| Audio Formats | 2ch LPCM 48KHz |
| Video Resolution (Max) | All resolutions listed are 8bit RGB. 1920x1080p @24/25/30/50/60Hz 1920x1080i @25/30Hz 1280x720p @50/60Hz 720x576p @50Hz 720x576i @25Hz 720x480p @60Hz 720x480i @30Hz 1680×1050, 1400×1050, 1280×1024, 1440×900, 1280×800, 1366×768, 1360×768, 1024×768, 800×600, 640×480 @ 60Hz: |
| Maximum Pixel Clock | 165MHz |
| HDMI | HDCP 1.4 |
| Ethernet | 1x LAN: 8-pin RJ-45 ANSI/TIA-568 8P8C, 1000Base-T |
| Power Supply | 12V DC |
| Max Power Consumption | 19.44W |
| Operating Temperature | 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing |
| Storage Temperature | -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing |
| Maximum BTU DIMENSIONS & WEIGHT | 68 BTU/hr |
| Rack Units/Wall Box | <1U flat on shelf, 6U in NHD-000-RACK4, 1U in NHD-140-RACK-1U |
| Height | 25mm/1in |
| Width | 215mm/8.46in |
| Depth | 260.2mm/10.24in |
