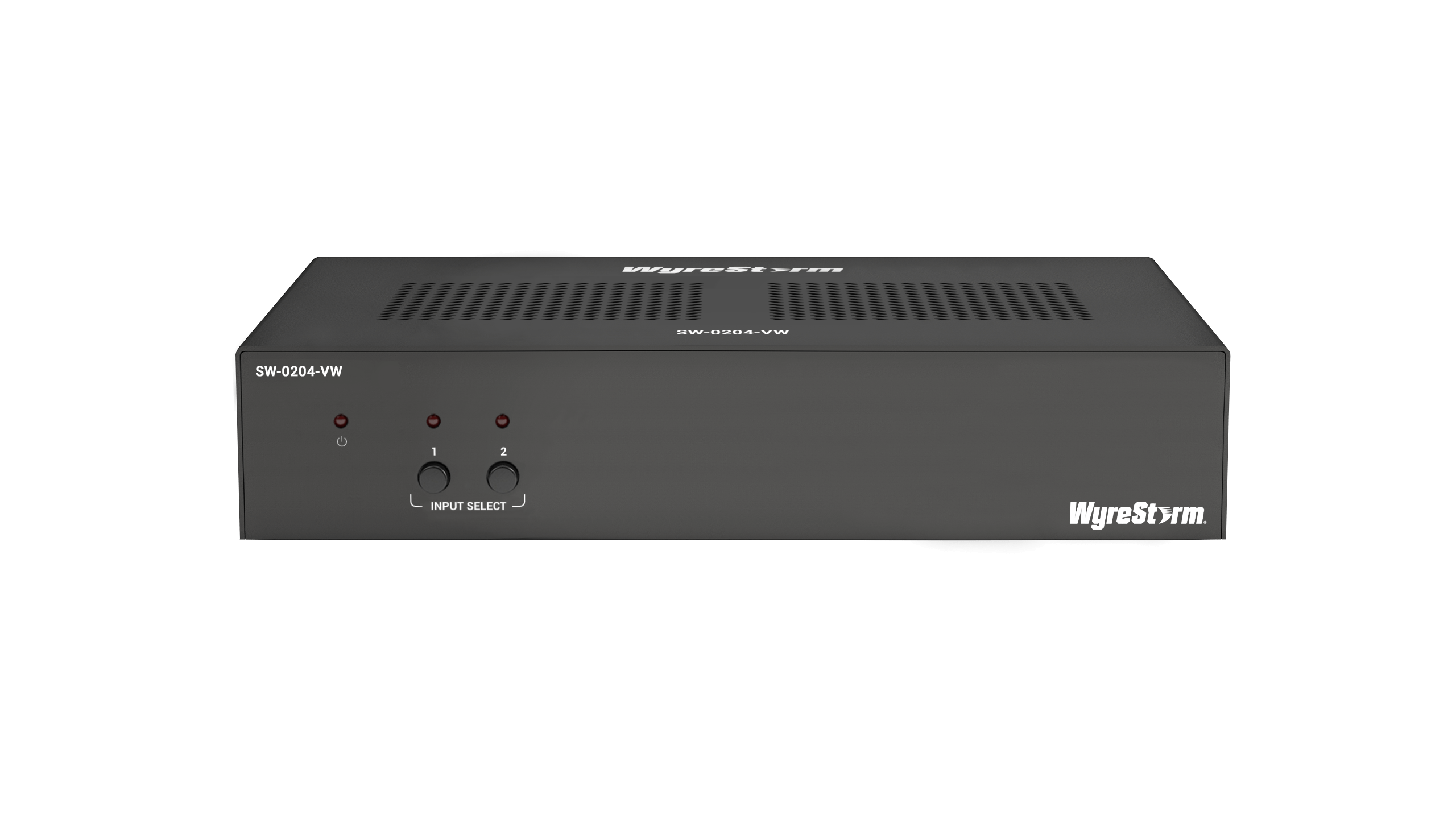

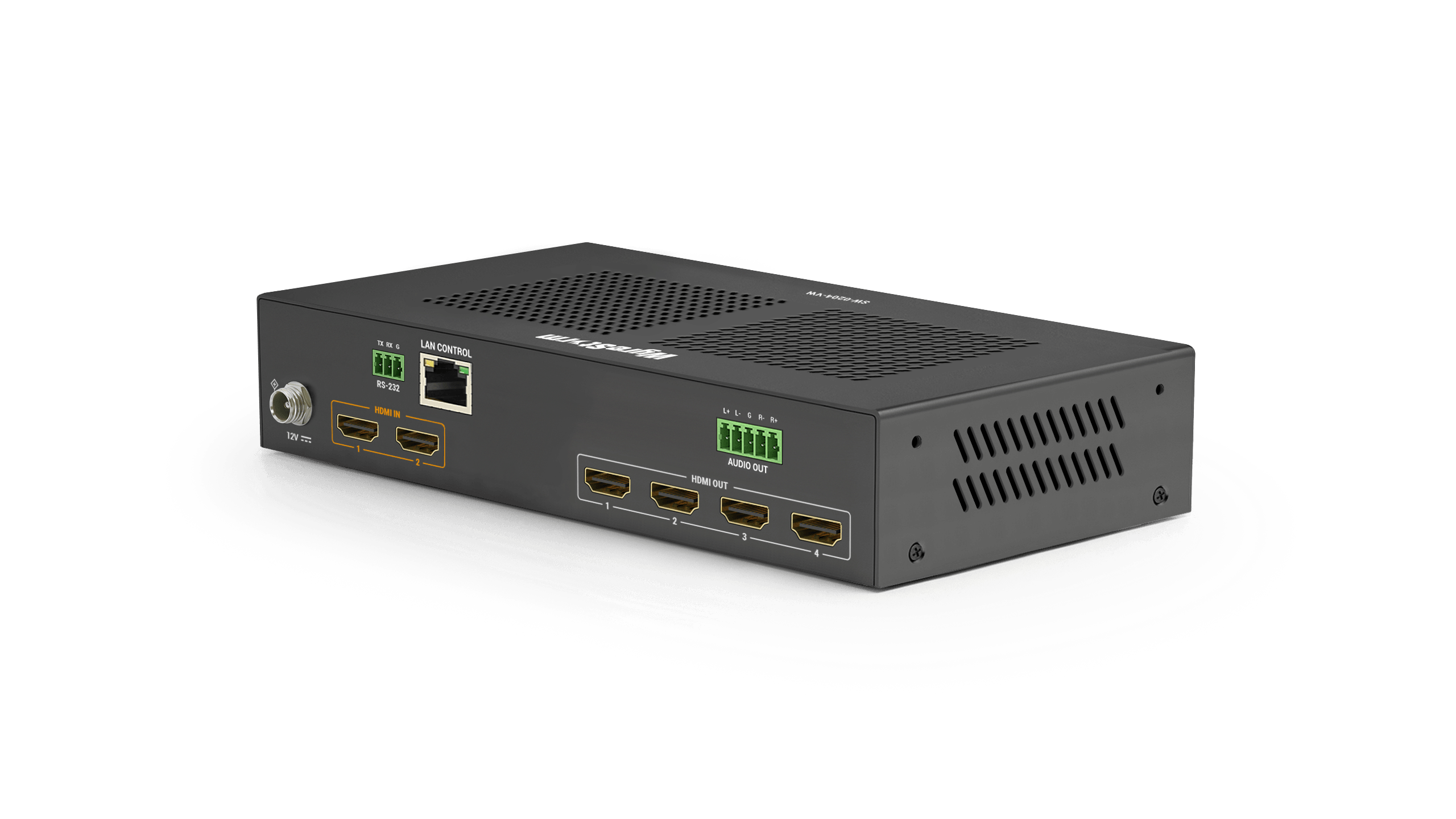

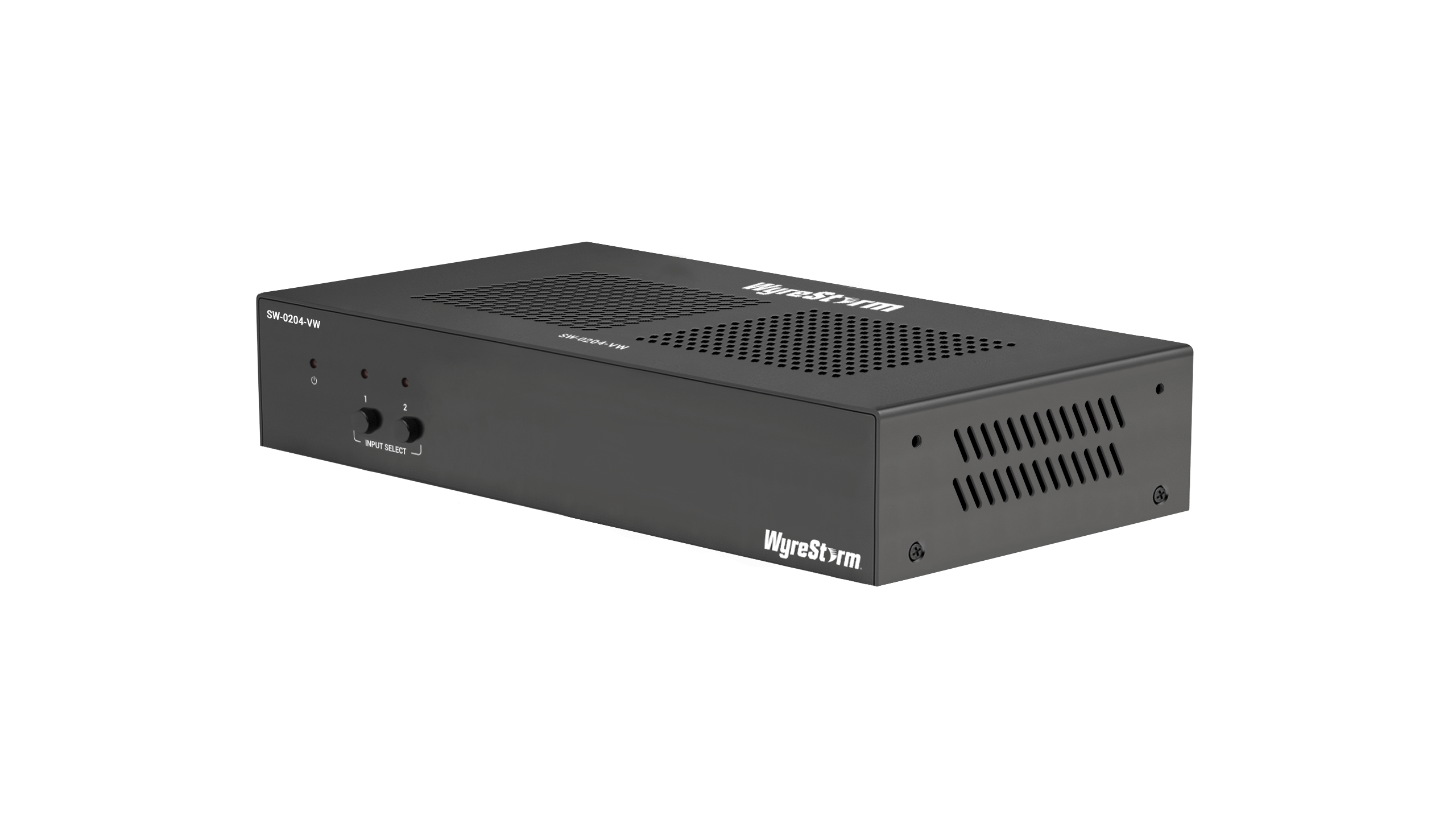

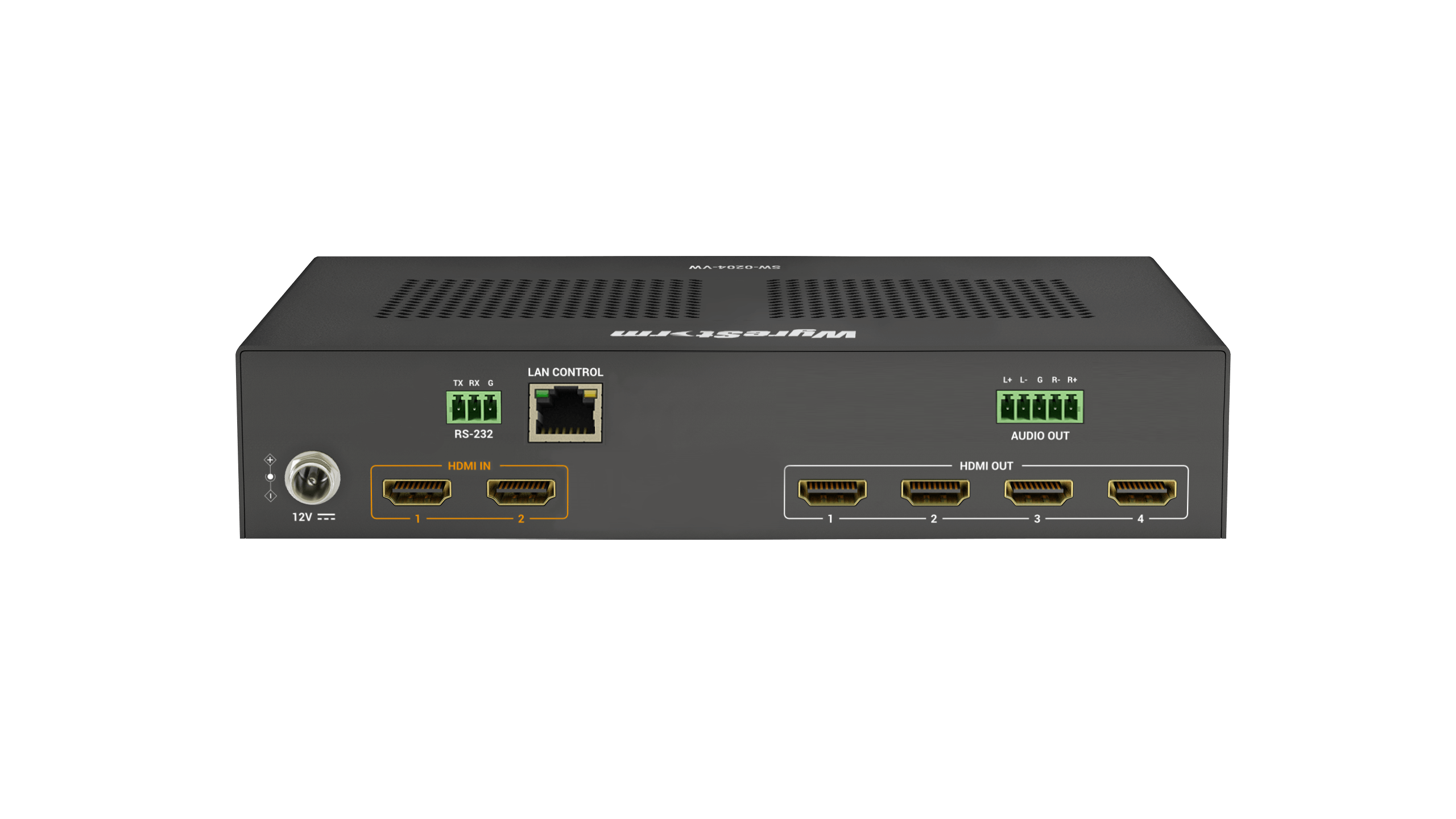

WyreStorm SW-0204-VW — 4K60Hz 4-Output Video Wall Processor
The SW-0204-VW 4x HDMI 2.0 Video Wall processor is an advanced 2x inputs (alternative) and 4x outputs video wall processor, providing video wall layout of 1×4 and 2×2 (rows x columns) with 4K and ultra-wide resolution support, independent analog audio output and image scaling. It also supports a user-friendly Web-UI, RS232 and Telnet for optimal flexibility control.
| Marka | WyreStorm |
|---|---|
| Model | SW-0204-VW |
| Inputs | 2x HDMI IN: 19-pin type A |
| Outputs | 4x HDMI OUT: 19-pin type A 1x 5-pin Phoenix Analog Audio with balance (de-embed from selected HDMI input) |
| Audio Formats | PCM 2ch Analog |
| Output Video Resolution (Max) | Auto-Scaler (scale up and down to any resolution — up to 4K@60Hz) 1920x1080p @60Hz 4:4:4 8bit 3840x2160p @60Hz 4:4:4 8bit 4096x2160p @60Hz 4:4:4 8bit 5120×2160 @30Hz |
| HDMI | HDMI 2.0, HDCP 2.3, EDID, CEC |
| RS-232 | 1x RS-232: 3-pin Phoenix Female, Video-Wall Processor Control Routable RS-232 Device Control, Telnet commands supported |
| Ethernet | 1x LAN: 8-pin RJ-45 Female, Web UI, Video-Wall Control and Ethernet |
| Power Supply | DC 12V/3A |
| Operating Temperature | 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing |
| Storage Temperature | -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing |
| Dimensions | 42mm/1.65in x 215mm/8.46in x 140.2mm/5.52in |
| Supported Standards | DCI (4096×2160), RGB, HDR, HDR10, Dolby Vision, HLG, BT.2020 |
