The NHD-600-TRXF is a SDVoE fiber transceiver capable of lossless, latency-free 4K60 over a 10Gb network. The TRXF allows you to transmit and receive A/V simultaneous through a single device or be programmed to act as a dedicated TX or RX. The SFP+ connector supports up to 10km using SMF, 10Gbps transmission distance for extremely long reach commercial applications. 3x High-Speed USB 2.0 ports allow extension for keyboard mouse applications and even compatibility with webcams, touchscreens, and media storage.
NetworkHD AV over IP

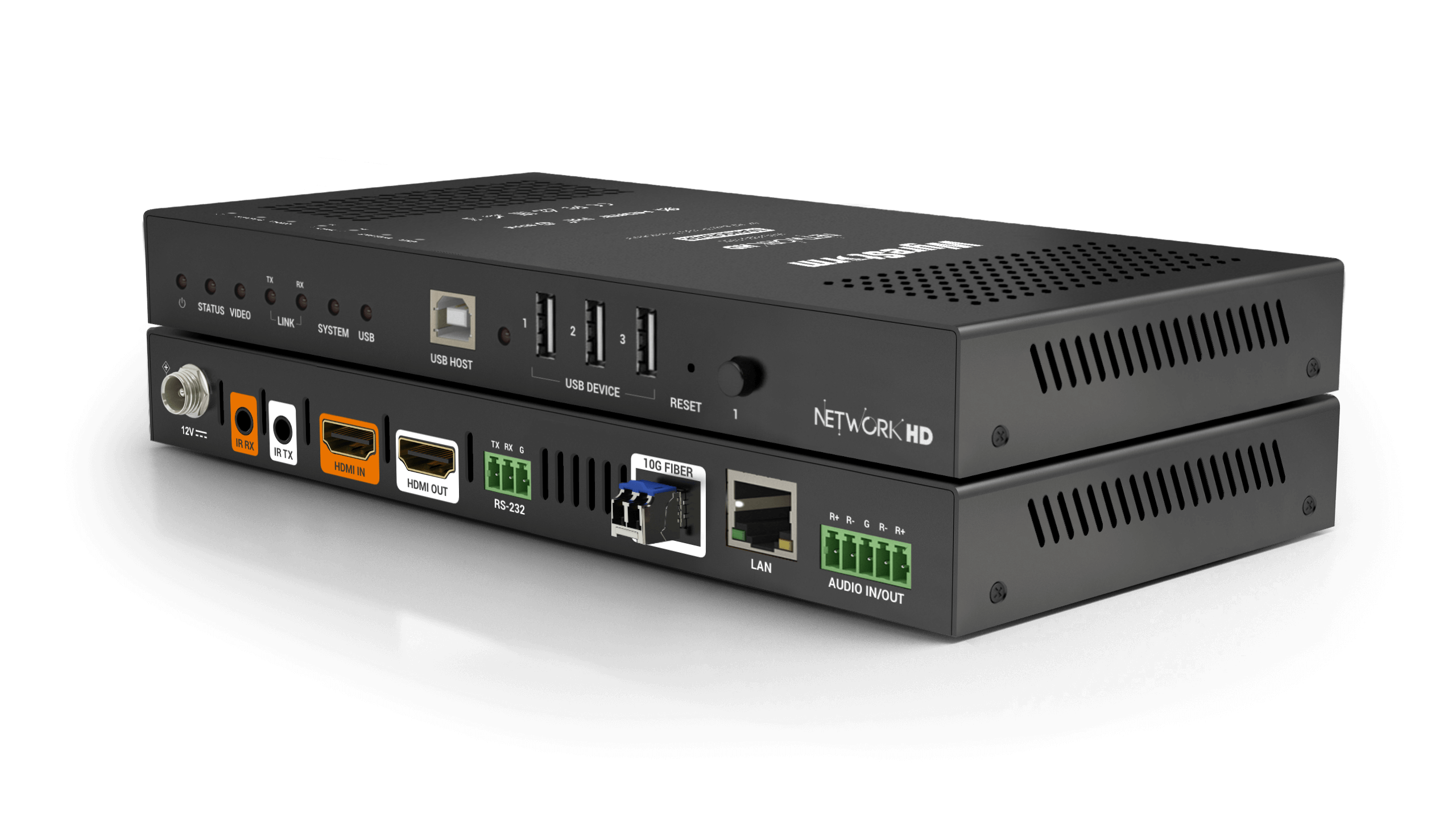

WyreStorm NHD-600-TRXF — NetworkHD 600 Series 4K60 4:4:4 10Gb SDVoE Fiber Transceiver
The NHD-600-TRXF is a SDVoE fiber transceiver capable of lossless, latency-free 4K60 over a 10Gb network. The TRXF allows you to transmit and receive A/V simultaneous through a single device or be programmed to act as a dedicated TX or RX. The SFP+ connector supports up to 10km using SMF, 10Gbps transmission distance for extremely long reach commercial applications. 3x High-Speed USB 2.0 ports all
| Marka | WyreStorm |
|---|---|
| Model | NHD-600-TRXF |

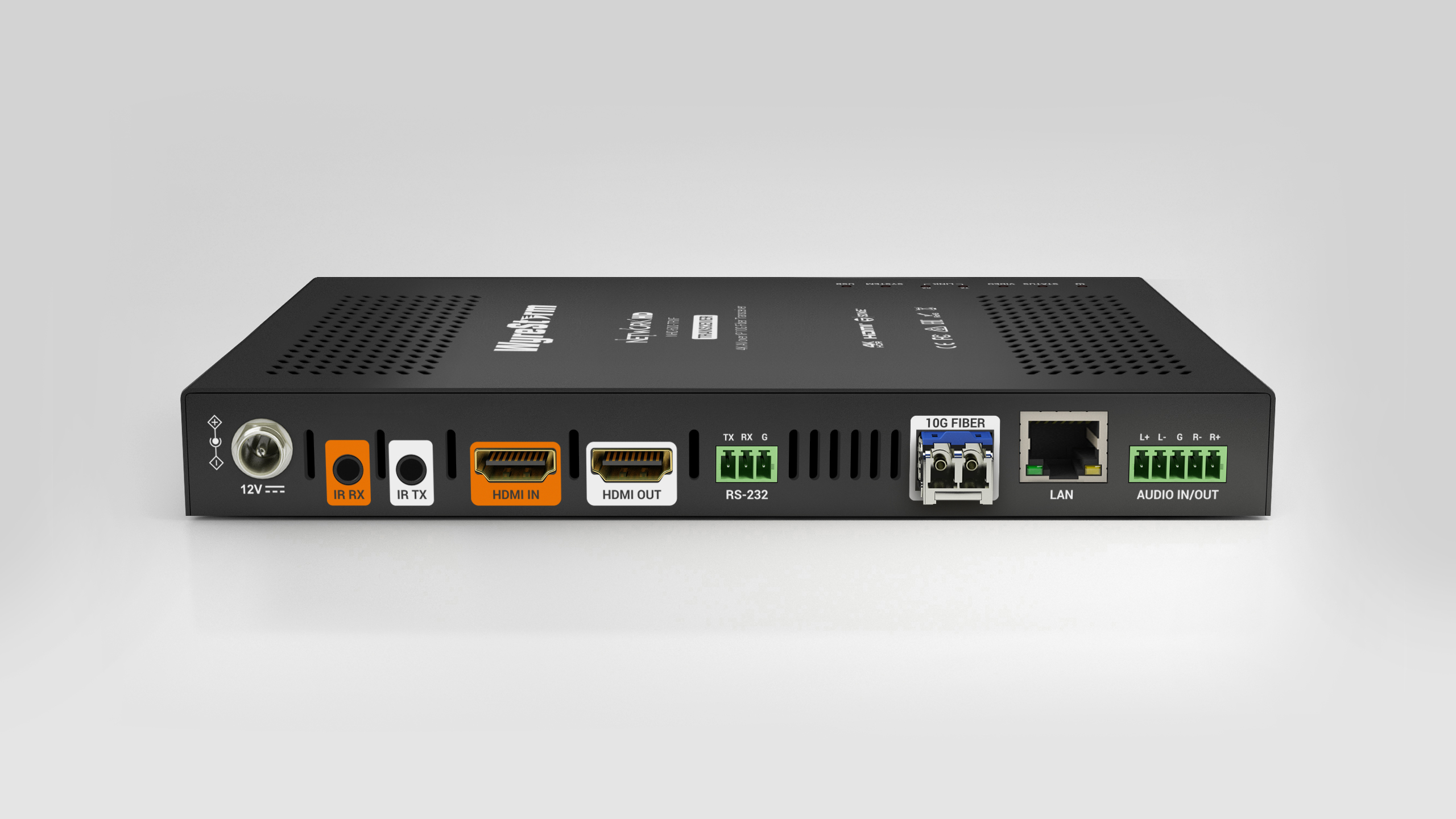

| Inputs/ Outputs | 1x HDMI 2.0 input 1x HDMI 2.0 output 1x 5-pin balanced analog audio in/out 1x 10Gb/s SFP+ GBIC 10GBASE-SR: 300m using OM3 multi-mode 10GBASE-LR: 10km using OM3 single-mode |
| Video Encoding/ Decoding | SDVoE Pixel Pipeline |
| Encoding/ Decoding Data Rate | 1080p@60Hz 8bit – 3.4Gbps 4K UHD@30Hz 4:4:4 8bit – 6.4Gbps 4K UHD@60Hz 4:4:4 8bit – 8.7Gbps (with light compression) |
| End to End Latency | Genlock Mode: Uncompressed = 30us, Compressed <120us Fast Switch Mode: 1~2 video frames = min. between 16.7 – 33.4ms @ 60fps |
| Video Resolution (Max) | 5120x2160p @30Hz 4:4:4 5120x1440p @30/45Hz 4:4:4 4096x2160p @ 60Hz 8bit 4:4:4 or RGB 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision 3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG 1920x1080p @60Hz 12bit |
| Supported Standards | RGB, DCI, Rec. 709, BT.2020 |
| HDMI | HDCP 2.2, CEC |
| Ethernet | 1x 1GbE LAN 8-pin RJ45 |
| RS-232 | 1x 3-pin Phoenix Connector, 2 Way, Broadcast, Routed, API Programmable |
| IR | 1x IR TX 3.5mm TS Mono Jack, API Programmable 1x IR RX 3.5mm TRS Stereo Jack, API Programmable |

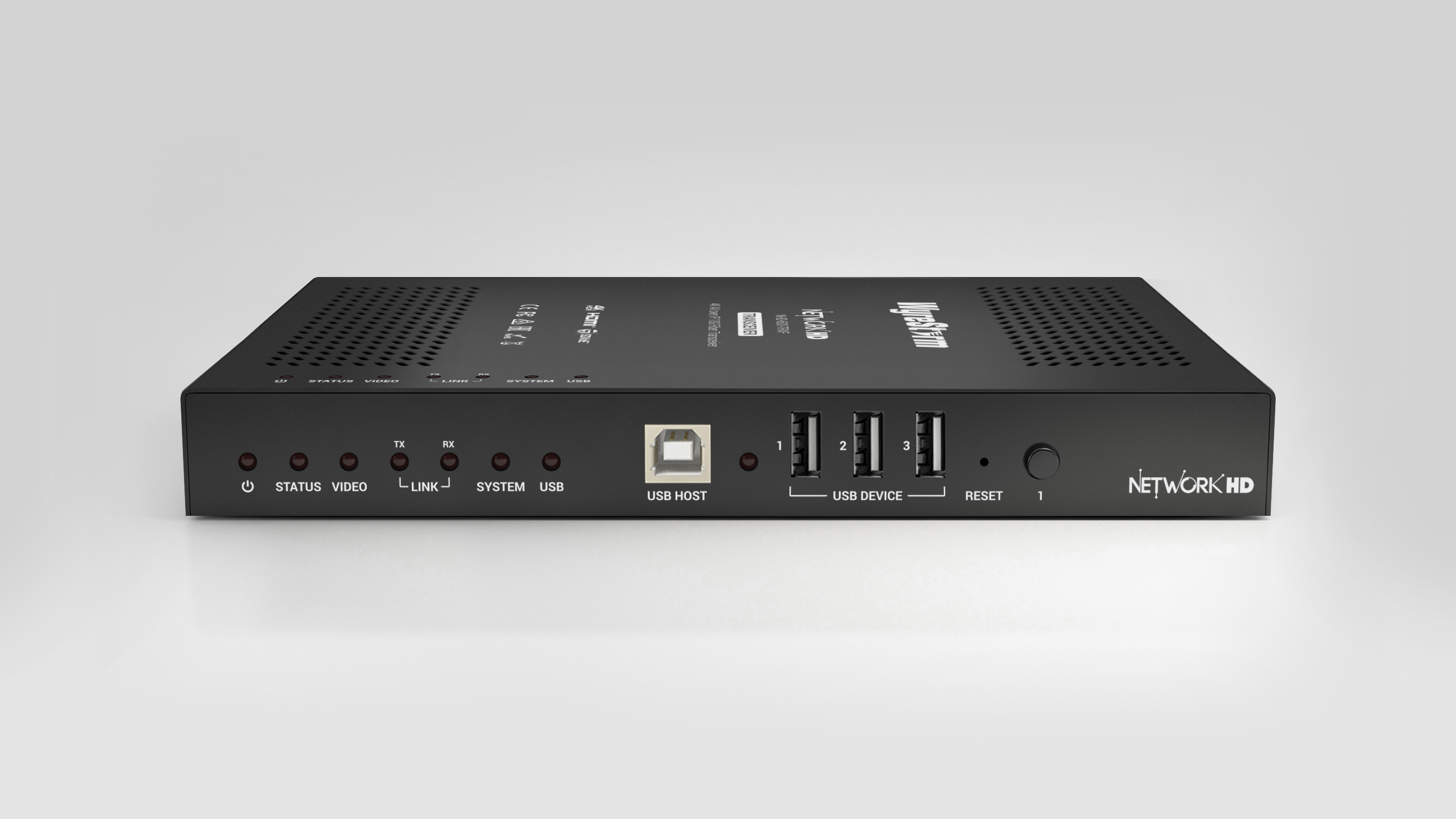

| USB | 3x USB 2.0 Type A 1x USB 2.0 Type B Host USB Bandwidth: 480Mbps |
| Power Supply | 12V 2A DC PSU |
| Max Power Consumption | Max: 24w, Average: 10w |
