Experience unmatched versatility with the NHD-120-IW-TX, your ultimate AV over IP solution. This 2-gang in-wall encoder, part of our 100 series, boasts an HDMI input and a dedicated Ethernet port, designed to seamlessly integrate with today’s modern laptops and tablets. Whether you’re enhancing your educational setup or optimizing your corporate environment, this encoder is your key to success. Install it discreetly in a wall, table, desk, podium, or any location where remote input is essential. The NHD-120-IW-TX also offers the flexibility to connect the CAM-210-PTZ camera via HDMI while providing a robust Ethernet connection to ensure your AV streams are pristine and uninterrupted.
Low Bandwidth AV over IP (1G), NetworkHD AV over IP

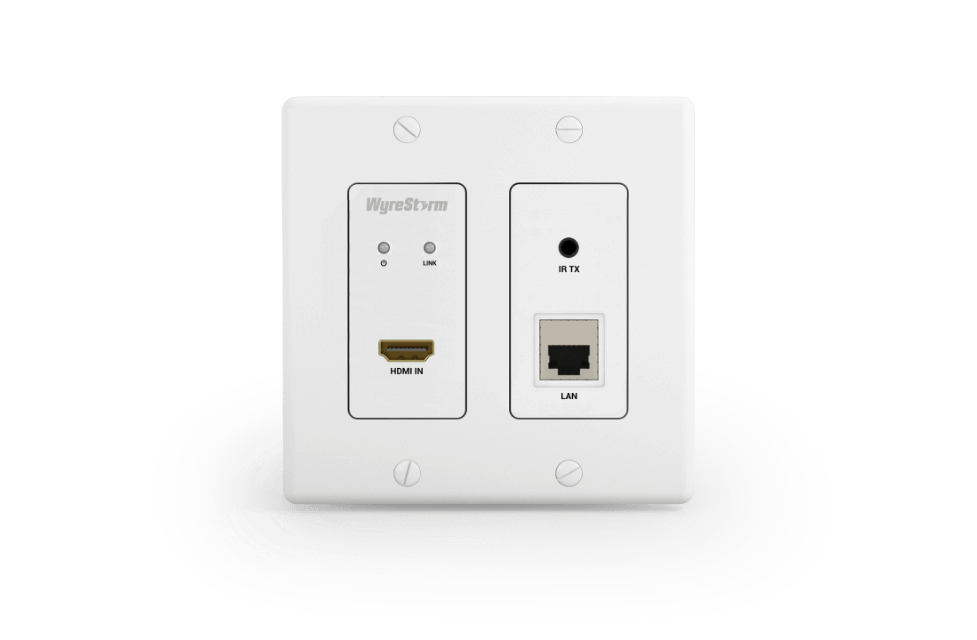

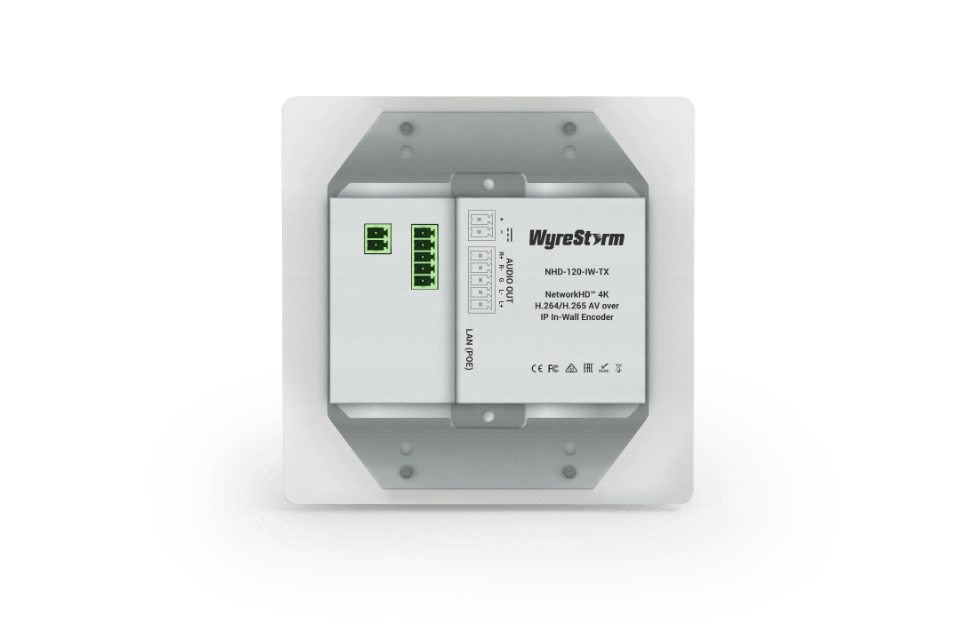

WyreStorm NHD-120-IW-TX — NetworkHD 100 Series 4K30 4:2:0 H.265/H.265 In-Wall Encoder
Experience unmatched versatility with the NHD-120-IW-TX, your ultimate AV over IP solution. This 2-gang in-wall encoder, part of our 100 series, boasts an HDMI input and a dedicated Ethernet port, designed to seamlessly integrate with today’s modern laptops and tablets. Whether you’re enhancing your educational setup or optimizing your corporate environment, this encoder is your key to success. In
| Marka | WyreStorm |
|---|---|
| Model | NHD-120-IW-TX |
| Inputs | 1x HDMI 19-pin HDMI type A |
| Outputs | 1x Ethernet: RJ45 Female socket 1x 5-pin Phoenix Analog Audio 1x 3.5mm IR TX |
| Output Video Encoding | H.264/H.265 |
| End to End Latency | 1080p: High Quality Mode: ~250ms Low Latency Mode: ~80ms 4K: High Quality Mode: ~300ms Low Latency Mode: ~150ms |
| Encoding Data Rate | Max: 30Mbps (configurable) Default parameters: 4K30/H.265/VBR 16Mbps |
| Stream Preview | CIF@30/MJPEG/512Kbps |
| Video Resolution (Max) | 3840X2160p@30 4:2:0 1920x1080p@60 4:2:0 1920X1200p@60 4:2:0 Audio: LPCM (stereo,32/44.1/48Khz,16-bit) |
| Maximum Pixel Clock | 150MHz |
| HDMI | HDMI v1.4, HDCP 2.2, EDID |
| Network | 1x 1GbE RJ45 for av stream 1 x Auxiliary 1GbE channel for network connectivity of attached source devices |
| RS-232 | 1x 3.5mm debug only |
| Security Protocols | AES 128, SSH, HTTPS |
| Power Supply | 12V DC 1A, 802.3af PoE Compliant |
| Max Power Consumption | Max: 12w, Average: 6w |
