DISCONTINUED Offering transmission of 18Gbps HDMI content up to 35m/115ft by pairing HDBaseT with WyreStorm’s powerful lossless compression algorithm, the MXV-0408-H2A brings the familiar power of the WyreStorm H2-series to a compact 1U chassis. Unlike competing compression methods, such as CSC which permanently remove color data, WyreStorm’s VLC uses lossless compression technology to ensure signal integrity. With 6 HDBaseT & 2 HDMI zone outputs (which can be paired with WyreStorm’s hybrid HDMI cables or any extender) and CEC triggering for all connected screens, the MXV 4×8 enhances the offering for the modern home or commercial installation.
Discontinued Products, Matrix Switchers

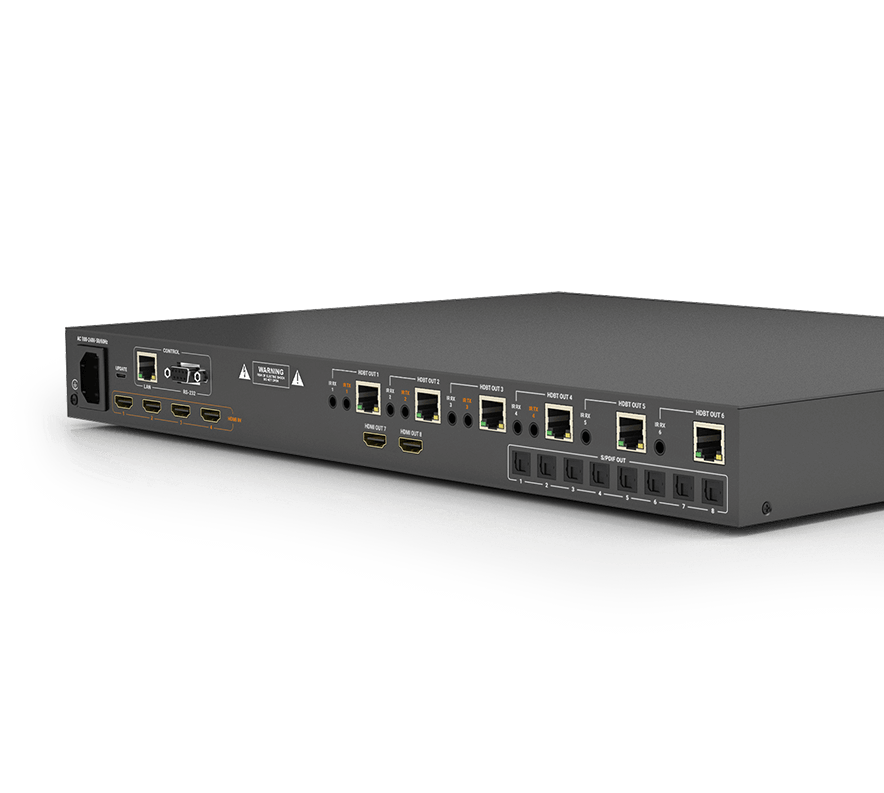

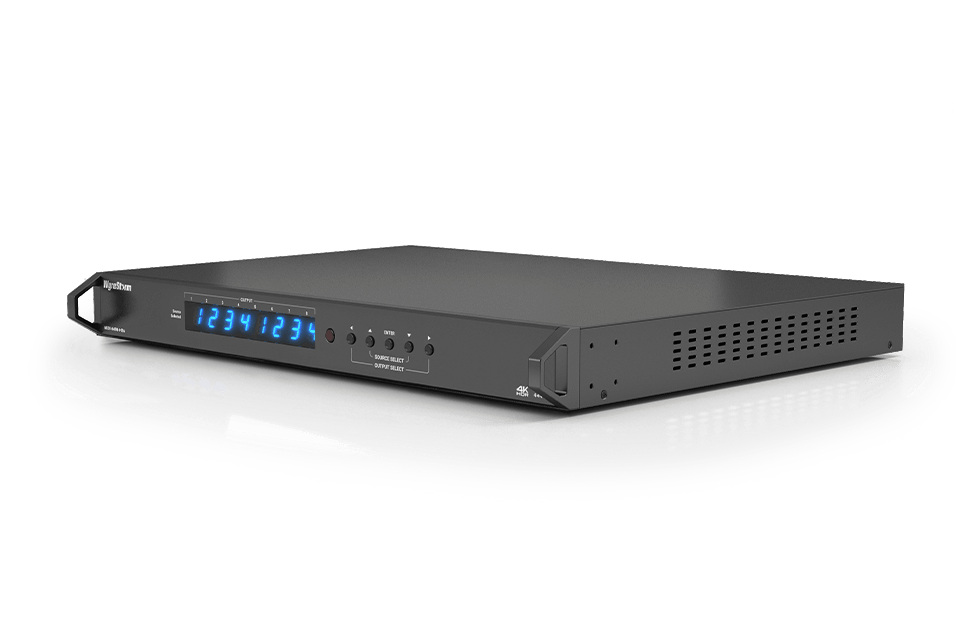

WyreStorm MXV-0408-H2A — 4K60 4×8 HDBaseT Matrix
DISCONTINUED Offering transmission of 18Gbps HDMI content up to 35m/115ft by pairing HDBaseT with WyreStorm’s powerful lossless compression algorithm, the MXV-0408-H2A brings the familiar power of the WyreStorm H2-series to a compact 1U chassis. Unlike competing compression methods, such as CSC which permanently remove color data, WyreStorm’s VLC uses lossless compression technology to ensure sign
| Marka | WyreStorm |
|---|---|
| Model | MXV-0408-H2A |

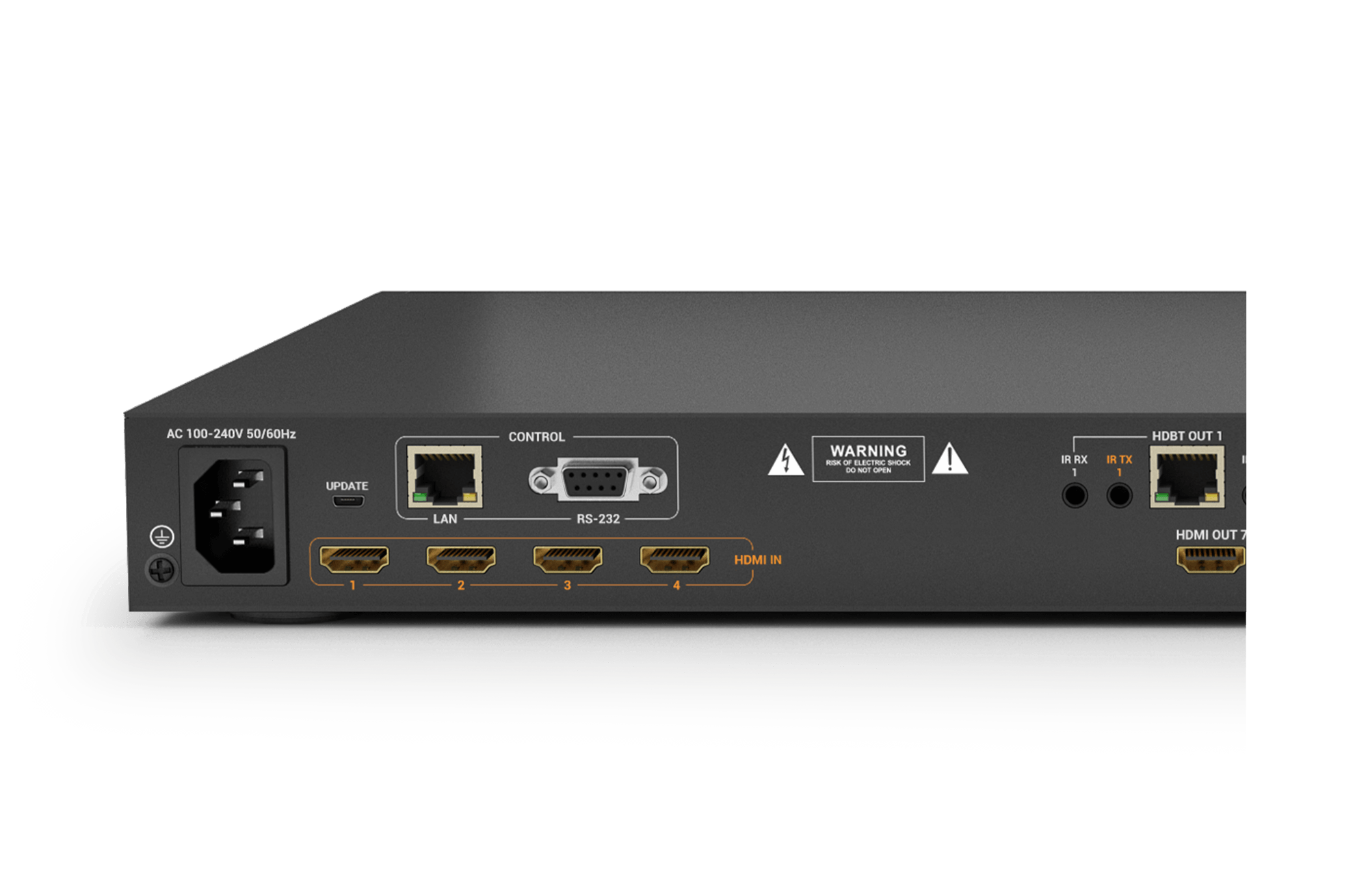

| Inputs | 4x HDMI In: 19-pin type A |

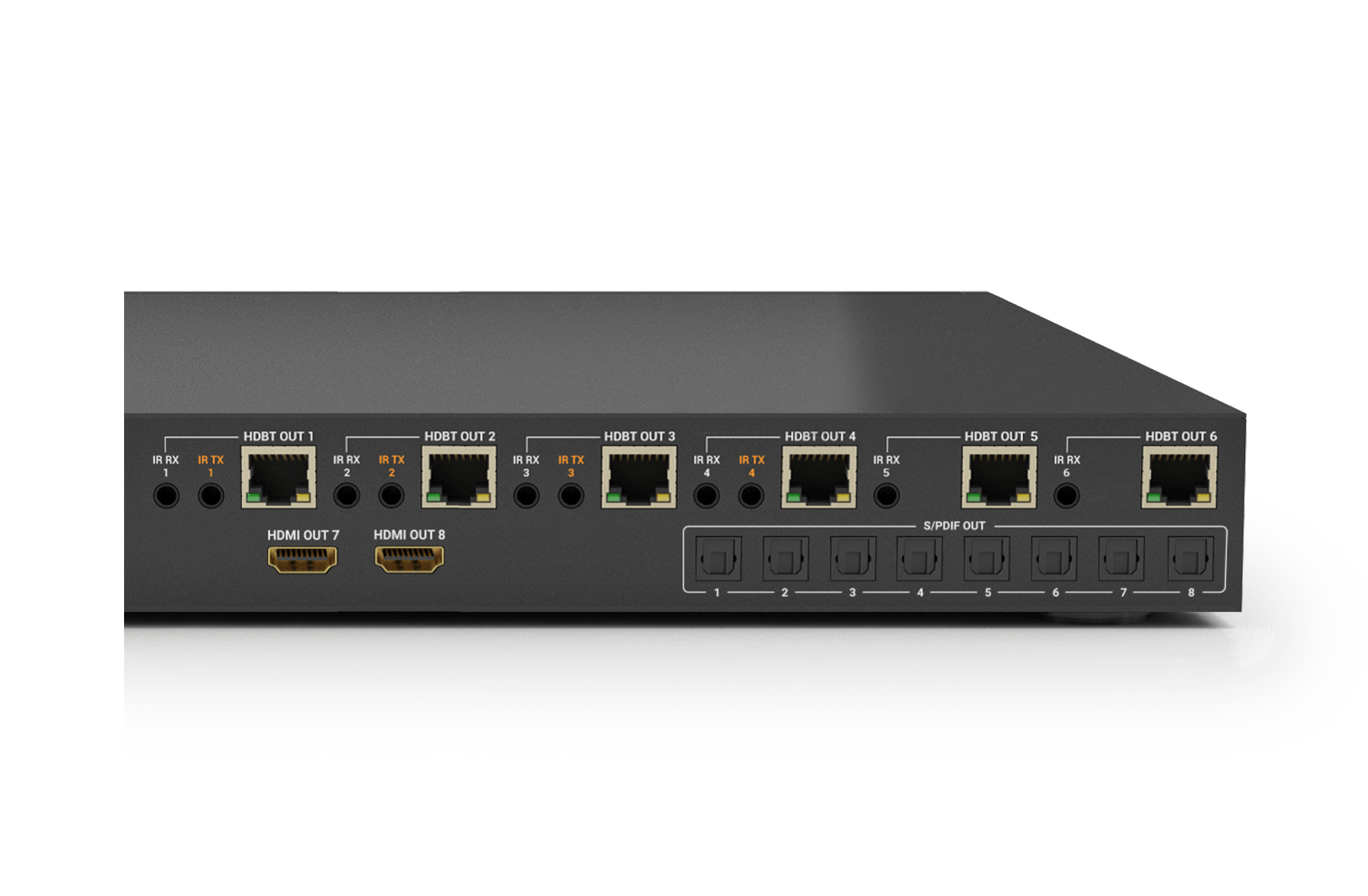

| Outputs | 6x HDBT Out: 8-pin RJ-45 Female 8x S/PDIF Out: TOSLINK (Digital Optical) 2x HDMI Out: 19-pin type A |
| Output Video Encoding | HDBaseT™ Class B |
| Encoding Data Rate | 9.2Gbps |
| End to End Latency | 10μs (micro seconds) |
| Audio Formats | Analog: 2ch Analog S/PDIF: 2ch LPCM, Dolby Digital/DTS up to 5.1ch HDMI: 2ch LPCM, Multichannel up to Dolby Atmos and DTS-X |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision up to 30Hz, HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | HDMI: 600MHz, HDBaseT: 297MHz |
| HDMI | HDMI 2.0, HDCP 2.2, EDID Input supports DVI/D and DisplayPort Dual-Mode (DP++) v1.3 with adapter (not included) |
| HDBaseT | HDMI 2.0, HDCP 2.2, EDID, 1-way PoH, Bidirectional IR |
| CEC | CEC power triggering, Requires CEC compatibility, HDMI outputs only |
| IR | 6x IR RX: 3.5mm (1/8in) TRS Stereo, 4x IR TX: 3.5mm (1/8in) TS Mono, Bidirectional over HDBaseT |
| RS-232 | 1x RS-232: 9-pin DB9 Female, Matrix Control, Telnet commands supported |
| Ethernet | 1x LAN: 8-pin RJ-45 Female, Web UI, Matrix Control |
| Power Supply | 100~240V AC 50/60Hz |
| Max Power Consumption | 124W |
| Operating Temperature | 0 ~ +45°C (32 ~ +113 °F), 10% ~ 90%, non-condensing |
| StorageTemperature | -20 ~ +70°C (-4 ~ +158 °F), 10% ~ 90%, non-condensing |
İlgili ürünler
-
Discontinued Products

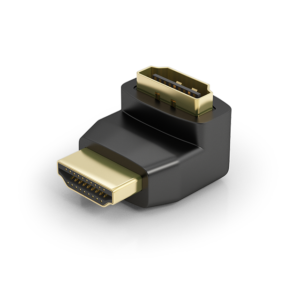

WyreStorm EXP-HDMI-RTA — WyreStorm Essentials Right Angle HDMI Adapter
Teklif Al İncele -
Discontinued Products

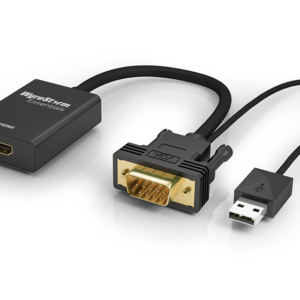

WyreStorm EXP-HDMI-VGA — HDMI VGA Extender Essentials VGA to HDMI
