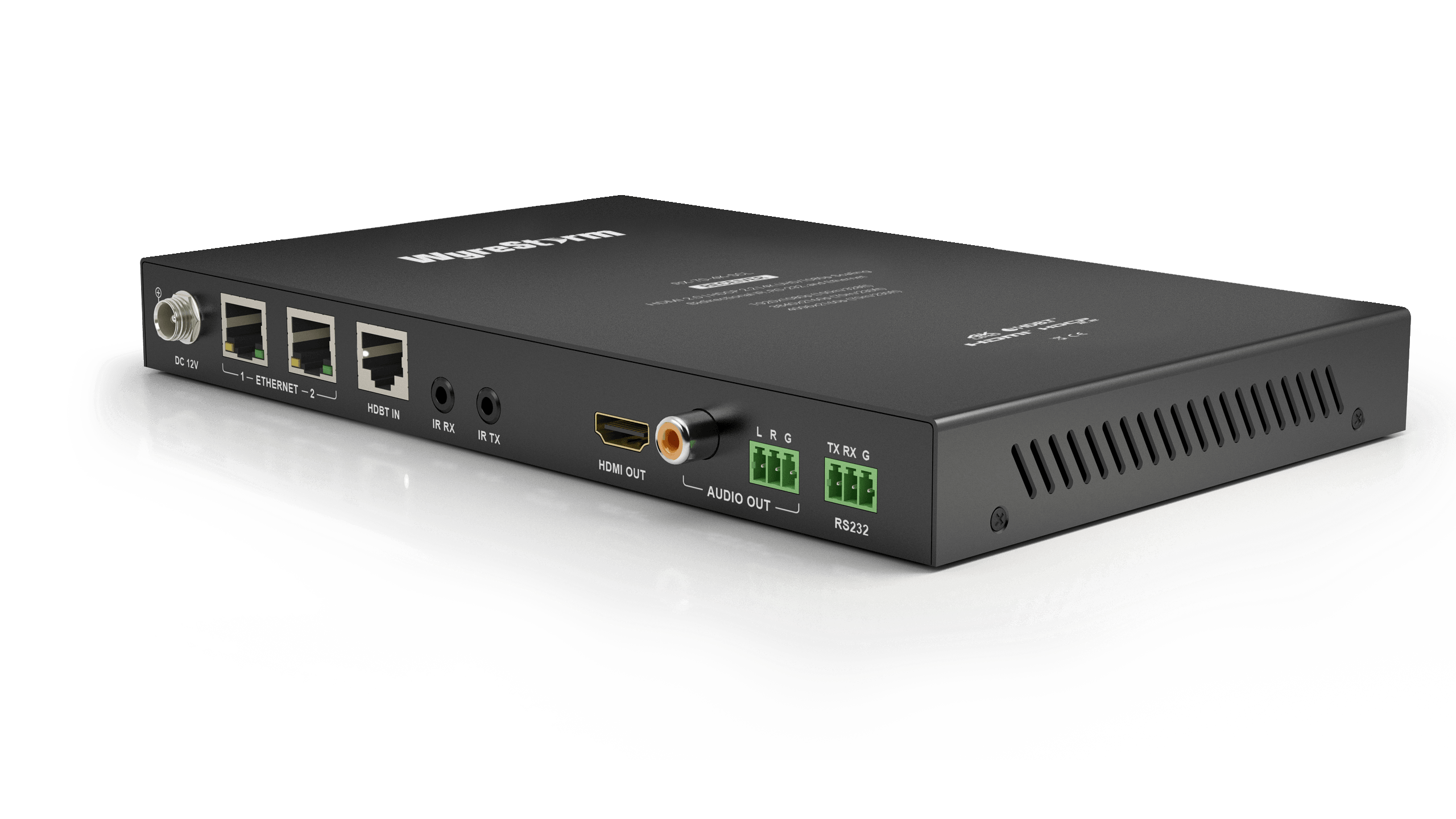

WyreStorm RX-70-4K-SCL — 70m 4K HDBaseT Scaling Receiver with Downscaling

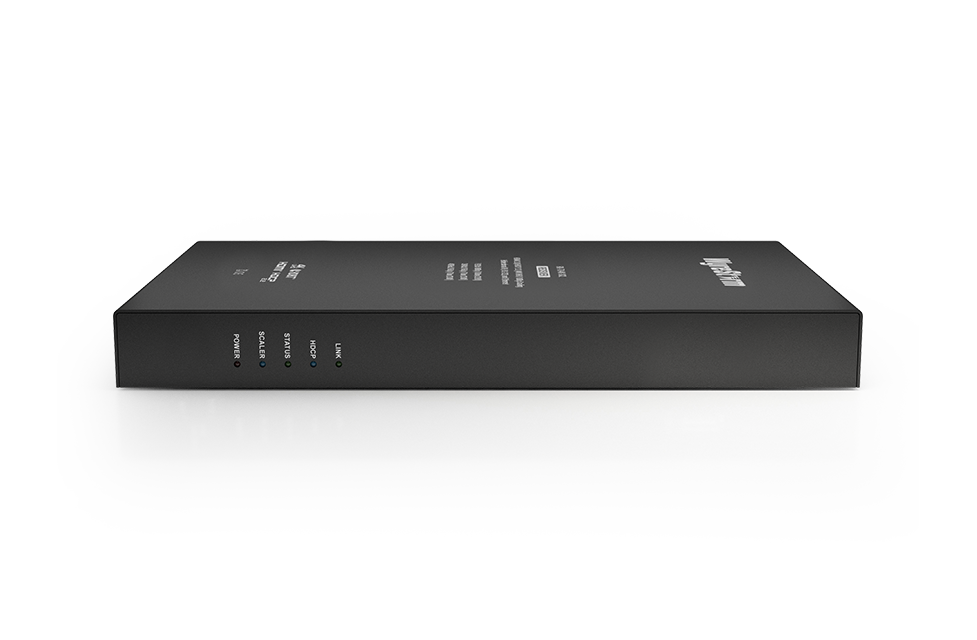

WyreStorm RX-70-4K-SCL — 70m 4K HDBaseT Scaling Receiver with Downscaling - Görsel 2

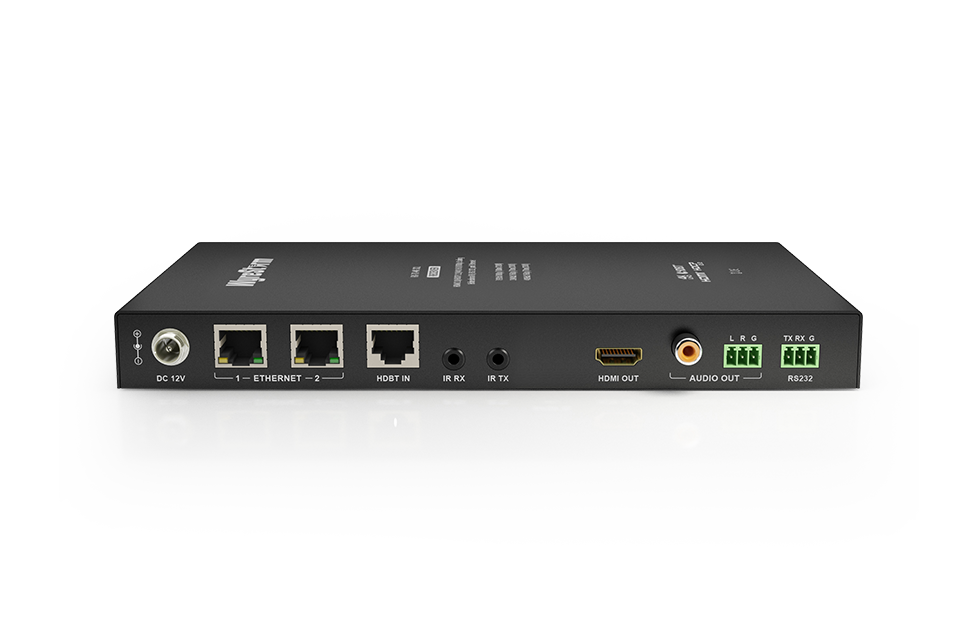

WyreStorm RX-70-4K-SCL — 70m 4K HDBaseT Scaling Receiver with Downscaling - Görsel 3
,

WyreStorm RX-70-4K-SCL — 70m 4K HDBaseT Scaling Receiver with Downscaling

Teklif Al

DISCONTINUED A vital addition to any HDBaseT distribution system, the RX-70-4K-SCL scales incoming video content to best suit the display device to which it is attached. This allows the best quality video content to be sent throughout the system, avoiding EDID clashes or older display technology compromising the rest of the system.

Stok kodu: RX-70-4K-SCL Kategoriler: ,

DISCONTINUED A vital addition to any HDBaseT distribution system, the RX-70-4K-SCL scales incoming video content to best suit the display device to which it is attached. This allows the best quality video content to be sent throughout the system, avoiding EDID clashes or older display technology compromising the rest of the system.

Marka

WyreStorm
Model

RX-70-4K-SCL
Inputs

1x HDBaseT In 8-pin RJ-45 female
Outputs

1x HDMI 19-pin type A 1x S/PDIF Out Coaxial Digital 1x Audio Out 3pin Phoenix Connector
Output Video Encoding

HDBaseT Class A
Encoding Data Rate

9.2Gbps
End to End Latency

10μs (micro seconds)
Audio Formats

S/PDIF: 2ch PCM, Multichannel: Up to 5.1 DTS and Dolby Digital HDMI: 2ch PCM, Multichannel: LPCM and Up to DTS-X and Dolby Atmos
Video Resolution (Max)

1920x1080p @60Hz 16bit 3840x2160p @30Hz 8bit 4:4:4 3840x2160p @60Hz 10bit 4:2:0 HDR 4096x2160p @60Hz 8bit 4:4:4 Long Cable Mode Forced Resolution on H2X Matrix: 1920x1080p @60Hz 12bit
Supported Standards

DCI, RGB, HDR, HDR10, Dolby Vision up to 30Hz, HLG, BT.2020, BT.2100
Maximum Pixel Clock

297mHz
HDMI

HDCP 2.2, EDID (Configurable), DVI-D supported with adapter (not included)
HDBaseT

HDMI, HDCP 2.2, EDID (Configurable), CEC, Bidirectional IR, RS-232, and Ethernet
Ethernet

2x 8-pin RJ-45 female, 10/100 Mbps auto-negotiating, API Receiver Configuration, Bidirectional over HDBaseT
IR

1x IR TX 3.5mm (1/8in) TS Mono, 1x IR RX 3.5mm (1/8in) TRS Stereo, Transmitted over HDBaseT
RS-232

1x 3-pin Phoenix Connector, API Receiver Configuration, Bidirectional over HDBaseT when used with H2X matrix
ARC (Audio Return Channel)

Returns audio from displays built-in applications via ARC HDMI Input over HDBaseT
Power Supply

12V DC 2A
Max Power Consumption

16.4W
