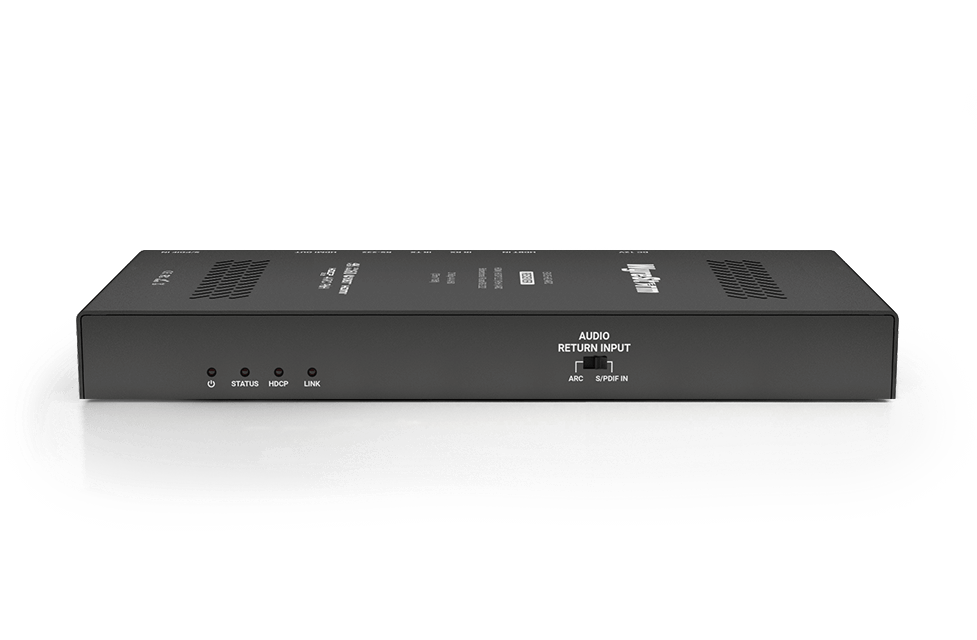

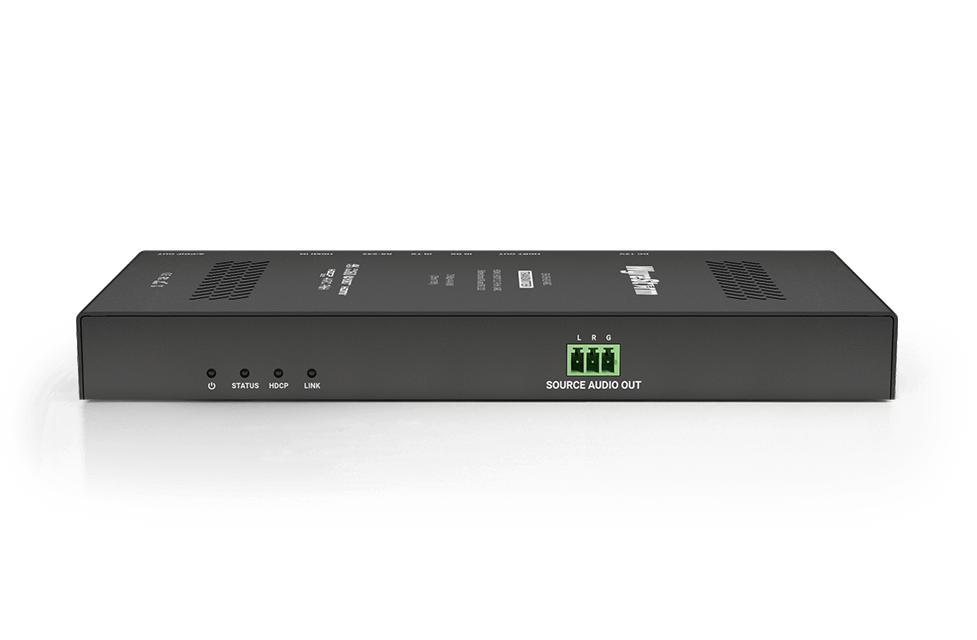

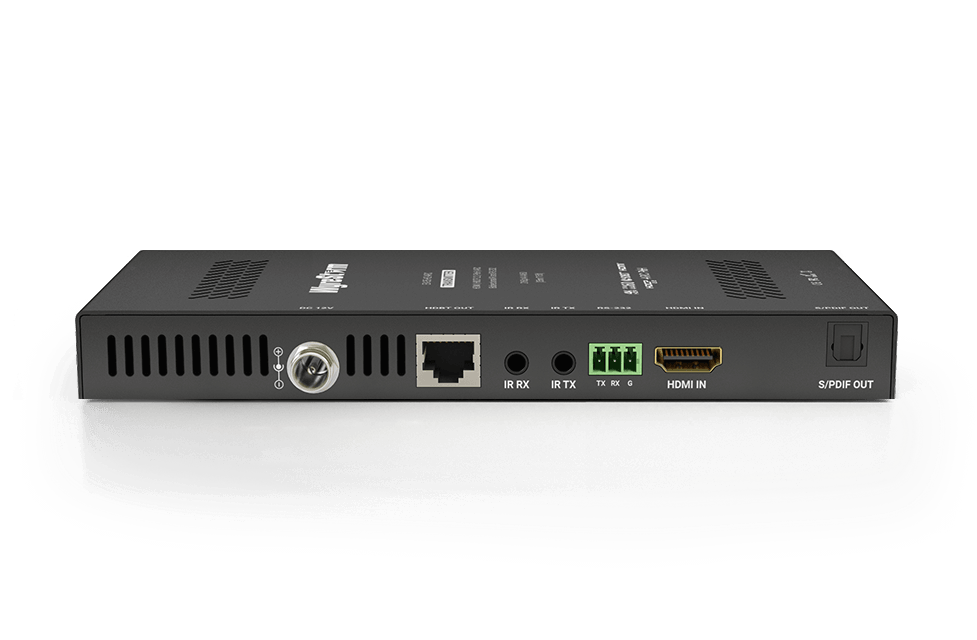

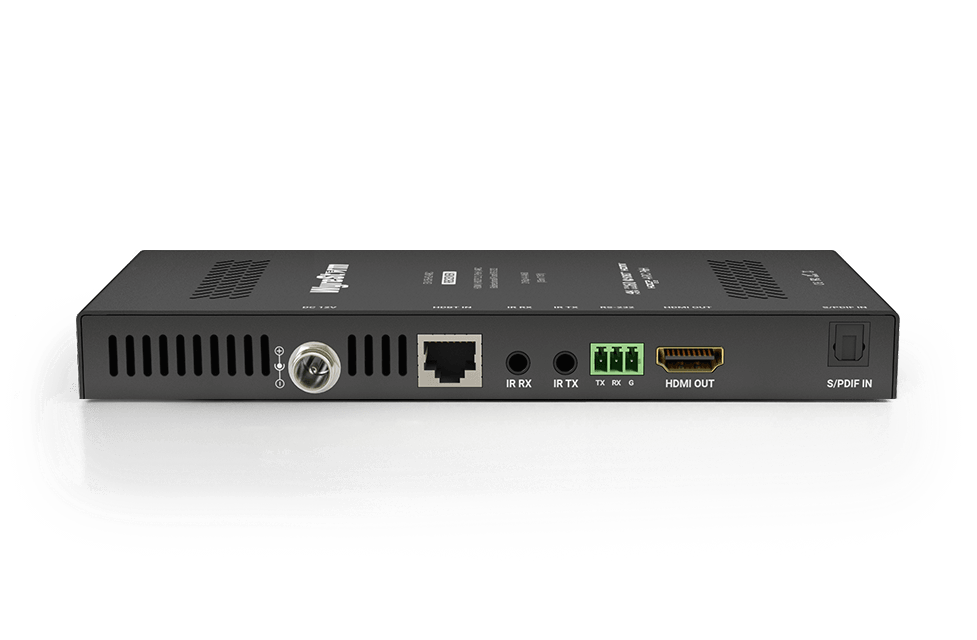

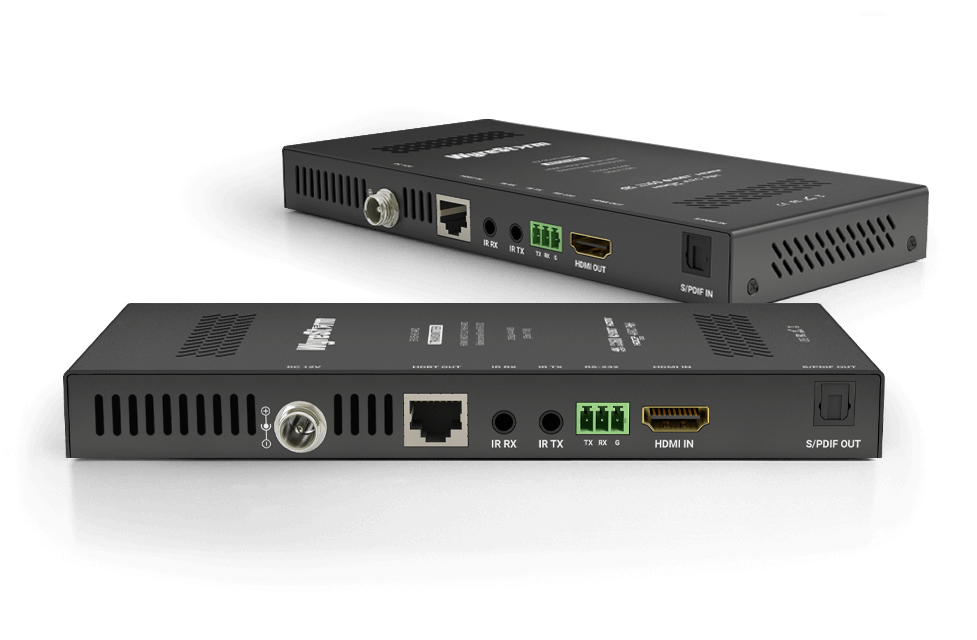

WyreStorm ARC HDMI Extender – EX-35-H2-ARC 18Gbps 4K HDR HDBaseT Extender
Buy the WyreStorm EX-35-H2-ARC HDMI/HDBaseT extender to transmit 4K HDR video and audio over long distances, with ARC support, reliable signal performance, and professional-grade AV quality for commercial installations.
| Marka | WyreStorm |
|---|---|
| Model | EX-35-H2-ARC |
| Inputs | TRANSMITTER 1x HDMI: 19-pin type A RECEIVER 1x HDBaseT: 8-pin RJ-45 Female 1x S/PDIF: TOSLINK (Digital Optical) |
| Outputs | 1x HDBT: 8-pin RJ-45 Female 1x S/PDIF: TOSLINK (Digital Optical) 1x Source Audio: 3-pin Phoenix 1x HDMI 19-pin type A |
| Output Video Encoding | HDBaseT™ Class B |
| Encoding Data Rate | 9.2Gbps |
| End to End Latency | 10μs (microseconds) |
| Audio Formats | 2ch Analog/PCM, Multichannel: LPCM up to DTS-X and Dolby Atmos |
| Video Resolutions (max) | 1920x1080p @60Hz 16bit 3840x2160p @24Hz 10bit 4:2:0 HDR 3840x2160p @30Hz 8bit 4:4:4 4096x2160p @60Hz 8bit 4:4:4 |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision up to 30Hz, HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | HDMI: 600MHz, HDBaseT: 297MHz |
| HDMI | HDMI, HDCP 2.2, EDID, DVI/D supported with adapter (not included) |
| HDBaseT | HDMI, HDCP 2.2, EDID, ARC, 2-way PoH, Bidirectional IR and RS-232 |
| CEC | CEC Pass-through – Requires CEC compatibility between source and display |
| IR | 1x IR RX: 3.5mm (1/8in) TRS Stereo, 1x IR TX: 3.5mm (1/8in) TS Mono (Transmitter and Receiver) |
| RS-232 | 1x RS-232: 3-pin Phoenix (Transmitter and Receiver) |
| Audio Return Channel (ARC) | Supports true ARC from display to the transmitter over HDBaseT |
| Power Supply | 12V DC 3A |
| PoH | 48V 15.4W, 2-way |
| Max Power Consumption | 8.88W |
