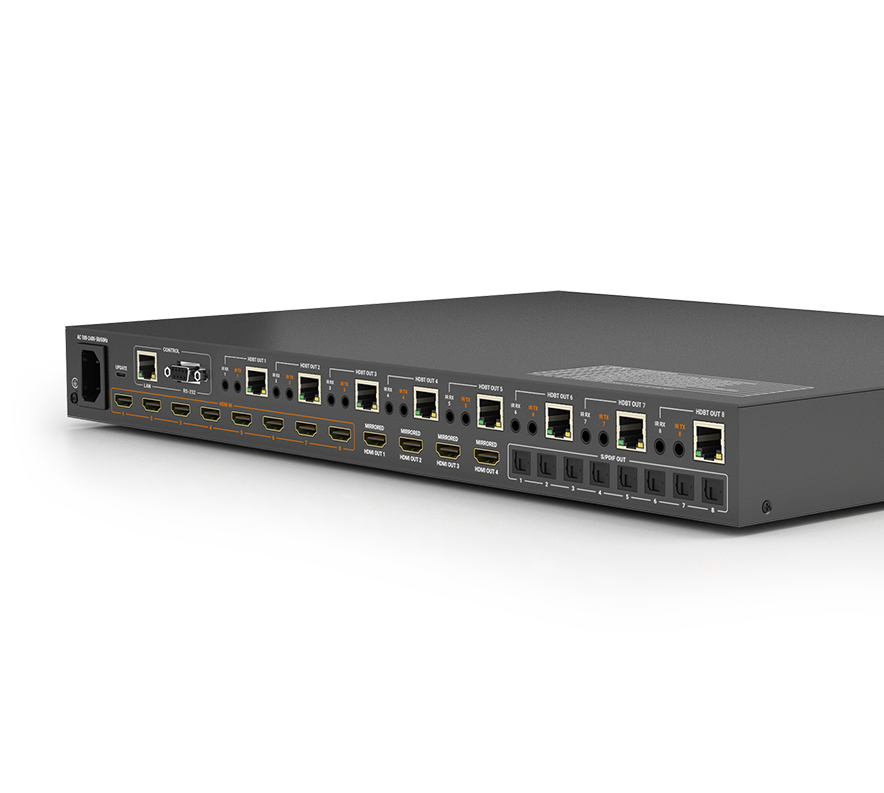

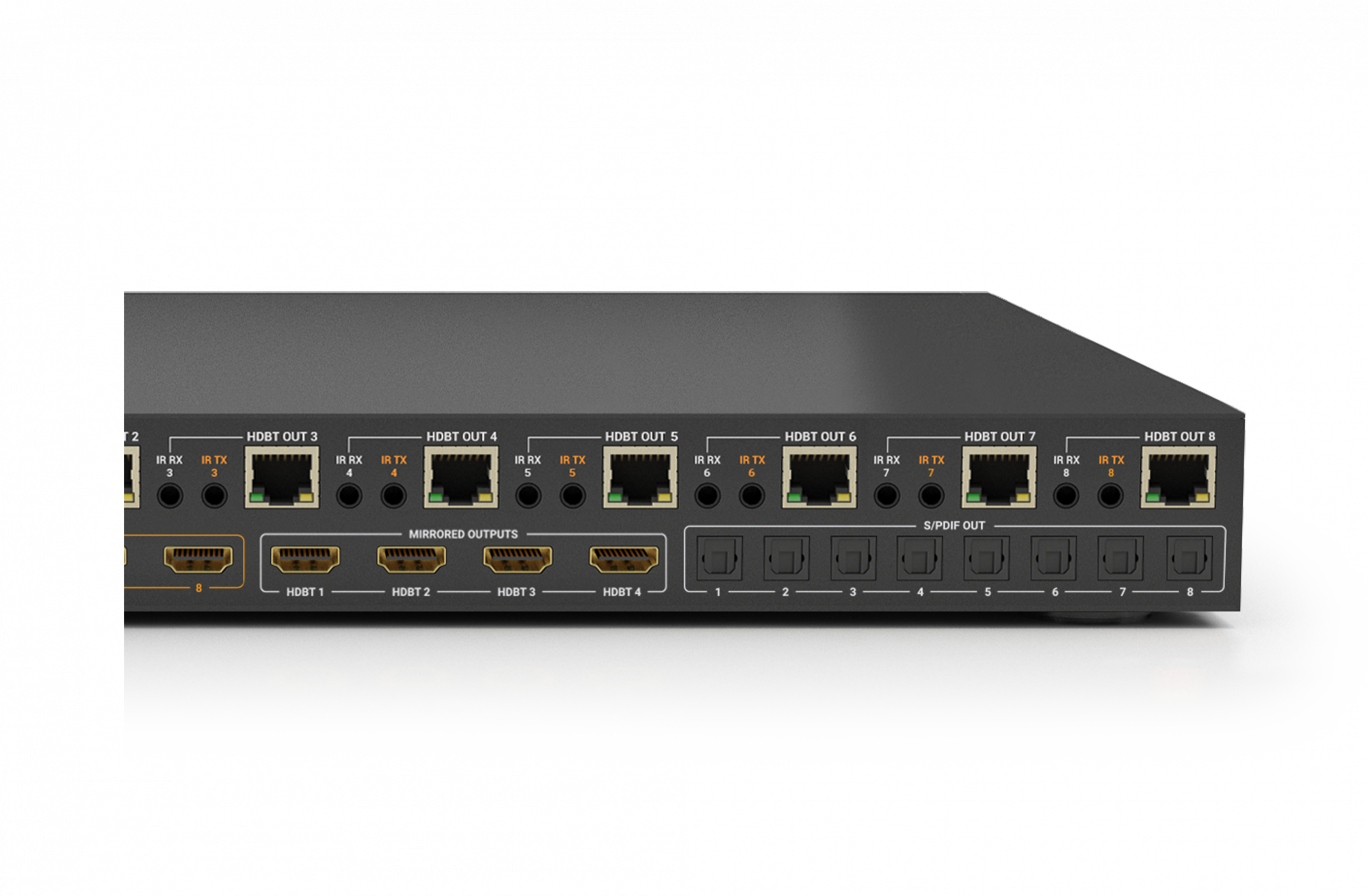

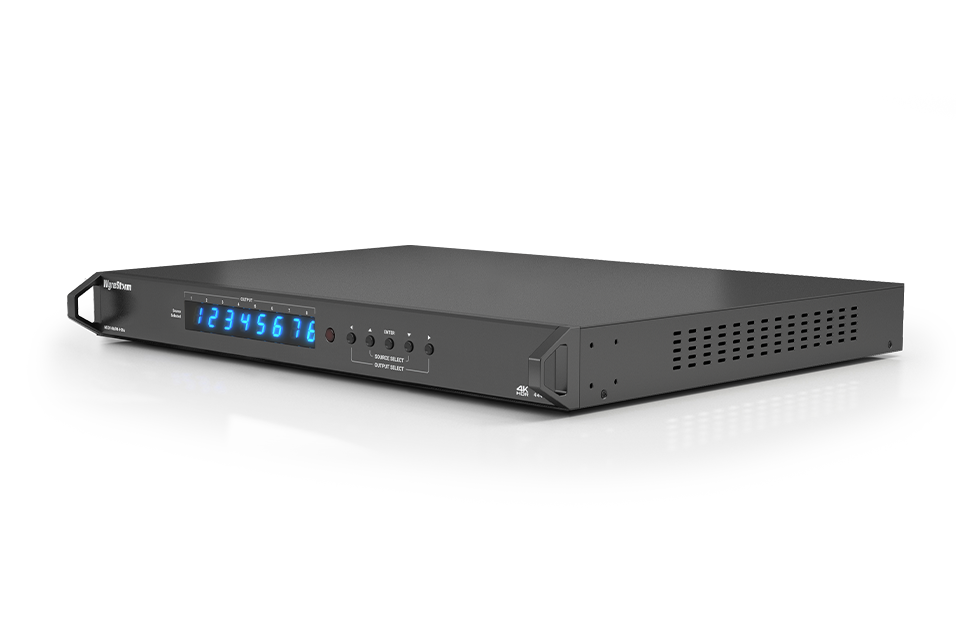

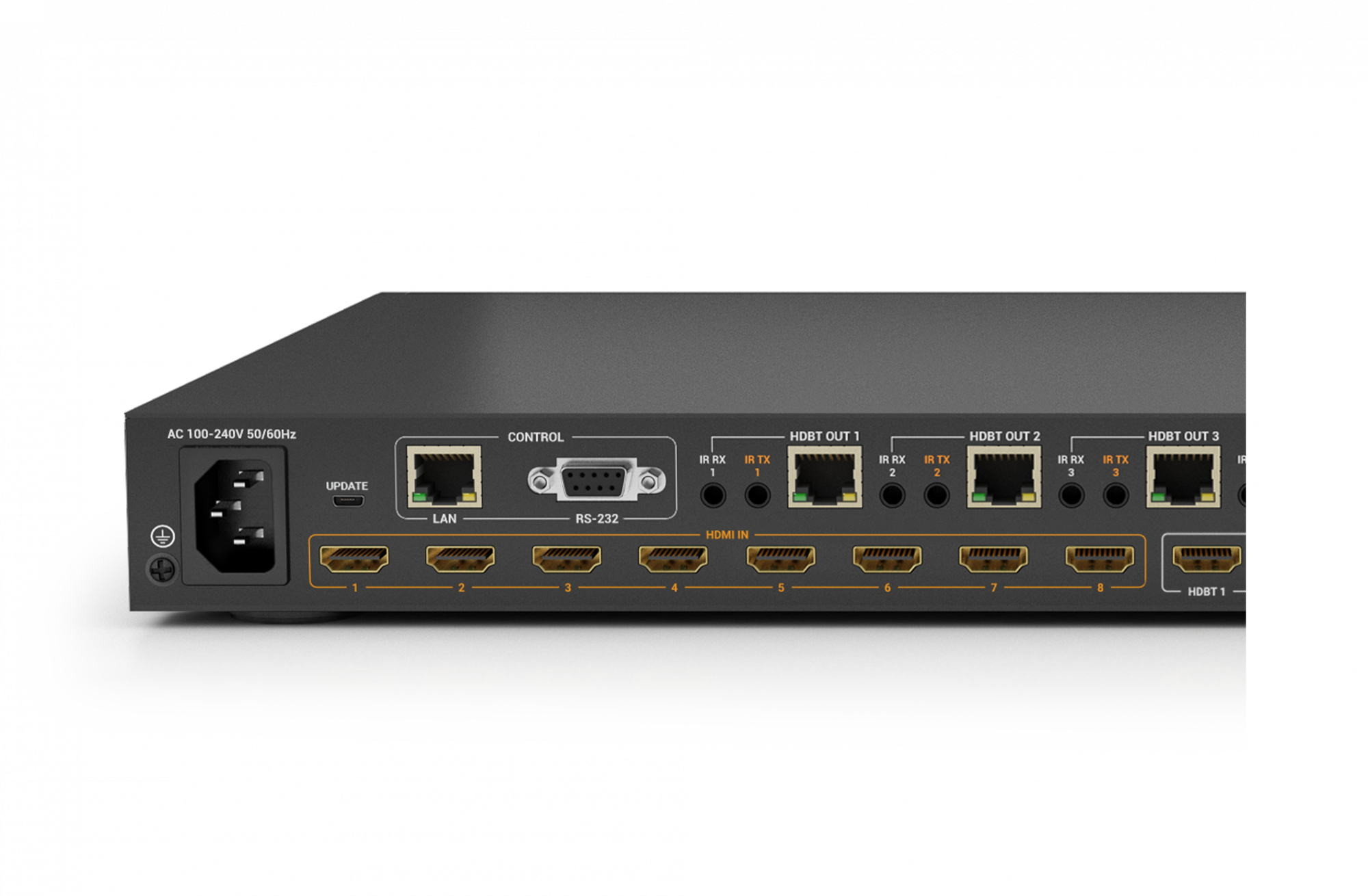

WyreStorm MXV-0808-H2A v3 — 4K60 8×8 HDBaseT Matrix
DISCONTINUED Offering transmission of 18Gbps HDMI content up to 35m/115ft by pairing HDBaseT with WyreStorm’s powerful lossless compression algorithm, the MXV-0808-H2A brings the familiar power of the WyreStorm H2-series to a compact 1U chassis. Unlike competing compression methods such as CSC, which permanently remove color data, WyreStorm’s VLC uses lossless compression technology to ensure sign
| Marka | WyreStorm |
|---|---|
| Model | MXV-0808-H2A v3 |
| Inputs | 8x HDMI In: 19-pin type A |
| Outputs | 8x HDBT Out: 8-pin RJ-45 Female 8x S/PDIF Out: TOSLINK (Digital Optical) 4x HDMI Out: 19-pin type A |
| Video Encoding | HDBaseT™ Class B |
| Encoding Data Rate | 9.2Gbps |
| Audio Formats | Analog: 2ch Analog S/PDIF: 2ch LPCM, Dolby Digital/DTS up to 5.1ch HDMI: 2ch LPCM, Multichannel up to Dolby Atmos and DTS-X |
| Video Resolution (Max) | 1920x1080p @120Hz 12bit 3840x2160p @60Hz 10bit 4:2:0 HDR 4096x2160p @60Hz 8bit 4:4:4 |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision up to 30Hz, HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | HDMI: 600MHz, HDBaseT: 297MHz |
| HDMI | HDMI 2.0, HDCP 2.2, EDID, CEC, DVI/D supported with adapter (not included) |
| HDBaseT | HDMI 2.0, HDCP 2.2, EDID, 1-way PoH, Bidirectional IR |
| CEC | Custom and standard CEC power triggering via API, Requires CEC compatibility, HDMI outputs only |
| IR | 8x IR RX: 3.5mm (1/8in) TRS Stereo, 8x IR TX: 3.5mm (1/8in) TS Mono, Bidirectional over HDBaseT |
| RS-232 | 1x RS-232: 9-pin DB9 Female, Routable RS-232 Device Control |
| Ethernet | 1x LAN: 8-pin RJ-45 Female |
| Power Supply | 100~240V AC 50/60Hz |
| Max Power Consumption | 168W |
