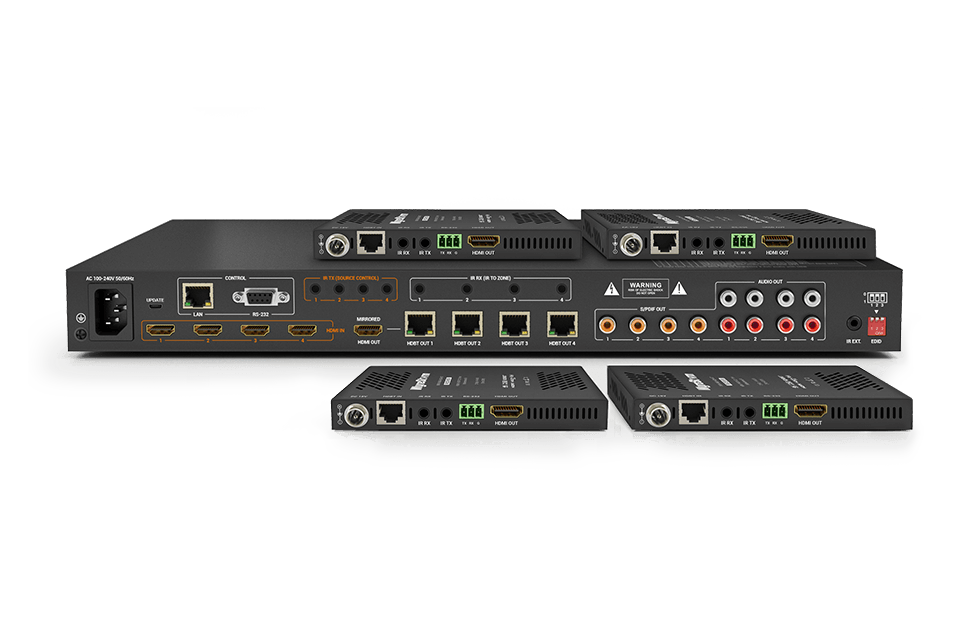

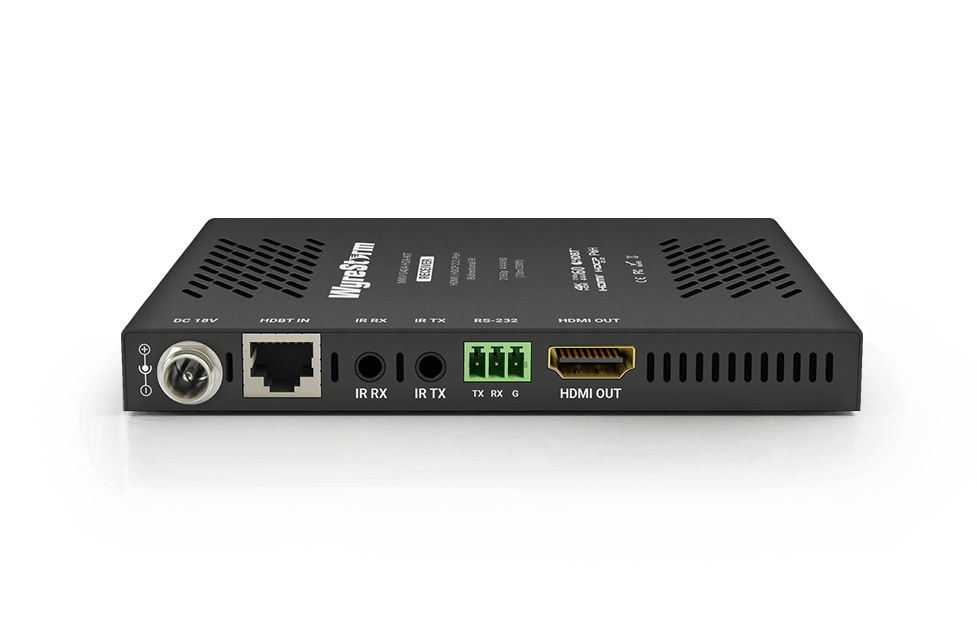

Offering transmission of 18Gbps HDMI content up to 35m/115ft by pairing HDBaseT with WyreStorm’s powerful lossless compression algorithm, the MXV-0404-H2A-KIT brings the familiar power of the WyreStorm H2-series to a compact 1U chassis. Unlike competing compression methods such as CSC, which permanently remove color data, WyreStorm’s VLC uses a lossless compression technology to ensure signal integrity. With 4 HDBaseT zone outputs and a mirrored HDMI output offering CEC triggering for all 5 connected screens, this kit enhances the offering for the modern home or commercial installation. Internal audio switching allows audio breakout from source or zone output via S/PDIF and analog stereo ports. Being a second generation product, now two of the included receivers are upgraded to scaling receivers, RXV-35-SCL, allowing compatibility between 1080p screens and 4K sources and additional 2ch/5.1 audio breakouts.

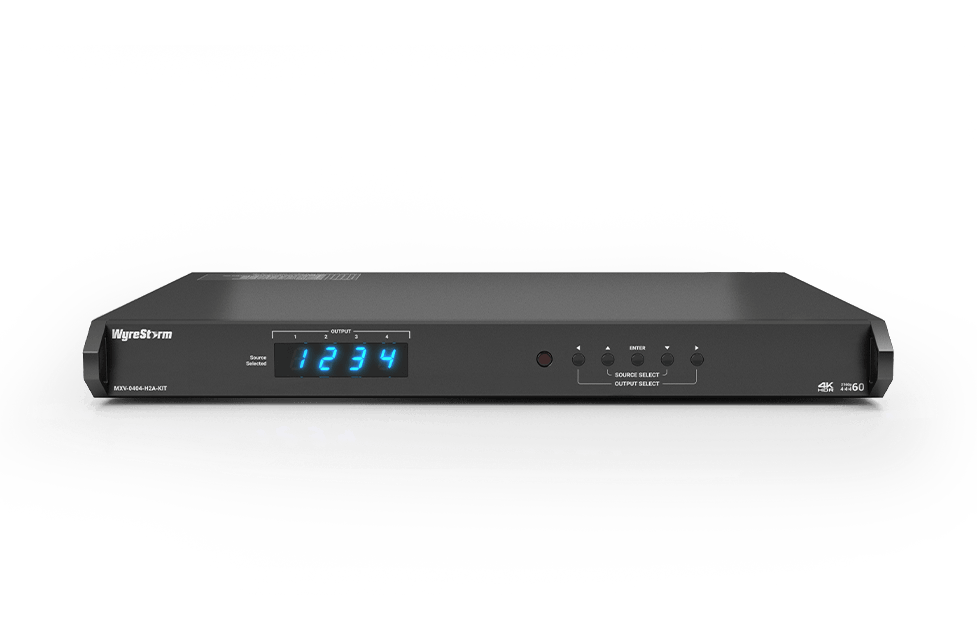

WyreStorm MXV-0404-H2A-KIT v2 — 4K60 4×4 HDBaseT Matrix with Receivers
Offering transmission of 18Gbps HDMI content up to 35m/115ft by pairing HDBaseT with WyreStorm’s powerful lossless compression algorithm, the MXV-0404-H2A-KIT brings the familiar power of the WyreStorm H2-series to a compact 1U chassis. Unlike competing compression methods such as CSC, which permanently remove color data, WyreStorm’s VLC uses a lossless compression technology to ensure signal inte
| Marka | WyreStorm |
|---|---|
| Model | MXV-0404-H2A-KIT v2 |
| Inputs | 4x HDMI In: 19-pin type A |

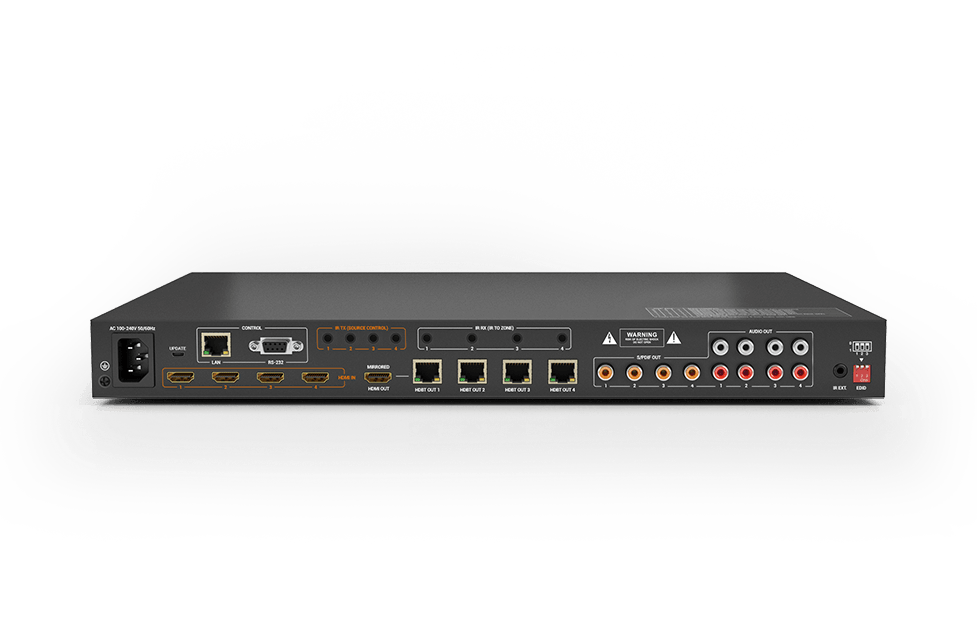

| Outputs | 4x Audio Out: RCA Female Stereo (L/R) 4x S/PDIF Out: RCA Female 4x HDBT Out: 8-pin RJ-45 Female |
| Video Encoding | HDBaseT™ Class B |
| Encoding Data Rate | 9.2Gbps |
| End to End Latency | 10µs (micro seconds) |
| Audio Formats | Analog: 2ch Analog S/PDIF: 2ch LPCM, Dolby Digital/DTS up to 5.1ch HDMI: 2ch LPCM, Multichannel up to Dolby Atmos and DTS-X |
| Video Resolution (Max) | 1920x1080p @60Hz 16bit 3840x2160p @60Hz 10bit 4:2:0 HDR 4096x2160p @60Hz 8bit 4:4:4 |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision up to 30Hz, HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | HDMI: 600MHz, HDBaseT: 297MHz |
| HDMI | HDMI 2.0, HDCP 2.2, EDID, CEC, DVI/D supported with adapter (not included) |
| HDBaseT | HDMI 2.0, HDCP 2.2, EDID, CEC, 1-way PoH, Bidirectional IR |
| CEC | CEC power triggering for connected screens – Requires CEC compatibility |
| IR | 1x IR Ext: 3.5mm (1/8in) TRS Stereo 4x IR RX: 3.5mm (1/8in) TRS Stereo 4x IR TX: 3.5mm (1/8in) TS Mono – Bidirectional over HDBaseT |
| RS-232 | 1x RS-232: 9-pin DB9 Female |
| Ethernet | 1x LAN: 8-pin RJ-45 Female |
| Power Supply | 100~240V AC 50/60Hz |
| PoH | 1-way Matrix to Receiver |
| Max Power Consumption | 85W with 4 RXs Connected via PoH |
