WyreStorm MX-0804-EDC is an 8×4 seamless matrix switch with USB-C, HDMI, Dante audio DSP, and 4K60 scaling. Ideal for classrooms, lecture halls, and meeting rooms.
Matrix Solution

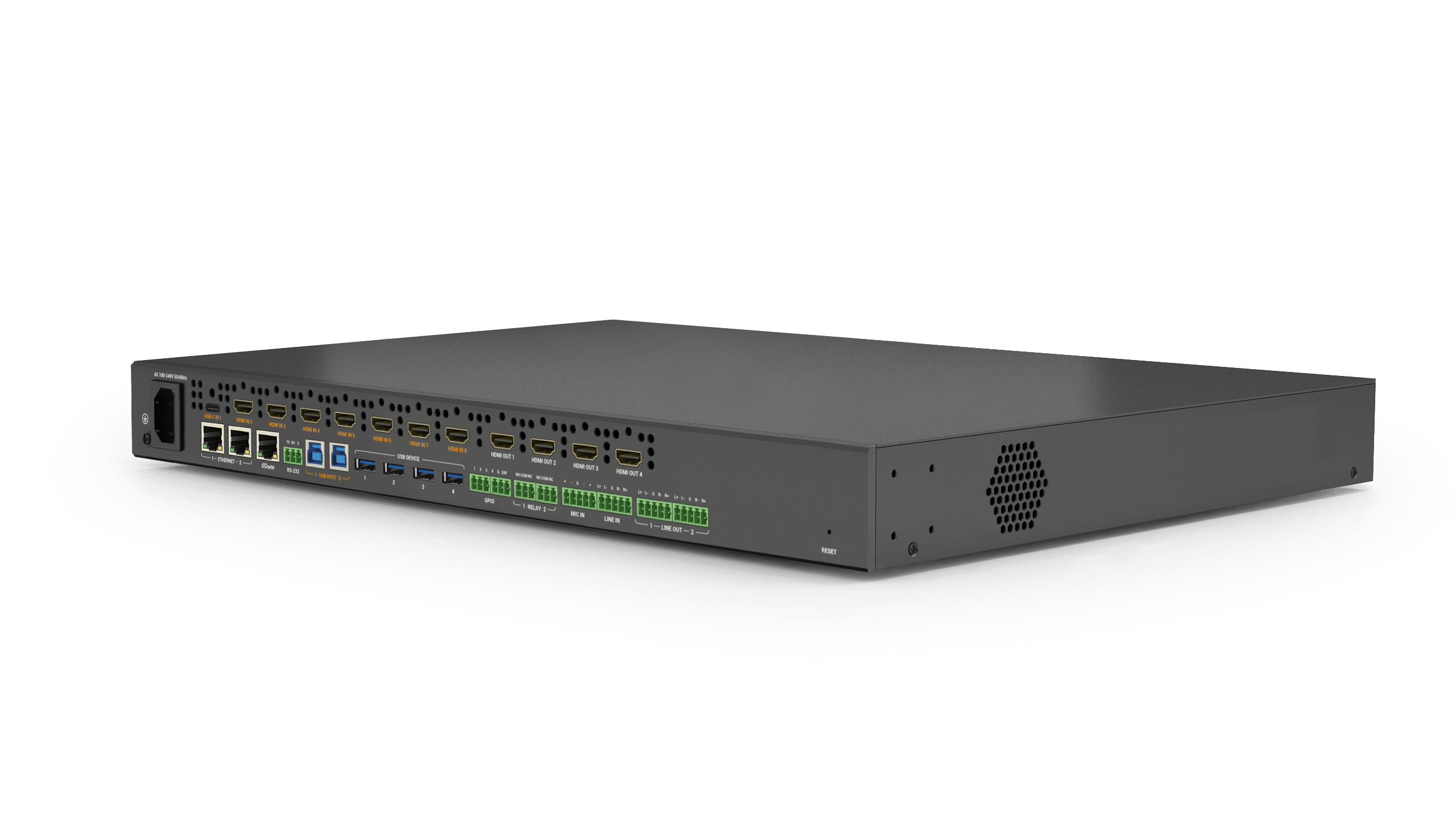

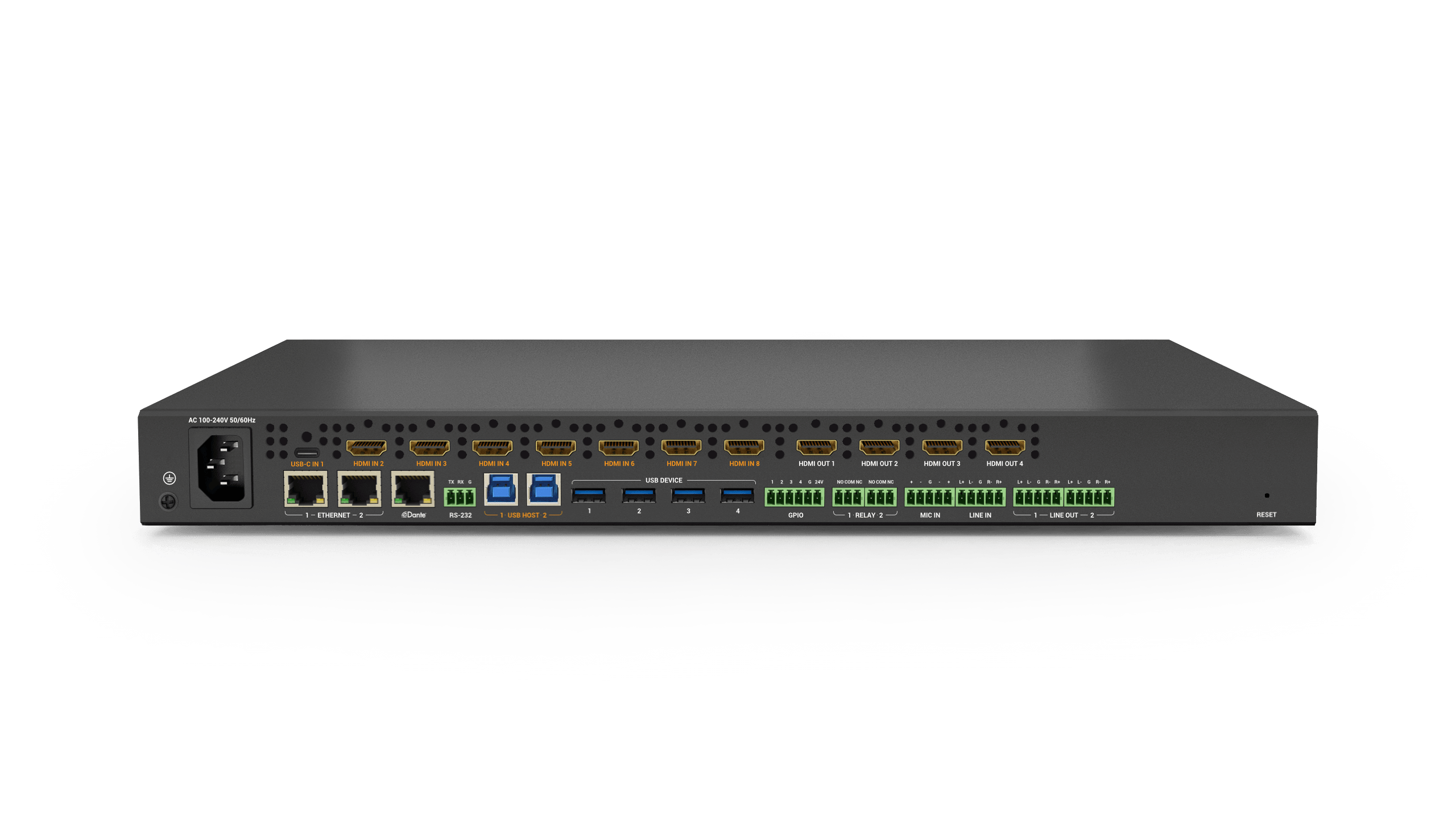

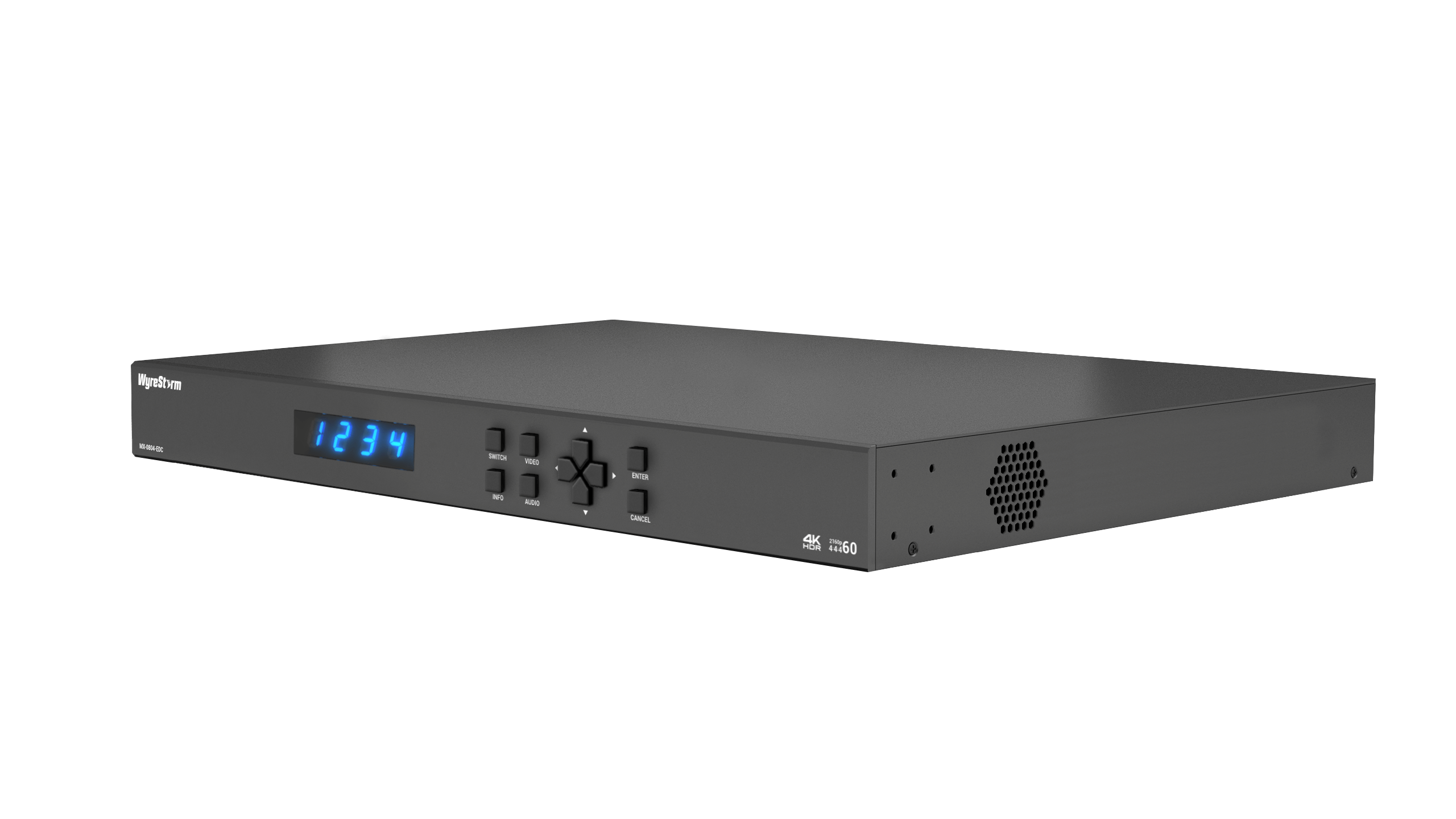

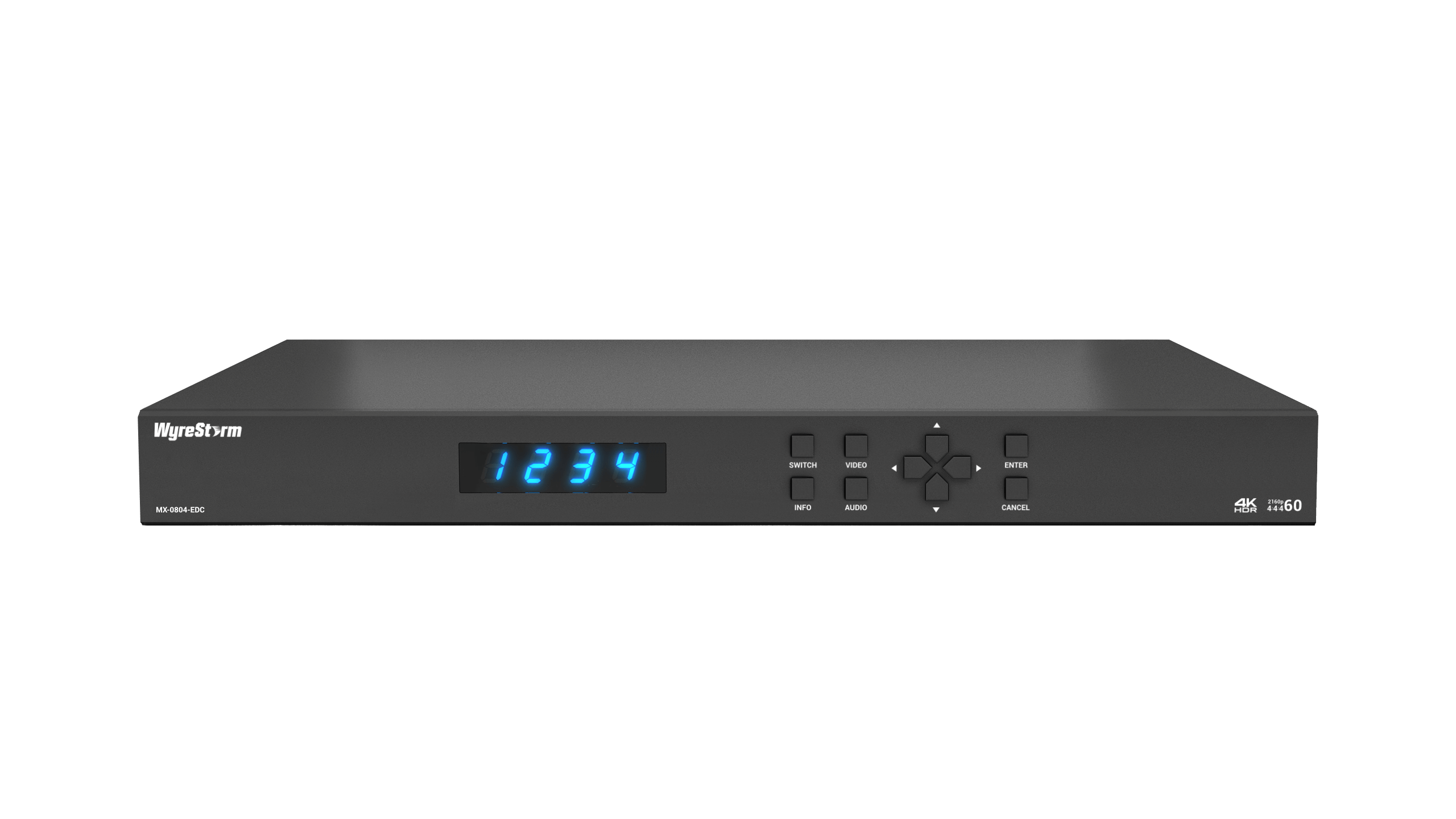

WyreStorm MX-0804-EDC 8×4 Seamless Matrix Switch with USB-C & Dante
WyreStorm MX-0804-EDC is an 8×4 seamless matrix switch with USB-C, HDMI, Dante audio DSP, and 4K60 scaling. Ideal for classrooms, lecture halls, and meeting rooms.
| Marka | WyreStorm |
|---|---|
| Model | MX-0804-EDC |
| Inputs | 1x USB-C In with Alt-Mode 7x HDMI In: 19-pin type A 2x USB-B Host 2x Mic in 1x Line-In |
| Outputs | 4x HDMI Out: 19-pin type A 4x USB-A Device 1x GPIO Phoenix Port 2x Relay Phoenix Port 2x Line-Out |
| Audio Formats | PCM 2ch Analog, Dante 4×4 |
| Video Resolution (Max) | 1920x1080p @60Hz 3840x2160p @60Hz 4:2:0 3840×2160 @60Hz 4:4:4 5120×2160 @30Hz |
| Max Pixel Clock | 600MHz |
| HDMI | HDMI 2.0, HDCP 2.3, EDID, CEC |
| Dante Ultimo 4×4 | 1x 1GbE RJ-45 |
| RS-232 | 1x RS-232: 3-pin Phoenix Female, Matrix Control, Telnet commands supported |
| HDCP | Pass-Through, 2.3 Supported |
| Ethernet | 2x LAN: 8-pin RJ-45 Female, Web UI, Matrix Control and Ethernet (Sygma) |
| Power Supply | 100~240V AC 50/60Hz |
| Max Power Consumption | 124W |
| Operating Temperature | 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing |
| Storage Temperature | -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing |
| Rack Units/Wall Box | 1U |
| Height | 43mm/1.7in |
| Width | 440mm/17.33in |
| Depth | 330mm/12.99in |
