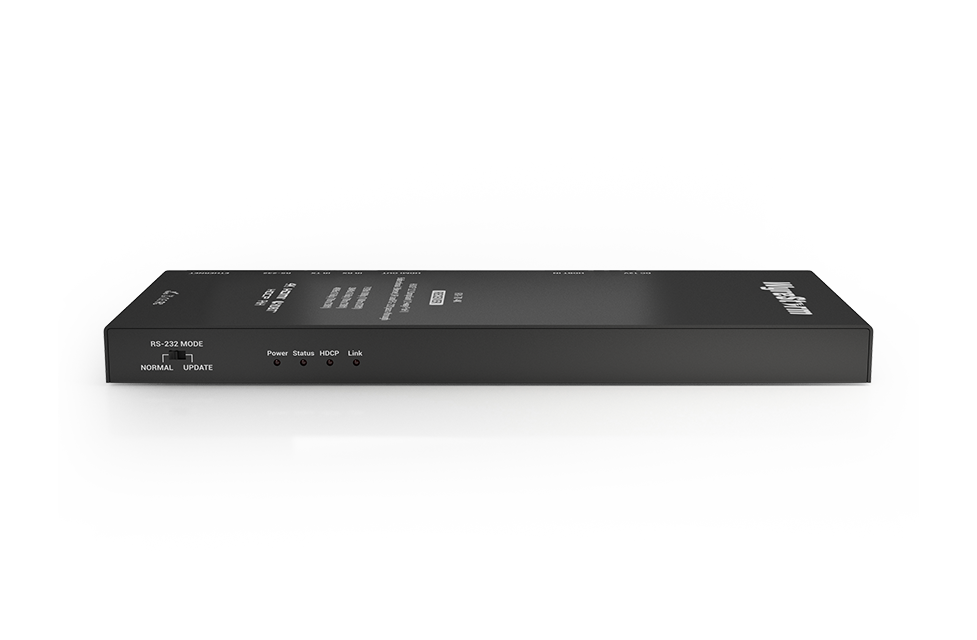

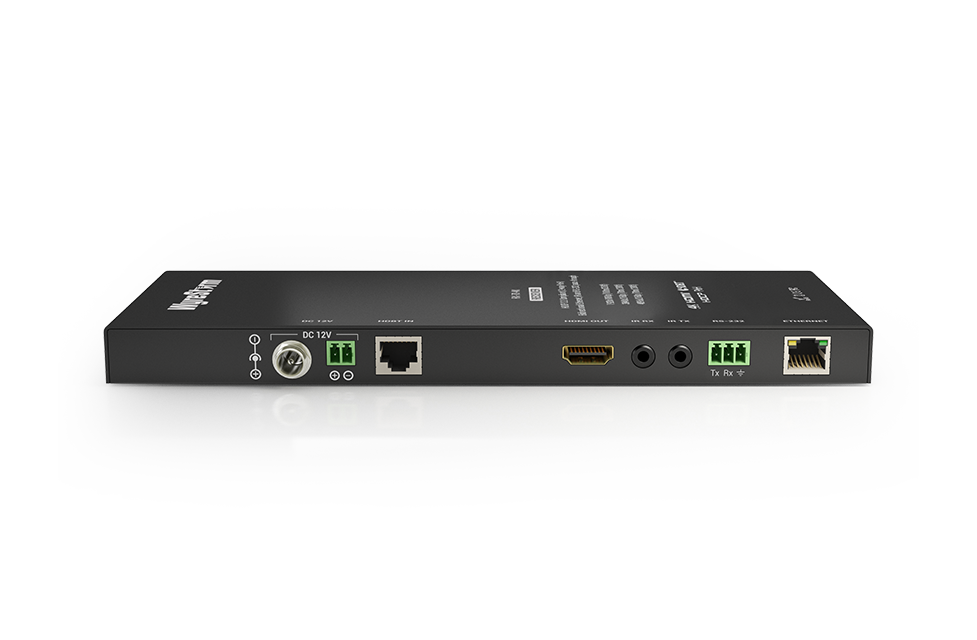

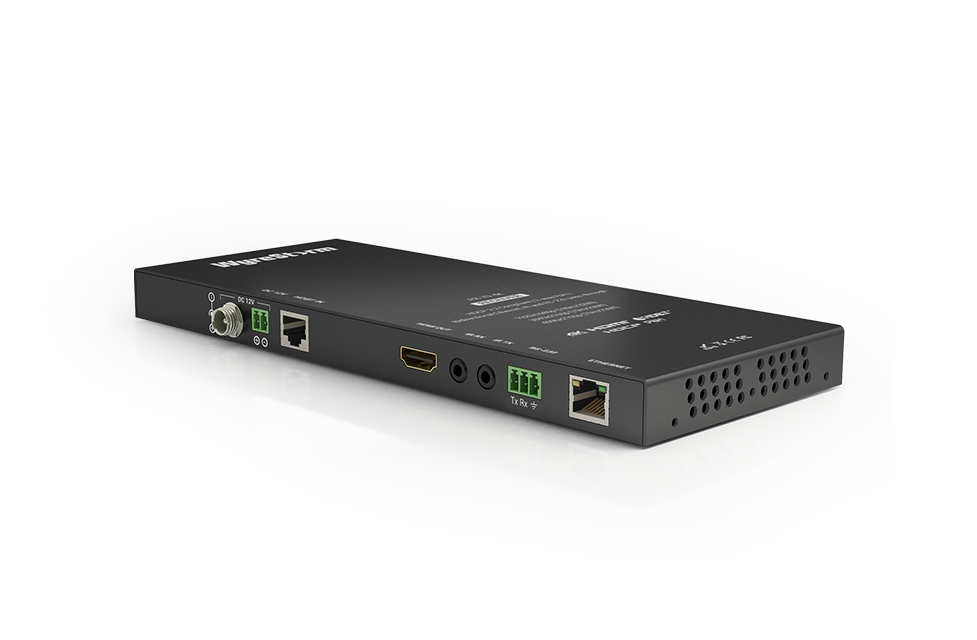

WyreStorm RX-70-4K — 70m 4K HDBaseT Receiver
The perfect complement to a WyreStorm HDBaseT™ matrix system, presentation switch or in-wall transmitter solution, the RX-70-4K ultra slim display receiver supports 4K UHD video with HDR up to 70m/230ft and 1080p to 100m/328ft.
| Marka | WyreStorm |
|---|---|
| Model | RX-70-4K |
| Inputs | 1x HDBaseT 8-pin RJ-45 female |
| Outputs | 1x HDMI 19-pin type A female |
| Audio Formats | 2ch PCM, Up to DTS-X and Dolby Atmos |
| Video Resolutions (Max.) | 5120×1440 @60Hz 4:2:0 5120×1440 @30Hz 4096x2160p @60Hz 24bit 4:4:4 3840x2160p @24Hz 4:2:0 HDR 10bit 3840x2160p @30Hz 4:4:4 24bit 1920x1080p @60Hz 48bit |
| Color Depth | 1080p: 48bit, 4K UHD: 24bit, HDR @24p: 10bit per channel BT.2020 |
| Maximum Pixel Clock | 297MHz |
| HDMI | HDCP 2.2, EDID, DVI/D supported with adapter (not included) |
| HDBaseT | HDCP 2.2, EDID, 2-way PoH, Bidirectional IR, RS-232, and Ethernet |
| Ethernet | 1x 8-pin RJ-45 female, 10/100 Mbps auto-negotiating, Bidirectional over HDBaseT |
| IR | 1x IR TX 3.5mm (1/8in) TS Mono, Bidirectional over HDBaseT 1x IR RX 3.5mm (1/8in) TRS Stereo, Bidirectional over HDBaseT |
| RS-232 | 1x 3-pin Phoenix Connector, Bidirectional over HDBaseT |
| Power Supply | 12V DC 2A |
| Max Power Consumption | 7.2W |
| PoH | 48V 15.4W |
