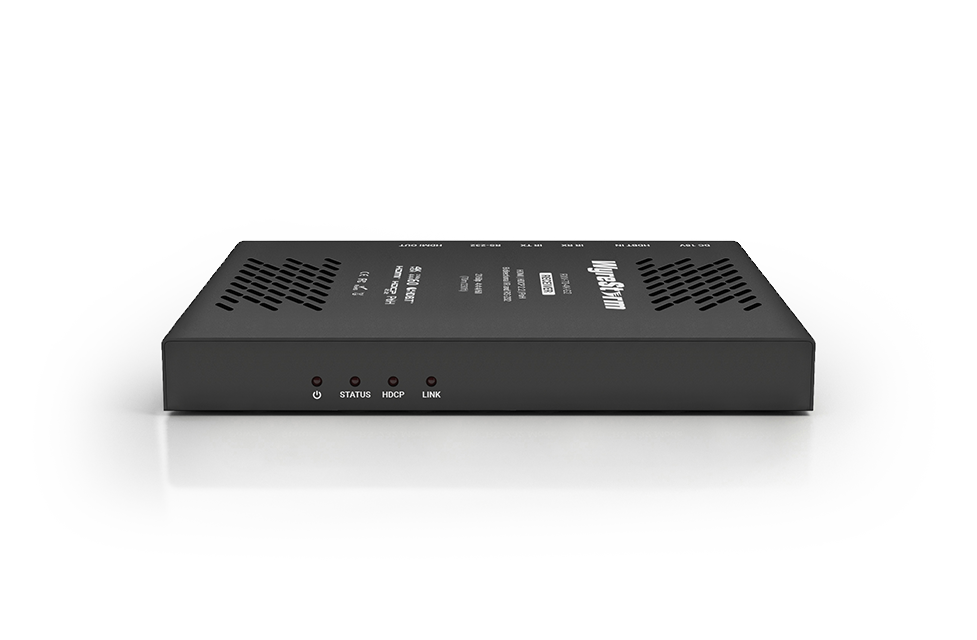

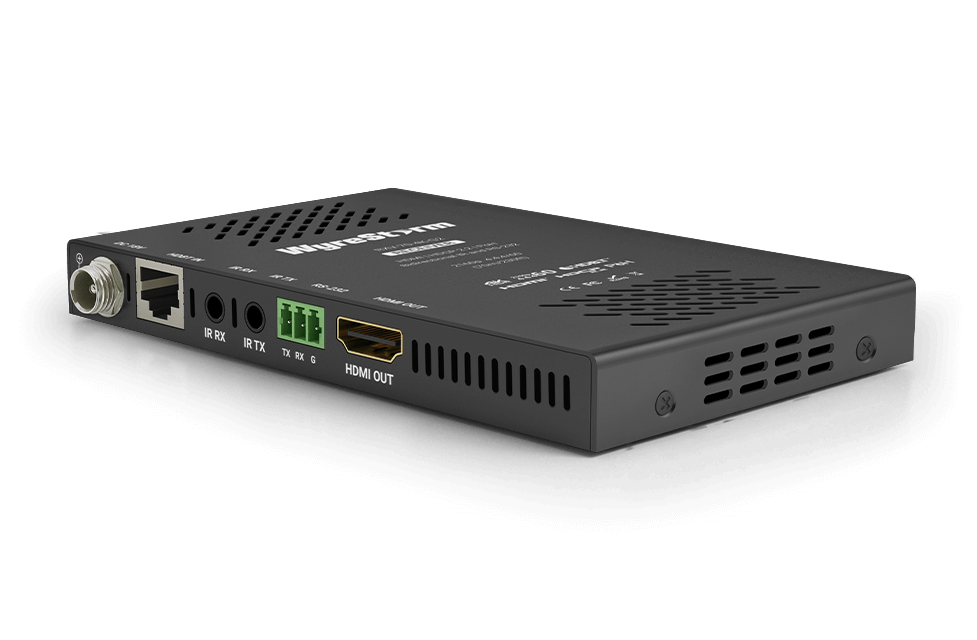

WyreStorm RXV-70-4K-G2 — 70m 4K60 HDBaseT Receiver for MXV
Consumer HDMI content is now breaking through the once comfortable HDBaseT ‘ceiling’ of 10Gbps, with HFR (High Frame Rate). HDR is here already in the form of Blu-Ray, Satellite & Cable (HLG) and gaming content. The RXV-70-4K-G2 is the perfect companion for WyreStorm’s MXV line-up of matrices also when distances of under 70 meters are required. This receiver is exclusively used for MXV-0606-H2A-70
| Marka | WyreStorm |
|---|---|
| Model | RXV-70-4K-G2 |

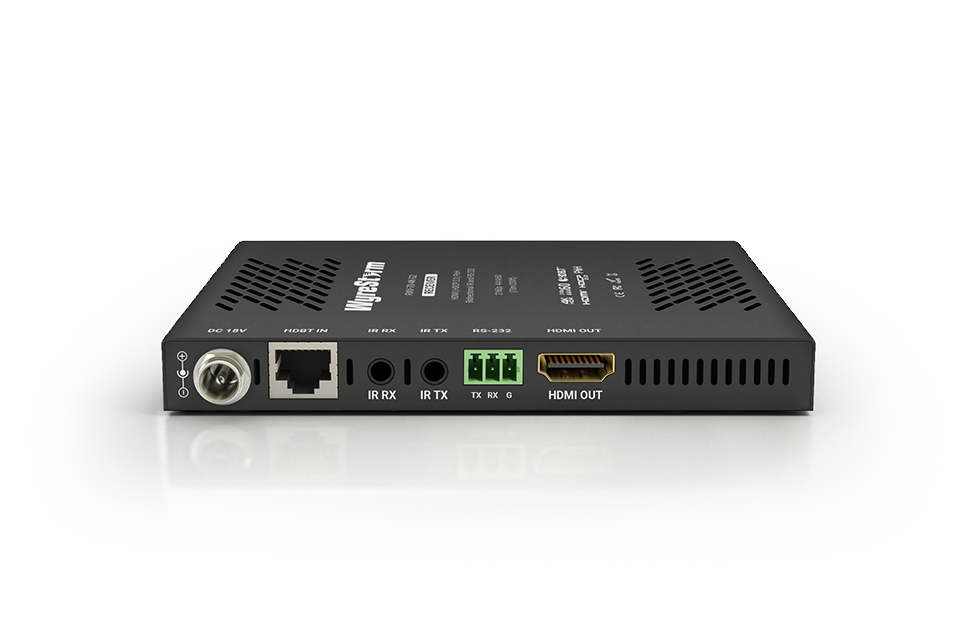

| Inputs | 1x HDBaseT In: 8-pin RJ-45 Female |
| Outputs | 1x HDMI Out: 19-pin type A |
| Output Video Encoding | HDBaseT Class A |
| Encoding Data Rate | 9.2Gbps |
| End to End Latency | 10μs (micro seconds) |
| Audio Formats | Analog: 2ch analog S/PDIF: 2ch LPCM, Dolby Digital/CTS up to 5.1ch HDMI: 2ch LPCM, Multichannel up to DTS-X and Dolby Atmos |
| Video Resolution (Max) | 1920x1080p @60Hz 16bit 3840x2160p @24Hz 10bit 4:2:0 HDR 3840x2160p @30Hz 8bit 4:4:4 3840x2160p @60Hz 10bit 4:2:0 HDR 4096x2160p @60Hz 8bit 4:4:4 |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision up to 30Hz, HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | HDMI: 600MHz, HDBaseT: 297MHz |
| HDMI | HDMI 2.0, HDCP 2.2, EDID, CEC, DVI-D supported with adapter (not included) |
| HDBaseT | HDMI 2.0, HDCP 2.2, EDID, CEC, 1-way PoH, Bidirectional IR |
| RS-232 | 1x RS-232: 3-pin Terminal Block – 3.5mm |
| IR | 1x IR TX: 3.5mm (1/8in) TS Mono, 1x IR RX: 3.5mm (1/8in) TRS Stereo, Bidirectional over HDBaseT |
| CEC | CEC Power Triggering for connected screens – Requires CEC compatibility |
| Power Supply | 18V DC (Optional) |
| PoH | 1-way Matrix to Receiver |
| Max Power Consumption | 12.42W |
