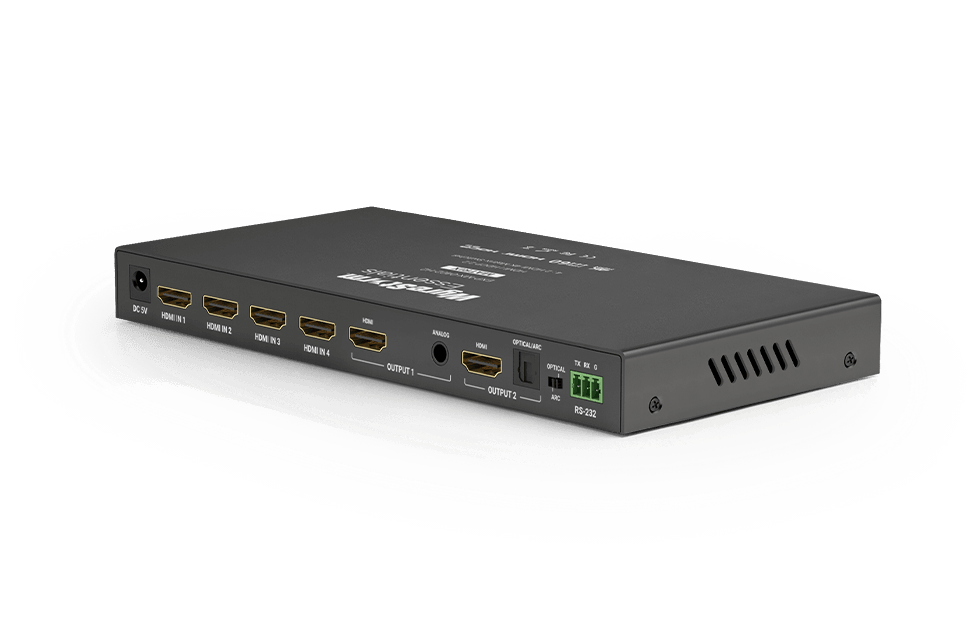

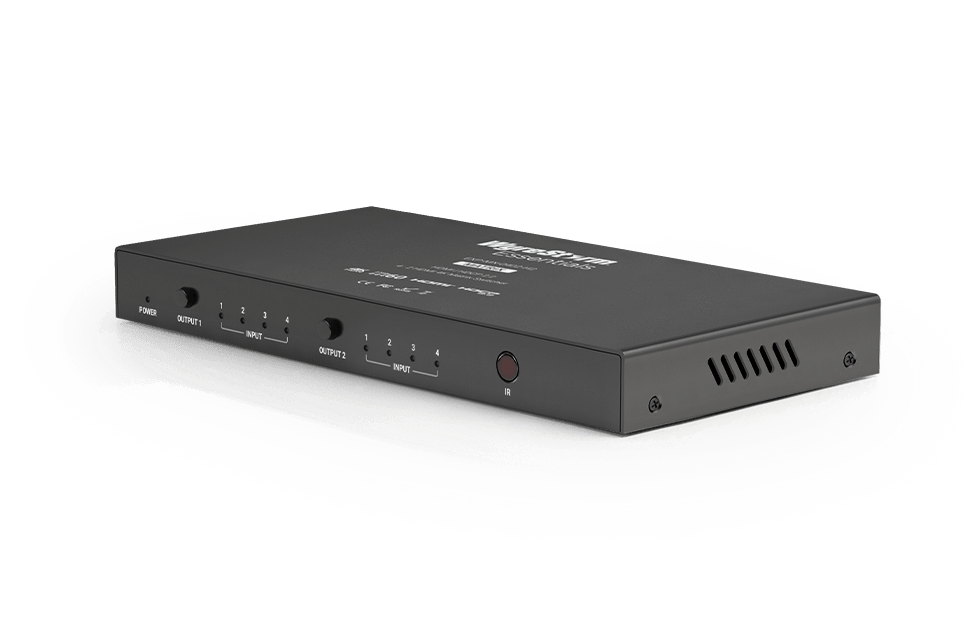

WyreStorm EXP-MX-0402-H2 — WyreStorm Essentials 4K60 4x2 HDMI Matrix Switcher
WyreStorm EXP-MX-0402-H2 — WyreStorm Essentials 4K60 4x2 HDMI Matrix Switcher - Görsel 2
WyreStorm EXP-MX-0402-H2 — WyreStorm Essentials 4K60 4x2 HDMI Matrix Switcher - Görsel 3
,

WyreStorm EXP-MX-0402-H2 — WyreStorm Essentials 4K60 4×2 HDMI Matrix Switcher

Teklif Al

A vast upgrade from its predecessor, the EXP-MX-0402-H2 takes the EXP-MX0402-010 features to new heights, whilst maintaining its cost effect platform. Keeping up with the latest standards, the EXP-MX-0402-H2 has been upgraded to an 18Gbps backbone with HDCP 2.2 compliance and now featuring a powerful built-in auto scaler on both of its outputs allowing users to simultaneously connect a mix of 4K a

Stok kodu: EXP-MX-0402-H2 Kategoriler: ,

A vast upgrade from its predecessor, the EXP-MX-0402-H2 takes the EXP-MX0402-010 features to new heights, whilst maintaining its cost effect platform. Keeping up with the latest standards, the EXP-MX-0402-H2 has been upgraded to an 18Gbps backbone with HDCP 2.2 compliance and now featuring a powerful built-in auto scaler on both of its outputs allowing users to simultaneously connect a mix of 4K and 1080p displays. If that wasn’t enough, the EXP-MX-0402-H2 also includes analog and digital audio de-embed and ARC, as well as CEC triggering and RS-232 control, hosting a boat load of control features. Coupled with the WyreStorm TS-280 touchscreen and HAOC line of HDMI cables makes for the perfect power pack solution for mid to large scale residential and light commercial applications!

Marka

WyreStorm
Model

EXP-MX-0402-H2
Inputs

4x HDMI In 19-pin HDMI type A
Outputs

2x HDMI Out 19-pin HDMI type A 1x 3.5mm Analog Stereo 1x S/PDIF Toslink
Audio Formats

HDMI: 2ch PCM, Multichannel: LPCM and up to DTS-X and Dolby Atmos Analog: 2ch LPCM Toslink: 5.1ch surround sound
Video Resolution (Max)

1920x1080p @60Hz 16bit 3840x2160p @60Hz 10bit 4:2:0 HDR 4096x2160p @60Hz 8bit 4:4:4
Supported Sandards

DCI, RGB, HDR, HDR10, Dolby Vision up 30Hz, HLG, BT.2020, BT.2100
Maximum Pixel Clock

600Mhz
HDMI

HDCP 2.2, DVI-D supported with adapter (not included)
RS-232

1x 3-Pin Terminal Block
IR

1x Front Panel Sensor
Power Supply

5V DC 1A
Max Power Consumption

5W
