WyreStorm MX-0404-SCL is a 4×4 seamless HDMI matrix switcher with 4K60 HDR, output scaling, multiview, video wall, and audio de-embed. Ideal for meeting rooms, education, and home AV.
Matrix Solution

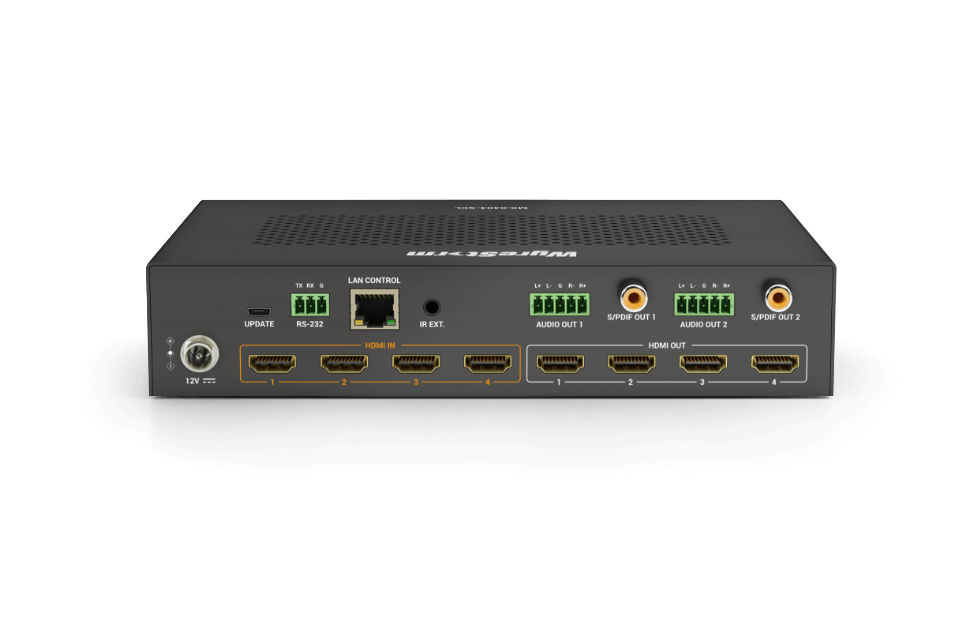

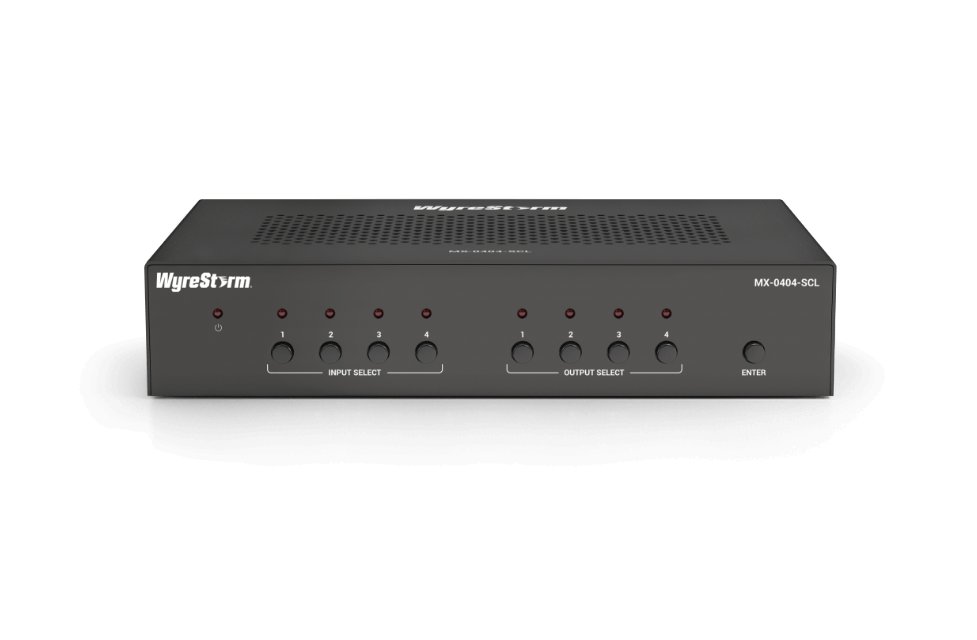

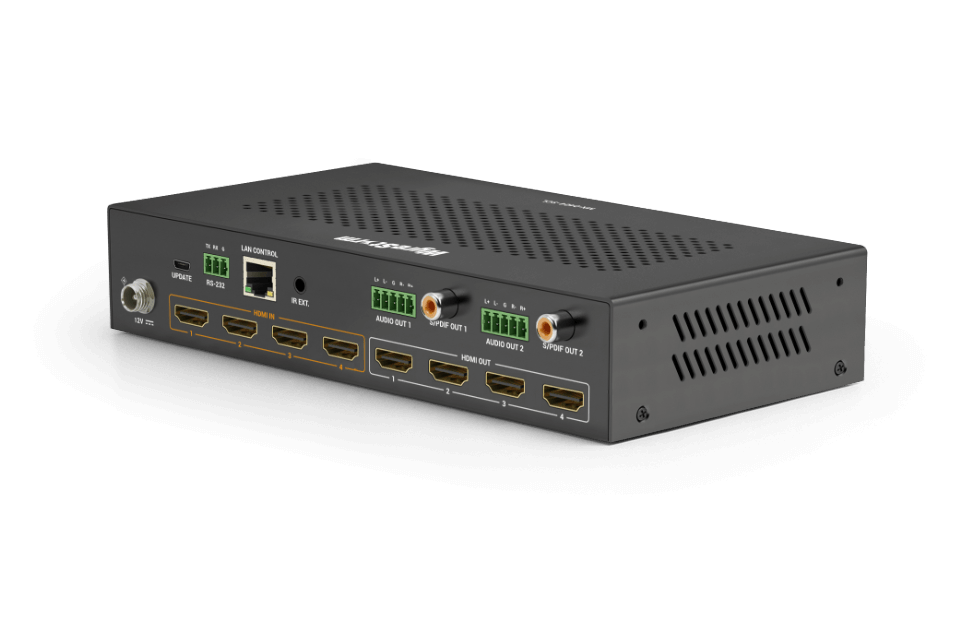

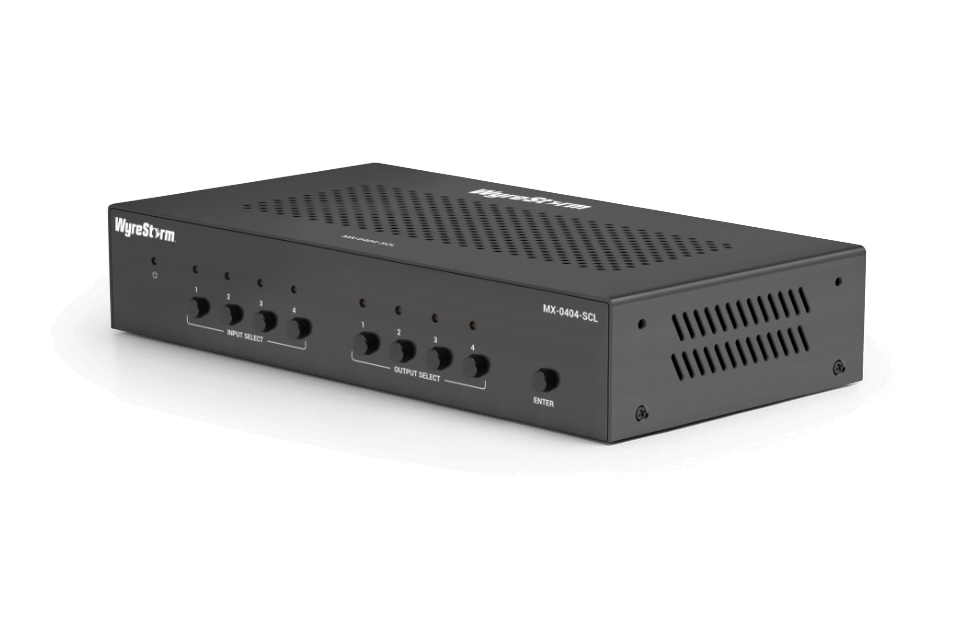

WyreStorm MX-0404-SCL 4×4 Seamless 4K60 HDMI Matrix Switcher with Scaling
WyreStorm MX-0404-SCL is a 4×4 seamless HDMI matrix switcher with 4K60 HDR, output scaling, multiview, video wall, and audio de-embed. Ideal for meeting rooms, education, and home AV.
| Marka | WyreStorm |
|---|---|
| Model | MX-0404-SCL |
| Inputs | 4x HDMI In: 19-pin type A |
| Outputs | 4 x HDMI Out 19-pin HDMI type A 2 x 5-pin balanced Analog Audio out 2 x Toslink Digital Audio |
| Audio Formats | 2ch PCM, Multichannel: LPCM and Up to DTS 5.1 |
| Video Resolution (Max) | 1920x1080p @60Hz 16bit 3840x2160p @60Hz 10bit 4:2:2 HDR10/10+ 3840x2160p @60Hz 12bit 4:2:0 Dolby Vision 3840x2160p @50Hz 10bit 4:2:2 HLG 4096x2160p @60Hz 8bit 4:4:4 5120×2160 @30Hz |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision up to 30Hz, HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | 600MHz |
| HDMI | HDMI 2.0, HDCP 2.2, EDID, CEC (display power trigger) |
| RS-232 | 1x 3-Pin Terminal Block, Matrix Control (Telnet commands supported) |
| Ethernet | 1x LAN: 8-pin RJ-45 Female, 10/100 Mbps auto-negotiating, IP Control, Web UI |
| Power Supply | 12V DC |
| Max Power Consumption | 16W |
