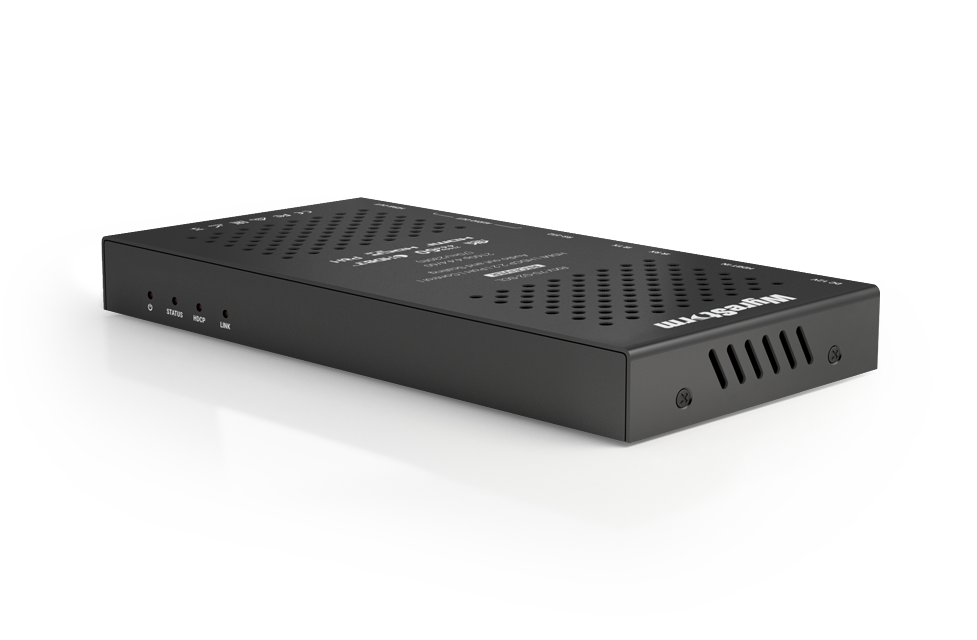

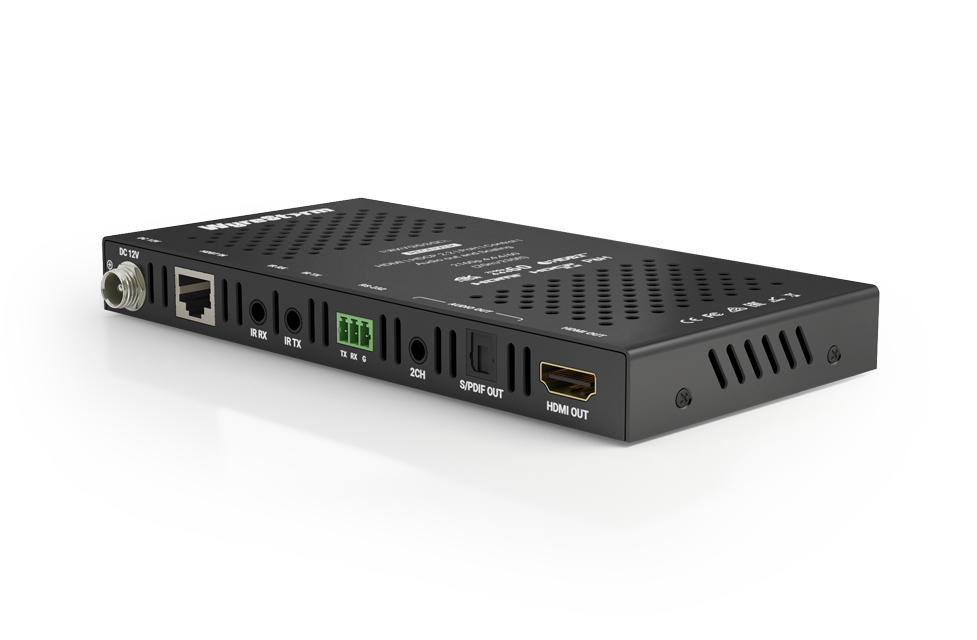

WyreStorm RXV-70-G2-SCL — Scaling 70m 4K60 HDBaseT Receiver for MX
18Gbps HDBaseT receiver for the MXV-70 matrix switcher series. The RXV-70-G2-SCL features a powerful scaler that can convert 4K UHD and HDR content to a 1080p non-HDR display to maximize compatibility. The receiver also features stereo and digital S/PDIF audio breakout for easy external audio distribution.
| Marka | WyreStorm |
|---|---|
| Model | RXV-70-G2-SCL |
| Inputs | 1x HDBaseT In: 8-pin RJ-45 Female |
| Outputs | 1x HDMI Out: 19-pin type A |
| Output Video Encoding | HDBaseT Class A |
| Encoding Data Rate | 9.2Gbps |
| End to End Latency | 10μs (micro seconds) |
| Audio Formats | Analog: 2ch analog S/PDIF: 2ch LPCM, Dolby Digital/CTS up to 5.1ch HDMI: 2ch LPCM, Multichannel up to DTS-X and Dolby Atmos |
| Video Resolution (Max) | 1920x1080p @60Hz 16bit 3840x2160p @24Hz 10bit 4:2:0 HDR 3840x2160p @30Hz 8bit 4:4:4 3840x2160p @60Hz 10bit 4:2:0 HDR 4096x2160p @60Hz 8bit 4:4:4 |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision up to 30Hz, HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | HDMI: 600MHz, HDBaseT: 297MHz |
| HDMI | HDMI 2.0, HDCP 2.2, EDID, CEC, DVI-D supported with adapter (not included) |
| HDBaseT | HDMI 2.0, HDCP 2.2, EDID, CEC, 1-way PoH to Receiver, Bidirectional IR |
| RS-232 | 1x RS-232: 3-pin Terminal Block – 3.5mm |
| IR | 1x IR RX 3.5mm (1/8in) TRS Stereo, 1x IR TX: 3.5mm (1/8in) TS Mono, Bidirectional over HDBaseT |
| CEC | CEC power triggering for connected screens – Requires CEC compatibility |
| Power Supply | 12V 1A DC (Optional) |
| PoH | 1-way Matrix to Receiver |
| Max Power Consumption | 12.42W |
