Discover the MX-1616-SCL, a versatile 16×16 HDMI/HDBaseT Matrix Switcher designed to streamline audio and video distribution in commercial, educational, and entertainment settings. Offering seamless switching and scaling of up to 4K60 4:4:4 video with minimal latency, this device ensures that your content is always displayed at its best, while adhering to the latest HDMI 2.0 and HDCP 2.2 standards.
Matrix Solution

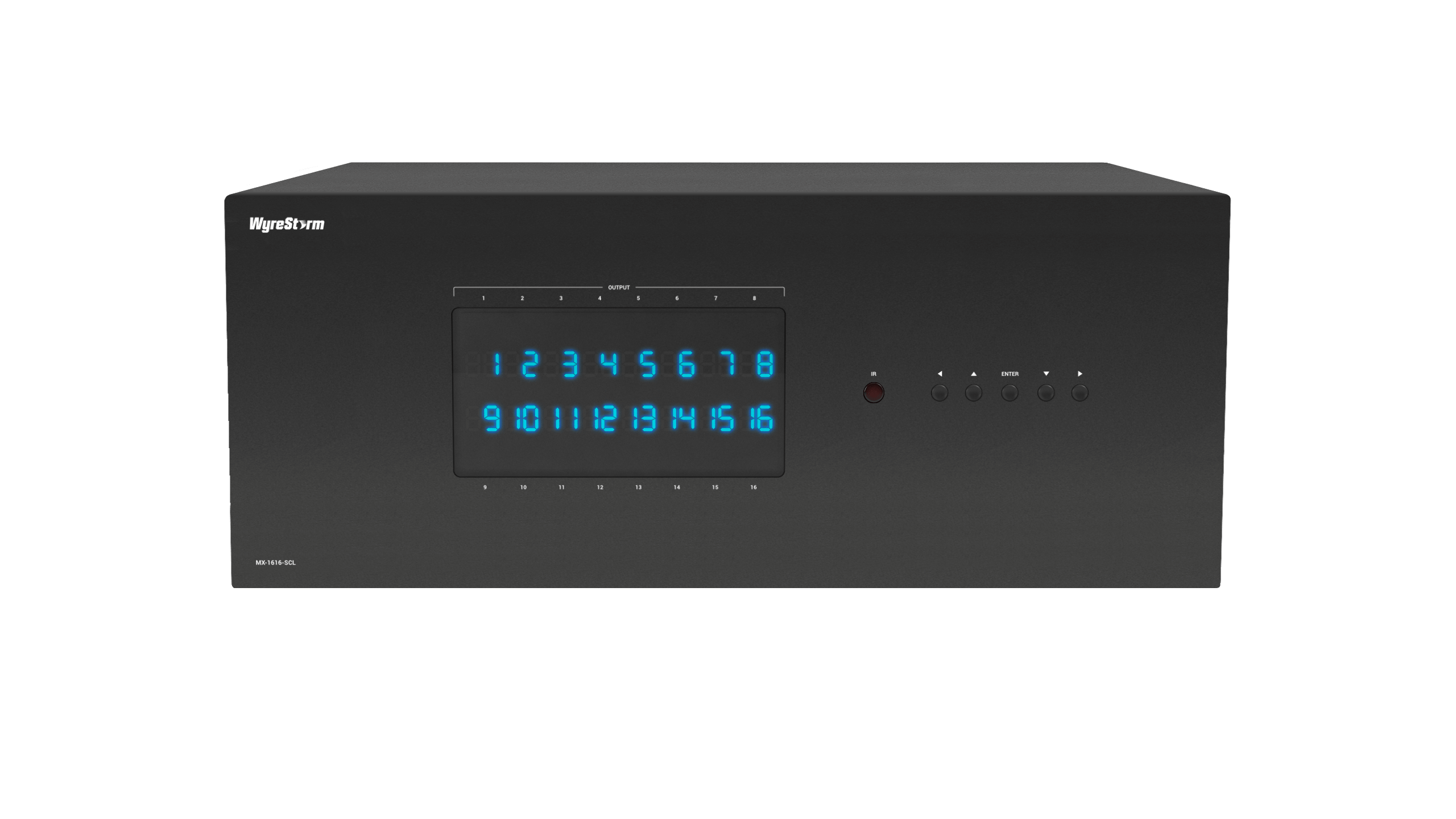

WyreStorm MX-1616-SCL — Advanced 16×16 Seamless Scaling Matrix Chassis
Discover the MX-1616-SCL, a versatile 16×16 HDMI/HDBaseT Matrix Switcher designed to streamline audio and video distribution in commercial, educational, and entertainment settings. Offering seamless switching and scaling of up to 4K60 4:4:4 video with minimal latency, this device ensures that your content is always displayed at its best, while adhering to the latest HDMI 2.0 and HDCP 2.2 standards
| Marka | WyreStorm |
|---|---|
| Model | MX-1616-SCL |

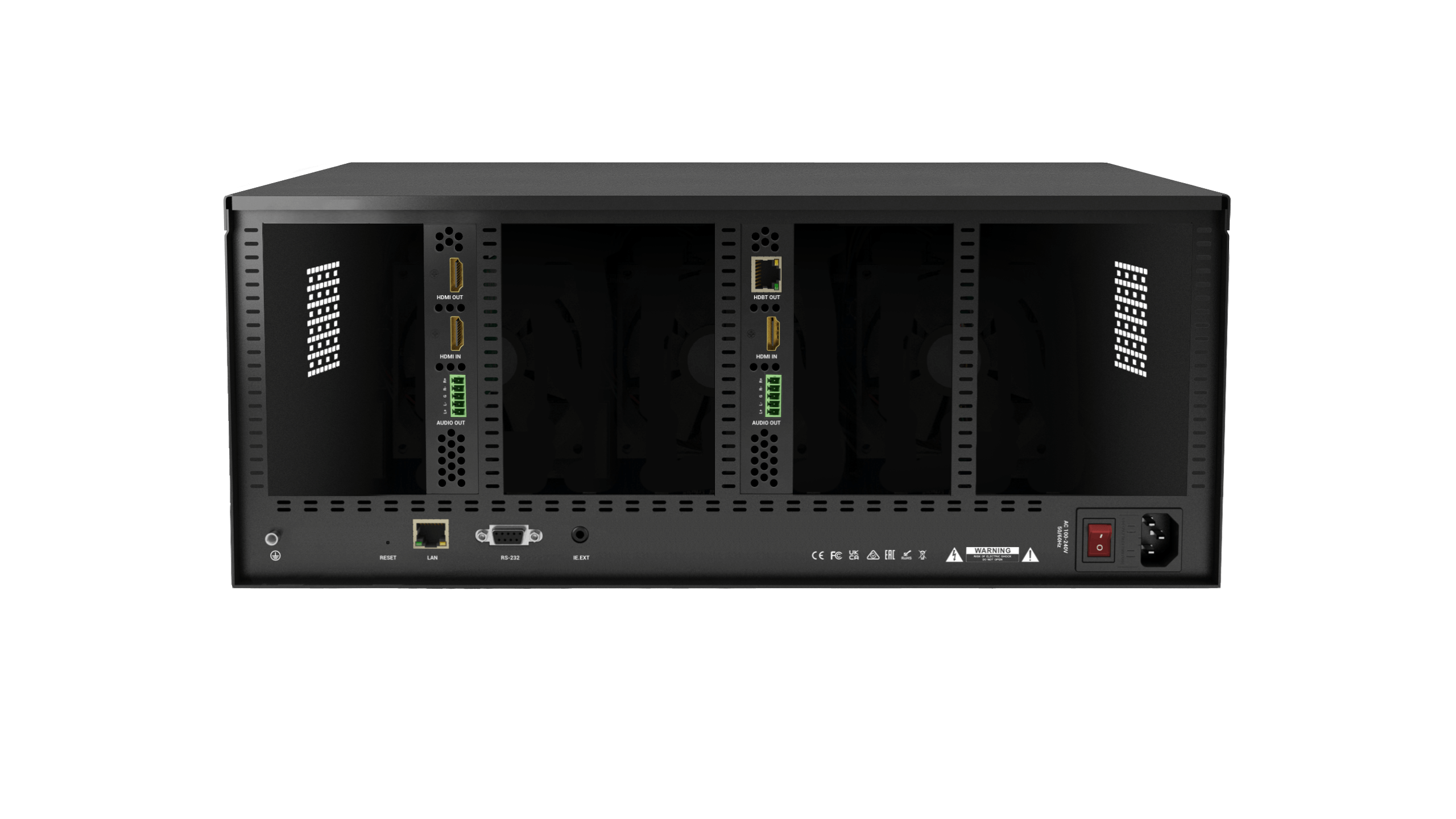

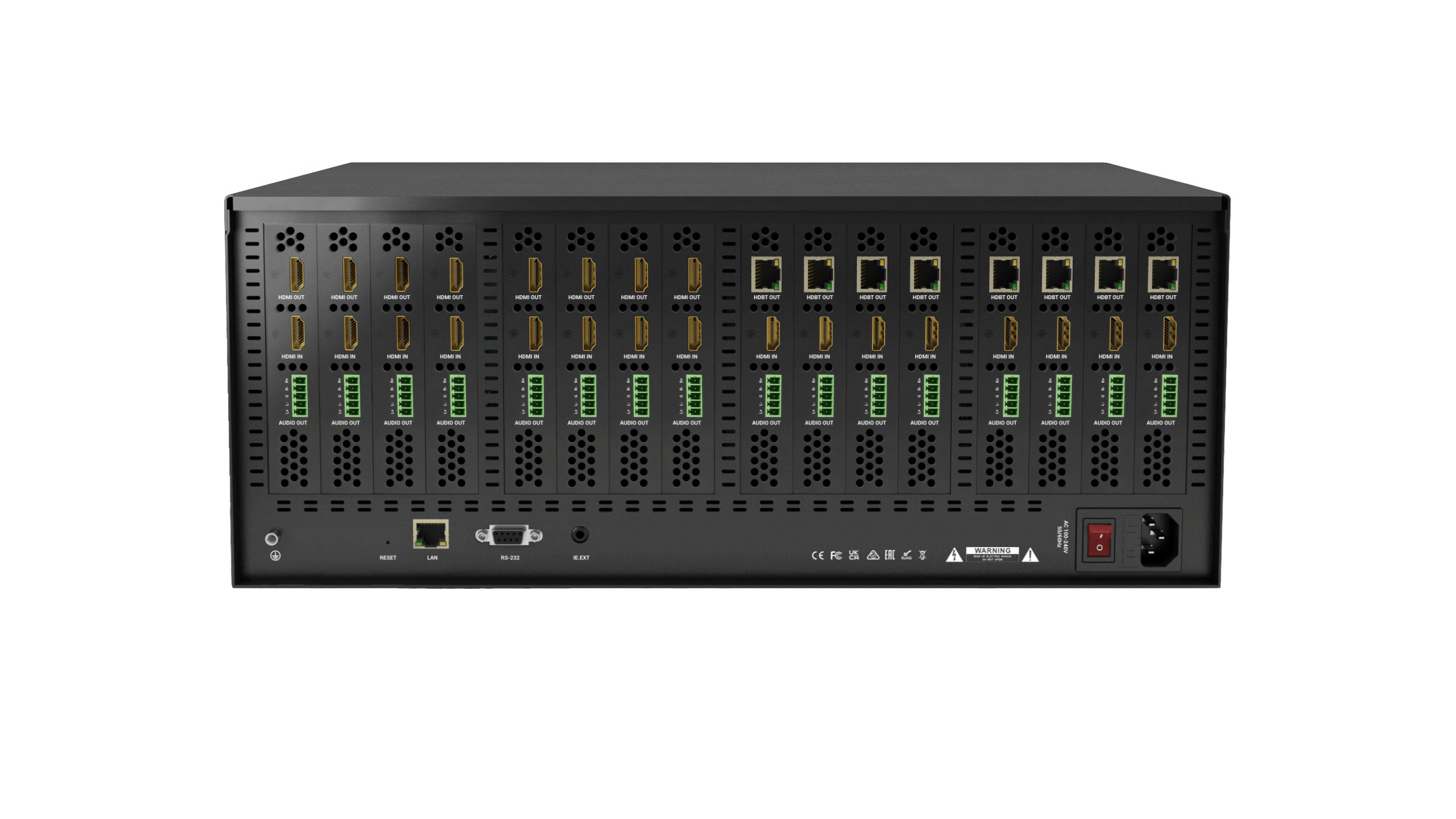

| Inputs | Dependent on Cards Implemented : 16 Cards: TX-SCL-HDBT 1x HDMI IN TX-SCL-HDMI 1x HDMI IN |
| Outputs | TX-SCL-HDBT 1x HDBT Out (Supports 15W POH power supply) 1x 5 Pin Balanced Audio Output TX-SCL-HDMI 1x HDMI Out 1x 5 Pin Balanced Audio Output |
| Output Video Encoding | HDBaseT, Uncompressed HDMI |
| Encoding Data Rate | 18Gbps |
| Audio Formats | 2ch PCM, Multichannel: LPCM and Up to DTS-X and Dolby Atmos |
| Video Resolution (Max) | 1920x1080p @60Hz 16bit 3840x2160p @60Hz 10bit 4:2:2 HDR10/10+ 3840x2160p @60Hz 12bit 4:2:0 Dolby Vision 3840x2160p @50Hz 10bit 4:2:2 HLG 4096x2160p @60Hz 8bit 4:4:4 5120×2160 @30Hz |
| Max Pixel Clock | 600MHz |
| HDMI | HDMI 2.0, HDCP 2.2, EDID, CEC |
| HDBaseT | HDMI 1.4, HDCP 2.2, EDID, CEC, RS-232, 1-way PoH |
| RS-232 | 1x RS-232: DB9, Matrix Control Routable RS-232 Device Control, Telnet commands supported |
| Ethernet | 1x LAN: 8-pin RJ-45 Female, Web UI, Matrix Control and Ethernet |
| Local Power Supply Input | 4-pin Phoenix |
| Operating Temperature | 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing |
| Storage Temperature | -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing |
| Rack Units/Wall Box | 4U |
| Height | 7in |
| Width | 19in |
| Depth | TBD |
