The MXV-0808-H2A-KIT delivers the same powerful performance as the standalone MXV-0808-H2A matrix switcher, now bundled with 6 standard HDBaseT receivers and 2 scaling receivers—making it an ideal solution for installations with a mix of 4K and 1080p displays. Capable of transmitting full 18Gbps HDMI content up to 35m/115ft using WyreStorm’s advanced lossless compression (VLC), this kit maintains perfect signal integrity without compromising color fidelity—unlike other methods such as CSC that permanently discard color data. With 8 HDBaseT zone outputs and 4 mirrored HDMI outputs, plus CEC triggering across all 12 display connections, the MXV-0808-H2A-KIT ensures seamless video distribution in residential or commercial environments where display compatibility and reliability are key.

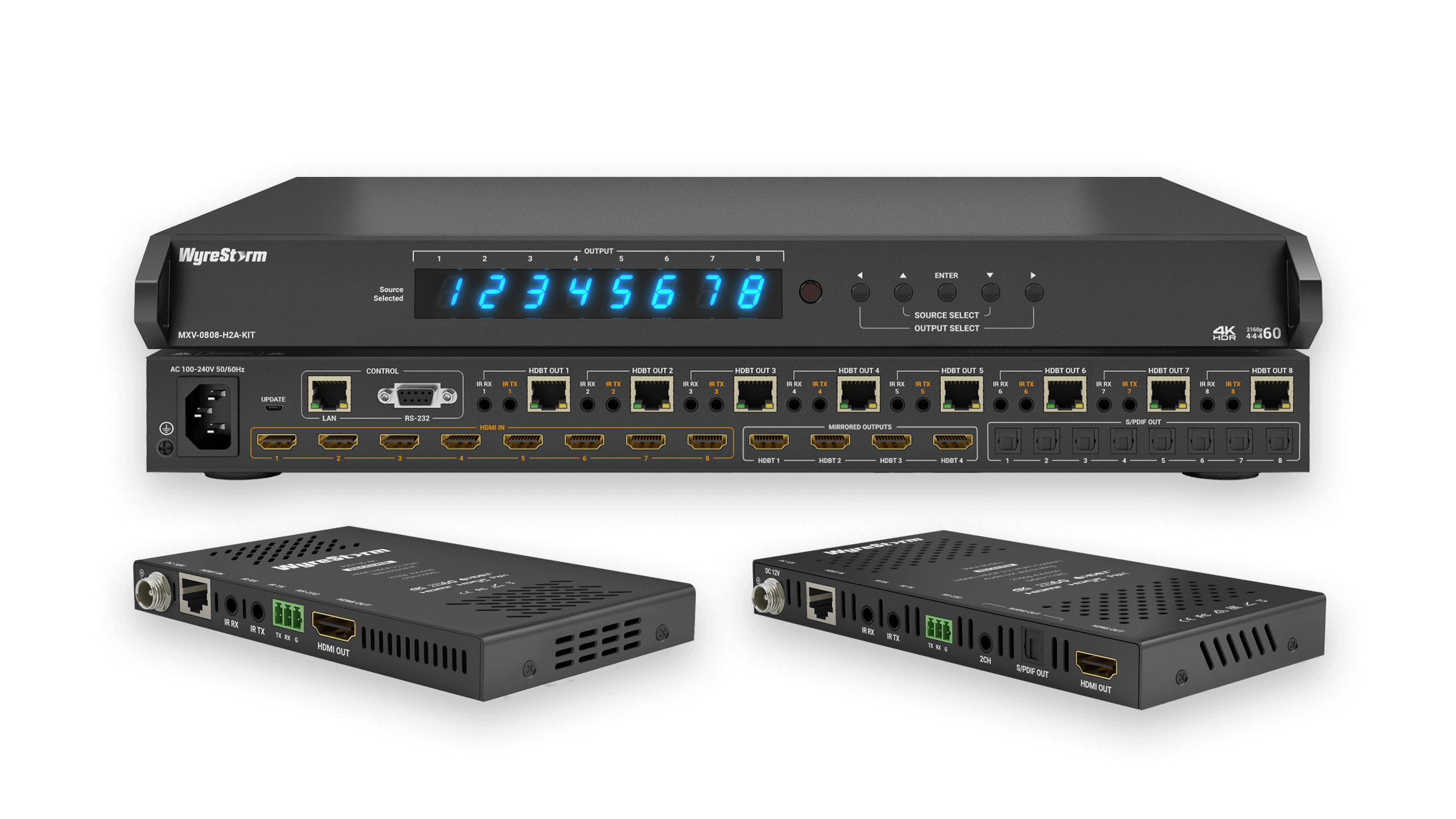

WyreStorm MXV-0808-H2A-KIT — 4K60 8×8 HDBaseT Matrix Kit with 8x Receivers
The MXV-0808-H2A-KIT delivers the same powerful performance as the standalone MXV-0808-H2A matrix switcher, now bundled with 6 standard HDBaseT receivers and 2 scaling receivers—making it an ideal solution for installations with a mix of 4K and 1080p displays. Capable of transmitting full 18Gbps HDMI content up to 35m/115ft using WyreStorm’s advanced lossless compression (VLC), this kit maintains
| Marka | WyreStorm |
|---|---|
| Model | MXV-0808-H2A-KIT |
| Inputs | 8x HDMI In: 19-pin type A |
| Outputs | 8x HDBT Out: 8-pin RJ-45 Female 8x S/PDIF Out: TOSLINK (Digital Optical) 4x HDMI Out: 19-pin type A |
| Video Encoding | HDBaseT™ Class B |
| Encoding Data Rate | 18Gbps |
| End to End Latency (Max) | 10μs (micro seconds) |
| Audio Formats | S/PDIF: 2ch LPCM, Dolby Digital/DTS up to 5.1ch HDMI: 2ch LPCM, Multichannel up to Dolby Atmos and DTS-X |
| Video Resolution (Max) | 1920x1080p @120Hz 12bit 3840x2160p @60Hz 10bit 4:2:0 HDR 4096x2160p @60Hz 8bit 4:4:4 |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision(DVLL) up to 60Hz, HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | HDMI: 600MHz, HDBaseT: 297MHz |
| HDMI | HDMI 2.0, HDCP 2.2, EDID |
| HDBaseT | HDMI 2.0, HDCP 2.2, EDID, CEC, 1-way PoH, Bidirectional IR |
| CEC | CEC power triggering via API, Requires CEC compatibility |
| IR | 8x IR RX: 3.5mm (1/8in) TRS Stereo, 8x IR TX: 3.5mm (1/8in) TS Mono |
| RS-232 | 1x RS-232: 9-pin DB9 Female, Matrix Control, Telnet commands supported |
| Ethernet | 1x LAN: 8-pin RJ-45 Female, Web UI, Matrix Control |
| Power Supply | 100~240V AC 50/60Hz |
| Max Power Consumption | 168W |
