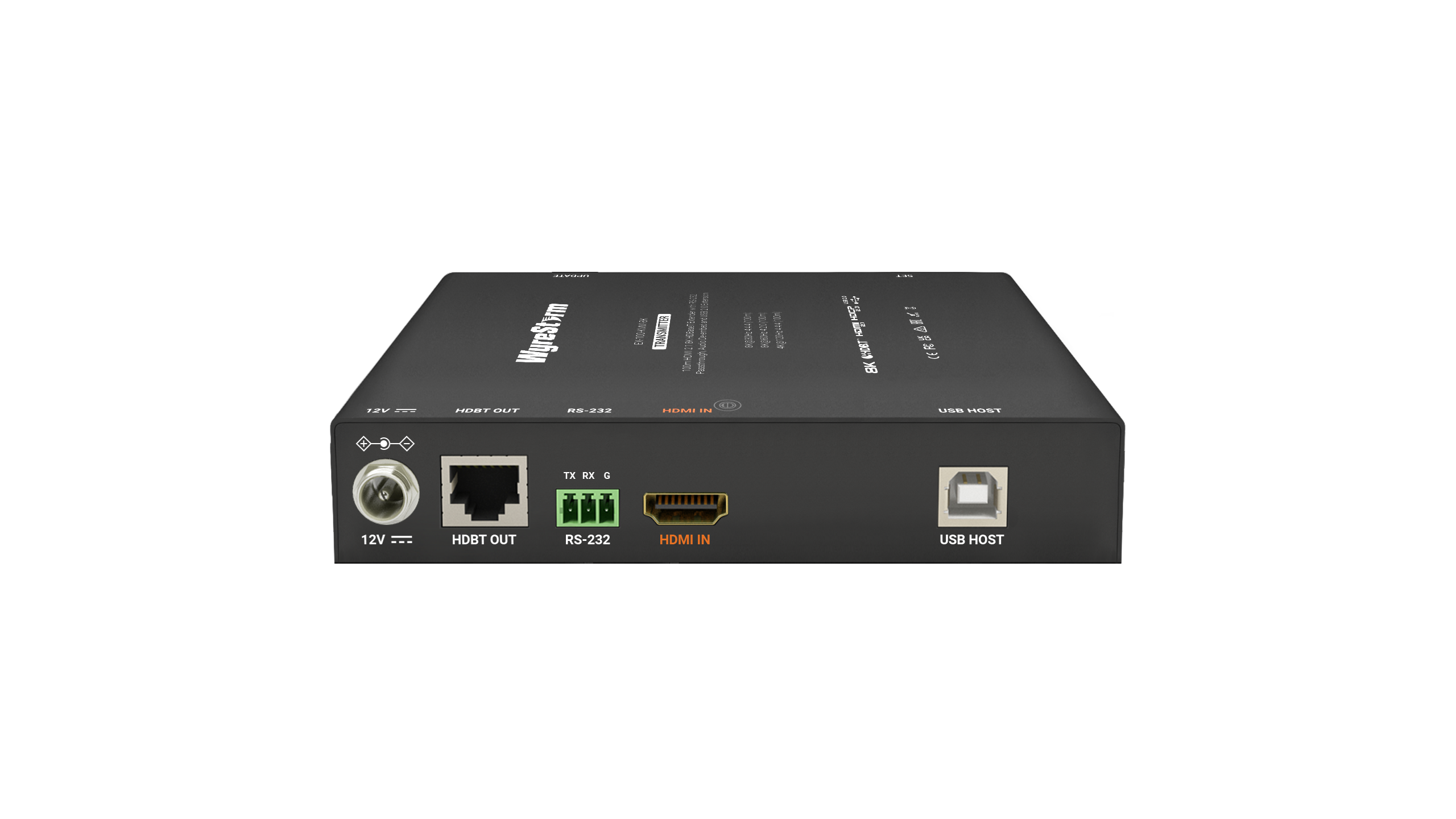

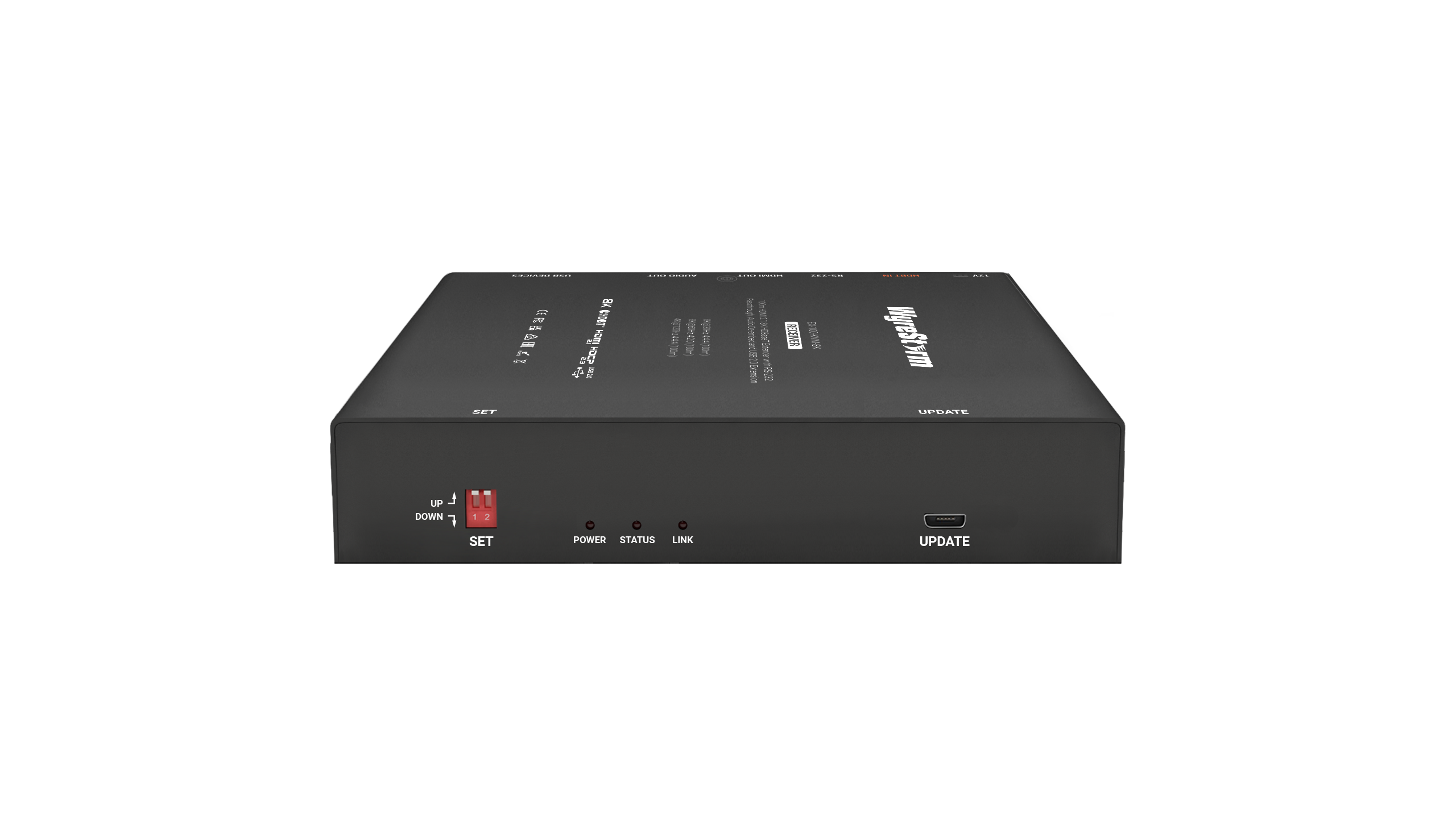

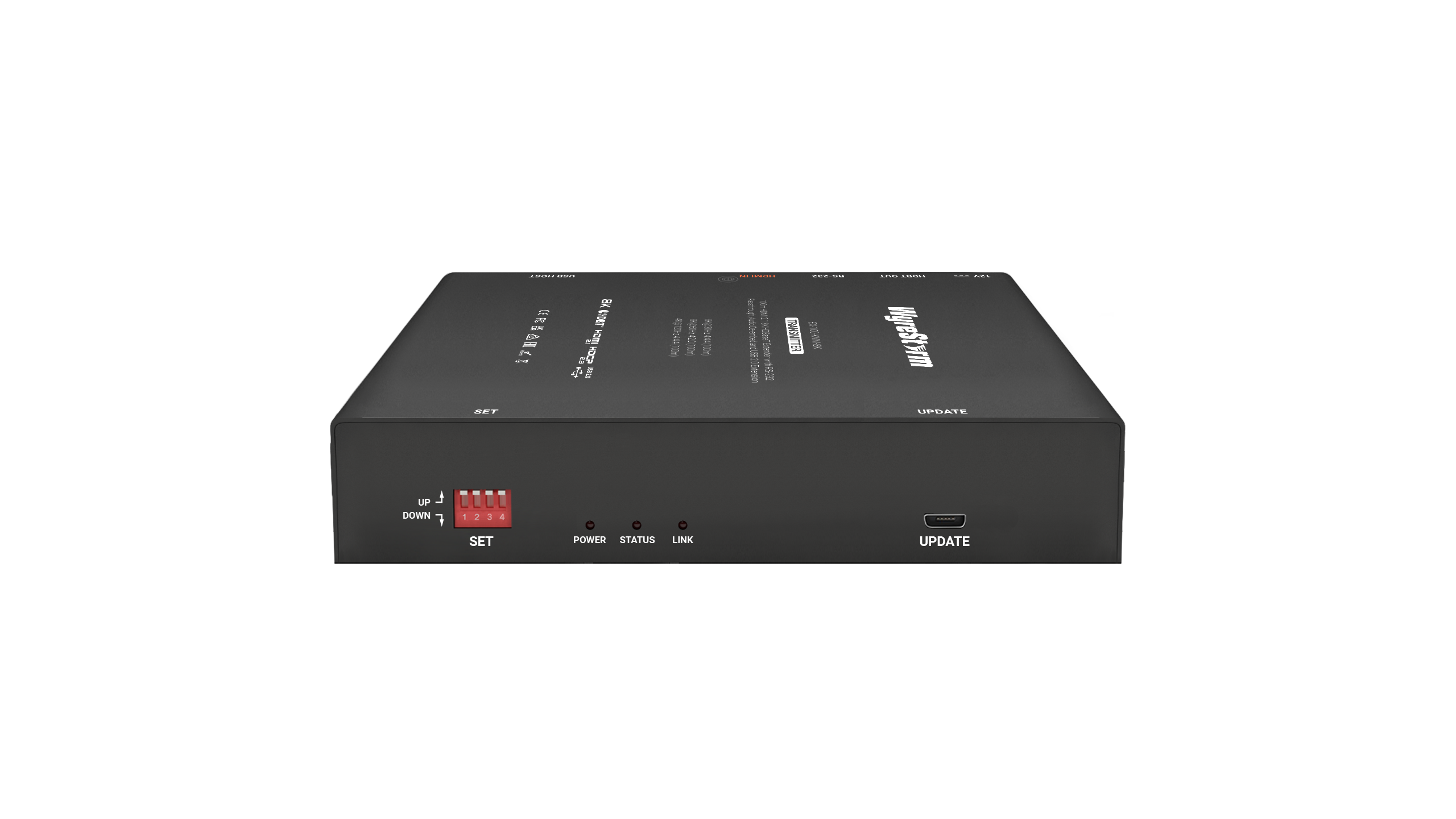

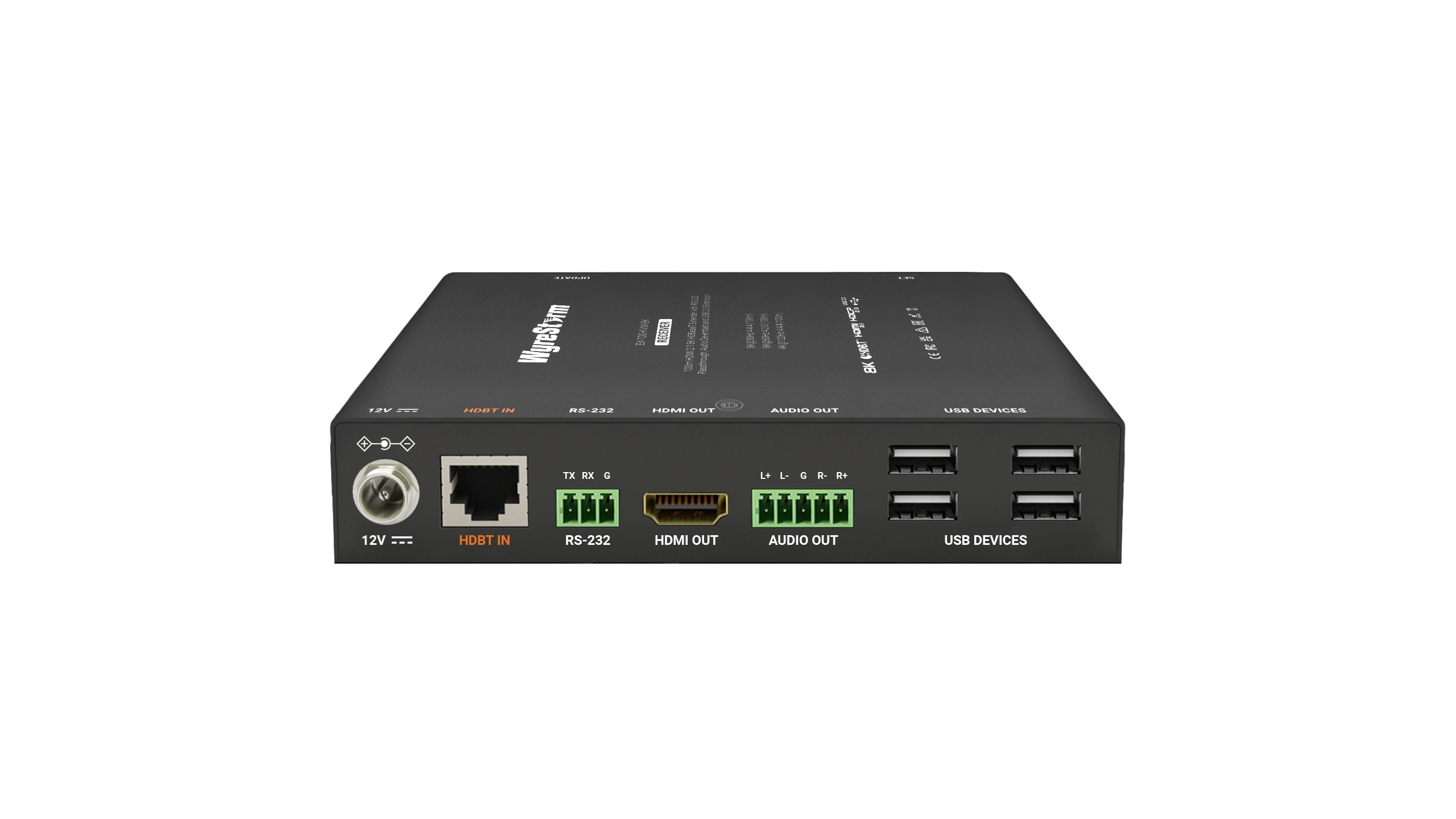

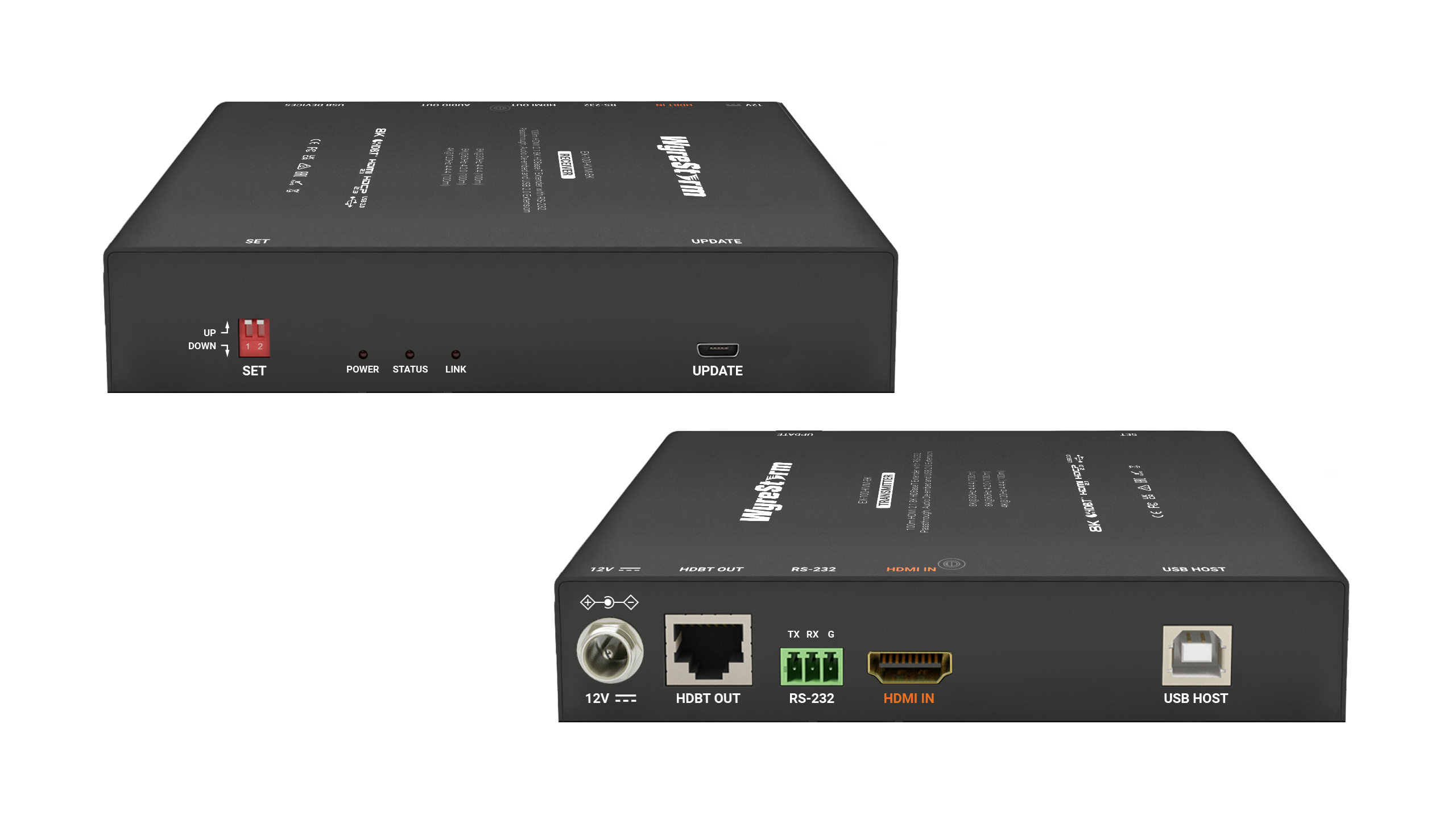

The EX-100-KVM-8K KVM Extender is a high-performance connectivity solution designed for multi-media conference halls and professional A/V environments, capable of extending HDMI 2.1 and USB 2.0 signals up to 100 meters (330 feet) over a single Cat6/6a/7 cable using HDBaseT. It supports ultra-high-definition video up to 8K@30Hz (or 8K@60Hz 4:2:0) and 4K@120Hz (4:4:4), with visually lossless VESA Display Stream Compression (DSC) ensuring signal quality. The system includes both a Transmitter (TX) and a Receiver (RX) unit, featuring RS232 pass-through for device control, integrated USB 2.0 extension for KVM functionality, balanced de-embedded audio output via a 5-pin phoenix connector, and convenient one-way Power over Cable (POC) from the RX to the TX unit.
WyreStorm EX-100-KVM-8K — 100m HDMI 2.1 8K HDBaseT Extender with RS-232 Passthrough, Audio De-embed and USB 2.0 Extension
The EX-100-KVM-8K KVM Extender is a high-performance connectivity solution designed for multi-media conference halls and professional A/V environments, capable of extending HDMI 2.1 and USB 2.0 signals up to 100 meters (330 feet) over a single Cat6/6a/7 cable using HDBaseT. It supports ultra-high-definition video up to 8K@30Hz (or 8K@60Hz 4:2:0) and 4K@120Hz (4:4:4), with visually lossless VESA Di
| Marka | WyreStorm |
|---|---|
| Model | EX-100-KVM-8K |
| Input/Output Signal Type | HDMI 2.1, HDCP 2.3 |
| Maximum Data Rate | HDMI: 40Gbps, USB 2.0: 255Mbps |
| Maximum Pixel Clock | 600MHz |
| Audio Formats | HDMI IN/OUT: Supports multichannel audio up to PCM 7.1, including PCM 2.0/5.1/7.1ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio and DTS:X AUDIO OUT: PCM 2.0 |
| Transmission Distance | Cat 6/6A/7: 100m/328ft 8K@60Hz 4:2:0 100m/328ft 8K@30Hz 4:4:4 Cat 5e: 90m/295ft 8K@60Hz 4:2:0 90m/295ft 8K@30Hz 4:4:4 HDMI: Input/Output: 10m/33ft 4K@30Hz – 1080P@60Hz Input: 5m/16ft – 4K@60Hz Output:10m/33ft – 4K@60Hz Input/Output: 3m/10ft – 8K@60Hz 4:2:0 |
| Power Supply | DC 12V 3A |
| Power Consumption (Maximum) | 25W (per unit, via PoC) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) / ±4kV (Contact discharge) |
| Height x Width x Depth | 25mm / 0.98in x 25mm / 90.2mm / 3.55in |
| Weight | 0.86lb (0.39kg) per unit |
| Safety and Emission | CE, FCC, RoHS, RCM, EAC, UKCA |
