The WyreStorm EX-80-KVM is a plug and play HDMI and KVM extender, capable of sending up to resolutions of 1080p@60Hz and HID (Human Interface Device) up to 80m (262ft) over a single CAT5e/6 cable. Additionally, it supports bidirectional POC (Power Over Cable) for powering at either the transmitter or the receiver with only one power adapter, making installations quick and effortless. Perfect use in office, home and presentation settings to extend HD video and USB keyboard and mouse from a local zone to a remote PC or laptop
KVM Extender

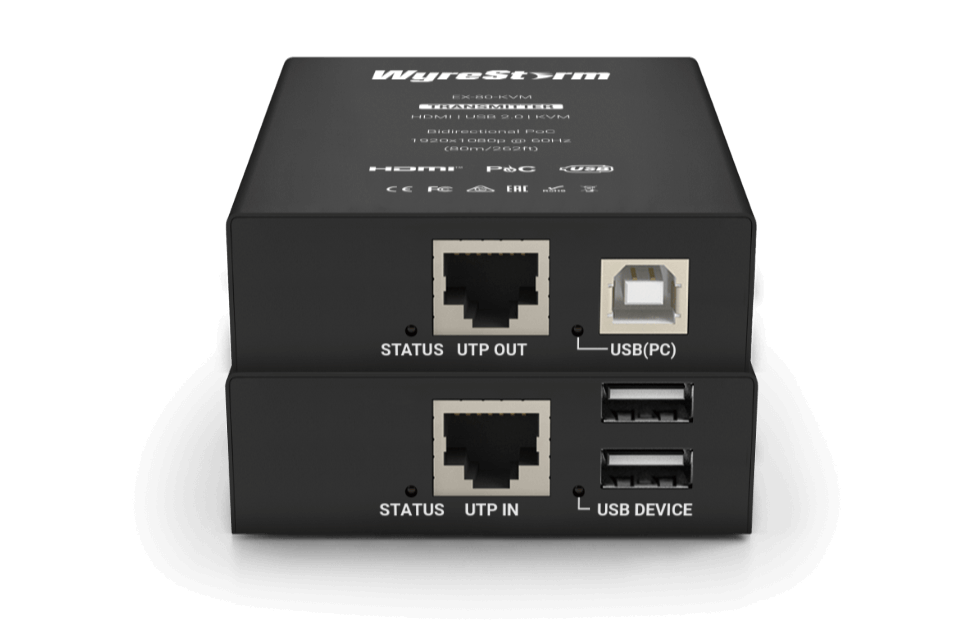

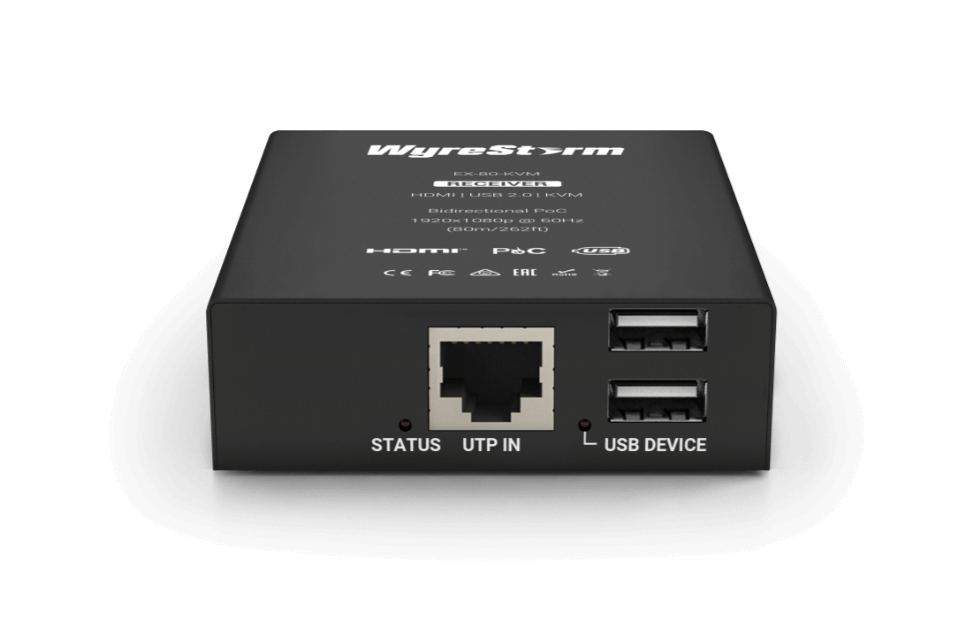

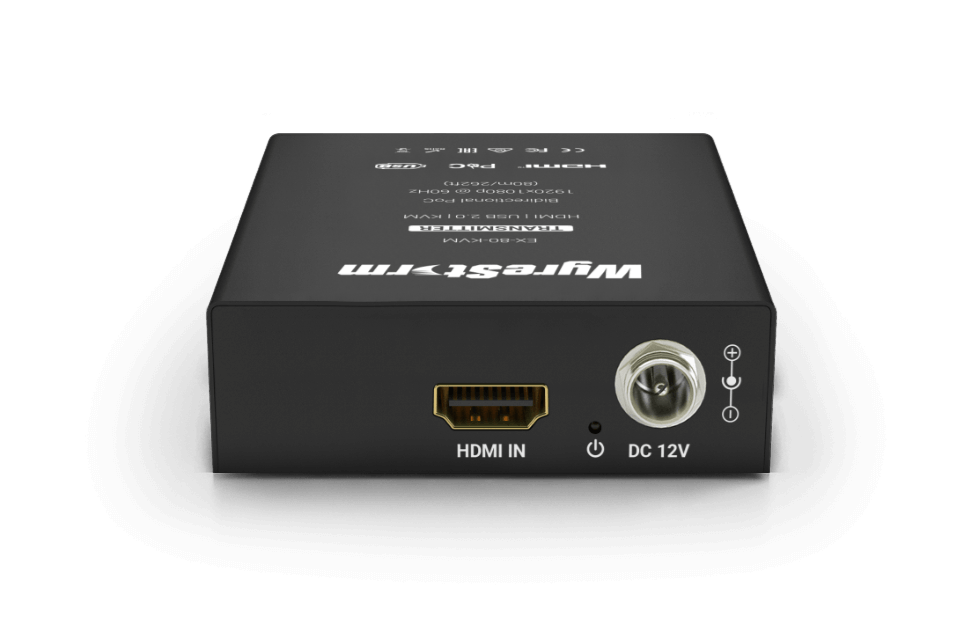

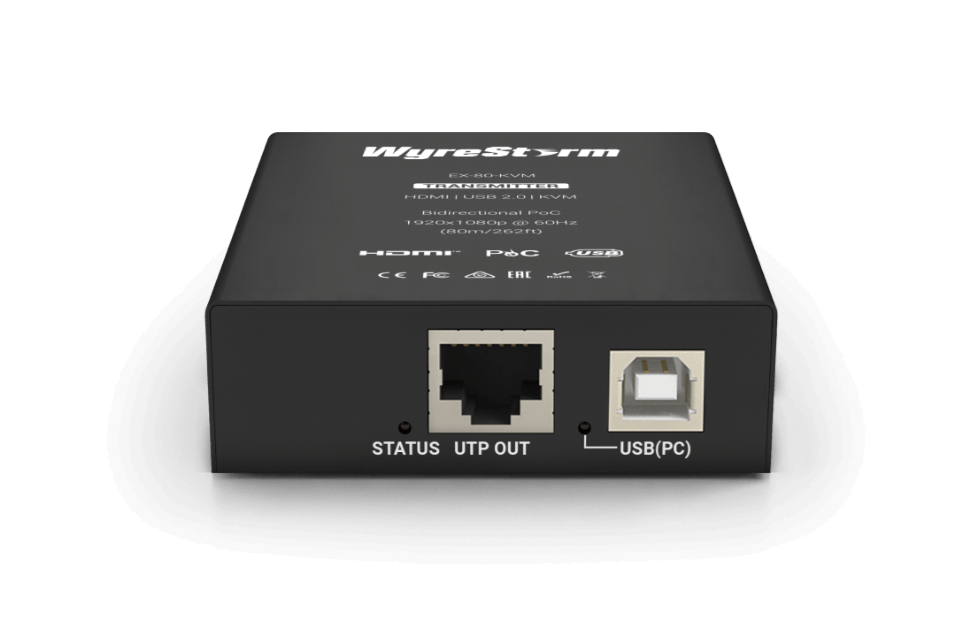

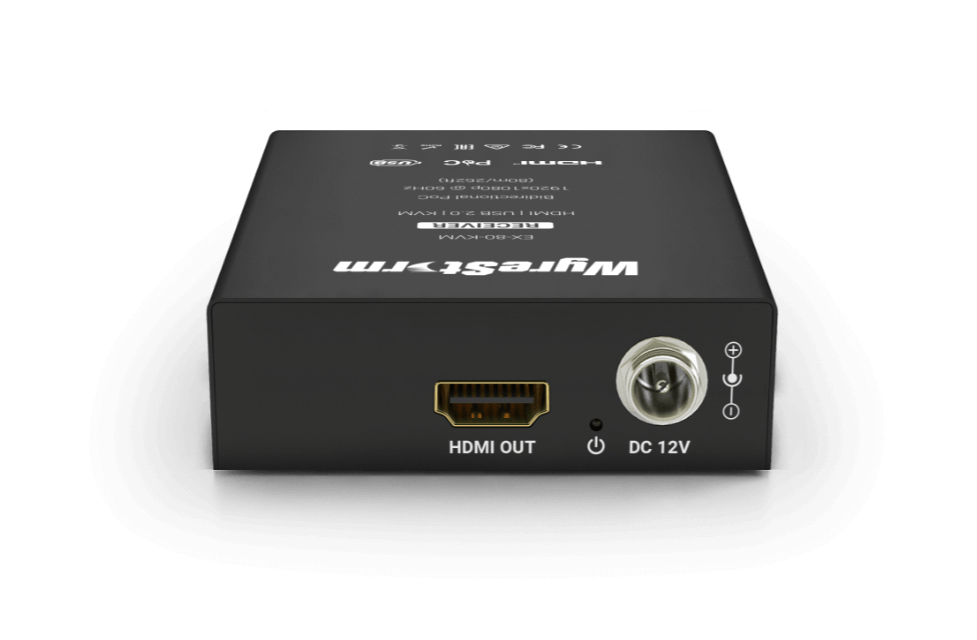

WyreStorm EX-80-KVM — 80m KVM UTP Extender
The WyreStorm EX-80-KVM is a plug and play HDMI and KVM extender, capable of sending up to resolutions of 1080p@60Hz and HID (Human Interface Device) up to 80m (262ft) over a single CAT5e/6 cable. Additionally, it supports bidirectional POC (Power Over Cable) for powering at either the transmitter or the receiver with only one power adapter, making installations quick and effortless. Perfect use i
| Marka | WyreStorm |
|---|---|
| Model | EX-80-KVM |
| Inputs | TX: 1x HDMI In: 19-pin type A 1x USB Type B RX: 1x UTP In: 8-pin RJ-45 Female 2x USB Type A |
| Outputs | TX: 1x UTP Out: 8-pin RJ-45 Female RX: 1x HDMI Out: 19-pin type A |
| Video Encoding | UTP |
| Encoding Data Rate | 6.75Gbps |
| End to End Latency | 10μs (microseconds) |
| Audio Formats | 2ch PCM, Multichannel up to DTS-X and Dolby Atmos |
| Video Resolution (Max) | 1920x1080p @60Hz 12bit |
| Supported Standards | DCI, RGB |
| Maximum Pixel Clock | 225MHz |
| HDMI | HDMI 1.3b, HDCP 1.4, EDID, DVI/D supported with adapter (not included) |
| UTP | HDMI 1.3b, HDCP 1.4, EDID, 2-way PoC |
| USB | 1x Type B (host) 2x Type A (device) (Transmitter and Receiver) Maximum uplink speed : 480Mbps, 60m/197ft Cat6,6a,7 |
| Power Supply | 12V 2A |
| PoC | IEEE 802.3af 48V 15.4W Max, 2-way |
| Max Power Consumption | 3.6W (per unit) |
