WyreStorm EX-100-KVM 4K HDMI & USB KVM Extender over HDBaseT
WyreStorm EX-100-KVM extends 4K HDMI, USB 2.0, audio, and control up to 100m over Cat6. Ideal for meeting rooms, classrooms, and control centers.
| Marka | WyreStorm |
|---|---|
| Model | EX-100-KVM |

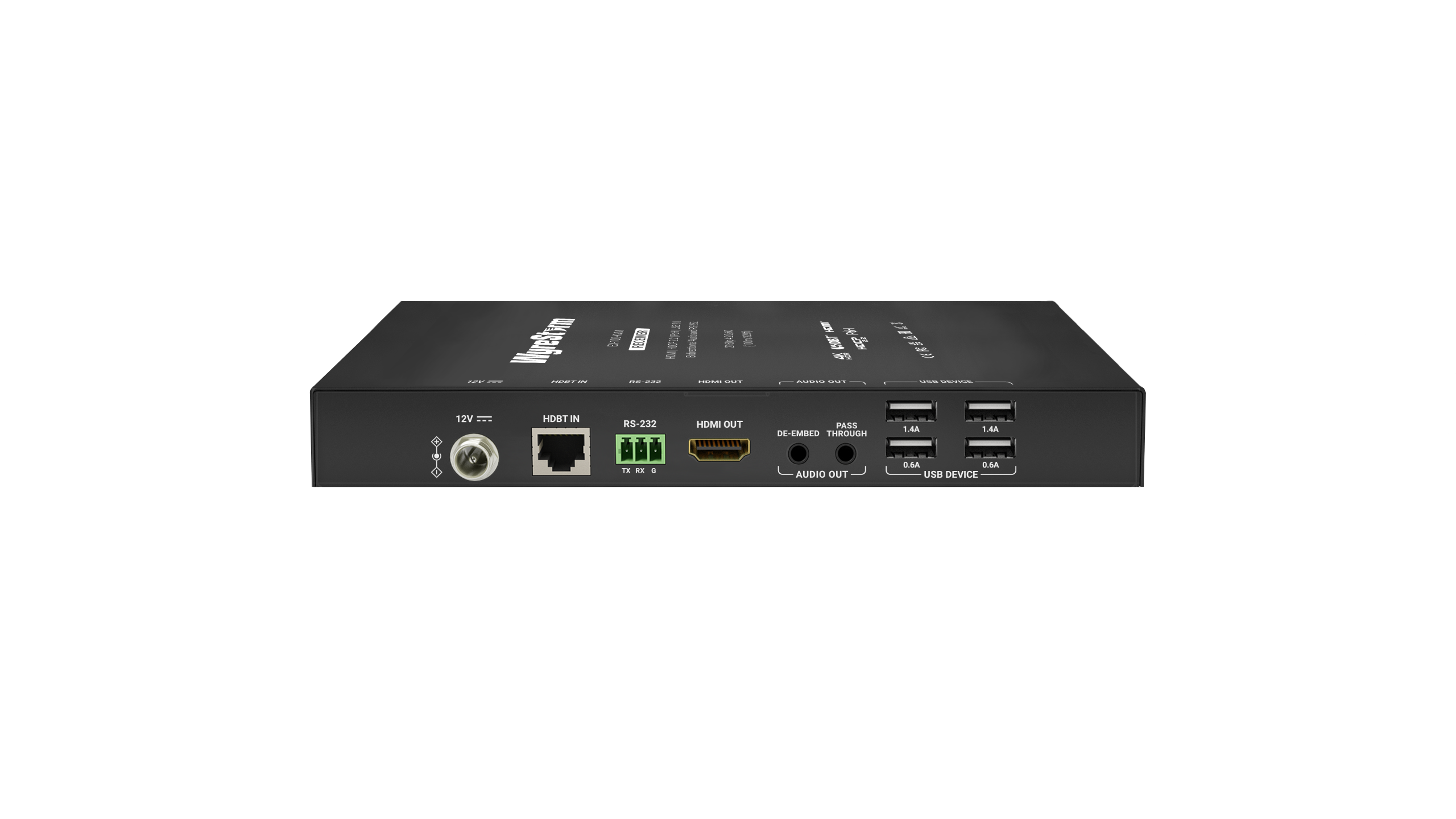

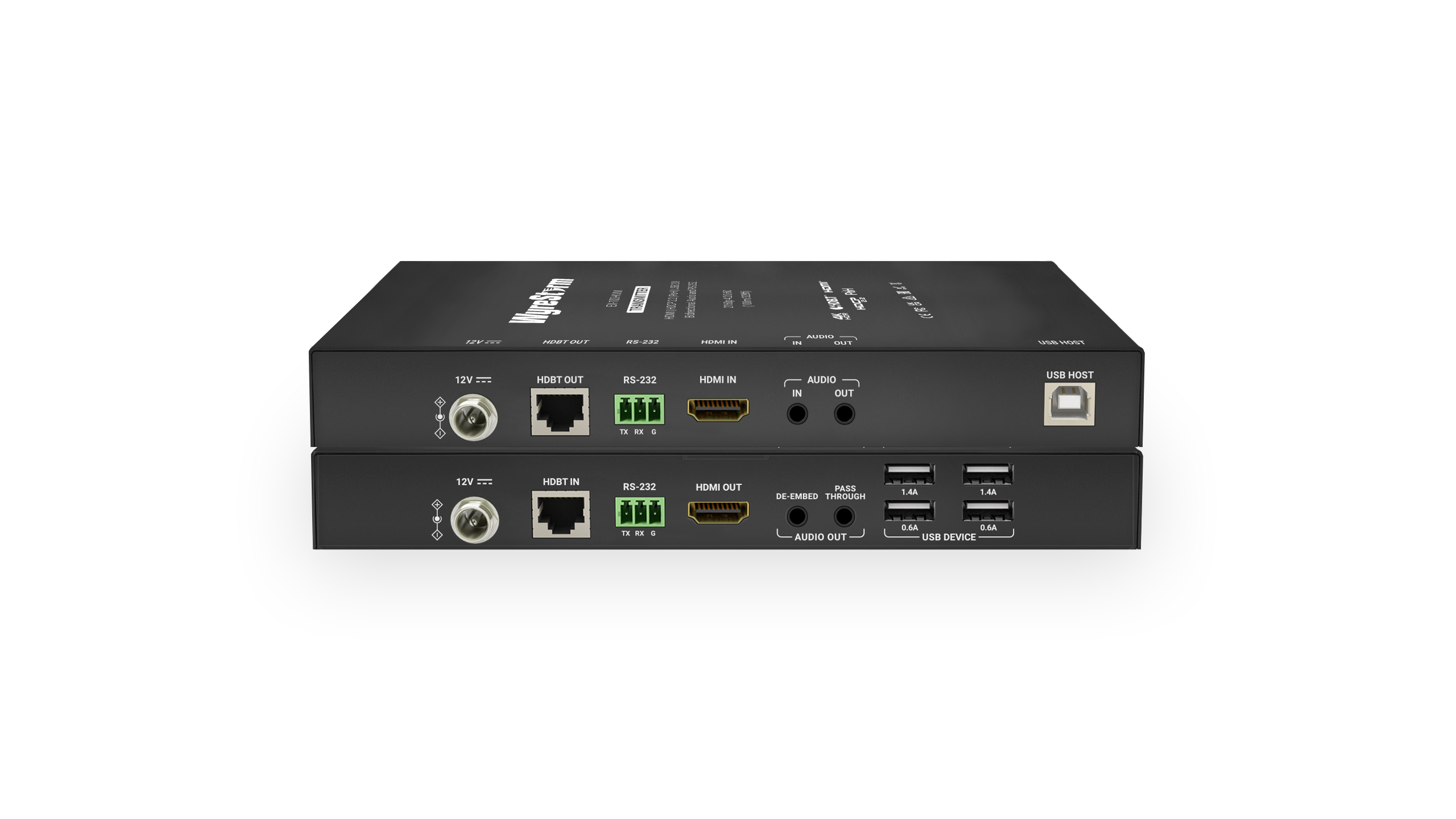

| Input/Output Ports | TX: 1x HDMI IN, 1x HDBT OUT, 1x RS232, 1x AUDIO IN, 1x AUDIO OUT, 1x USB HOST, 1x DC 12V IN RX: 1x HDBT IN, 1x HDMI OUT, 1x RS232, 2x AUDIO OUT (One for De-embed and another one for Pass-through), 4x USB DEVICE, 1x DC 12V IN |
| Input/Output Signal Type | TX: Input: HDMI 1.4 with 4K@60Hz 4:2:0 8bit, HDCP 2.2 Output: HDBT 2.0 RX: Input: HDBT 2.0 Output: HDMI 1.4 with 4K@60Hz 4:2:0 8bit, HDCP 2.2 |
| Maximum Pixel Clock | 340MHz |
| Audio Formats | HDMI: Supports multi-channel audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X AUDIO IN/OUT: Stereo |
| Video Resolution (Max) | 1080p @60Hz 4K @30Hz 4:4:4 4K @60Hz 4:2:0 5120×1440 @30Hz 5120×1440 @60Hz 4:2:0 |
| Power Supply | DC 12V/3A |
| Max. Power Consumption | 19W |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) / ±4kV (Contact discharge) |
| Height x Width x Depth | 17mm / 0.67in 136mm / 5.35in 85mm / 3.35in |
| Weight | TX: 0.44kg/0.97lb RX: 0.48kg/1.06lbs |
| Safety and Emission | CE, FCC, RoHS, RCM, EAC, UKCA |
| Inputs | TX: 1x USB Host RX: 4x USB 3.2 Type A1 x RJ45 Input |
| Outputs | TX: 1x RJ45 Female |
| Supported Standards | USB 3.2 Gen 1 |
