The TX-35-IW-KVM is a reliable single Gang US Style HDBaseT 2.0 Transmitter that provides a practical solution for extending video and control signals. With support for 4K 60 maximum resolution and USB 2.0 extension (150Mbps), it’s well-suited for use in conference rooms, classrooms, and training facilities, ensuring that your signals are transmitted effectively to where they are needed. To enhance its performance, pairing it with the RX-500 is recommended. This setup offers a straightforward way to improve signal transmission in any professional environment.
KVM Extender, Presentation Switcher

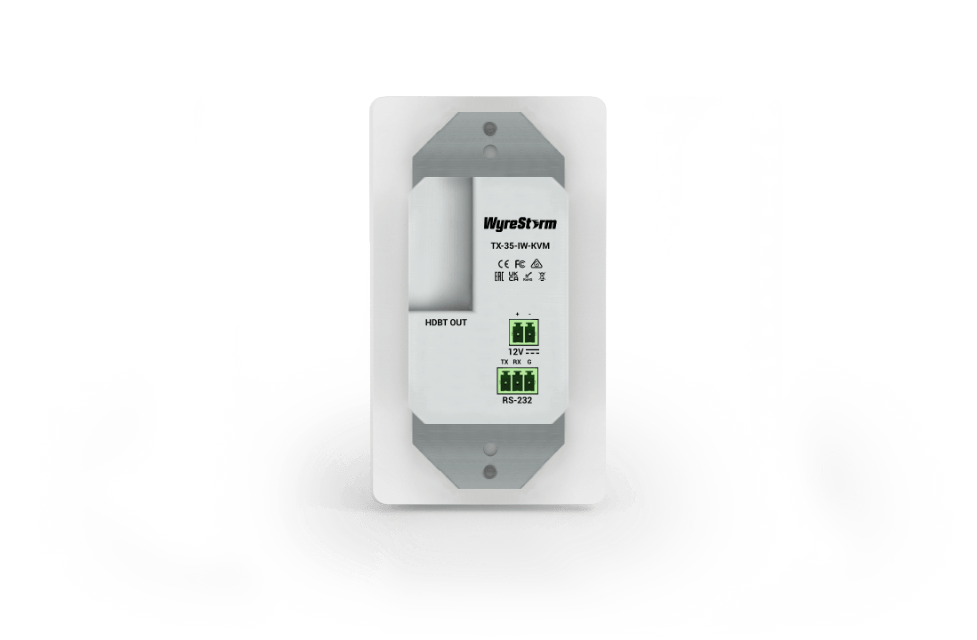

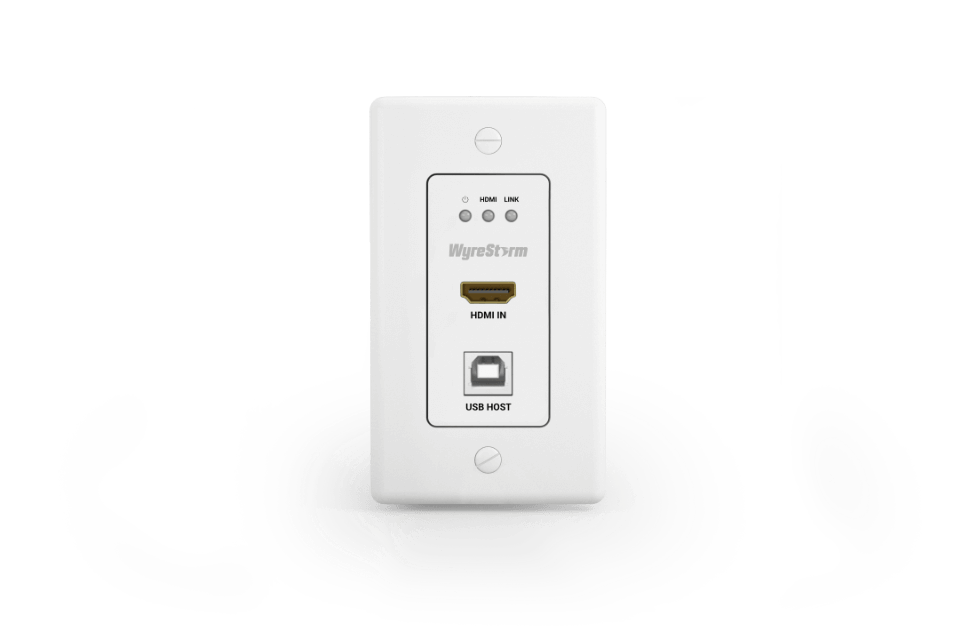

WyreStorm TX-35-IW-KVM — HDMI & USB Single Gang In-Wall HDBaseT Transmitter
The TX-35-IW-KVM is a reliable single Gang US Style HDBaseT 2.0 Transmitter that provides a practical solution for extending video and control signals. With support for 4K 60 maximum resolution and USB 2.0 extension (150Mbps), it’s well-suited for use in conference rooms, classrooms, and training facilities, ensuring that your signals are transmitted effectively to where they are needed. To enhanc
| Marka | WyreStorm |
|---|---|
| Model | TX-35-IW-KVM |
| Inputs | 1x HDMI 19-pin HDMI type A 1x USB Host Input |
| Outputs | 1x HDBT output |
| Max Pixel Clock | 600MHz |
| Video Resolution (Max) | 1920x1080p @60Hz 16bit 3840x2160p @30Hz 8bit 4:2:0 3840x2160p @60Hz 8bit 4:2:0 4096x2160p @60Hz 8bit 4:2:0 5120×1440 @30Hz 5120×1440 @60Hz 4:2:0 |
| Audio Formats | Supports multi-channel audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X |
| HDMI | HDMI, HDCP 2.2, EDID |
| USB | 1x USB 2.0 Type B host port |
| RS-232 | 1x 3-pin Phoenix (Passthrough RS-232 + Update Port) |
| Power Supply | 12V DC 1A (Sold Separately) |
| PoH | Supported, 1-Way from RX |
| Max Power Consumption | 4.5W |
