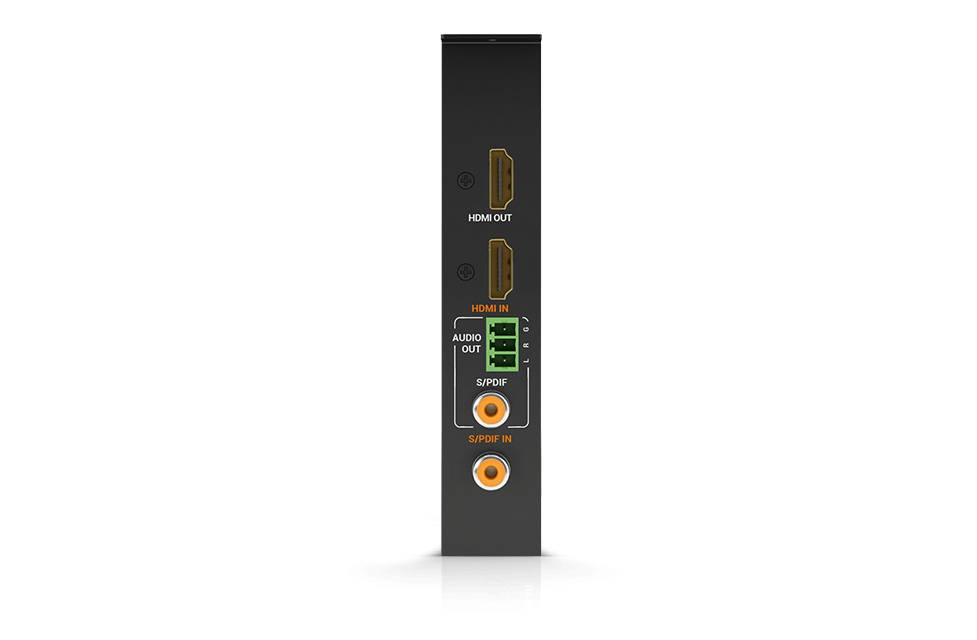

WyreStorm TX-H2X-ADZ — H2XC Card: HDMI In, HDMI Out
Offering both an HDMI input & output, the ADZ card provides an 18Gbps link direct to the matrix backplane. Supporting both 2160p 4:4:4 8-bit & HDR content and multi-channel audio formats up to Dolby Atmos™, it offers the ability to use native HDMI connectivity without the need for a transmission port (reducing cost) and maintains an audio DSP output. It is the perfect partner for WyreStorm’s range
| Marka | WyreStorm |
|---|---|
| Model | TX-H2X-ADZ |
| Inputs | 1x HDMI In: 19-pin type A 1x S/PDIF In: S/PDIF Coaxial Digital |
| Outputs | 1x HDMI Out: 19-pin type A 1x Audio Out: 3-pin Terminal Block – 3.5mm 1x S/PDIF Out: S/PDIF Coaxial Digital |
| Audio Formats | S/PDIF: 2ch PCM, Multichannel: Up to 5.1 DTS and Dolby Digital HDMI: 2ch PCM, Multichannel: LPCM and Up to DTS-X and Dolby Atmos |
| Video Resolution (Max) | 1920x1080p @60Hz 16bit 3840x2160p @30Hz 8bit 4:4:4 3840x2160p @60Hz 10bit 4:2:0 HDR 4096x2150p @60Hz 8bit 4:4:4 |
| Maximum Pixel Clock | HDMI: 600mHz |
| HDMI | HDCP 2.2, EDID, DVI-D supported with adapter (not included) |
| CEC | CEC power triggering, Requires CEC compatibility |
| Power Supply | Internal to Matrix |
| Max Power Consumption | Matrix Dependent |
