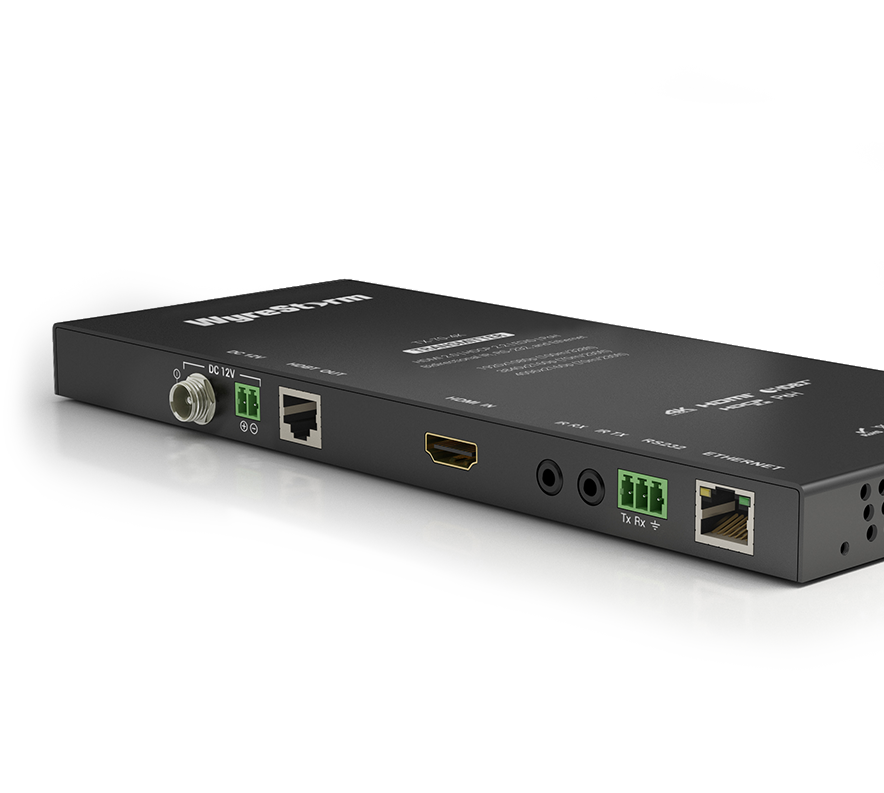

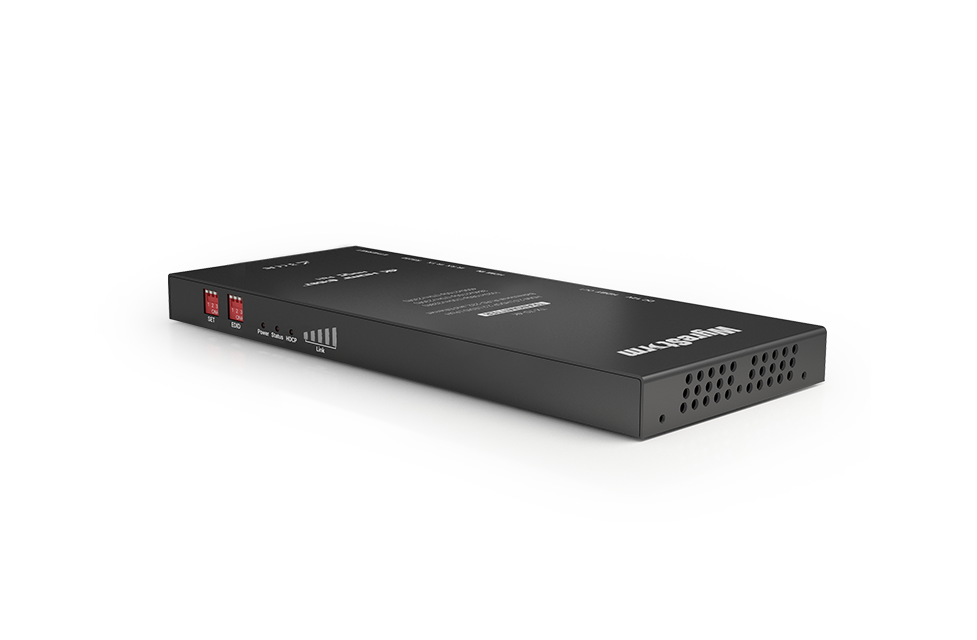

WyreStorm TX-70-4K — 70m 4K HDBaseT Transmitter
DISCONTINUED For flagship HDBaseT Transmission performance, look no further than the TX-70-4K. Class A HDBaseT transmission means support for 4K UHD content; even HDR-10 @24Hz, up to 70m/230ft. 2-way PoH and EDID management completes this fully-loaded specification.
| Marka | WyreStorm |
|---|---|
| Model | TX-70-4K |
| Inputs | 1x HDMI: 19-pin HDMI type A female |
| Outputs | 1x HDBaseT: 8-pin RJ-45 female |
| Output Video Encoding | HDBaseT Class A |
| Maximum Sampling Rate | 192KHz |
| Audio Formats | 2ch PCM, Up to DTS-X and Dolby Atmos |
| Video Resolutions (max) | 1920x1080p @60Hz 16bit 3840x2160p @30Hz 8bit 4:4:4 3840x2160p @24Hz 10bit 4:2:0 HDR 4096x2160p @60Hz 8bit 4:4:4 |
| Color Depth (Max) | 12bit |
| Maximum Pixel Clock | 297MHz |
| HDMI | HDMI, HDCP 2.2, EDID, DVI/D supported with adapter (not included) |
| HDBaseT | HDMI, HDCP 2.2, EDID, 2-way PoH, Bidirectional IR, RS-232, and Ethernet |
| Ethernet | 1x 8-pin RJ-45 female, 10/100 Mbps auto-negotiating, Bidirectional over HDBaseT |
| IR | 1x IR TX 3.5mm (1/8in) TS Mono, Bidirectional over HDBaseT 1x IR RX 3.5mm (1/8in) TRS Stereo, Bidirectional over HDBaseT |
| RS-232 | 1x 3-pin Phoenix Connector, Bidirectional over HDBaseT |
| Power Supply | Input: 100~240V AC 50/60Hz, Output: 12V DC 2A |
| PoH | 48V 15.4W |
| Max Power Consumption | 26.5W |
