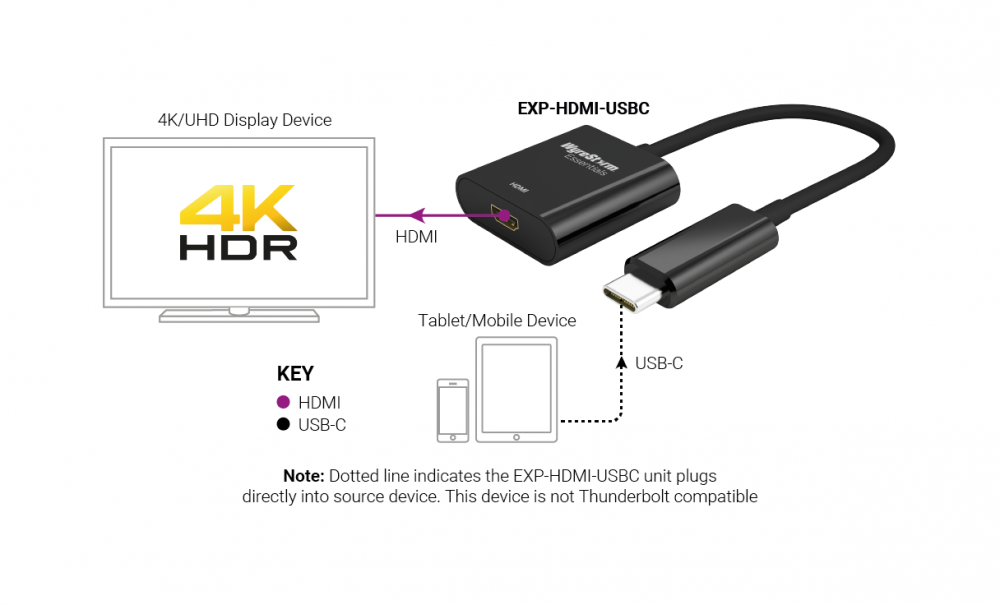

The EXP-HDMI-USBC is a passive adapter that converts USB-C audio and video from a connected PC or USB-C smart device to HDMI, allowing the user to mirror or extend to UHD displays with resolutions of up to 4K@60Hz.
Adapters, New Arrivals

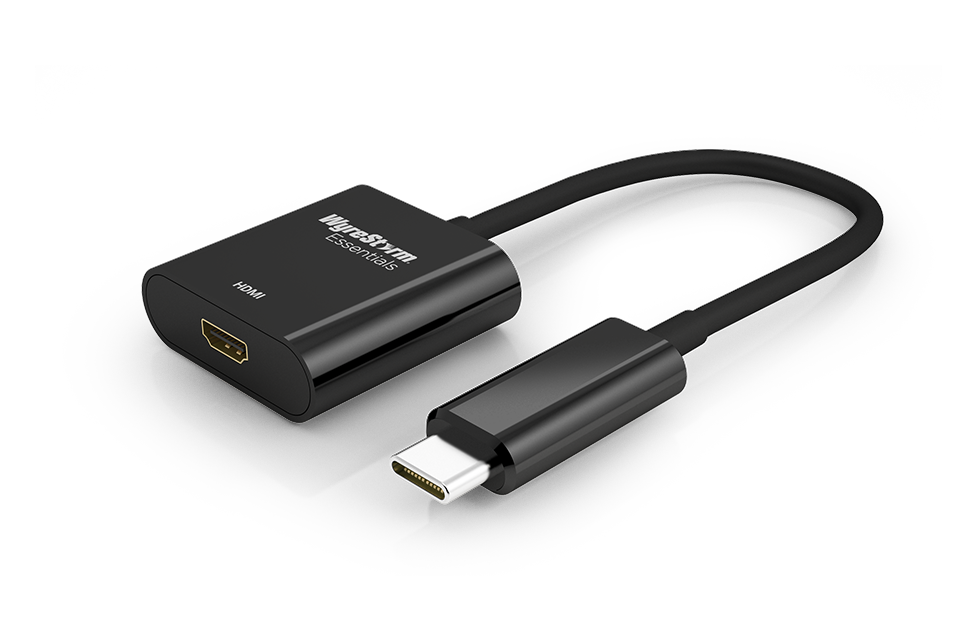

WyreStorm EXP-HDMI-USBC — WyreStorm Essentials USB-C to HDMI
The EXP-HDMI-USBC is a passive adapter that converts USB-C audio and video from a connected PC or USB-C smart device to HDMI, allowing the user to mirror or extend to UHD displays with resolutions of up to 4K@60Hz.
| Marka | WyreStorm |
|---|---|
| Model | EXP-HDMI-USBC |
| Inputs | 1x USB: Type C Male |
| Outputs | 1x HDMI: 19-pin type A Female |
| Video Encoding | Uncompressed |
| Encoding Data Rate | 18Gbps |
| End to End Latency | Zero |
| Audio Formats | 2ch PCM, Multichannel: LPCM and Up to DTS-X and Dolby Atmos |
| Video Resolution (Max) | 1920x1080p @240Hz 8bit RGB 2560x1440p @120Hz 8bit RGB 4096x2160p @60Hz 10bit HDR 4:2:0 4096x2160p @60Hz 12bit HDR 4:2:2 4096x2160p @60Hz 10bit HDR 4:4:4 4096x2160p @60Hz 10bit RGB |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision, HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | 600MHz |
| HDMI | TMDS, HDCP 2.2, EDID |
| Supported Functions | Ethernet, Audio Return Channel (ARC), CEC, Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR) |
