The SR-1G-MM-SFP is a hot-pluggable, small form-factor pluggable (SFP) optical transceiver designed for short-range data communication over multimode fiber. Operating at 850nm with VCSEL laser technology, it delivers up to 1.25Gbps transmission rates and supports link distances up to 550 meters. This module is ideal for Gigabit Ethernet, Fibre Channel, and other optical networking applications requiring high performance, low power consumption, and digital diagnostics.
NetworkHD AV over IP, NetworkHD Components

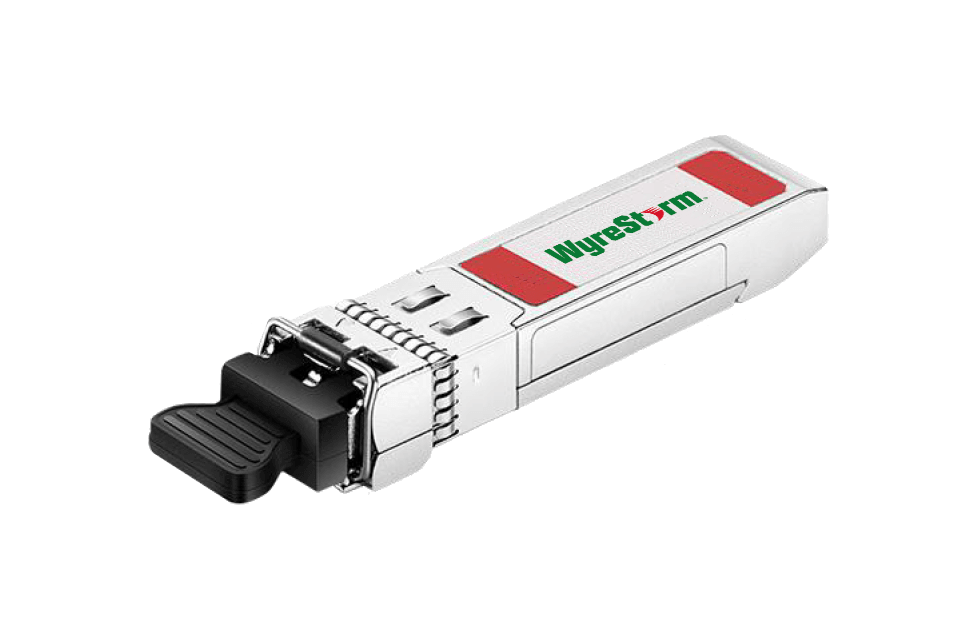

WyreStorm SR-1G-MM-SFP — 1G SFP Multimode Transceiver
The SR-1G-MM-SFP is a hot-pluggable, small form-factor pluggable (SFP) optical transceiver designed for short-range data communication over multimode fiber. Operating at 850nm with VCSEL laser technology, it delivers up to 1.25Gbps transmission rates and supports link distances up to 550 meters. This module is ideal for Gigabit Ethernet, Fibre Channel, and other optical networking applications req
| Marka | WyreStorm |
|---|---|
| Model | SR-1G-MM-SFP |
| Form Factor | SFP (Hot-pluggable) |
| Data Rate | 1.25 Gbps |
| Laser Wavelength | 850 nm |
| Connector | LC duplex |
| Max Distance | 550m (50/125 µm MMF) / 300m (62.5/125 µm) |
| Power Supply | +3.3V |
| Power Consumption | < 1W |
| Operating Temperature | 0°C to +70°C |
| Transmitter Output Power | -9.5 to -3 dBm |
| Receiver Sensitivity | < -17 dBm |
| DDM / Diagnostics | Supported (Digital Optical Monitoring) |
| Compliance | IEEE 802.3z, MSA SFP, FDA, IEC60825-1 |
| Applications | 1G Ethernet, Fibre Channel, Switch Links |
