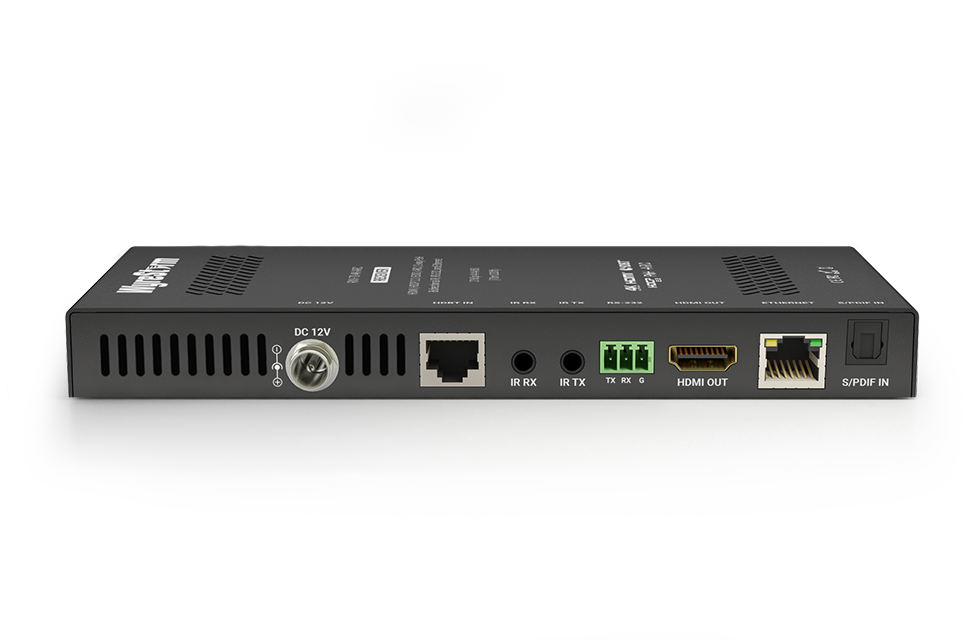

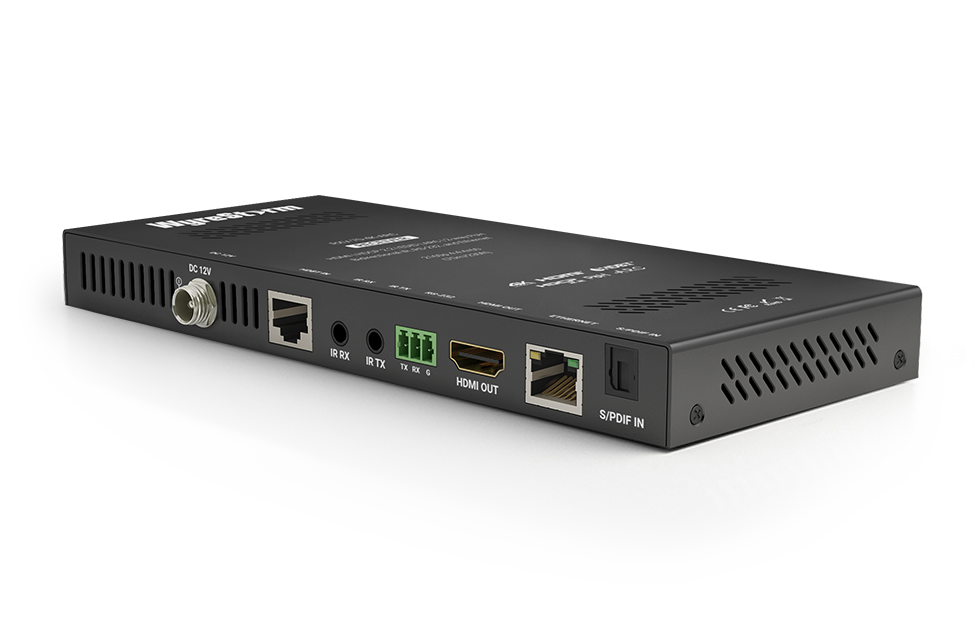

WyreStorm RXV-70-4K-ARC — 70m 4K60 HDBaseT Receiver with ARC
With high-framerate HDR-10 and HLG technology exceeding the capabilities of HDBaseT, WyreStorm has implemented light-compression technology. The RXV-70-4K-ARC forms part of this new generation of signal extension technology and furthermore, frees the 5.1 audio from an ARC compatible TV and sends back to an H2XC matrix over HDBaseT; an optical S/PDIF input is also present for sending digital audio
| Marka | WyreStorm |
|---|---|
| Model | RXV-70-4K-ARC |
| Inputs | 1x S/PDIF In: TOSLINK (Digital Optical) 1x HDBaseT In: 8-pin RJ-45 Female |
| Outputs | 1x HDMI Out: 19-pin type A |
| Output Video Encoding | HDBaseT Class A |
| Encoding Data Rate | 10Gbps |
| End to End Latency | 10μs (micro seconds) |
| Audio Formats | 2ch PCM, Multichannel: LPCM and Up to DTS-X and Dolby Atmos |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision up to 30Hz, HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | HDMI: 600MHz, HDBaseT: 297MHz |
| HDMI | HDCP 2.2, EDID, CEC, DVI-D supported with adapter (not included) |
| HDBaseT | HDMI, HDCP 2.2, EDID, CEC, 1-way PoH to Receiver, Bidirectional IR |
| CEC | Power Triggering from Matrix, Requires CEC compatibility at Display |
| Ethernet | 1x Ethernet: 8-pin RJ-45 Female, Bidirectional over HDBaseT |
| IR | 1x IR RX 3.5mm (1/8in) TRS Stereo, 1x IR TX: 3.5mm (1/8in) TS Mono, Bidirectional over HDBaseT |
| RS-232 | 1x RS-232: 3-pin Phoenix, Bidirectional over HDBaseT |

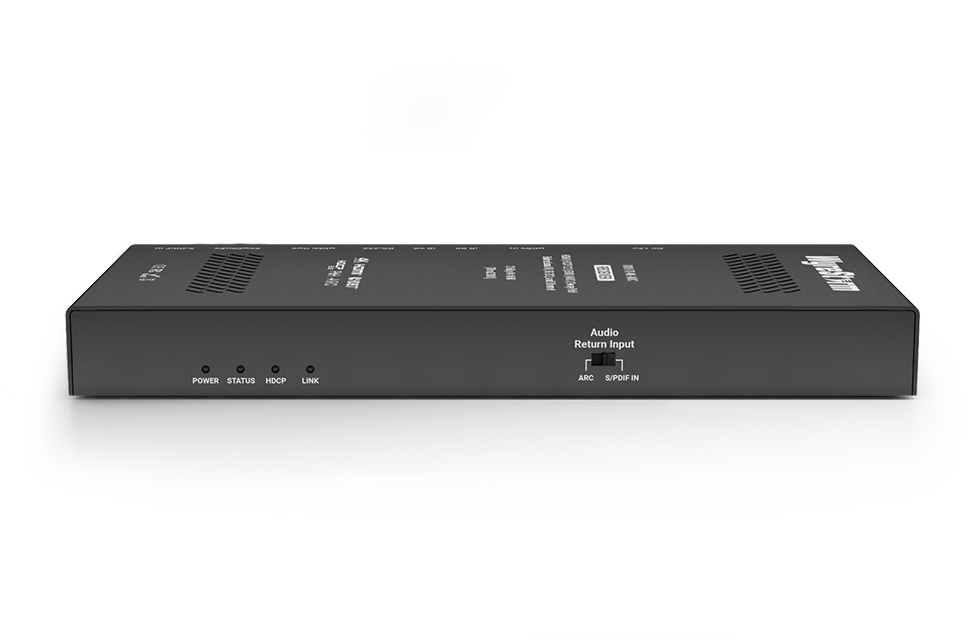

| ARC (Audio Return Channel) | Supports True ARC (via HDMI) or S/PDIF optical return from display to the matrix over HDBaseT |
| Power Supply | 18V DC (Optional) |
| PoH | 48V 15.4W |
| Max Power Consumption | 12.5W |
