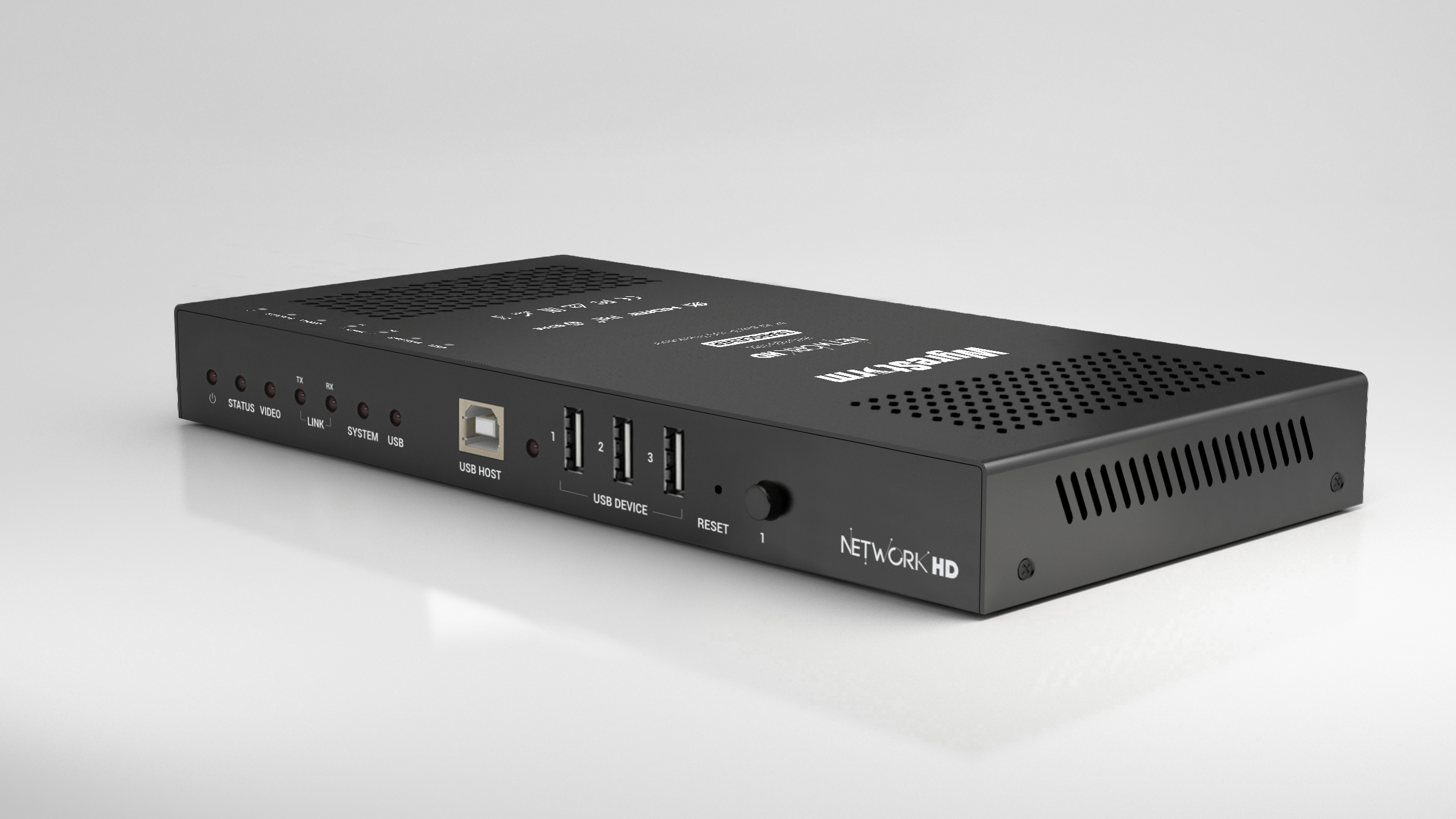

WyreStorm NHD-600-TRX — NetworkHD 600 Series 4K60 4:4:4 10GbE SDVoE Transceiver
The NHD-600-TRX is a transceiver capable of lossless latency-free 4K60 over a 10GbE network. The TRX allows you to transmit and receive A/V simultaneous through a single device or be programmed to act as a dedicated TX or RX. 3x USB HID ports allow extension for keyboard and mouse applications such as a corporate meeting room or an operating center. A cutting-edge architecture provides an efficien
| Marka | WyreStorm |
|---|---|
| Model | NHD-600-TRX |

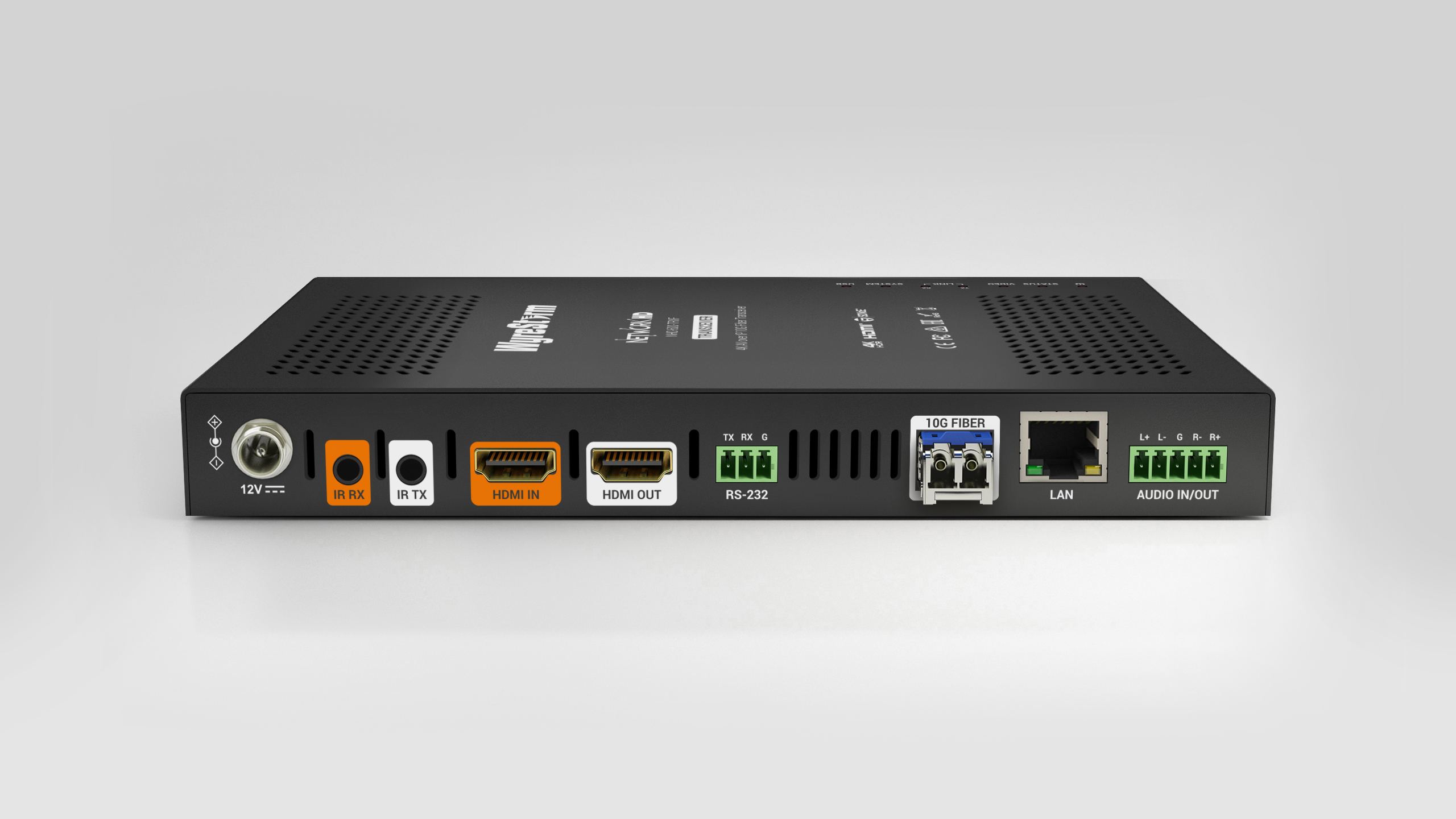

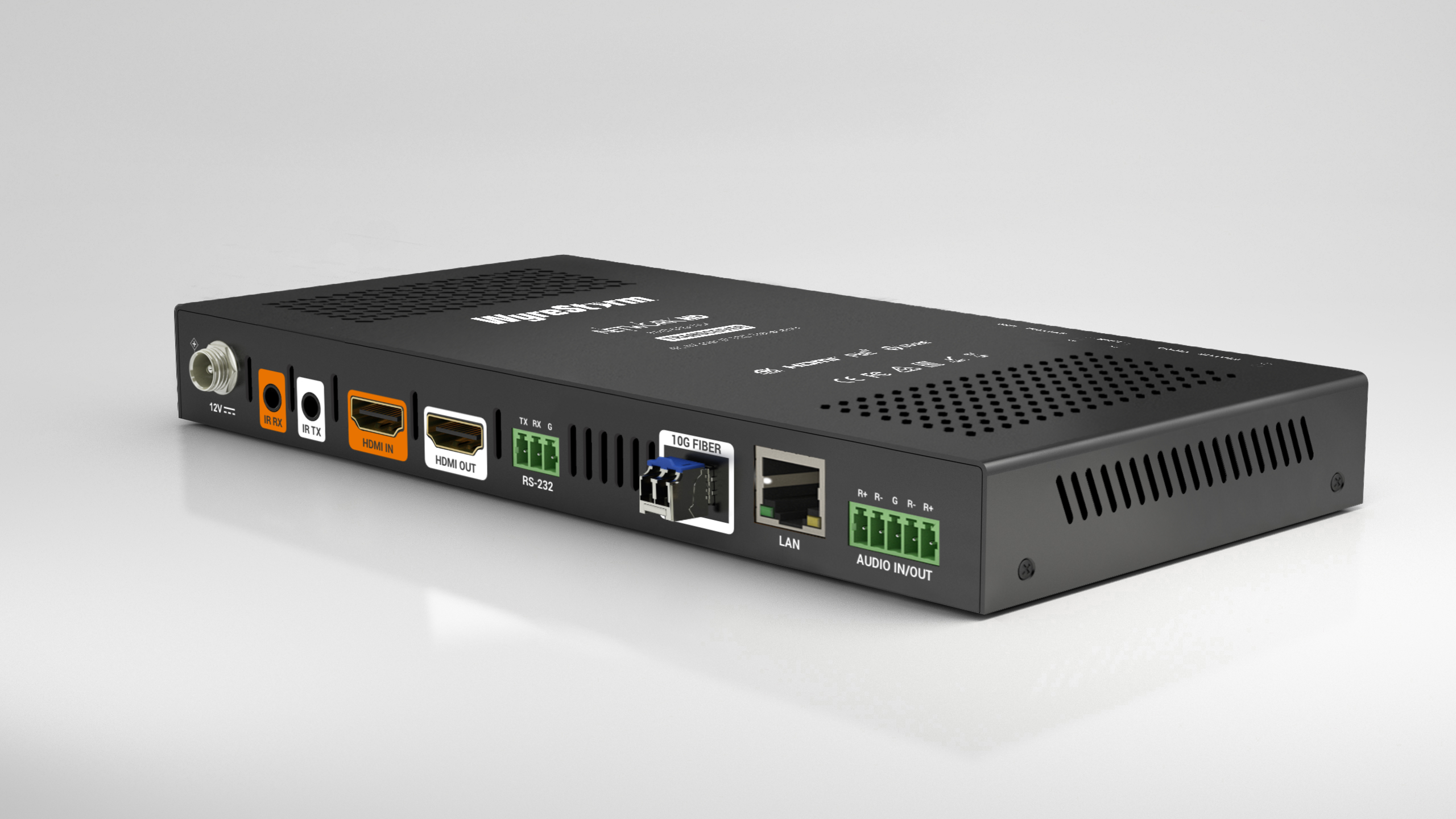

| Inputs/Outputs | 1x HDMI 2.0b Input 1x HDMI 2.0b Output 1x 5-pin Balanced Analog Audio 1x 10GbE 8-pin RJ45 |
| Video Encoding/Decoding | SDVoE Pixel Pipeline |
| Encoding/Decoding Data Rate | 1080p@60Hz 8bit – 3.4Gbps 4K @30Hz 4:4:4 8bit – 6.4Gbps 4K @60Hz 4:4:4 8bit – 8.7Gbps (with light compression) |
| End to End Latency | Genlock Mode: Uncompressed = 30us, Compressed <120us Fast Switch Mode: 1~2 video frames = min. between 16.7 – 33.4ms @ 60fps |
| Video Resolution (Max) | 5120x2160p @30Hz 4:4:4 5120x1440p @30/45Hz 4:4:4 4096x2160p @ 60Hz 8bit 4:4:4 or RGB 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision 3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG 1920x1080p @60Hz 12bit |
| Supported Standards | RGB, DCI, Rec. 709, BT.2020 |
| HDMI | HDCP 2.2, CEC |
| Ethernet | 1 x 1GbE LAN 8-pin RJ45 |
| RS-232 | 1x 3-pin Phoenix Connector, 2 Way, Broadcast, Routed, API Programmable |
| IR | 1 x IR TX 3.5mm TS Mono Jack, API Programmable 1 x IR RX 3.5mm TRS Stereo Jack, API Programmable |

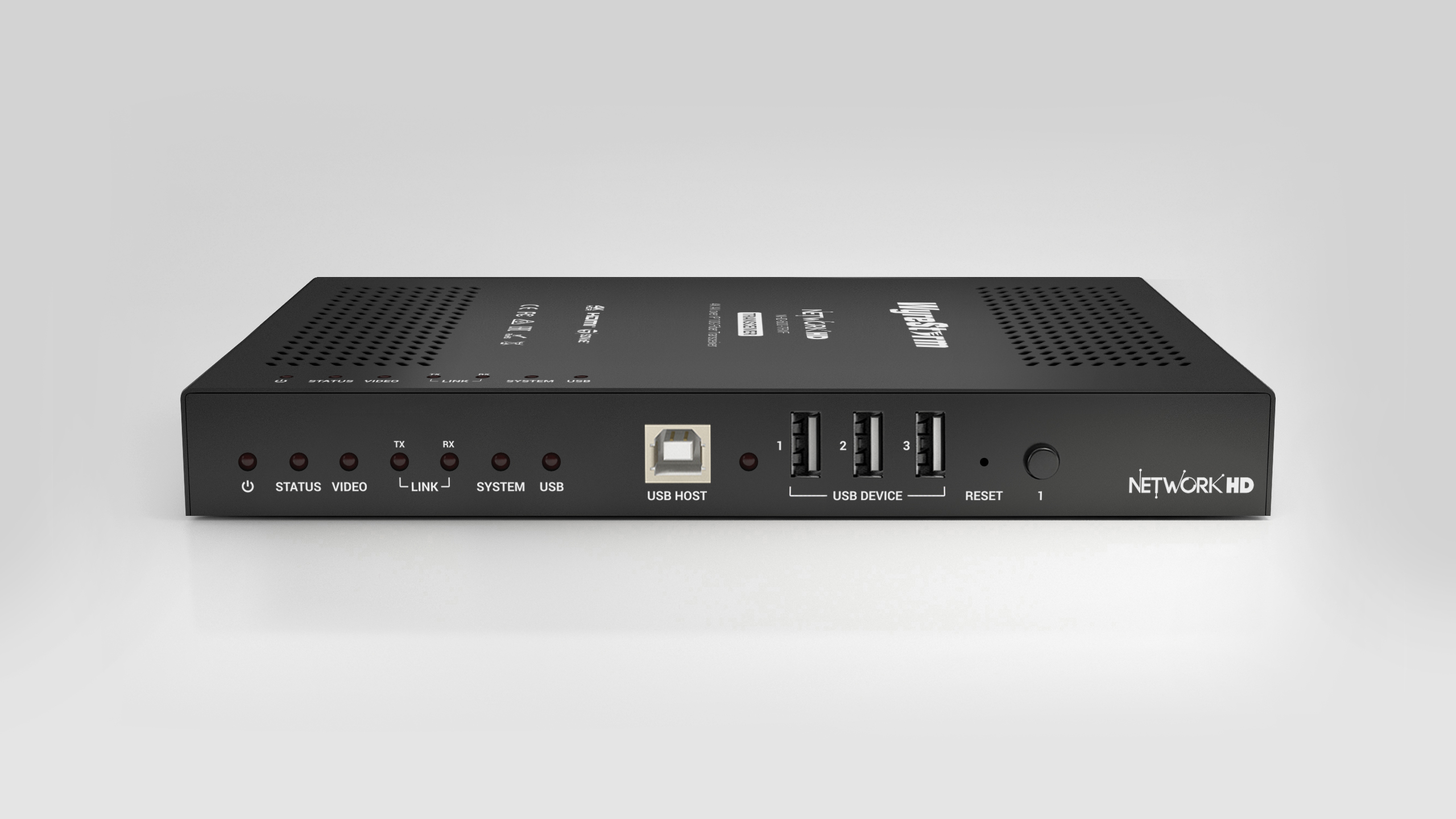

| USB | 3 x USB 1.1 Type A 1 x USB 1.1 Type B Host |
| Power Supply | 12V 2A DC PSU, 802.3at PoE+ compliant |
| Max Power Consumption | Max: 24w, Average: 10w |
