Matrix Solution

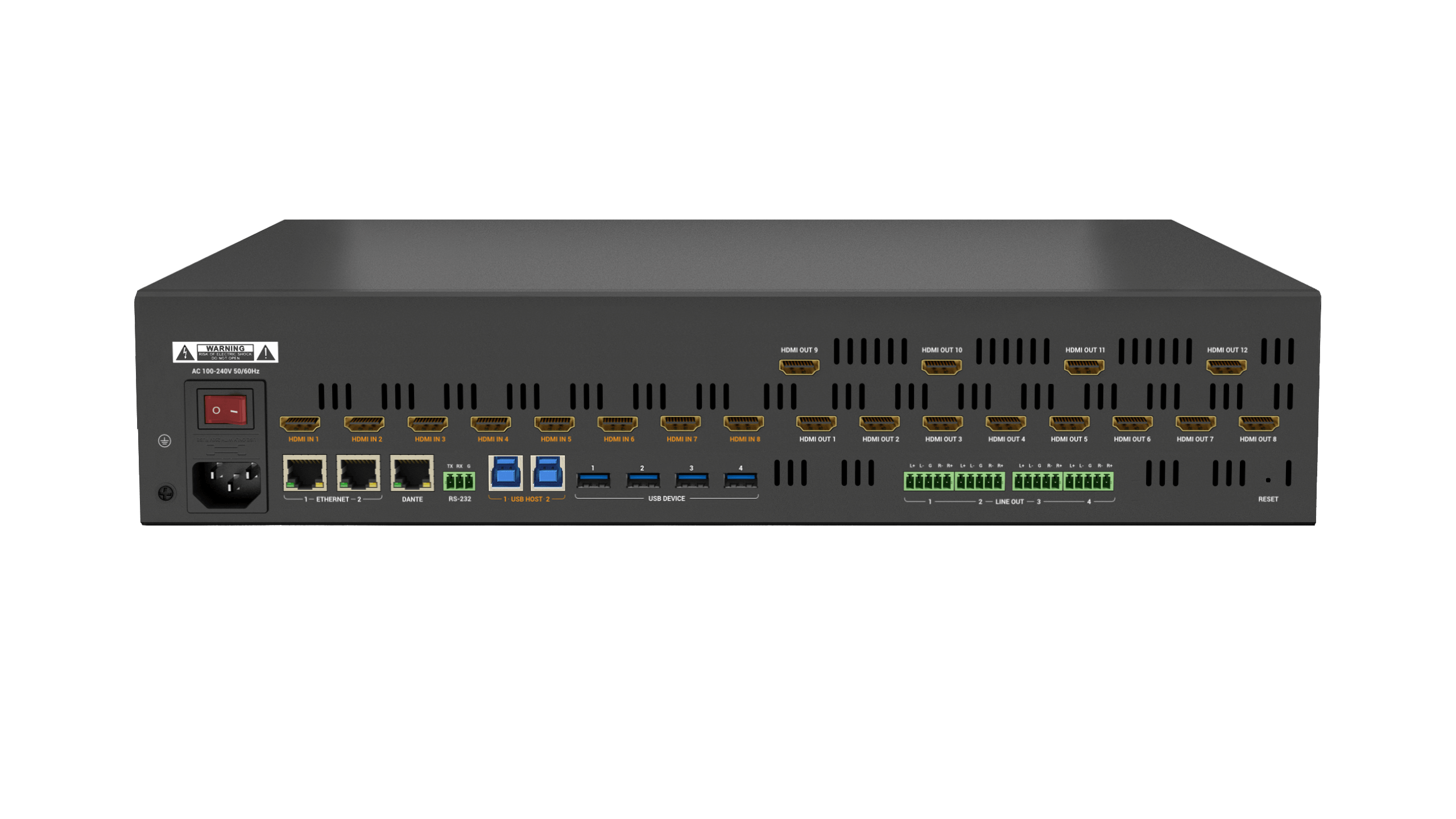

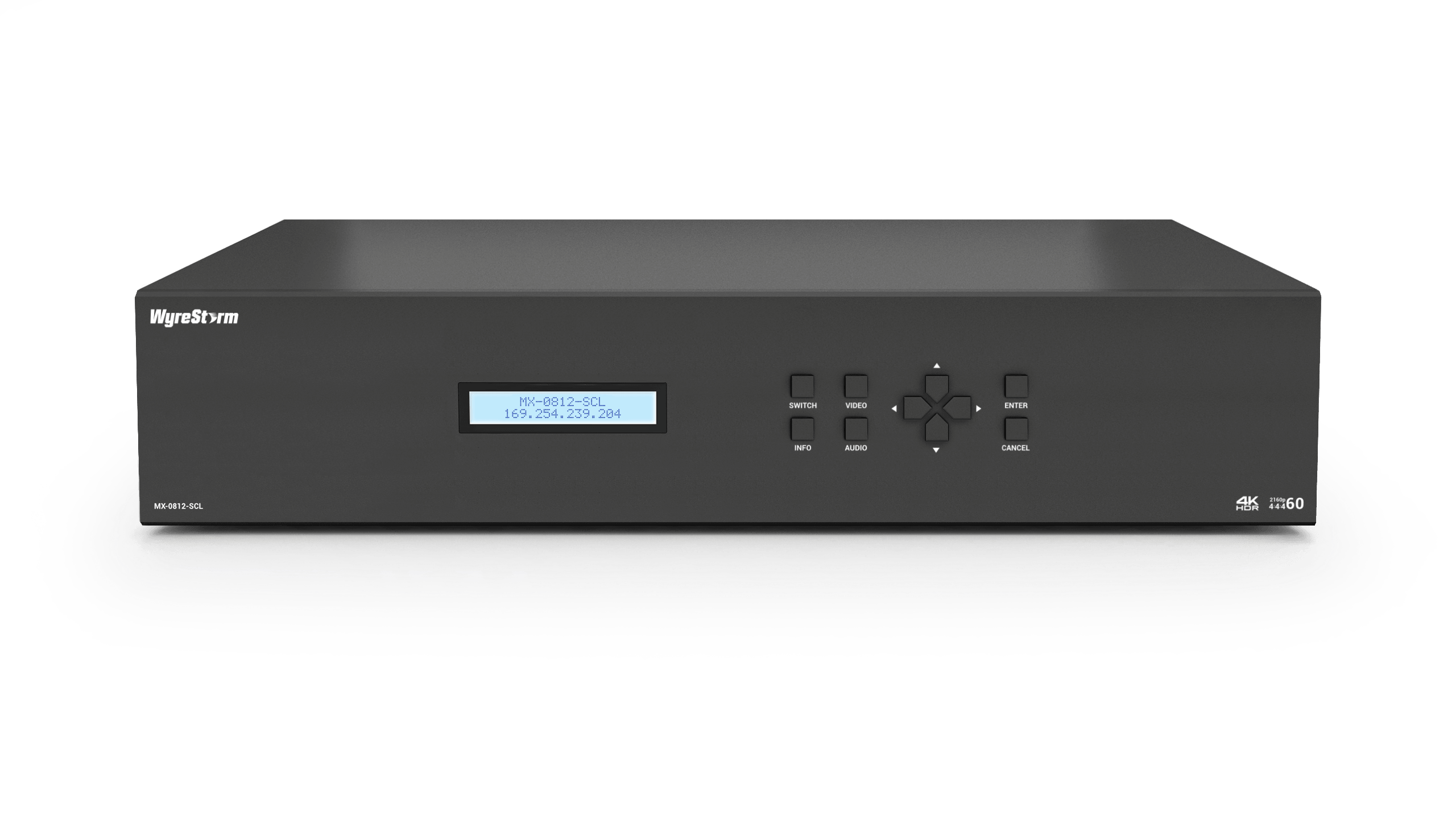

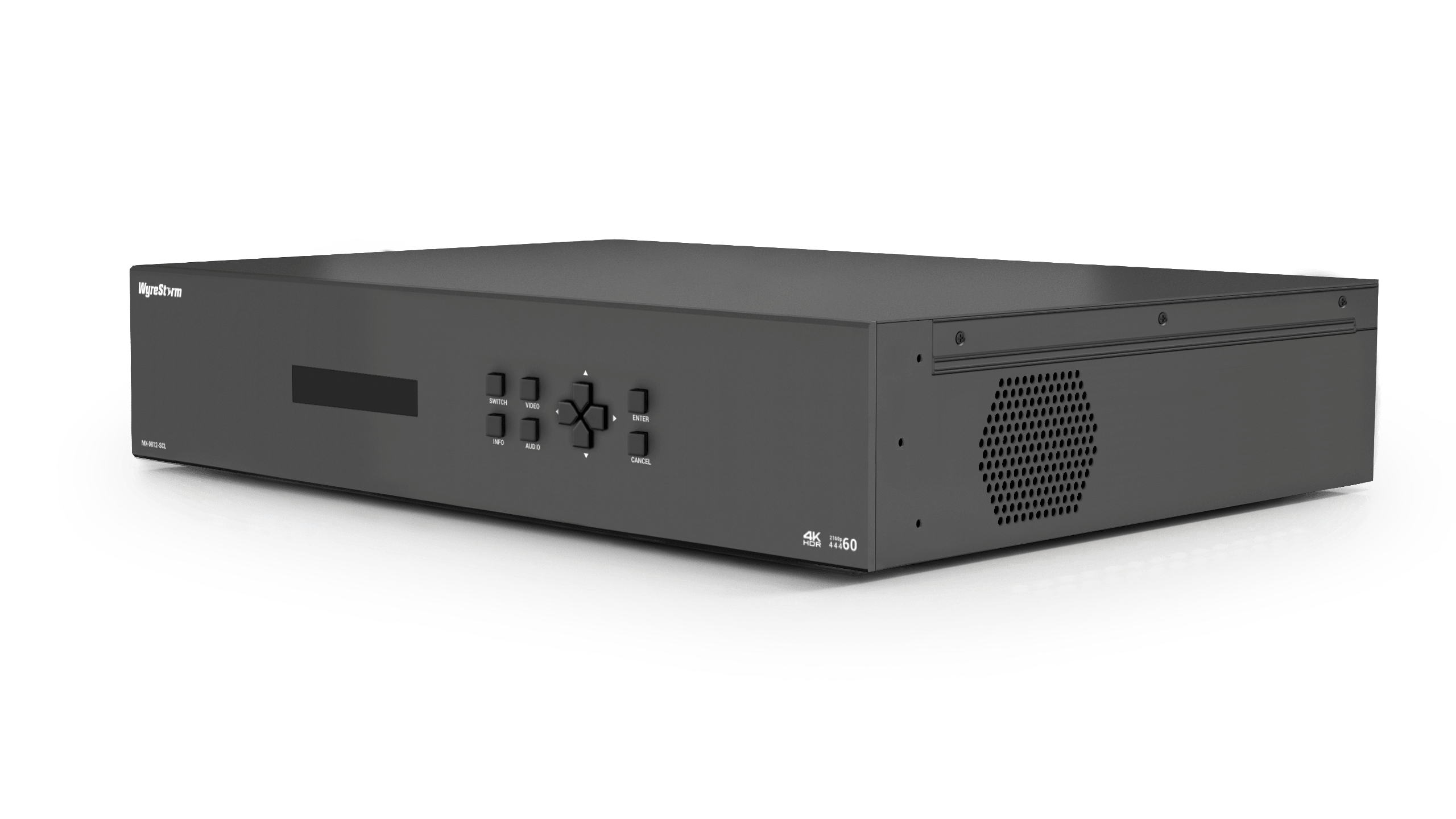

WyreStorm MX-0812-SCL — 4K60 8×12 Advanced Seamless Scaling HDMI Matrix
Best HDMI Matrix for seamless video switching and distribution. Reliable, top-rated devices for efficient multi-source and multi-display setups.
| Marka | WyreStorm |
|---|---|
| Model | MX-0812-SCL |
| Inputs | 8 x HDMI Inputs 4 x Dante Inputs |
| Outputs | 12 x HDMI Outputs 4 x Dante Outputs 4 x Analog Audio Line Level Outputs |
| Video Encoding | Uncompressed 18Gbps |
| Audio Formats | HDMI 2.0 Compliant |
| Video Resolution (Max) | 1920x1080p @60Hz 16bit 3840x2160p @60Hz 10bit 4:2:2 HDR10/10+ 3840x2160p @60Hz 12bit 4:2:0 Dolby Vision 3840x2160p @50Hz 10bit 4:2:2 HLG 4096x2160p @60Hz 8bit 4:4:4 5120×2160 @30Hz |
| Supported Standards | DCI, RGB, HDR10, HDR10+, Dolby Vision, HLG, BT.2020 |
| Max Pixel Clock | 600MHz |
| HDMI | HDMI 2.0, HDCP 2.2/2.3, EDID, CEC |
| USB | 4x USB 3.0 Type A device ports 2x USB 3.0 Type B host ports |
| RS-232 | 1x 3-pin Phoenix |
| LAN | 1x 8-pin RJ-45 for API control (Telnet, TLS, HTTP/HTTPS for webUI) |
| Reset | Via API, WebUI or Pin-Hole reset button |
| Power Supply | AC Power Supply 100V-240V |
| MAX Power Consumption | TBD |
| Rack Units/Wall Box | 2U |
| Dimensions | 19 Inch |
| Weight | TBD |
