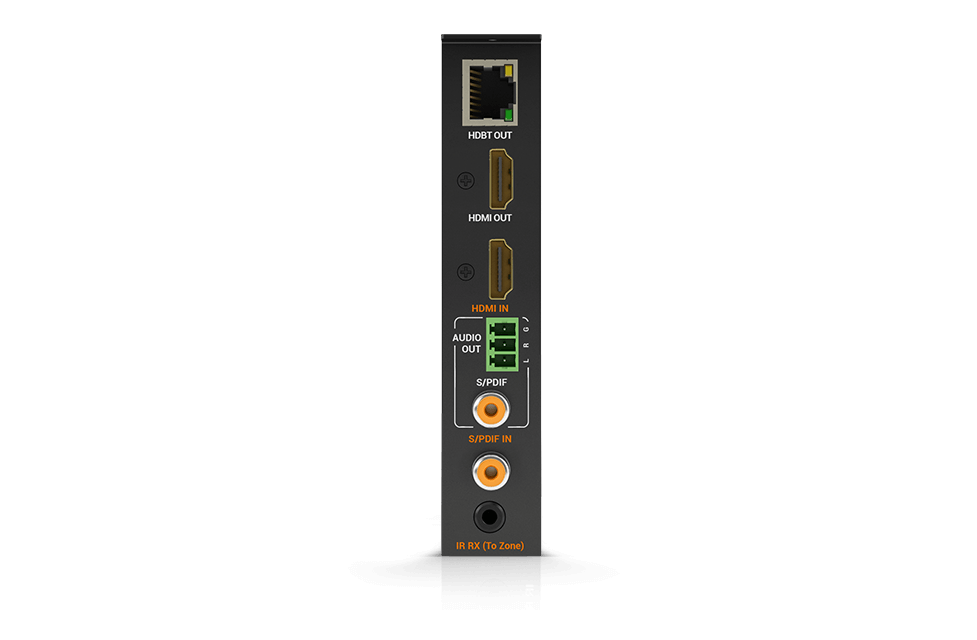

WyreStorm TX-H2X-HDMI — H2XC Card: HDMI In, 4K HDBaseT Out, Mirrored HDMI Out

Name: WyreStorm TX-H2X-HDMI — H2XC Card: HDMI In, 4K HDBaseT Out, Mirrored HDMI Out | WyreStorm Türkiye
SKU: TX-H2X-HDMI
Availability: InStock

Teklif Al

The standard transmission card found in the H2X platform, the TX-H2X-HDMI transmits 4K UHD signals from 70m/230ft over its Class A HDBaseT output and features an HDMI output that mirrors HDBaseT. The HDMI output is perfect for connecting to a local monitor, AVR, or signal extension via extender product or one of WyreStorm’s Hybrid Active Optical Cables (HAOC).

Stok kodu: TX-H2X-HDMI Kategoriler: Discontinued Products

Marka	WyreStorm
Model	TX-H2X-HDMI
Inputs	1x HDMI In: 19-pin type A 1x S/PDIF In: S/PDIF Coaxial Digital
Outputs	1x HDMI Out: 19-pin type A 1x HDBaseT™ Out: 8-pin RJ-45 female 1x S/PDIF Out: S/PDIF Coaxial Digital 1x Audio Out: 3-pin Phoenix
Video Encoding	HDBaseT™ Class A
End to End Latency	10μs (micro seconds)
Audio Formats	S/PDIF: 2ch PCM, Multichannel: Up to 5.1 DTS and Dolby Digital HDMI: 2ch PCM, Multichannel: LPCM and Up to DTS-X and Dolby Atmos
Video Resolution (Max)	1920x1080p @60Hz 16bit 3840x2160p @30Hz 8bit 4:4:4 3840x2160p @60Hz 10bit 4:2:0 HDR 4096x2160p @60Hz 8bit 4:4:4
Maximum Pixel Clock	HDMI: 600MHz, HDBaseT™: 297MHz
HDMI	HDCP 2.2, EDID, DVI-D supported with adapter (not included)
HDBaseT	HDMI, HDCP 2.2, EDID, 1-way PoH to Receiver, IR RX to Receiver
IR	1x IR RX 3.5mm (1/8in) TRS Stereo, To Receiver over HDBaseT™
RS-232	From Matrix – No Connection on card, Bidirectional over HDBaseT™
Ethernet	From Matrix – No Connection on card, Bidirectional over HDBaseT™
Audio Return Channel (ARC)	Supported
Power Supply	Internal to Matrix
Max Power Consumption	Matrix Dependent
