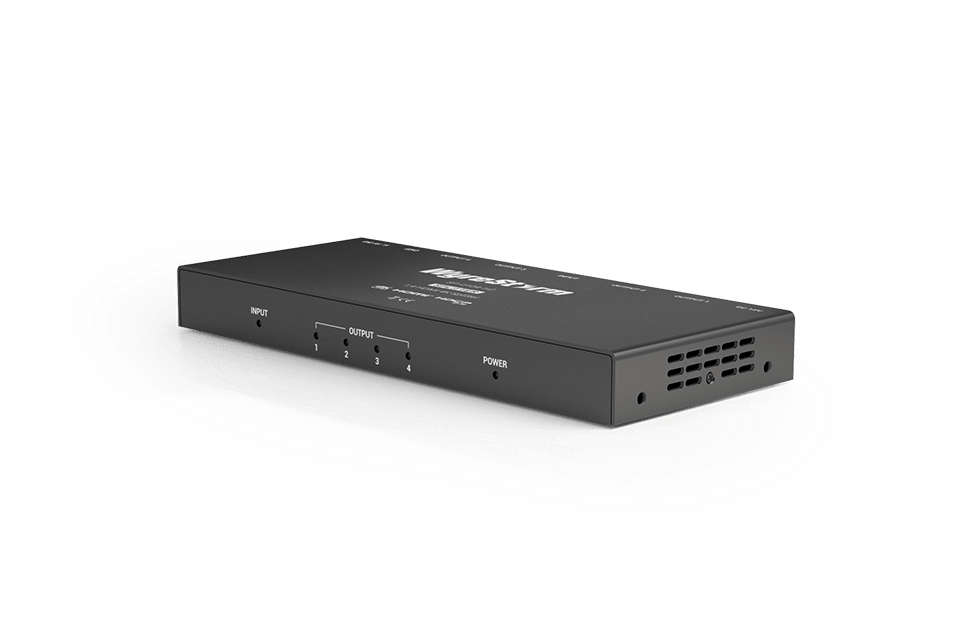

WyreStorm SP-0104-H2 — 4K HDMI Splitter – High-Quality HDMI Signal Distribution
4K HDMI Splitter for seamless signal distribution to multiple displays. Enjoy sharp, crisp visuals with easy setup for home or office use.
| Marka | WyreStorm |
|---|---|
| Model | SP-0104-H2 |

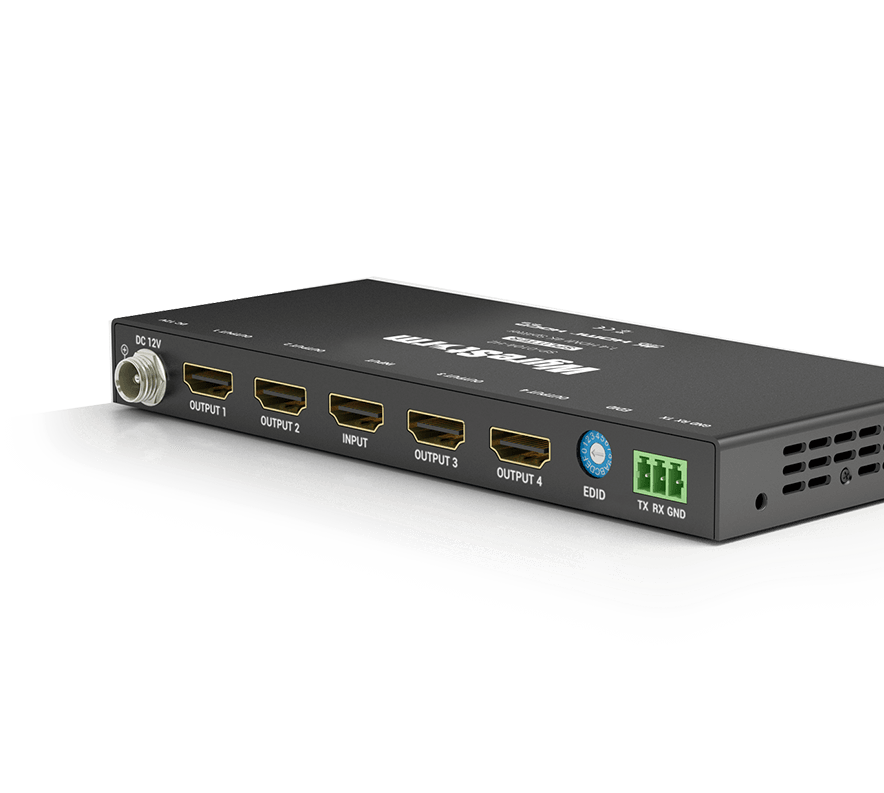

| Inputs | 1x HDMI 19-pin type A 1x HDMI 19-pin type A |
| Outputs | 4x HDMI 19-pin type A 4x HDMI 19-pin type A |
| Audio Formats | 2ch PCM, Up to DTS-X and Dolby Atmos 2ch PCM, Up to DTS-X and Dolby Atmos |
| Color Depth | 1080p: 48bit, 4K UHD: 24bit 1080p: 48bit, 4K UHD: 24bit, HDR @24p: 10bit BT.2020 |
| Maximum Pixel Clock | 340mHz 600mHz |
| HDMI | HDMI 1.4, HDCP 1.4, Configurable EDID DVI/D supported with adapter (not included) HDMI, HDCP 2.2, Configurable EDID DVI/D supported with adapter (not included) |
| RS-232 | 1x RS-232 3-pin Phoenix Connector (Firmware Updates) 1x RS-232 3-pin Phoenix Connector (Firmware Updates) |
| Power Supply | Input: 100~240V AC 50/60Hz, Output: 12V DC 1A |
| Max Power Consumption | 4W |
| Operating Temperature | 32°F ~ 113°F (0°C ~ 45°C) 10% ~ 90%, non-condensing |
| Storage Temperature | -4°F to ~ 158°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing |
| Maximum BTU | 13.64 BTU/hr |
| Rack Units/Wall Box | <1U |
| Height | 18mm/0.71in |
| Width | 167.2mm/6.59in |
| Depth | 69.7mm/2.75in |
| Weight | 0.32kg/0.7lbs |
| Safety and Emission | CE, FCC, RoHS, EAC, RCM |
