Our EXP-SP-0102-8K packs a punch as it is a powerful plug-and-play 8K HDMI splitter that has the ability to send uncompressed up to 8K@60Hz or 4K@120Hz up to two displays, but the most useful feature of this splitter is that the second output can scale content down from either 8K>4K or 4K>1080p! Furthermore, its compatible with DSC (Display Stream Compression) version 1.2a pass-through, an approved method of compression in accordance to the HDMI 2.1 specification, allowing up to a lossless 10K@120Hz signal to be transmitted. Don’t forget to pair this splitter with our passive or active HDMI 2.1 cables!
HDMI Splitter

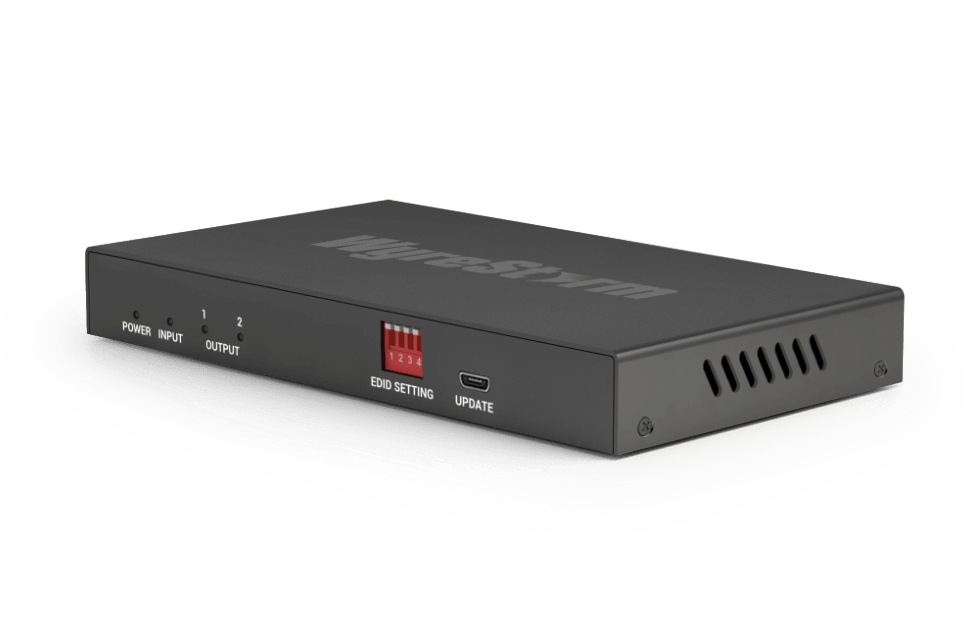

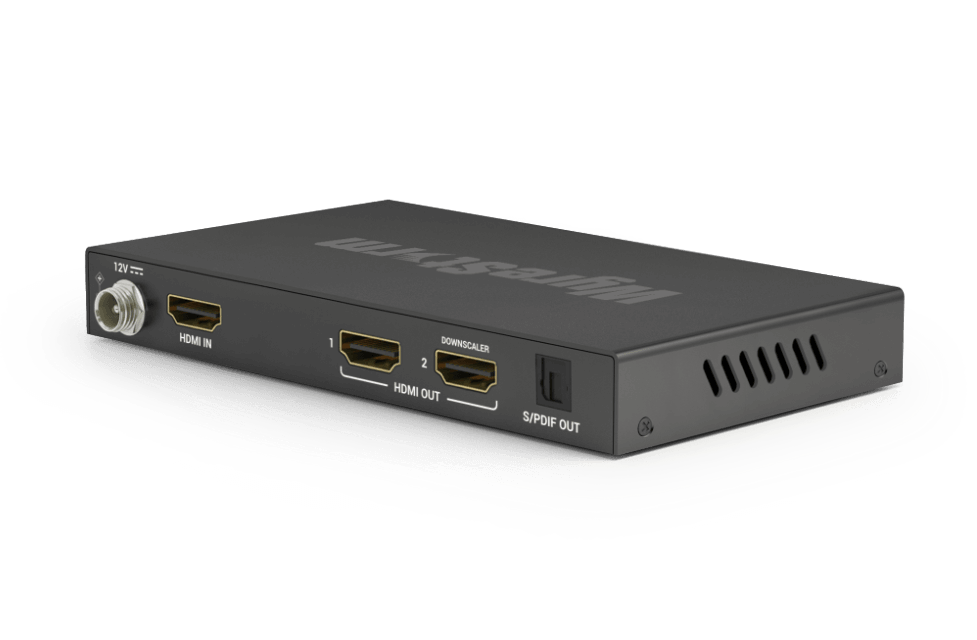

WyreStorm EXP-SP-0102-8K — WyreStorm Essentials 8K60 1:2 HDMI Splitter
Our EXP-SP-0102-8K packs a punch as it is a powerful plug-and-play 8K HDMI splitter that has the ability to send uncompressed up to 8K@60Hz or 4K@120Hz up to two displays, but the most useful feature of this splitter is that the second output can scale content down from either 8K>4K or 4K>1080p! Furthermore, its compatible with DSC (Display Stream Compression) version 1.2a pass-through, an approve
| Marka | WyreStorm |
|---|---|
| Model | EXP-SP-0102-8K |
| Transmission Encoding | Uncompressed (with DSC 1.2a Pass-through between Source-Display when required) |
| End to End Latency | Zero |
| Maximum Transmission Bit Rate | 4 0 Gbps (4-core, 10Gbps per lane) |
| HDMI | TMDS ( 600MHz Maximum ), FRL ( 16b/18b encoding ), DSC 1.2a Supported |
| Input | 1 x HDMI: 19-pin type A Male |
| Output | 2x HDMI: 19-pin type A Male |
| Maximum Data Rate | 40 Gbps (FRL), 18 Gbps (TMDS) |
| Video Resolution (Max) | 1920 x 1080p @240Hz 4096 x 2160p @120Hz 4:4:4 10bit 5120×2160 @30Hz 5120×2160 @60Hz 4:2:0 5120 x 2880p @60Hz 4:4:4 10bit 7680 x 4320p @60Hz 4:2:0 10bit 10240x4320p @120Hz w/DSC |
| Supported Standards | DCI, HDR10+, Dolby Vision, HLG, SL-HDR1, PQ, BT.2020, BT.2100 |
| Audio Return Channel (ARC) | Supported |
| Audio Formats | 2ch PCM, Multichannel LPCM, DTS-X, Dolby Atmos |
| Maximum Sampling Rate | 192KHz |
| Maximum Audio Channels | 32 |
| Power Consumption | 12V DC 1A |
| Max Power Consumption | 3.5W |
| Maximum BTU | 12BTU/hr |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) / ±4kV (Contact discharge) |
