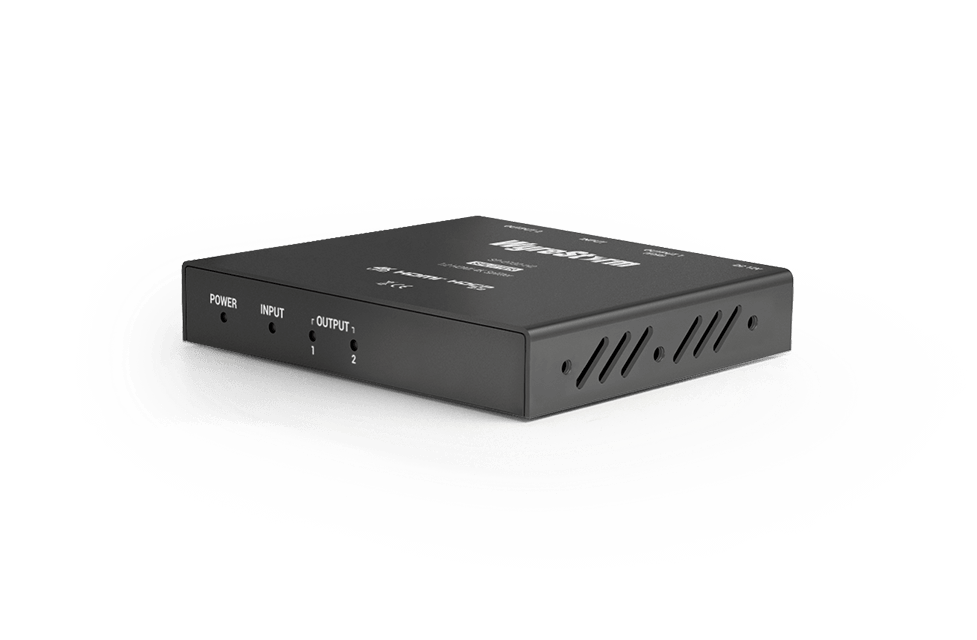

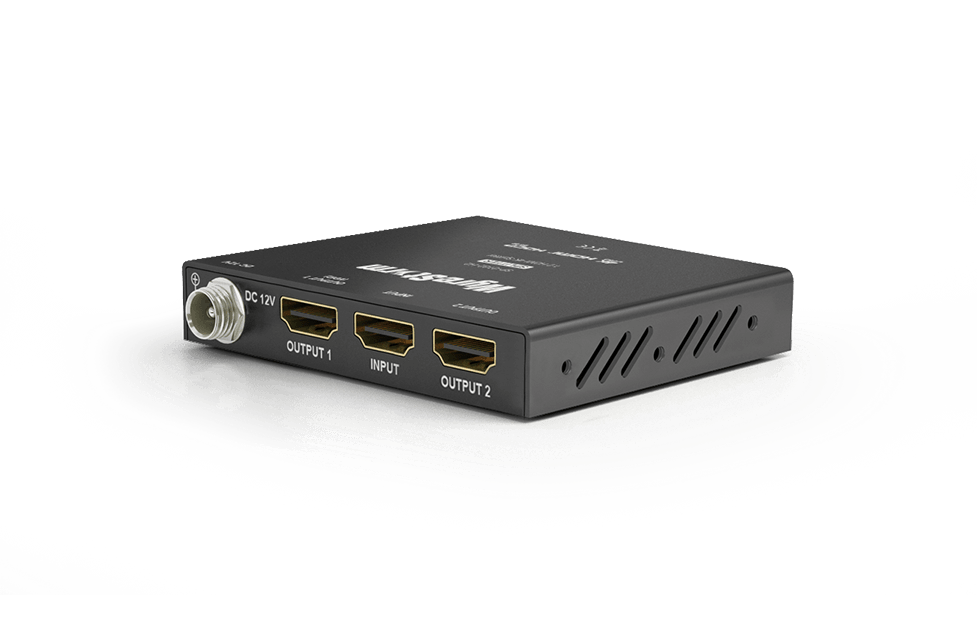

WyreStorm SP-0102-H2 — 4K60 1:2 HDMI Splitter

Name: WyreStorm SP-0102-H2 — 4K60 1:2 HDMI Splitter | WyreStorm Türkiye
SKU: SP-0102-H2
Availability: InStock

Teklif Al

DISCONTINUED With support for 4K/HDR resolutions, HDCP 2.2, and HD multi-channel audio formats, this dual-output splitter allows for simple, reliable distribution of a single HDMI source to multiple duplicate displays. Additionally, the compact chassis makes it perfect for environments where unobtrusive installation is important.

Stok kodu: SP-0102-H2 Kategoriler: Discontinued Products

Marka	WyreStorm
Model	SP-0102-H2
Inputs	1x HDMI 19-pin type A
Outputs	2x HDMI 19-pin type A
Audio Formats	2ch PCM, Up to DTS-X and Dolby Atmos
Video Resolutions (Max)	1920x1080p @60Hz 16bit (15m/49.2ft) 3840x2160p @30Hz 4:4:4 8bit (15m/49.2ft) 4096x2160p @60Hz 8bit 4:4:4 (3m/9.8ft) 15m/49ft 15m/49ft 7m/23ft
Color Depth	1080p: 48bit, 4K UHD: 24bit, HDR @24p: 10bit BT.2020
Maximum Pixel Clock	HDMI: 600mHz
HDMI	HDMI, HDCP 2.2, Configurable EDID, DVI/D supported with adapter (not included)
Power Supply	Input: 100~240V AC 50/60Hz, Output: 12V DC 0.5A
Max Power Consumption	3.7W
Operating Temperature	32°F ~ 113°F (0°C ~ 45°C) 10% ~ 90%, non-condensing
StorageTemperature	-4°F to ~ 158°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing
Maximum BTU	13.64 BTU/hr
Rack Units/Wall Box	0.34U
Height	N/A, 15mm/0.6in
Width	N/A, 100mm/3.94in
Depth	N/A, 70.2mm/2.77in
Weight	0.2kg/0.44lbs
Safety and Emission	CE, FCC
