DISCONTINUED Consumer HDMI content is now breaking through the once comfortable HDBaseT ‘ceiling’ of 10Gbps, with HFR (High Frame Rate) HDR here already in the form of Blu-Ray, Satellite & Cable (HLG) and gaming content. WyreStorm’s H2XC matrix platform is ready for this, with this receiver being the perfect match for the TX-H2X-VLC modular card, using our new light-compression transmission solution.
Discontinued Products, Matrix Switchers

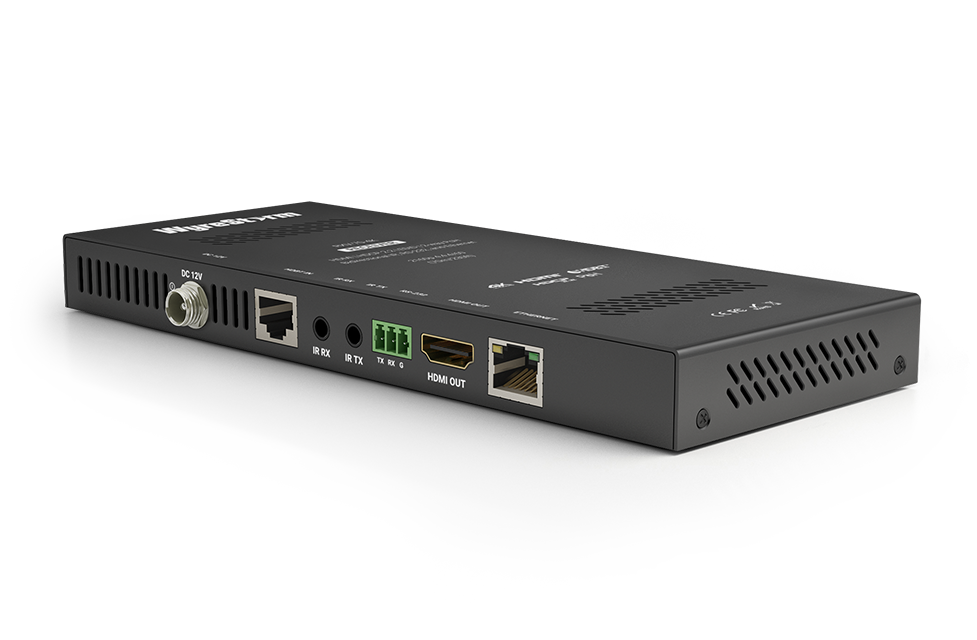

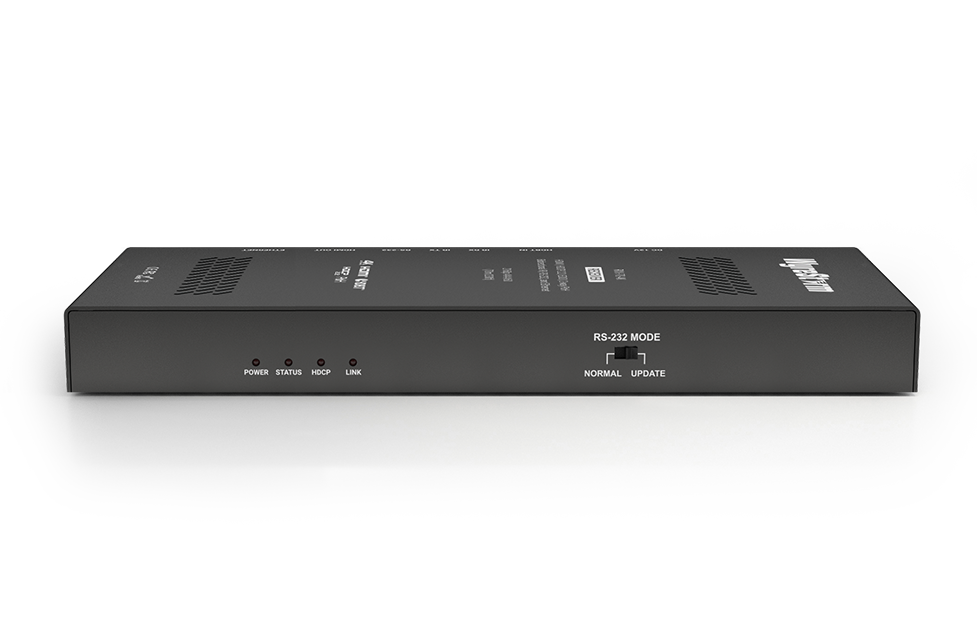

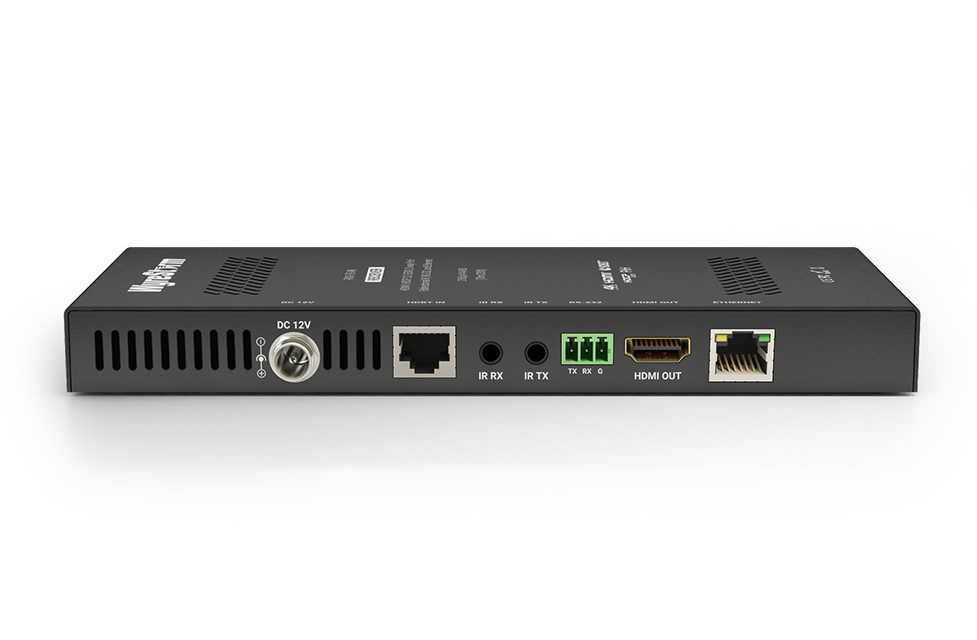

WyreStorm RXV-70-4K — 70m 4K60 HDBaseT Receiver
DISCONTINUED Consumer HDMI content is now breaking through the once comfortable HDBaseT ‘ceiling’ of 10Gbps, with HFR (High Frame Rate) HDR here already in the form of Blu-Ray, Satellite & Cable (HLG) and gaming content. WyreStorm’s H2XC matrix platform is ready for this, with this receiver being the perfect match for the TX-H2X-VLC modular card, using our new light-compression transmission soluti
| Marka | WyreStorm |
|---|---|
| Model | RXV-70-4K |
| Inputs | 1x HDBaseT In: 19-pin type A |
| Outputs | 1x HDMI Out: 19-pin type A |
| Output Video Encoding | HDBaseT Class A |
| Encoding Data Rate | 9.2Gbps |
| End to End Latency | 10μs (micro seconds) |
| Audio Formats | 2ch PCM, Multichannel: LPCM and Up to DTS-X and Dolby Atmos |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision up to 30Hz, HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | HDMI: 600MHz, HDBaseT: 297MHz |
| HDMI | HDCP 2.2, EDID, CEC, DVI-D supported with adapter (not included) |
| HDBaseT | HDMI, HDCP 2.2, EDID, CEC, 1-way PoH to Receiver, Bidirectional IR |
| CEC | CEC Pass-through – Requires CEC compatibility between source and display |
| Ethernet | 1x Ethernet: 8-pin RJ-45 Female, Bidirectional over HDBaseT |
| IR | 1x IR RX 3.5mm (1/8in) TRS Stereo, 1x IR TX: 3.5mm (1/8in) TS Mono, Bidirectional over HDBaseT |
| RS-232 | 1x RS-232: 3-pin Phoenix, Bidirectional over HDBaseT |
| Power Supply | 12V DC 2A |
| PoH | 48V 15.4W |
| Max Power Consumption | 8.68W |
| Operating Temperature | 0 ~ +45°C (32 ~ +113°F), 10% ~ 90% non-condensing |
