Utilizing the best in HDBaseT technology, the RX-700 extends 5-Play functionality to your display device over 100m/328ft of Cat6 cable. Using DSC (display stream compression) the RX-700 can support HDMI video up to 2160p 4:4:4 at 60Hz without any visual loss in quality or latency. With HID’s and data transfer in mind, the RX-700 supports data transmission of USB 2.0 devices like HD webcams, smart whiteboards and flash drives alike.
Presentation and Conferencing, Presentation Switcher

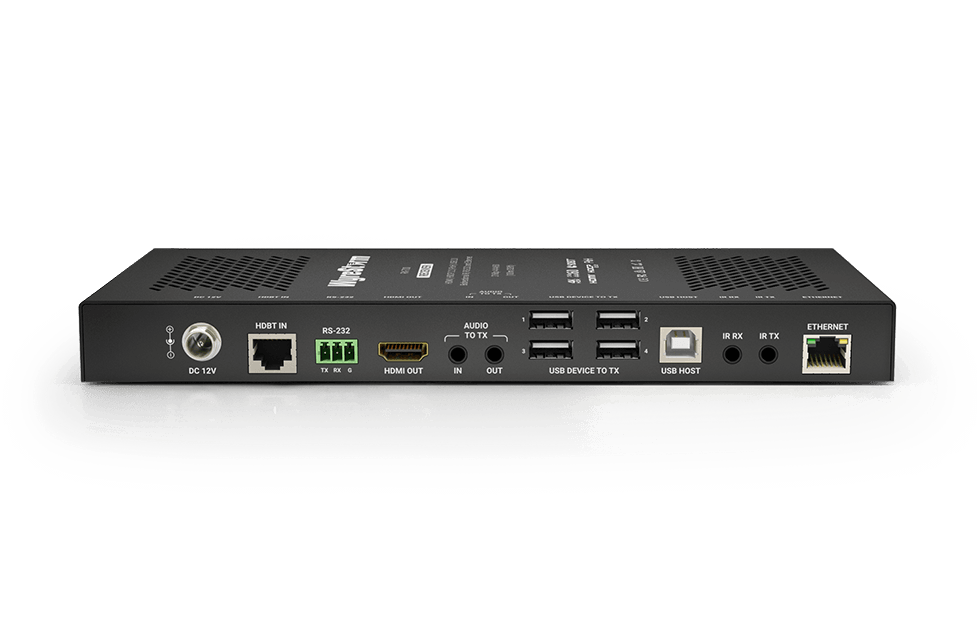

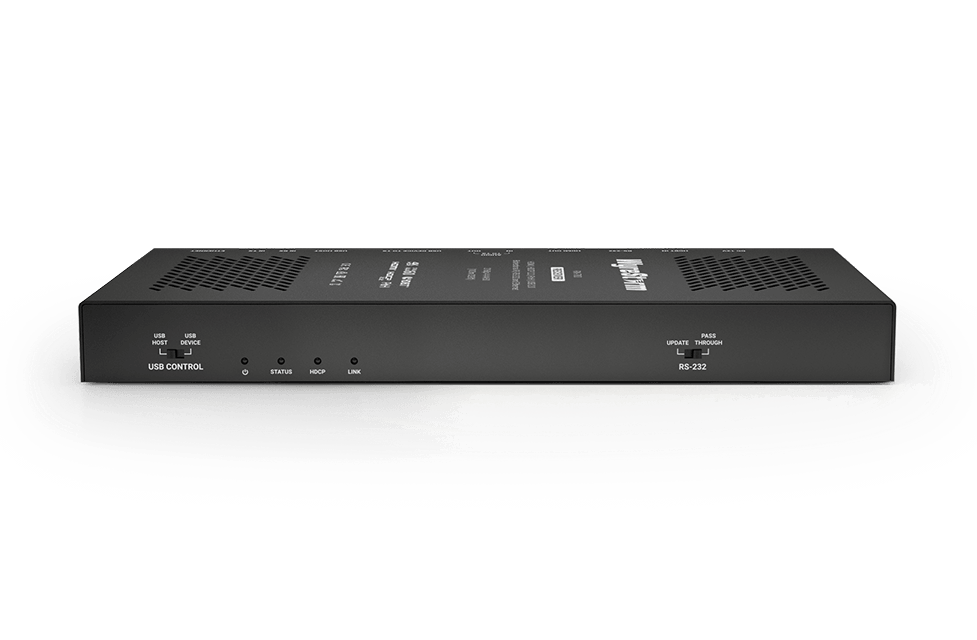

WyreStorm RX-700 — 100m 4K60 HDBaseT DSC Receiver with USB
Utilizing the best in HDBaseT technology, the RX-700 extends 5-Play functionality to your display device over 100m/328ft of Cat6 cable. Using DSC (display stream compression) the RX-700 can support HDMI video up to 2160p 4:4:4 at 60Hz without any visual loss in quality or latency. With HID’s and data transfer in mind, the RX-700 supports data transmission of USB 2.0 devices like HD webcams, smart
| Marka | WyreStorm |
|---|---|
| Model | RX-700 |
| Inputs | 1x HDBT In: 8-pin RJ45 |
| Outputs | 1x HDMI Out: 19-pin Type A Female |
| Output Video Encoding | HDBaseT Class C, PAM16 Encoding |
| Encoding Data Rate | 10.2Gbps |
| End to End Latency | 10μs (micro seconds) |
| Audio Formats | 2ch PCM, Multichannel LPCM, DTS-X, Dolby Atmos |
| Video Resolution (Max) | 1920x1080p @60Hz 2560x1440p @144Hz 3840x2160p @60Hz 8bit 4:4:4 3840x2160p @60Hz 10bit 4:2:0 HDR 3840x2160p @60Hz 12bit 4:2:2 HDR |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision up to 30Hz, HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | HDMI: 600MHz, HDBaseT: 340MHz |
| HDMI | (v2.0b) TMDS, 600MHz Maximum with DSC (Display Stream Compression) |
| IR | 1x IR RX: 3.5mm (1/8in) TRS Stereo, 1x IR TX: 3.5mm (1/8in) TS Mono |
| RS-232 | 1x RS-232: 3-pin Phoenix |
| HDCP | Pass-Through, 2.3 Supported |
| EDID | Pass-Through, RX > TX |
| USB | 1x Type B (host), 4x Type A (device)* USB direction must be set using switch before operation USB hub compatible, Maximum: 7 devices, 23 endpoints Maximum uplink speed: 190Mbps *USB direction must be set using switch before operation |
| Ethernet | 1x Ethernet: 8-pin RJ-45 Female, Bidirectional over HDBaseT, 100Mbps Supported |
| Consumer Electronics Control (CEC) | One-way display trigger from TX |
| Auto Low Latency Mode (ALLM) | Supported |
