Free the audio from SmartTV on-demand content with the RX-70-4K-ARC HDBaseT receiver supporting ARC or optical audio return to enable digital audio to be sent back to a compatible WyreStorm HDBaseT transmission device, such as an H2 model matrix switcher.
Discontinued Products, Matrix Switchers
WyreStorm RX-70-4K-ARC — 70m 4K HDBaseT Receiver with ARC
Free the audio from SmartTV on-demand content with the RX-70-4K-ARC HDBaseT receiver supporting ARC or optical audio return to enable digital audio to be sent back to a compatible WyreStorm HDBaseT transmission device, such as an H2 model matrix switcher.
| Marka | WyreStorm |
|---|---|
| Model | RX-70-4K-ARC |

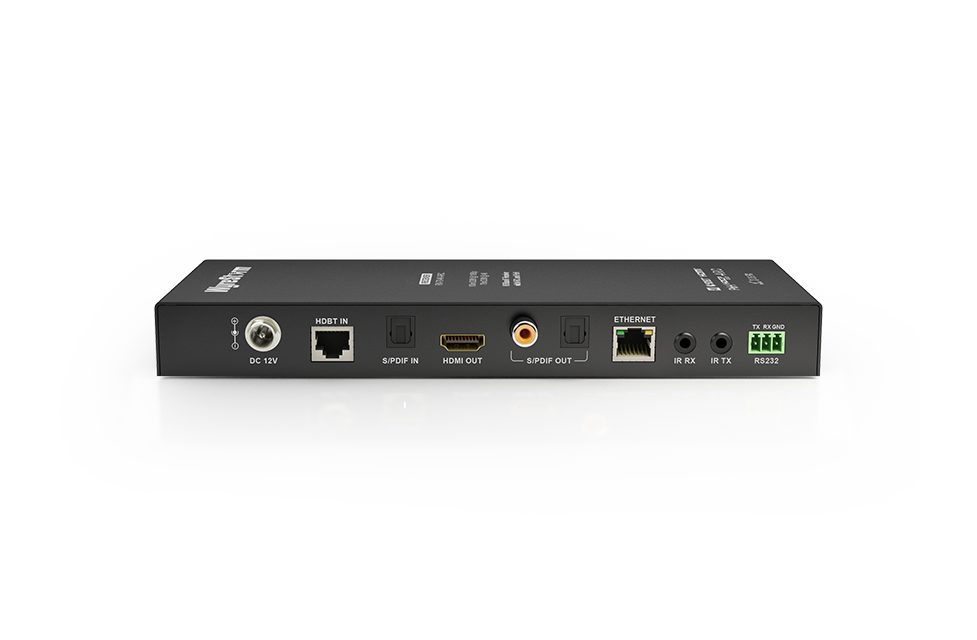

| Inputs | 1x HDBaseT In: 8-pin RJ-45 female 1x S/PDIF In: TOSLINK (Digital Optical) |
| Outputs | 1x HDMI 19-pin type A 1x S/PDIF Out: RCA Female (Digital Coax), TOSLINK (Digital Optical) |
| Audio Formats | HDMI: 2ch and Up to DTS-X and Dolby Atmos RX S/PDIF IN: 2ch PCM, Up to DTS digital and Dolby digital |
| Video Resolution Max | 1920x1080p @60Hz 48bit 3840x2160p @30Hz 24bit 4:4:4 3840x2160p @24Hz 30bit 4:2:0 HDR 4096x2160p @60Hz 24bit 4:2:0 |
| Color Depth | 1080p: 48bit, 4K UHD: 24bit, HDR @24p: 30bit BT.2020 |
| Maximum Pixel Clock | 297MHz |
| HDMI | HDCP 2.2, EDID, DVI/D supported with adapter (not included) |
| HDBaseT | HDCP 2.2, EDID, PoH (2-way), Bidirectional IR, RS-232, and Ethernet |
| Ethernet | 1x 8-pin RJ-45 female, 10/100 Mbps auto-negotiating, Bidirectional over HDBaseT |
| IR | 1x IR TX 3.5mm (1/8in) Mono, Bidirectional over HDBaseT 1x IR RX 3.5mm (1/8in) Stereo, Bidirectional over HDBaseT |
| RS-232 | 1x 3-pin Phoenix Connector, Bidirectional over HDBaseT |
| ARC | Returns audio to source location from remote display via HDBaseT |
| Power Supply | Input: 100~240V AC 50/60Hz, Output: 12V DC 2A |
| PoH | 48V |
| Max Power Consumption | 7.2W |
