DISCONTINUED The NetworkHD Premium AV over IP SDVoE Encoder offers the ultimate AV over IP platform. Supporting highly scalable, high-bandwidth, secure video content alongside multi-channel audio and a plethora of connectivity and control options the 10GbE system is easily managed in a flexible, unified software environment.?Utilizing the SDVoE technology standard, truly lossless and latency-free video distribution can be achieved over IP networks.
Discontinued Products, NetworkHD AV over IP

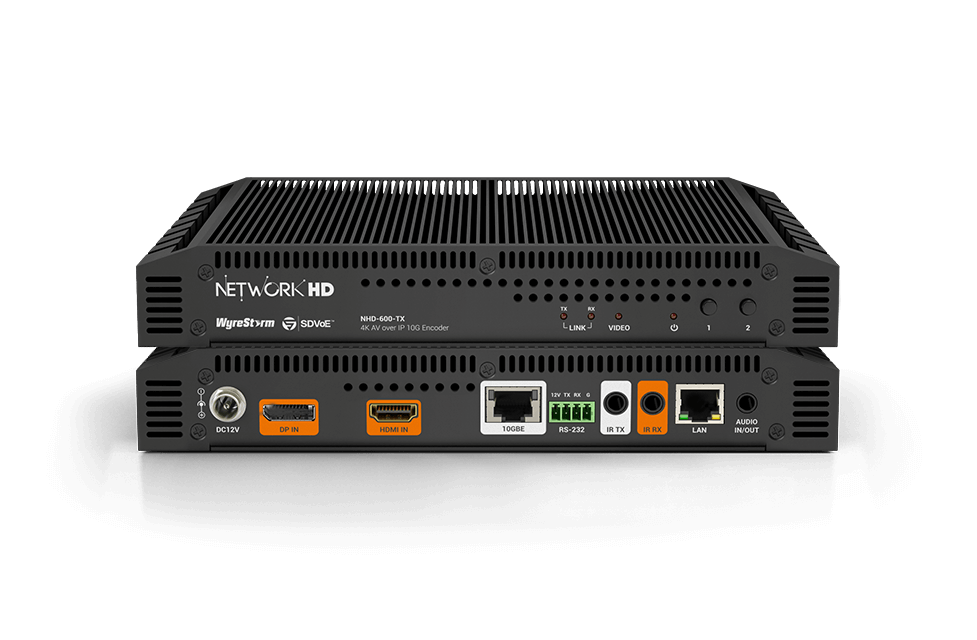

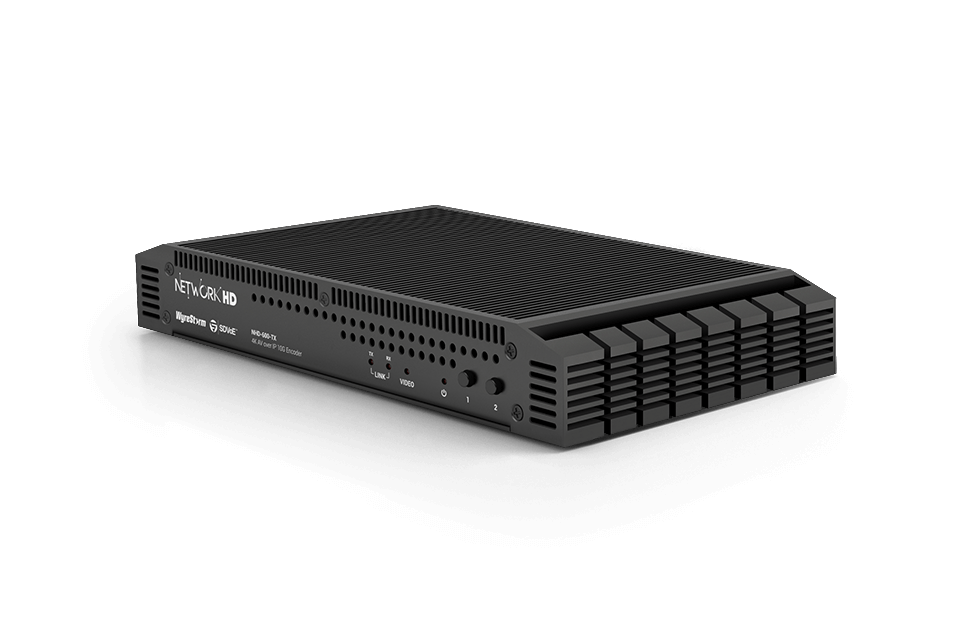

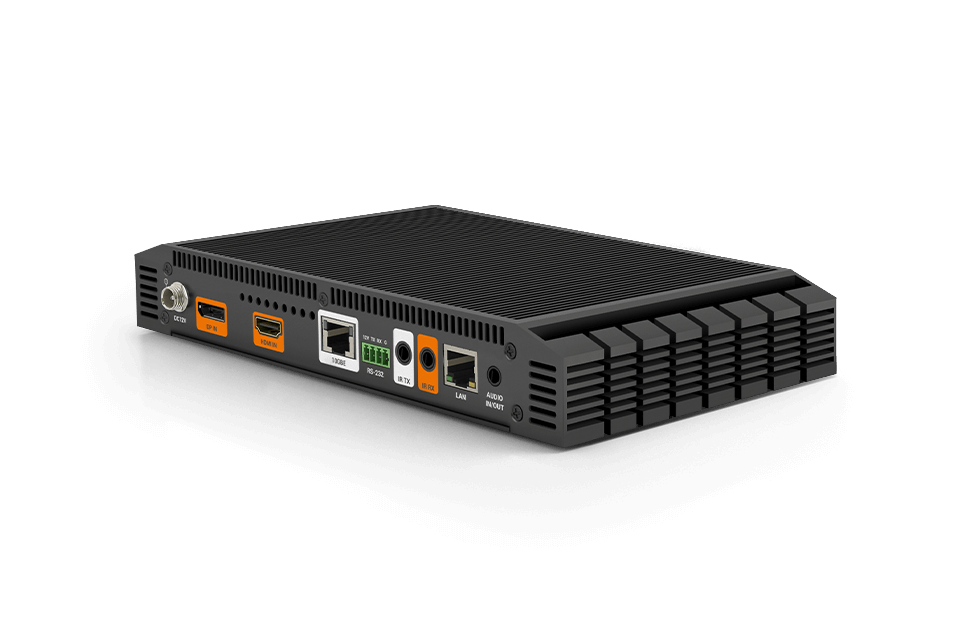

WyreStorm NHD-600-TX — NetworkHD 600 Series 4K HDR Premium AV over IP SDVoE Encoder
DISCONTINUED The NetworkHD Premium AV over IP SDVoE Encoder offers the ultimate AV over IP platform. Supporting highly scalable, high-bandwidth, secure video content alongside multi-channel audio and a plethora of connectivity and control options the 10GbE system is easily managed in a flexible, unified software environment.?Utilizing the SDVoE technology standard, truly lossless and latency-free
| Marka | WyreStorm |
|---|---|
| Model | NHD-600-TX |
| Inputs | 1x DP In: DisplayPort 1.31x HDMI In: 19-pin type A1x Audio In/Out: 3.5mm (1/8in) TRS Stereo |
| Outputs | 1x 10GbE: 8-pin RJ-45 Female1x Audio In/Out: 3.5mm (1/8in) TRS Stereo |
| Audio Formats | 2ch PCM, Multichannel: LPCM and Up to DTS-X and Dolby Atmos |
| Output Video Encoding | SDVoE |
| Encoding Data Rate | Max: 10Gb/s |
| End to End Latency (Max) | Genlock Mode: Uncompressed = 30us, Compressed <120usFast Switch Mode: 1~2 video frames = min. between 16.7 ?C 33.4ms @ 60fps |
| Video Resolutions (Max) | 4096 x 2160p @60Hz |
| Color Depth | 1080p 12bit2160 12bit 4:2:0 Dolby Vision2160 10bit 4:2:2 HDR10, HDR10+, HLG2160 8bit 4:4:4 Non-HDR |
| Maximum Pixel Clock | 595 MHz |
| 3D | HDMI 1.4b 3D: TnB, SbS, F.P |
| HDMI | HDMI, HDCP 2.2 |
| Ethernet | 1x 10Gbe SDVoE: 8-pin RJ-45 Female 10GBaseT, 1x LAN: 8-pin RJ-45 female 1000BaseT |
| RS-232 | 1x RS-232: 4-pin Phoenix Connector, 2 Way, Broadcast, Routed, API Programmable |
| IR | 1x IR TX: 3.5mm (1/8in) TS Mono Jack, 2 Way, Broadcast, Routed, API Programmable1x IR RX: 3.5mm (1/8in) TRS Stereo Jack 2 Way, Broadcast, Routed, API Programmable |
| Power Supply | 12V DC 3A |
| Max Power Consumption | TX: 15.24W, RX: 18.64W |
| Operating Temperature | +32°F ~ +104°F (0°C ~ +45°C), 10% ~ 90% non-condensing |
| StorageTemperature | -4°F to ~ 140°F (-20°C ~ +70°C), 10% ~ 90% non-condensing |
