DISCONTINUED The NHD-400-DNT-TX encoder offers stunning 4K HDR video, multichannel audio support and video resolution scaling to seamlessly handle mixed resolution HDMI sources for matrix and video wall functionality. Equipped with a Dante audio encoder the 400 Series embraces the flexibility of standardized audio distribution. Featuring incredible low latency the 400 Series is the ideal AV over IP solution for systems where high quality and low delay are key requirements, making it perfect for demanding commercial applications. The NHD-400-DNT-TX JPEG 2000 encoder is intended for use with any 400 Series JPEG 2000 decoder (sold separately) to provide a complete end-to-end video distribution system. When used in conjunction with Dante compatible audio equipment the 400 Series can distribute source HDMI or analog audio throughout an installation.
WyreStorm NHD-400-DNT-TX — NetworkHD 400 Series 4K AV over IP JPEG 2000 Encoder with Dante
DISCONTINUED The NHD-400-DNT-TX encoder offers stunning 4K HDR video, multichannel audio support and video resolution scaling to seamlessly handle mixed resolution HDMI sources for matrix and video wall functionality. Equipped with a Dante audio encoder the 400 Series embraces the flexibility of standardized audio distribution. Featuring incredible low latency the 400 Series is the ideal AV over I
| Marka | WyreStorm |
|---|---|
| Model | NHD-400-DNT-TX |

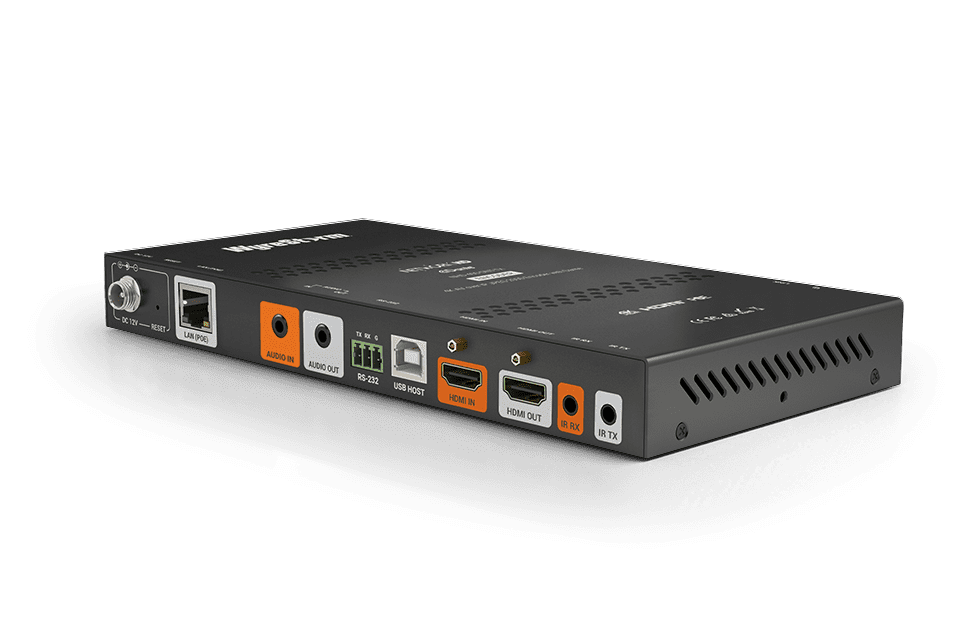

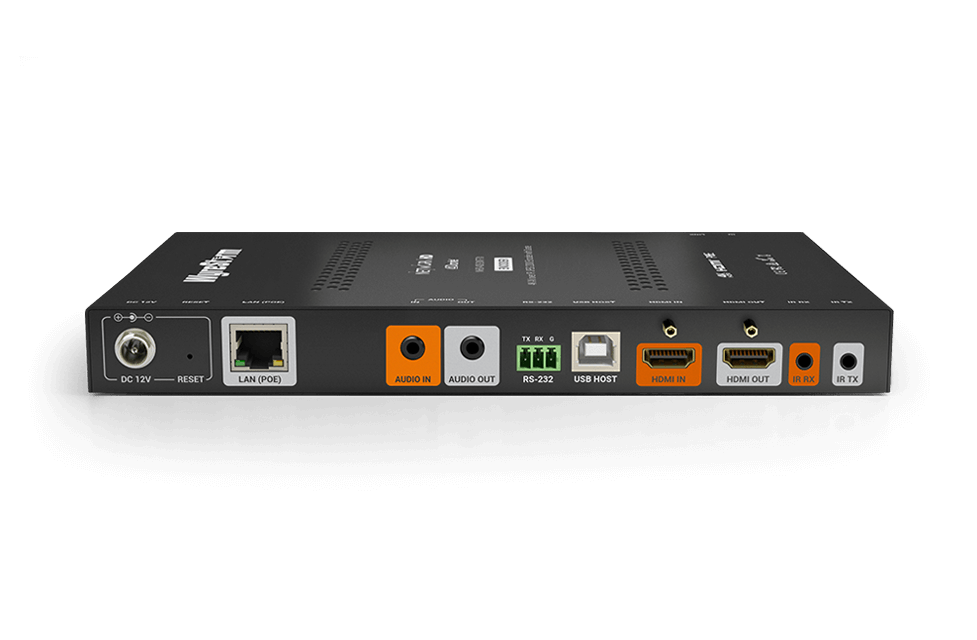

| Inputs | 1x HDMI In: 19-pin HDMI Type A Receptacle 1x Audio In: 3.5mm TRS Stereo Jack Socket 1x IR RX: 3.5mm TRS Jack Socket |
| Outputs | 1x LAN (PoE): 8P8C “RJ45” Socket ANSI/TIA-568 1x Audio Out: 3.5mm TRS Stereo Jack Socket 1x USB Host: USB 2.0 Type B Receptacle 1x RS-232: 3-pin Phoenix 1x IR TX: 3.5mm TS Jack Socket |
| Transmission Encoding | Proprietary stream encoding. Video compression based on JPEG 2000 Dante / AES67 compliant audio stream encoding |
| End to End Latency | With RX, 1 video frame (Passthrough mode) 2 video frames (scaling/video wall) e.g. 16ms @ 60Hz |
| Max Transmission Bit Rate | 850Mb/s |
| HDMI | 300MHz Max. TMDS Clock |
| Maximum Data Rate | 8.91Gb/s HDMI |
| Supported Standards | HDR10, HLG, BT.2020, BT.709, 3D Video |
| Audio Formats | PCM up to 8ch, Bitstream audio formats including Dolby Atmos & DTS:X2ch Analog Dante: Up to 2ch PCM (HDMI), 2ch Analog |
| Ethernet | IEEE 802.1ab 1000BASE-T |
| HDCP | HDCP 2.2, 1.x |
| EDID | Programmable EDID, EDID Copy/Import, Custom EDID |
| RS-232 | Programmable RS-232 Commands, Custom Command Generation (RX Only) |
| IR | Custom Command Generation |
| Dante | Full compatibility with Audinate control and management software tools for Dante |
| Power Over Ethernet | IEEE 802.3af (15.4W at PSE) |
| External Power Supply | Optional part: PSU-12V-1A |
| Nominal Power Consumption | 8W |
