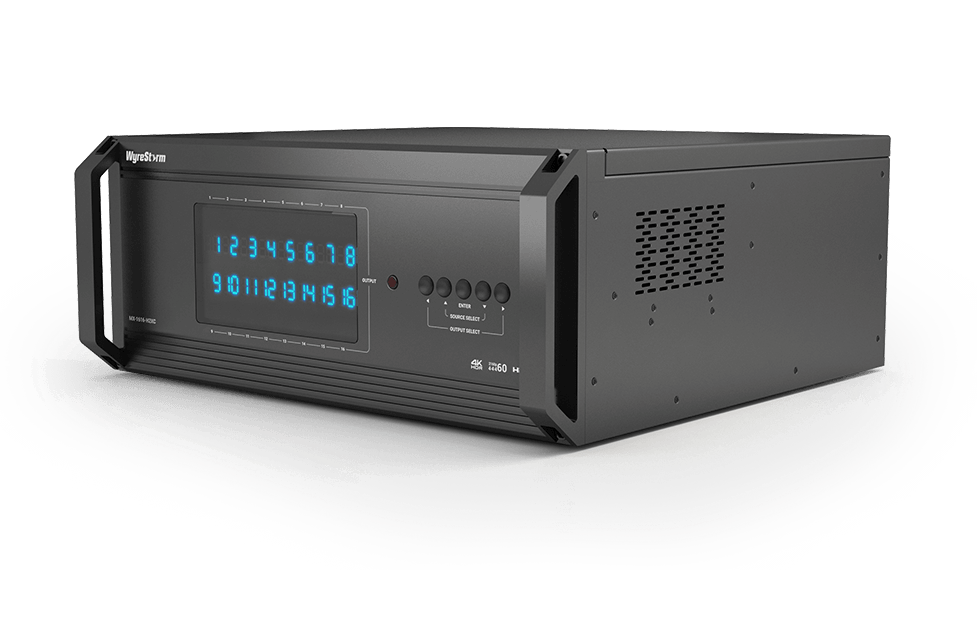

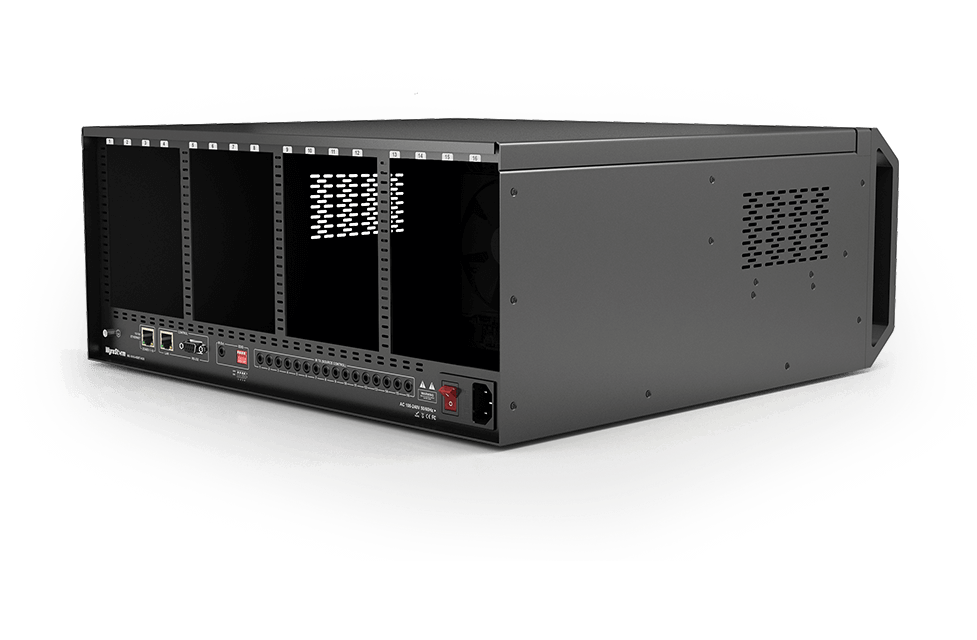

WyreStorm MX-1616-H2XC — 16 Slot 18Gbps 4K HDR Modular Matrix Switch Chassis
DISCONTINUED Because the H2X platform packs such a big punch with its standalone version, it wouldn’t be sensible to not offer a modular version. Much like the 2K 16×16 modular matrix, WyreStorm takes custom AV distribution and control to new heights with the H2XC platform. The H2XC platform gives integrators the utmost in switching and flexibility; for large projects that demand the latest in 4K
| Marka | WyreStorm |
|---|---|
| Model | MX-1616-H2XC |
| Inputs | Up to 16x HDMI In: 19-pin type A Up to 16x HDBaseT™ In 8-pin RJ-45 female Up to 16x S/PDIF In Coaxial Digital |
| Outputs | Up to 16x HDBaseT Out 8-pin RJ-45 female Up to 16x HDMI Out 19-pin type A (Mirrors HDBaseT™) Up to 16x Optical Out: SFP+ Up to 16x S/PDIF Out Coaxial Digital Up to 16x Audio Out 3pin Phoenix Connector |
| Output Video Encoding | HDBaseT™ Class A 5-Play |
| Encoding Data Rate | 9.2Bbps |
| End to End Latency | 10µs (micro seconds) |
| Audio Formats | S/PDIF: 2ch PCM, Multichannel: Up to 5.1 DTS and Dolby Digital HDMI: 2ch PCM, Multichannel: LPCM and Up to DTS-X and Dolby Atmos |
| Video Resolution (Max) | 1920x1080p @60Hz 12bit 1920x1200p @60Hz 16bit 3840x2160p @24Hz 10bit 4:2:0 HDR 3840x2160p @30Hz 8bit 4:4:4 3840x2160p @24Hz 10/12bit HDR 4:2:0 4096x2160p @60Hz 8bit 4:2:0 4096x2160p @60Hz 8bit 4:4:4 Long Cable Mode Forced Resolution: 1920x1080p @60Hz 12bit |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision, HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | HDMI: 600mHz, HDBaseT™: 297MHz |
| HDMI | HDMI, HDCP 2.2, EDID, DVI/D supported with adapter (not included) |
| HDBaseT | HDMI, HDCP 2.2, EDID, ARC, 1-way PoH to Receiver, Bidirectional IR and Ethernet |
| Ethernet | 1x 8-pin RJ-45 female, Web UI, IP Control, Bidirectional over HDBaseT™ |
| IR | 1x IR Ext – 3.5mm (1/8in) TRS Stereo, Matrix Control10x IR RX – 3.5mm (1/8in) TRS Stereo, 10x IR TX – 3.5mm (1/8in) TS MonoTransmits to Over HDBaseT™ |
| RS-232 | Bidirectional over HDBaseT, Matrix Control, Firmware Updates |
| Audio Return Channel (ARC) | Supported |
| Power Supply | 100~240V AC 50/60Hz |
| PoH | 48V, Each HDBT Outputs: 15.4W, All Outputs: 95W |
| Max Power Consumption | Default Configuration: 200W Note: Power Consumption increases by +11W for each optional TX-H2X-HDBT card installed. Max of 6 TX-H2X-HDBT cards can be used within a single matrix when using PoH. |
