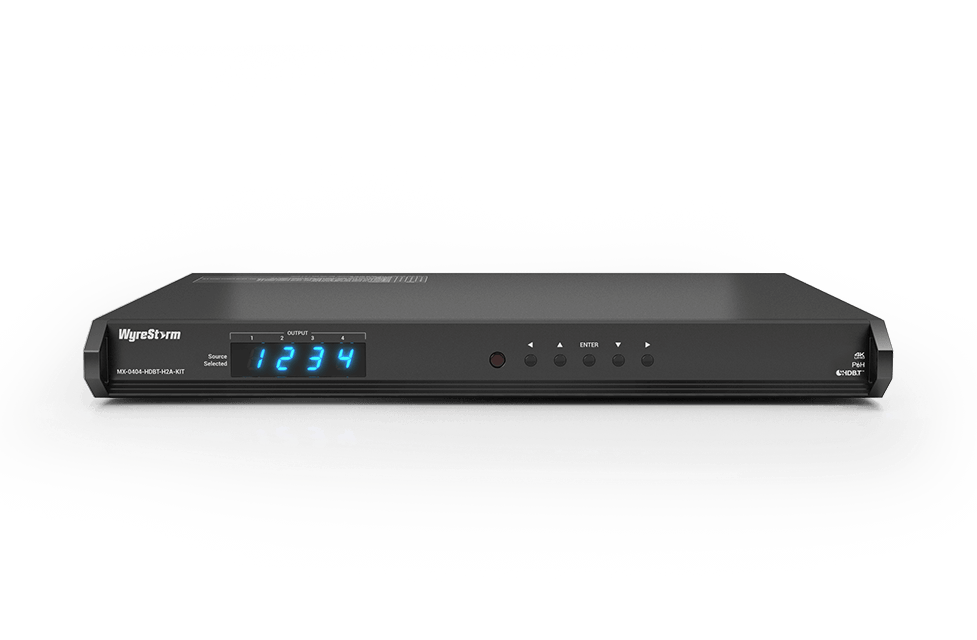

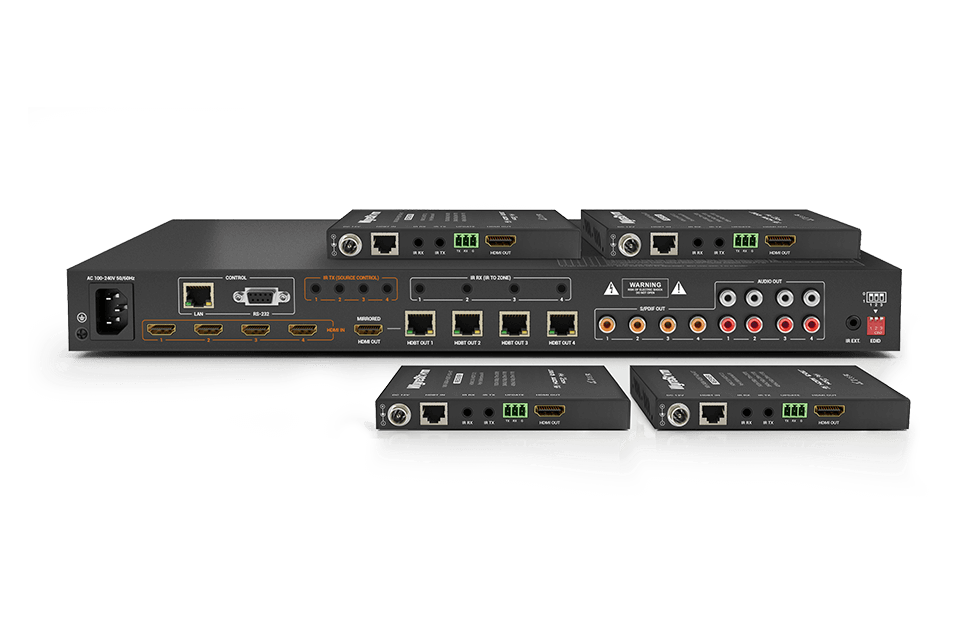

WyreStorm MX-0404-HDBT-H2A-KIT — 4K 4×4 HDBaseT Matrix with Receivers
DISCONTINUED The latest in WyreStorm’s 4×4 H2 matrix + PoH receiver kit line gets an audio upgrade in the form of the MX-0404-HDBT-H2A-KIT for 4K distribution with CEC triggering of connected screens and enhanced audio fit for the modern home. This kit also lets you do even more with your audio with internal audio switching allowing de-embedded audio from sources or HDBaseT outputs and 4x S/PDIF a
| Marka | WyreStorm |
|---|---|
| Model | MX-0404-HDBT-H2A-KIT |

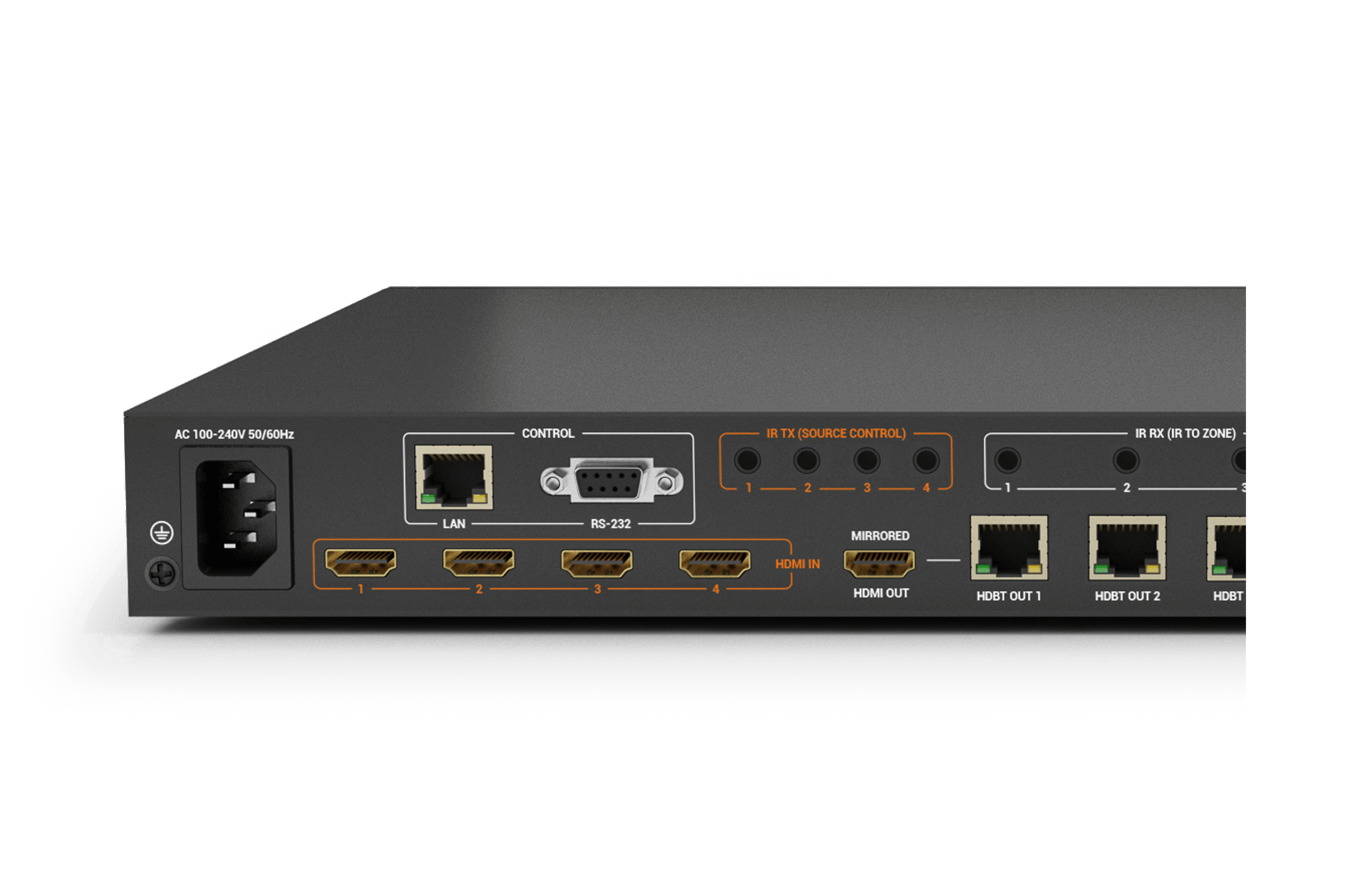

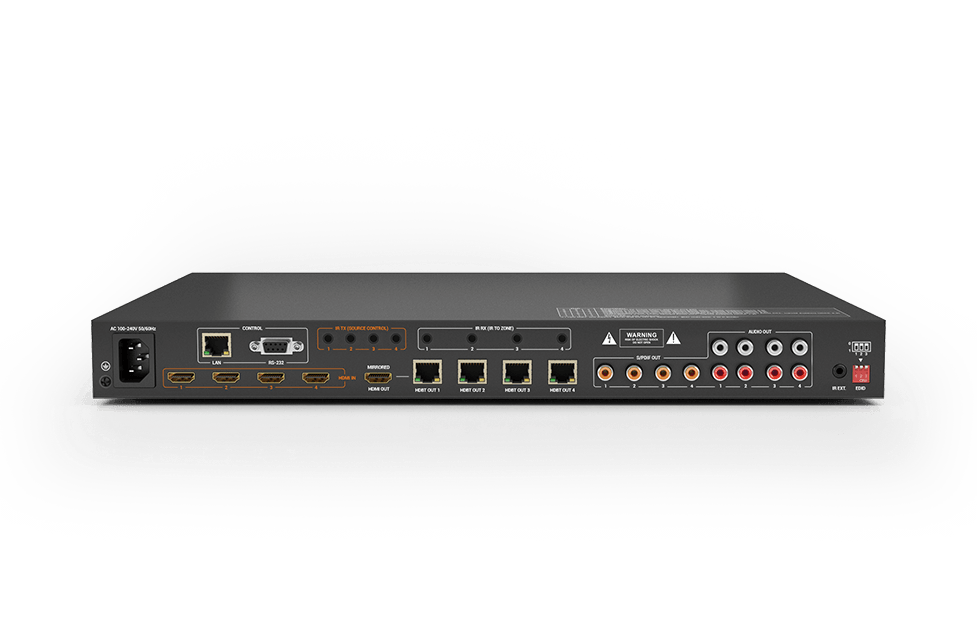

| Inputs | 4x HDMI 19-pin type A female 1x HDBaseT™ 8-pin RJ-45 female |

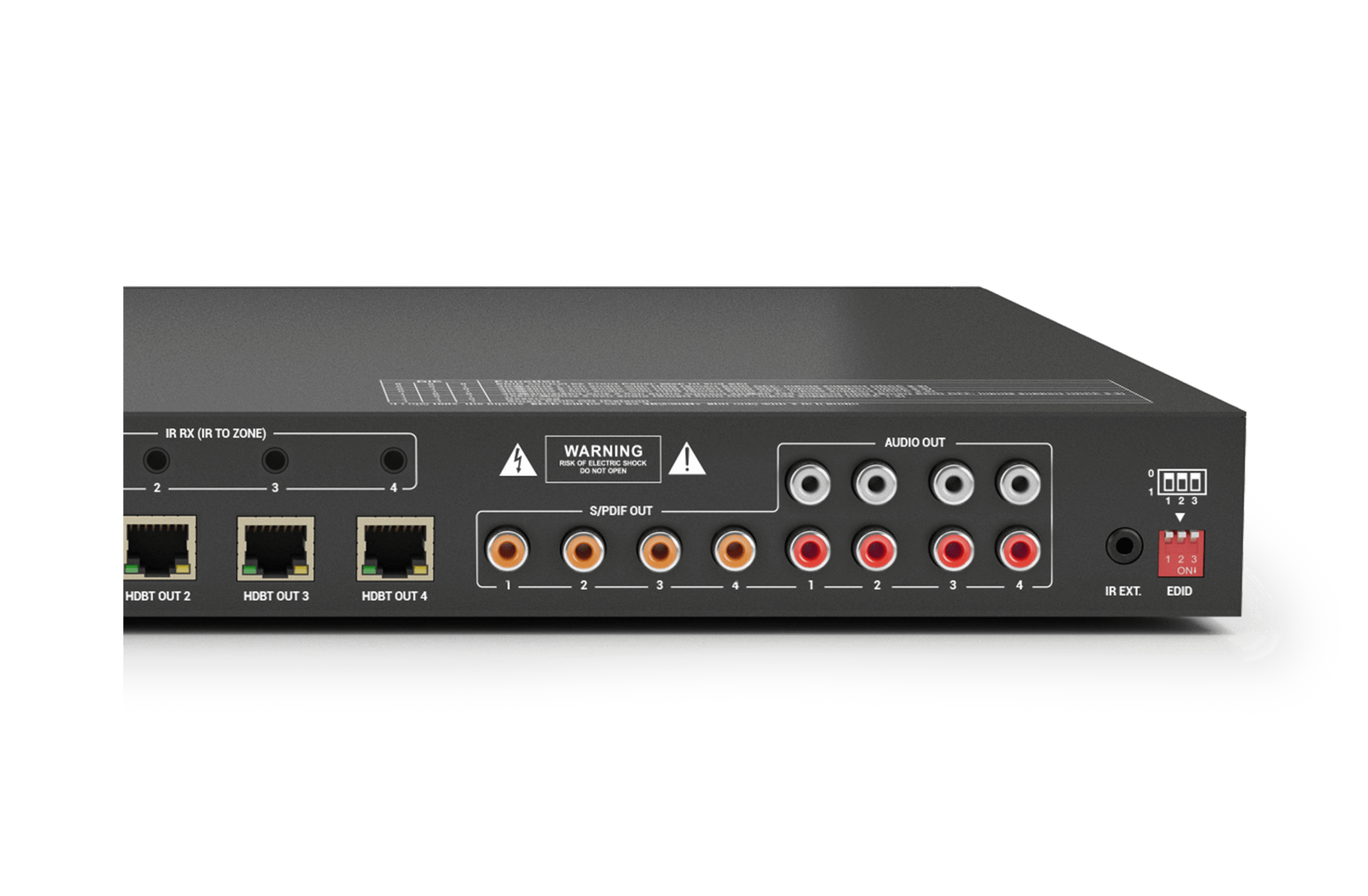

| Outputs | 4x HDBaseT™ 8-pin RJ-45 female 4x S/PDIF Out RCA Digital Coax, 4x Audio Out Stereo Pairs RCA Analog Coax ( Audio Source or HDMI Output) 1x HDMI 19-pin type A female |
| Audio Formats | 2ch PCM, Up to 7.1 DTS-HD Master Audio and Dolby TrueHD |
| Color Depth | 1080p: 16bit, 4K UHD: 8bit, HDR @24p: 10bit BT.2020 |
| Maximum Pixel Clock | HDMI: 600MHz, HDBaseT™: 297MHz |
| HDMI | HDMI, HDCP 2.2, EDID, CEC, DVI/D supported with adapter (not included) |

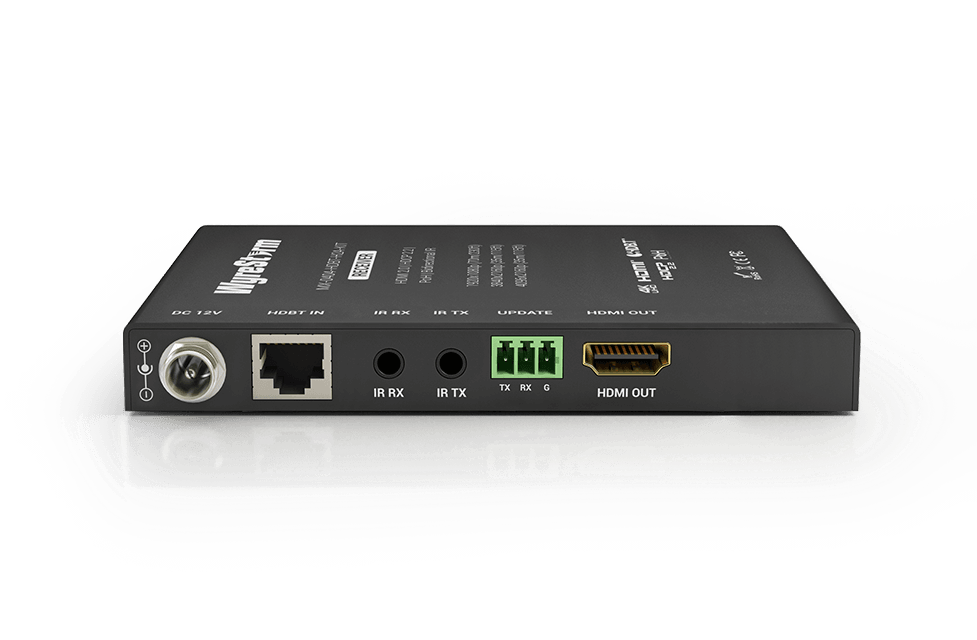

| HDBaseT™ | HDMI, HDCP 2.2, EDID, CEC, 1-way PoH to receiver, Bidirectional IR |
| Ethernet | Matrix Only: 1x 8-pin RJ-45 female, 10/100 Mbps auto-negotiating, Built-in Web UI, IP Control |
| RS-232 | Matrix Only: 1x 9-pin DB9 Female, Matrix Control (Telnet commands supported) |
| IR | 1x Front Panel IR Sensor, 1x IR Ext 3.5mm (1/8in) TRS Stereo, Matrix Control 4x IR TX 3.5mm (1/8in) TS Mono, 4x IR RX 3.5mm (1/8in) Stereo, Transmits via HDBaseT™ 1x IR TX 3.5mm (1/8in) TS Mono, 1x IR RX 3.5mm (1/8in) Stereo, Transmits via HDBaseT™ |
| Power Input | 100~240V AC 50/60Hz |
| PoH | 48V 15.4W (each HDBaseT™ output) |
| Max Power Consumption | 70W |
| Operating Temperature | 32°F ~ 113°F (0°C ~ 45°C) 10% ~ 90%, non-condensing |
| Storage Temperature | -4°F to ~ 158°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing |
| Maximum BTU | 239 BTU/hr |
| Rack Units/Wall Box | 1U 0.34U |
| Height With | Without Feet | 53mm/2.02in, 43.5mm/1.72in N/A, 15mm/0.6in |
