DISCONTINUED An established leader in AV matrix solutions, WyreStorm introduces an 8×8 form factor as a convenient kit for the first time. Offering transmission of HDMI content up to 4K UHD & HDR content to 35m/115ft, pairing HDBaseT with WyreStorm’s powerful crosspoint HDMI switching chipset. The EXP-MX-0808-KIT has 6 HDBaseT zone outputs with PoH and 2 switched HDMI outputs which can be paired with WyreStorm’s HAOC hybrid optical HDMI cables or any extender for transmission via HDBaseT or OM3 fiber. The EXP-MX-0808-KIT doesn’t stop there, offering zone audio breakout via S/PDIF, CEC triggering for all connected screens and the A/V mute function enhances the offering for the modern home or commercial installation.
Discontinued Products, Matrix Switchers

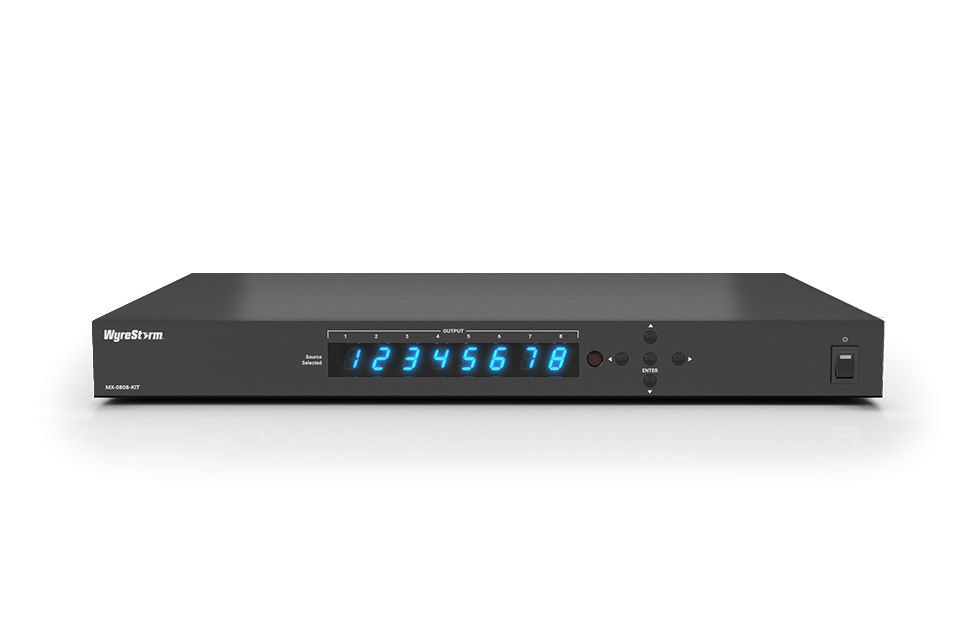

WyreStorm EXP-MX-0808-KIT — 4K 8×8 HDBaseT Matrix with Receivers
DISCONTINUED An established leader in AV matrix solutions, WyreStorm introduces an 8×8 form factor as a convenient kit for the first time. Offering transmission of HDMI content up to 4K UHD & HDR content to 35m/115ft, pairing HDBaseT with WyreStorm’s powerful crosspoint HDMI switching chipset. The EXP-MX-0808-KIT has 6 HDBaseT zone outputs with PoH and 2 switched HDMI outputs which can be paired w
| Marka | WyreStorm |
|---|---|
| Model | EXP-MX-0808-KIT |
| Inputs | 8x HDMI In: 19-pin type A 1x HDBT In: 8-pin RJ-45 Female |

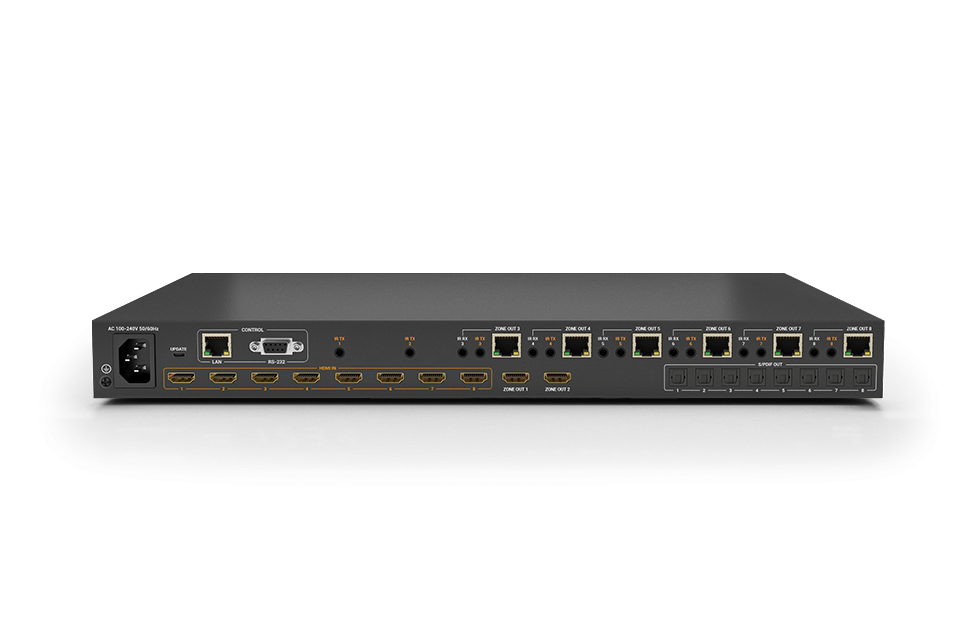

| Outputs | 8x Optical Audio Out: Toslink Female 6x HDBT Out: 8-pin RJ-45 Female 2x Switched HDMI Out: 19-pin type A 1x HDMI Out: 19-pin type A |
| Output Video Encoding | HDBaseT™ Class B |
| Encoding Data Rate | 9.2Gbps |
| End to End Latency | 10μs (micro seconds) |
| Audio Formats | HDMI/HDBaseT: 2ch LPCM, Multichannel up to Dolby Atmos and DTS-X S/PDIF: 2ch LPCM, Dolby Digital/DTS up to 5.1ch Analog: 2ch Analog |
| Supported Standards | DCI (4096×2160), RGB, HDR, HDR10, Dolby Vision up to 30Hz, HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | HDBaseT: 340MHz |
| HDMI | HDMI 2.0, HDCP 2.2, EDID, CEC, DVI/D supported with adapter (not included) |
| HDBaseT | HDMI 2.0, HDCP 2.2, EDID, CEC, 1-way PoH, Bidirectional IR |
| CEC | CEC power triggering for connected screens ?C Requires CEC compatibility |

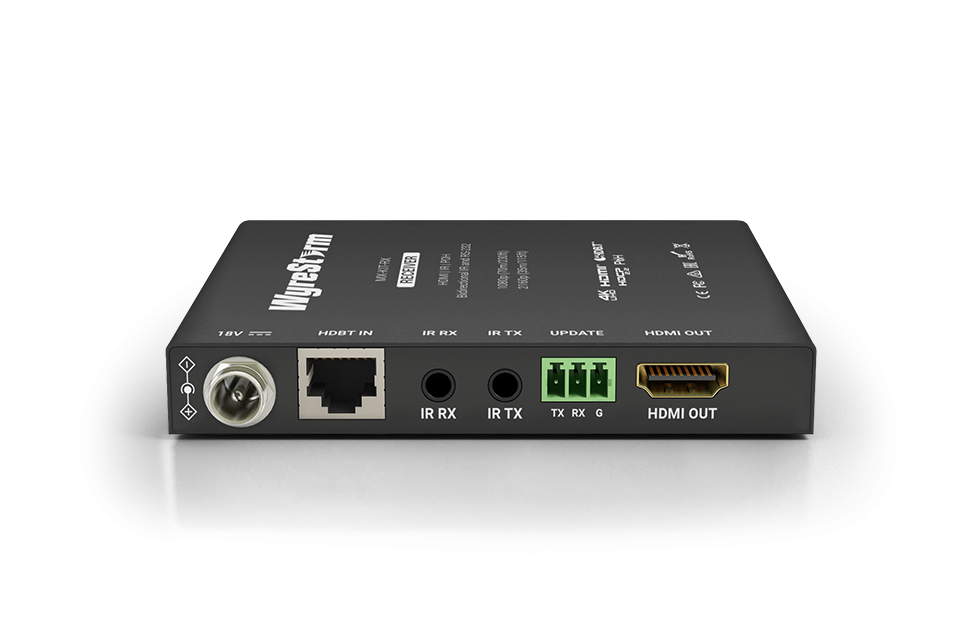

| IR | 6x IR RX: 3.5mm (1/8in) TRS Stereo 8x IR TX: 3.5mm (1/8in) TS Mono Bidirectional over HDBaseT 1x IR TX: 3.5mm (1/8in) TS Mono 1x IR RX: 3.5mm (1/8in) TRS Stereo Bidirectional over HDBaseT |
| RS-232 | 1x RS-232: 9-pin DB9 Female (matrix only) 1x RS-232: 3-pin Terminal Block – 3.5mm (update only) |
| Ethernet | 1x LAN: 8-pin RJ-45 Female N/A |
| Power Supply | 100~240V AC 50/60Hz 18V DC (Optional) |
| PoH | 1-way Matrix to Receiver |
| Max Power Consumption | 109.5W 4.5W with External PSU 5W via PoH |
| Operating Temperature | 32°F ~ 113°F (0°C ~ 45°C) 10% ~ 90%, non-condensing |
