DISCONTINUED The WyreStorm EXP-MX-0404-H2 is a powerful plug and play 4K matrix switcher solution. With 18Gbps pure HDMI support, the EXP-MX-404-H2 allows up to four UHD 4K sources to be independently routed to four UHD displays. Each Output has the capability to scale 4K content down to connected 1080p displays without affecting the 4K source. Furthermore, source audio breakout via digital coax supports to 5.1, which can be sent to an AVR for audio distribution. Additionally, the EXP-MX-0404-H2 boasts an enhance API, giving the user full control over RS-232 or IP. Lastly, the EXP-MX-0404-H2 supports automatic and time delayed CEC, powering displays on when a new source is detected and off when source sink isn’t present, making the EXP-MX-0404-H2 a powerful, complete solution.

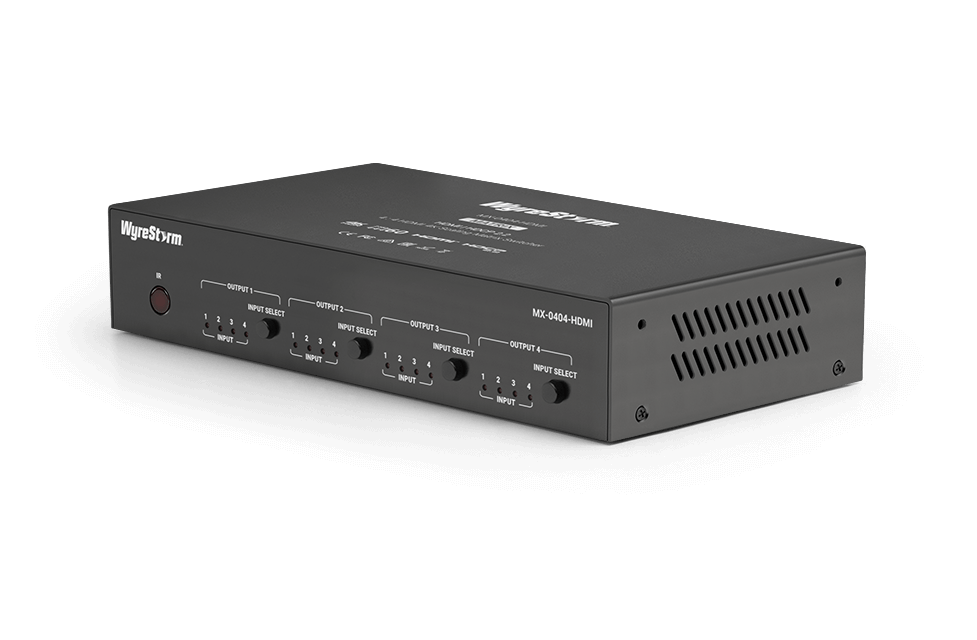

WyreStorm EXP-MX-0404-H2 — WyreStorm Essentials 4 Input and 4 Scaling Output 4K HDR HDMI Matrix Switcher W/ Digital S/PDIF Audio De-Embed
DISCONTINUED The WyreStorm EXP-MX-0404-H2 is a powerful plug and play 4K matrix switcher solution. With 18Gbps pure HDMI support, the EXP-MX-404-H2 allows up to four UHD 4K sources to be independently routed to four UHD displays. Each Output has the capability to scale 4K content down to connected 1080p displays without affecting the 4K source. Furthermore, source audio breakout via digital coax s
| Marka | WyreStorm |
|---|---|
| Model | EXP-MX-0404-H2 |
| Inputs | 4x HDMI In 19-pin HDMI type A |

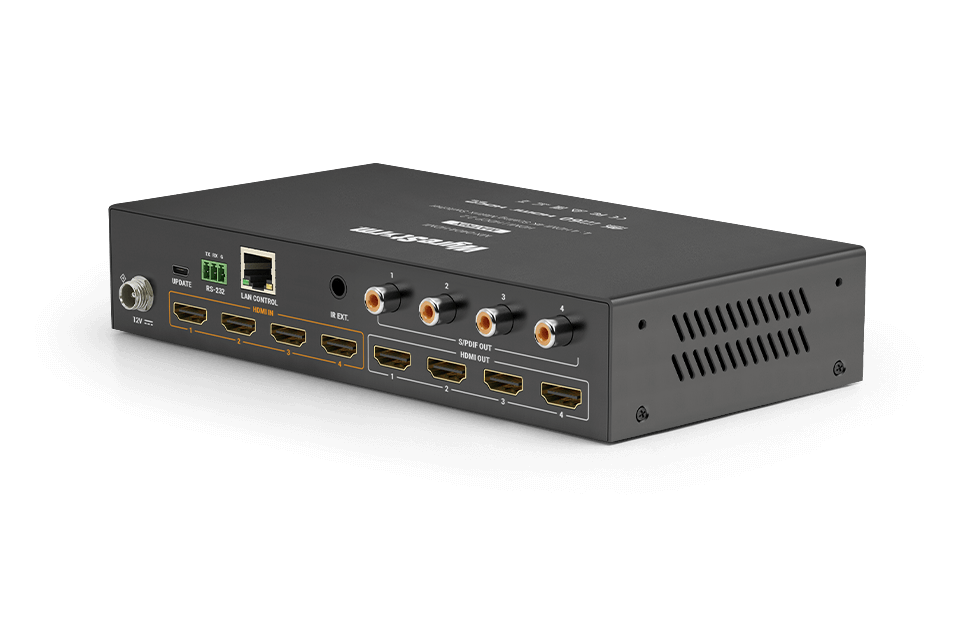

| Outputs | 4x HDMI Out 19-pin HDMI type A, 1x IR Extension, 1x S/PDIF Coaxial |
| Audio Formats | HDMI: 2ch PCM, Multichannel: LPCM and up to DTS-X and Dolby Atmos Coaxial: 5.1ch surround sound |
| Video Resolutions (Max) | Video Resolutions 1920x1080p @60Hz 12bit 1920x1080p @60Hz 16bit 3840x2160p @24Hz 10bit 4:2:0 HDR 3940x2160p @30Hz 8bit 4:4:4 3840x2160p @60Hz 10bit 4:2:0 HDR 4096x2160p @60Hz 8bit 4:2:0 4096x2160p @60Hz 8bit 4:4:4 HDMI 15m/49ft 7m/23ft 5m/16ft 7m/23ft 5m/23ft 7m/23ft 5m/16ft |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision up 30Hz, HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | 600Mhz |
| HDMI | HDCP 2.2, DVI-D supported with adapter (not included) |
| IR | 1x Front Panel Sensor, 1 x IR Ext 3.5mm (1/8in) TRS Stereo, Matrix Control |
| RS-232 | 1x 3-Pin Terminal Block, Matrix Control (Telnet commands supported) |
| Ethernet | 1x LAN: 8-pin RJ-45 Female, 10/100 Mbps auto-negotiating, IP Control |
| Power Supply | 5V DC 2A |
| Max Power Consumption | 10W |
| Operating Temperature | 32°F ~ 113°F (0°C ~ 45°C) 10% ~ 90%, non-condensing |
| StorageTemperature | -4°F to ~ 158°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing |
| Maximum BTU | 17.06 BTU/hr |
| Rack Units/Wall Box | <1U |
| Height | 42mm/1.65in |
| Width | 215mm/8.46in |
